LIQUID STICKPACK SACHET MACHINE WITH FLOWPACK WRAPPER used for ice pops
Description
Item # 8063 – LIQUID STICKPACK SACHET MACHINE WITH FLOWPACK WRAPPER - used to make Ice Pops
COULD BE SOLD SEPARATELY
Manufactured by UNIVERSAL PACK

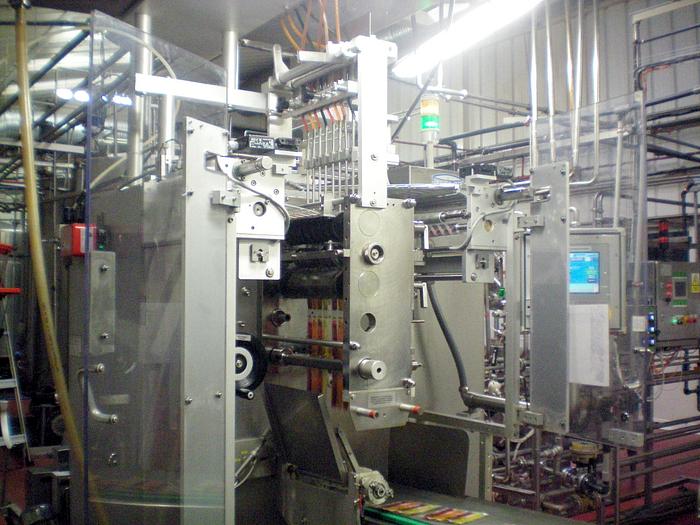

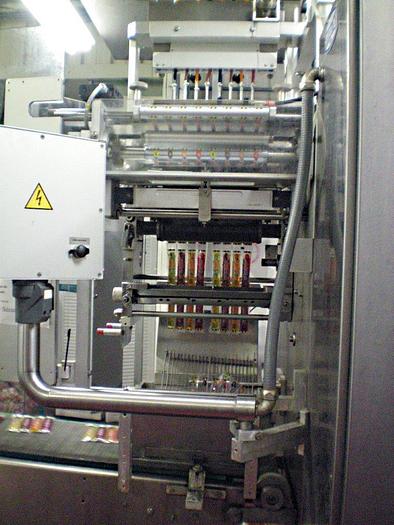

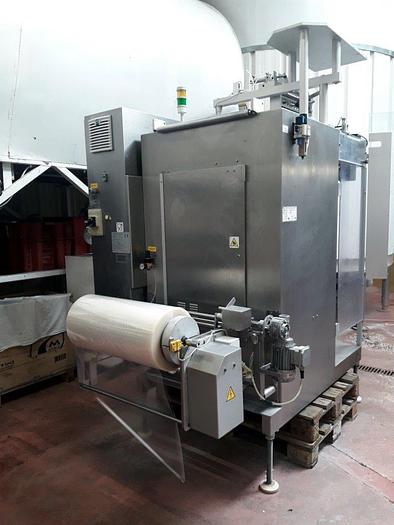

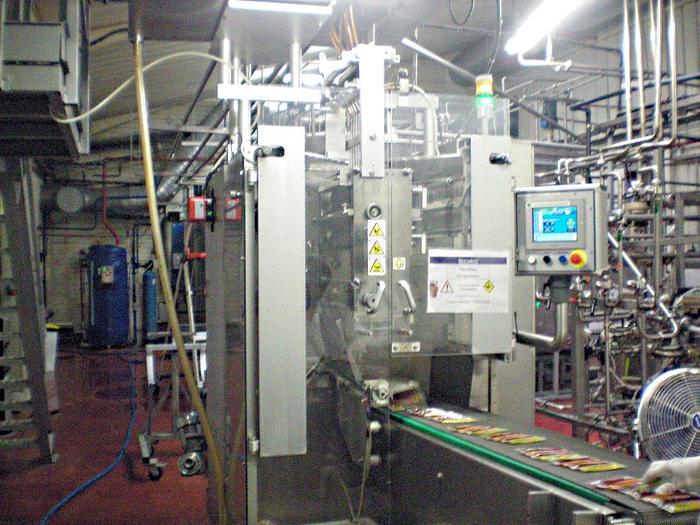

8-Lane Liquid Stickpack Sachet Machine,
Model Gamma-S8L,
currently set up to do “Ice Pops”, currently set up for 36mms wide sachets and 215mms long (40mls) or 252mms long (50mls).
the dosage is gravity, approximately 4.2l / minutes for 2 spindles (1 fragrance)

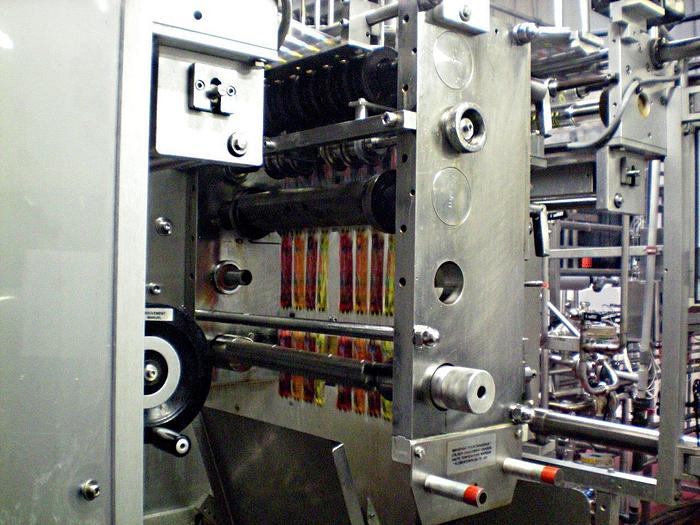

the rotary sealing jaws are welded
there are knives for all channels, 2 types, continuous (individual spindle) or pre-cut group of 4
The width is fixed, the length can be adjusted up to 260mms long.
all stainless steel machine,

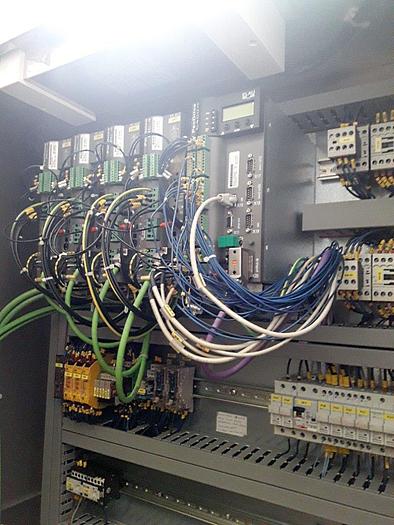

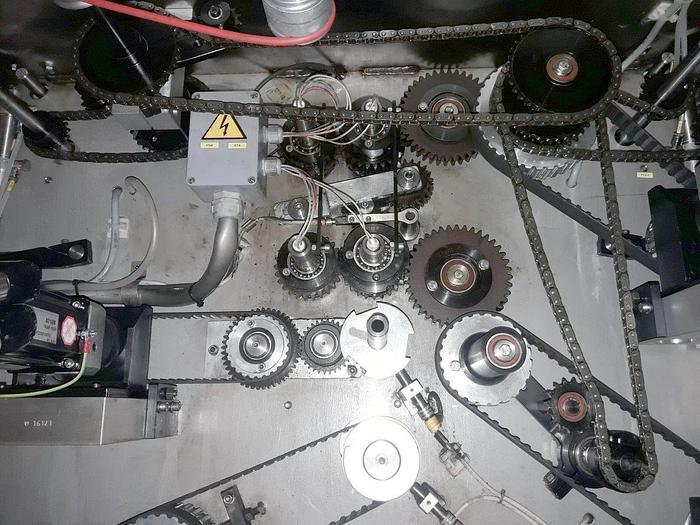

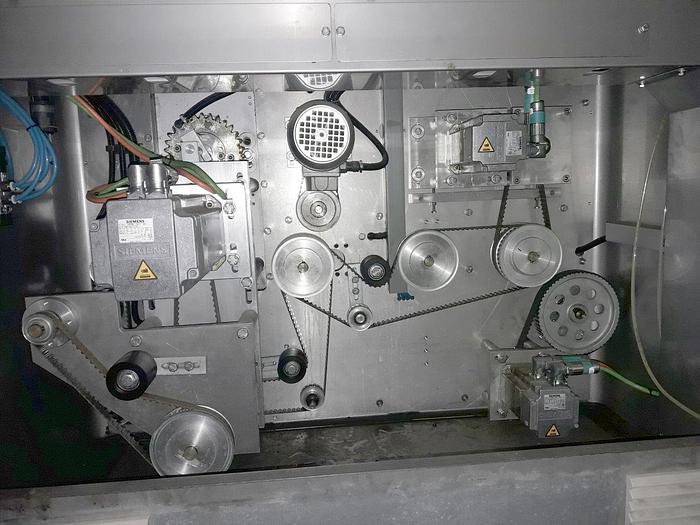

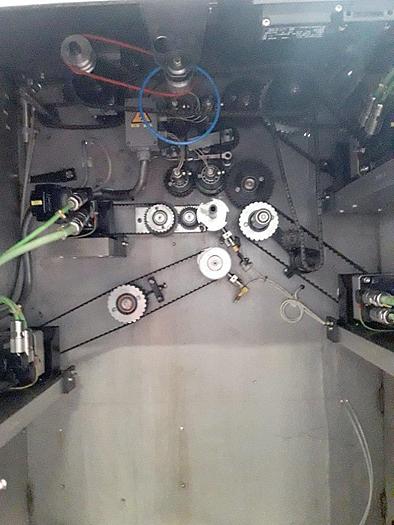

electronic version with “brushless” servo motors,
rated at 40 cycles per minute,

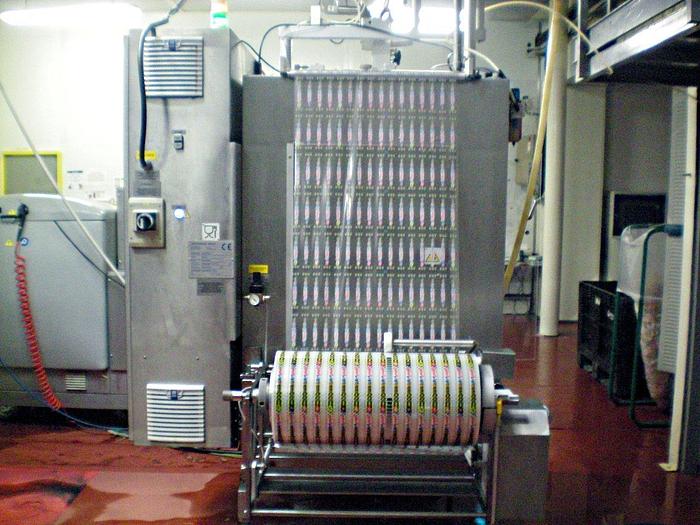

maximum reel diameter of 500mms,

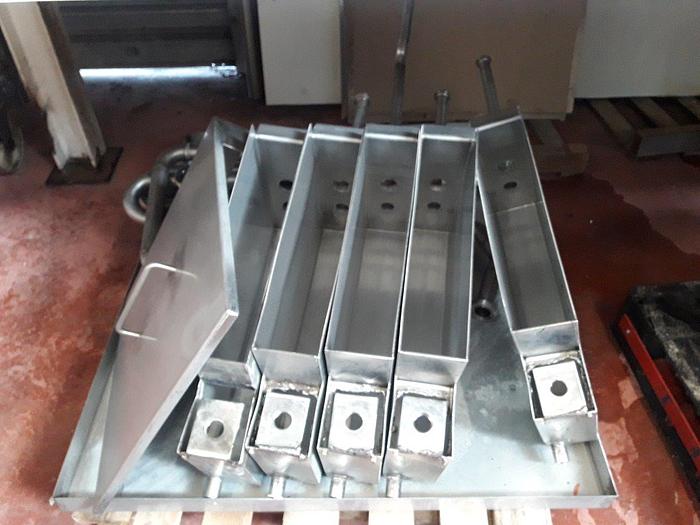

Product loading hopper for 4 x different flavours, volumetric dosing with peristaltic system, dosing from 30 to 60mls.
Produces groups of 4 x sachets, with vertical perforation between each sachet.
Primer & pre-cut device on each sachet to help with opening,
outfeed conveyor for products, machine has previously been overhauled and comes with spare parts and technical documentation

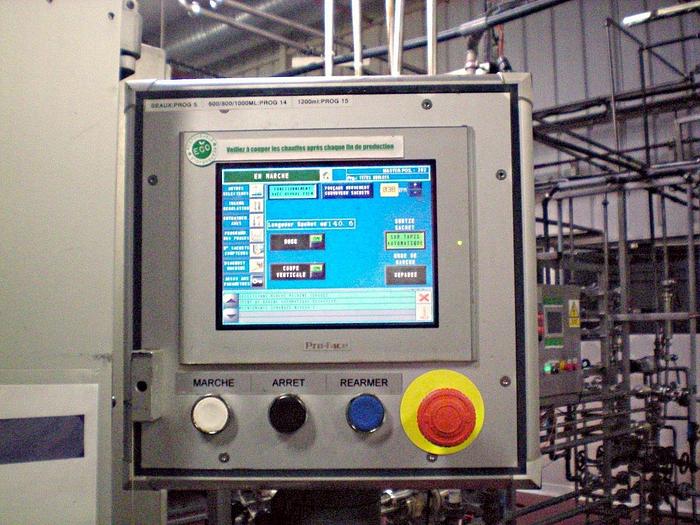

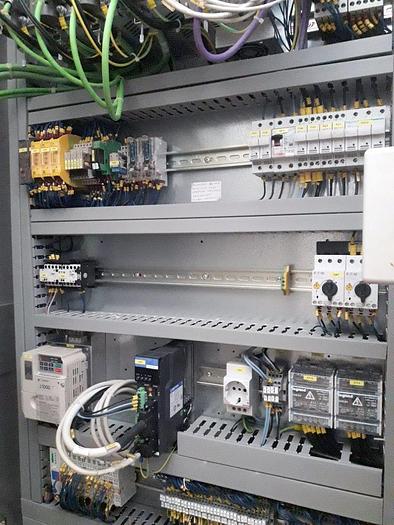

Touch Screen Controls,
400volts, 3phase, 50Hz.
Finished product then feeding into a

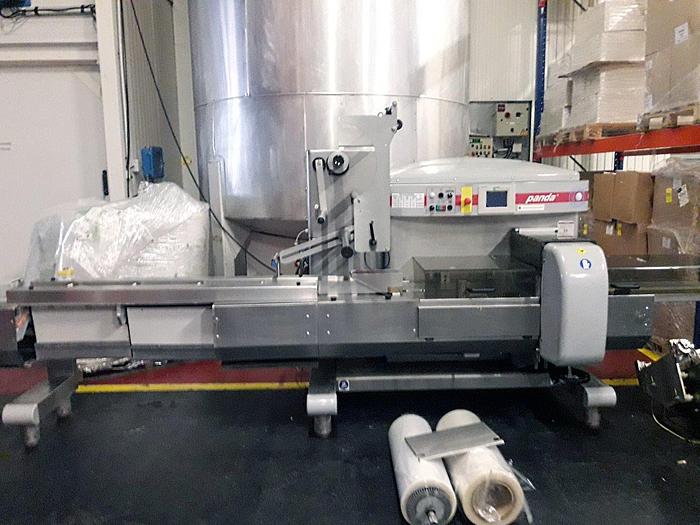

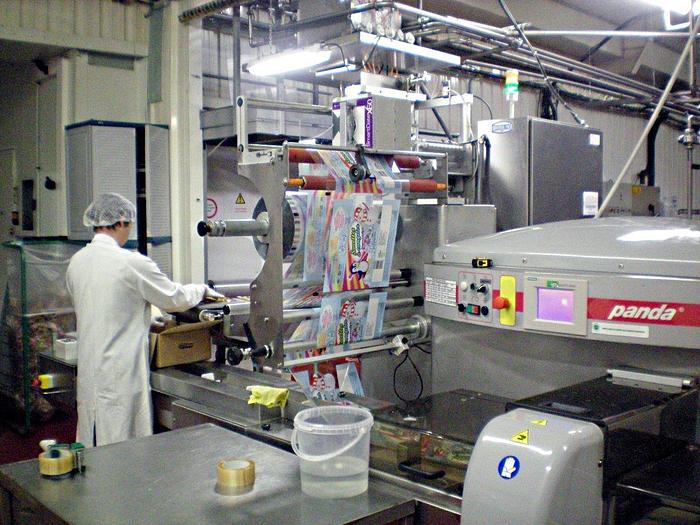

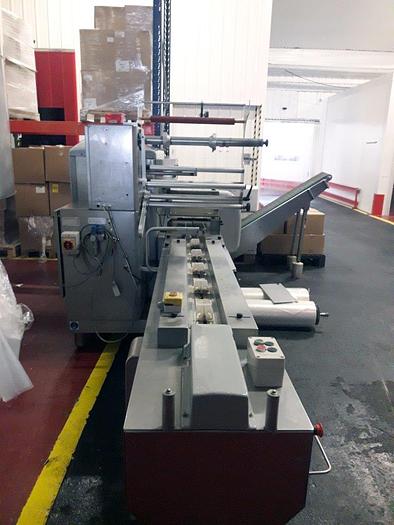

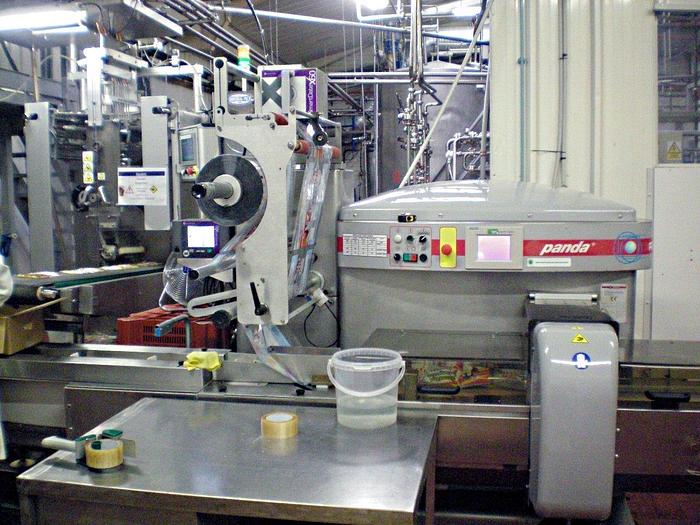

RECORD Panda Flowpack Wrapper, Model Panda ND-ST,
to produce multipacks of “Ice Pops”, used to pack 2,3,4,5 or 6 packs per package.
Specifications
Manufacturer | UNIVERSAL PACK / RECORD |
Model | Gamma 8 S8L |
Condition | Used |
Stock Number | 8063 |
