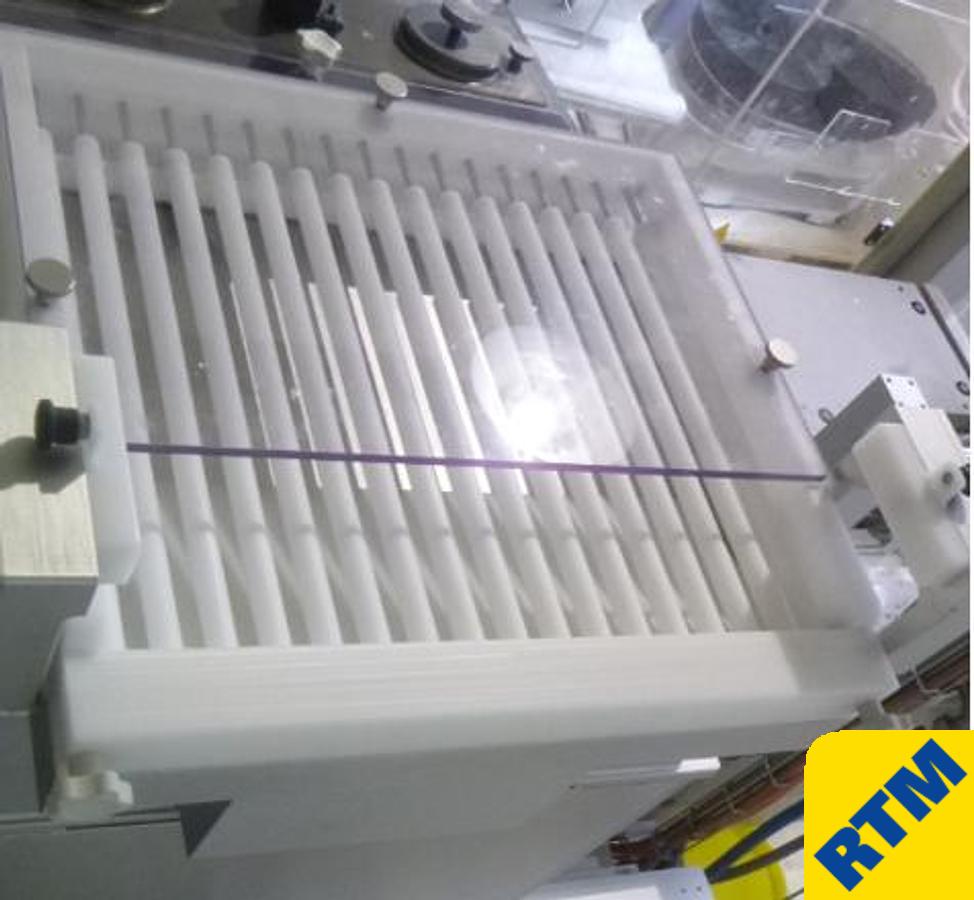

Blister Feeding Unit

Item # 9256 – BLISTER FEEDING UNIT

Manufactured by HMH SYSTEMS AG

Model Sypro Dual 200

Year 2022

only 7500 working hours

This used Sypro Dual 200 basic feeding unit for UPS 3 for continuous or intermittent blister lines (width 700 mm) is being sold due to the purchase of a new system

It features a tablet storage unit with a 500 mm hopper and two conveyor chutes

The first chute conveys products from the hopper, the second chute passes the products between two plates

The lower plate has holes through which the broken pieces fall out

Removable tablet storage hopper

Axes : All axes are controlled by servo motors

The feeder has the following axes : X, Y, across and along the film

Upper and lower pin drives for the separator

Z-stroke, lifting from the film

Control : Machine controlled by Sigmatek RPS. 500 products can be stored with all settings

Four access levels, plus Logging of events

Base unit performance: 60 dispensing cycles/min

Maximum film speed: 20 m/min

Noise level : < 70 dBA.
