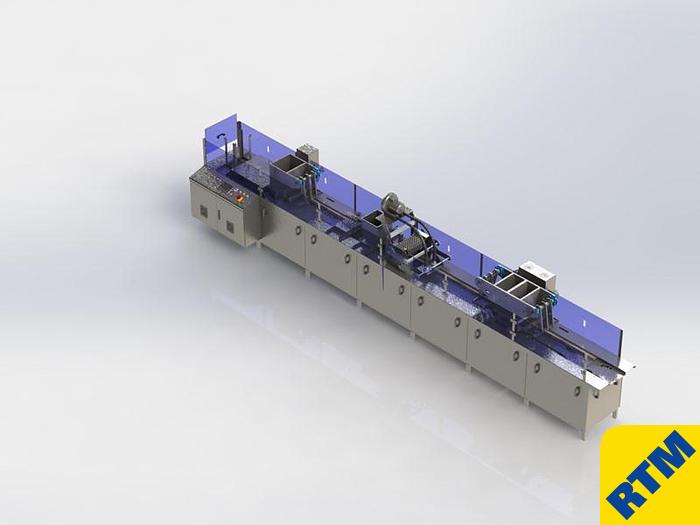

BRAND NEW CHOCOLATE SHELL MOULDING LINE

BRAND NEW CHOCOLATE SHELL MOULDING LINE

Description

BRAND NEW CHOCOLATE SHELL MOULDING LINE

Built to order

Manufactured by MYM Makine (Turkey)

TECHNICAL SPECIFICATIONS

• Chocolate Moulding Line, It consists of the following units:

• Mold loading unit

• Mold heating

• First filling depositor

• Vibration

• First pre-cooling, to adjust the shell thickness.

• Chocolate shell making unit

• Second cooling for chocolate Shell

• Burst brass, filling unit (2 pieces)

• Robot feeding for whole nuts

• Second filling deposit (for cream or jelly)

• Vibration

• Third cooling for cream or jelly

• Heating unit for shell ends.

• The third filling depositor for closing

• Vibration

• Readjustment unit

• Fourth cooling for the final product.

• Empty mould return conveyor.

• Touch screen, with PLC command

• Mold dimensions 325x205x30mm

• Length: 48meters. (24mt Shell, 9-storeyed tunnel) of Capacity varies according to the type of product kg/hour. With PLC and touch screen, products can be prescribed and product weights can be adjusted on the screen. The surfaces of the machine in contact with food and the cowl parts are completely made of Cr-Ni stainless steel. With the hot water tank in our machine, the deposit temperature can be fixed to the desired degree. There are mixers in depositors. Products to be produced; Plain chocolates, cream, jelly, caramel and / or whole hazelnut, burst brass, hazelnut-almond-walnut pieces and filled chocolates and tricolour chocolates can be produced in different weights according to the shape of the mould Tablet, Bar, Neapolitan, Baton, Chocolate, Madlen shapes.

Mechanical warranty for 2 years

Located Turkey


Optional

ONE SHOT DEPOSITING SECTION for moulding line

The One Shot machine is a machine with 2 pairs of depositors for filling

Capacity 13-24 moulds/min

Main Engine Power 1,5 kW

Servo Motor Power 2x1,1 kW

Resistance Power 9 kW

Vibration Mixer Power 3x0,37 kW

Vibration Motor Power 1,1 kW

Total power 15 kW


Specifications

ManufacturerMYM Makine
ConditionNew
