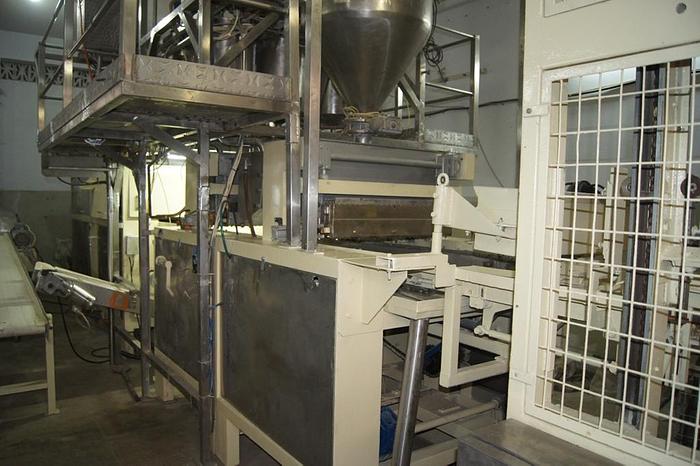

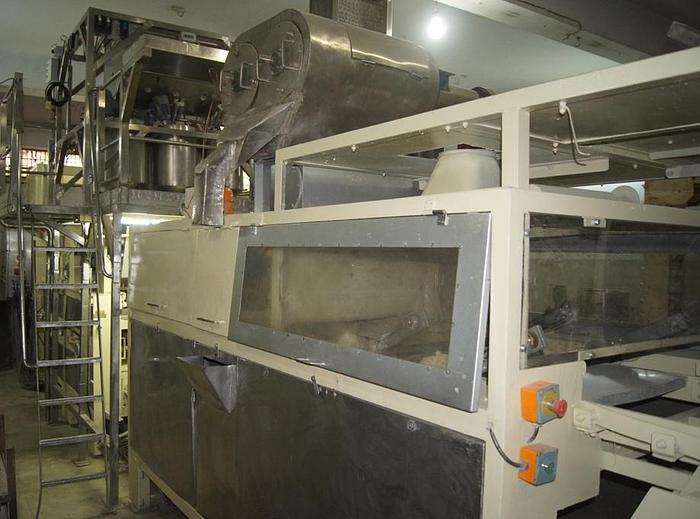

NID M301 STARCH MOGUL

Description

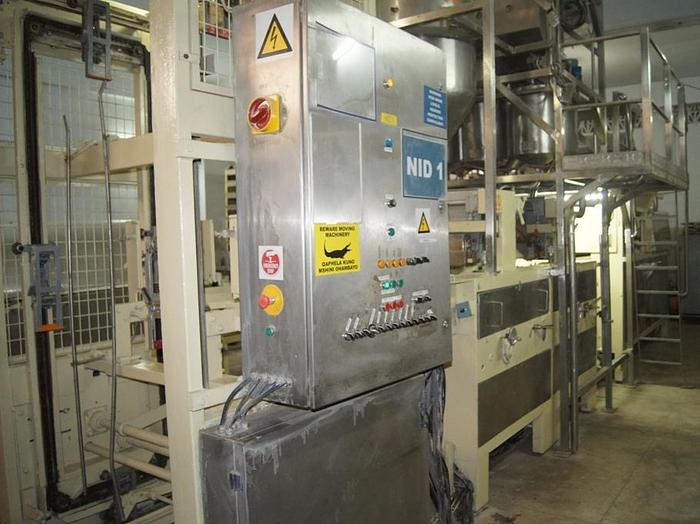

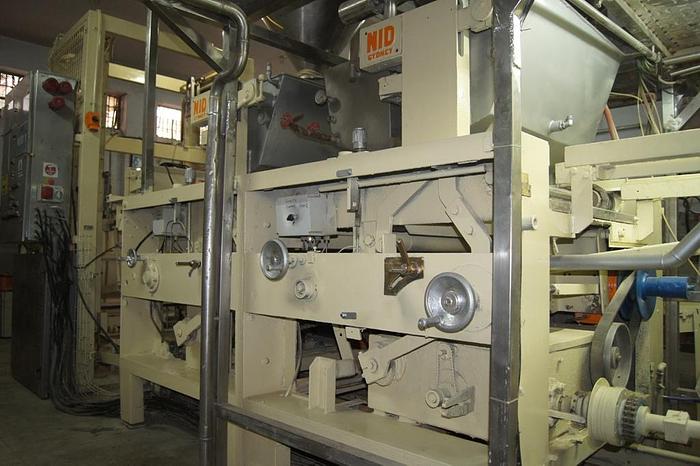

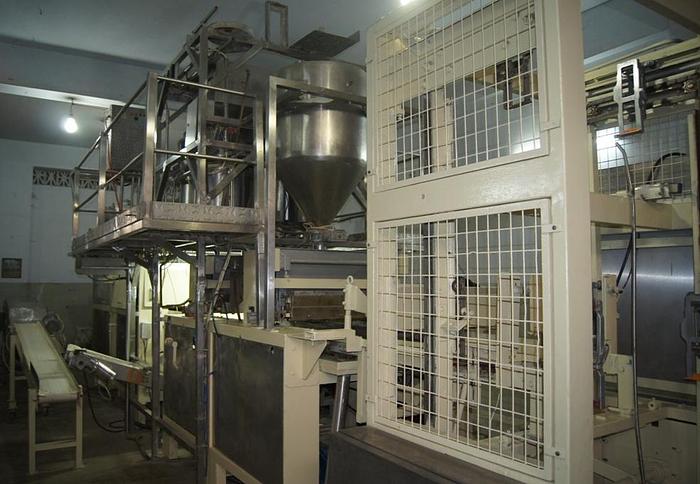

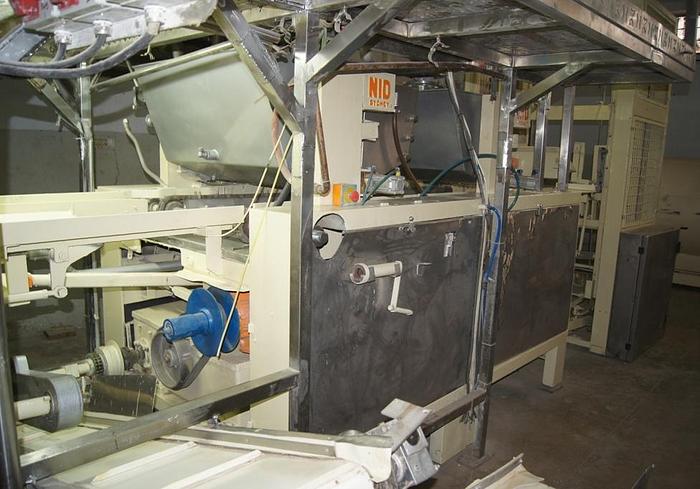

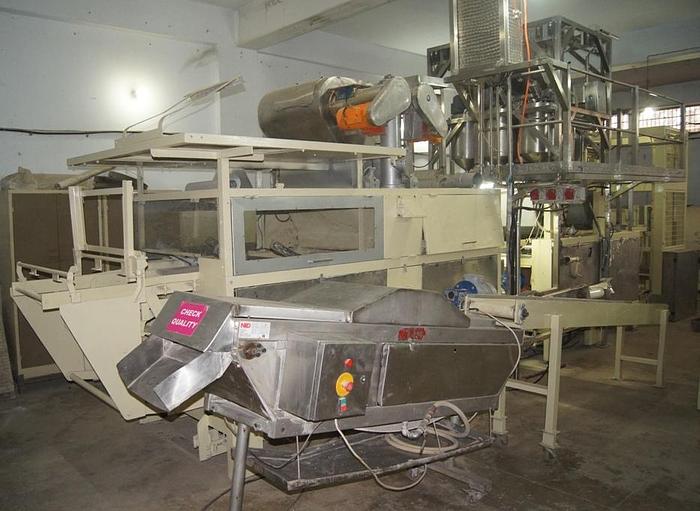

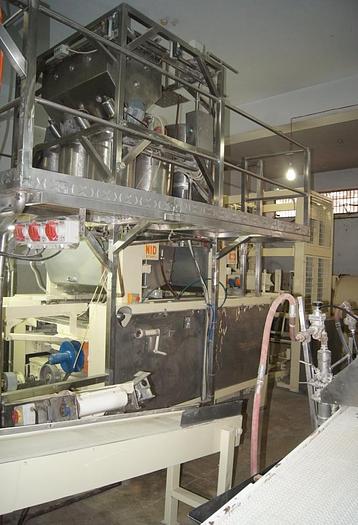

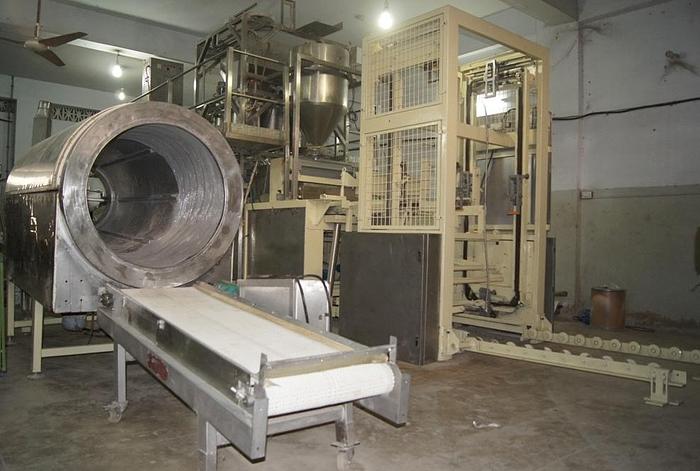

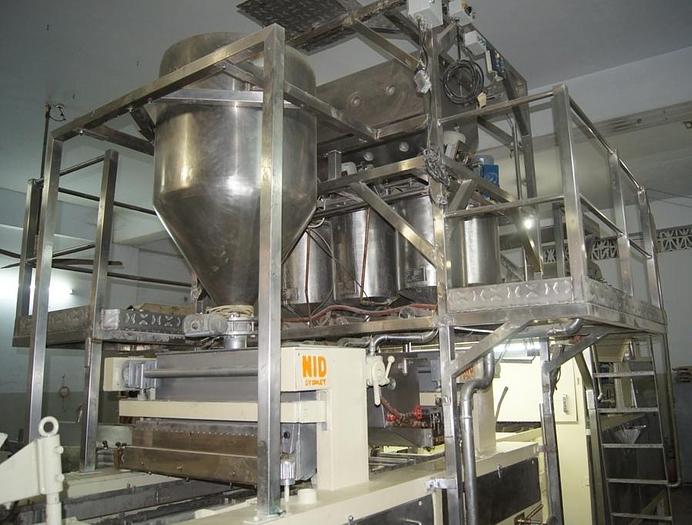

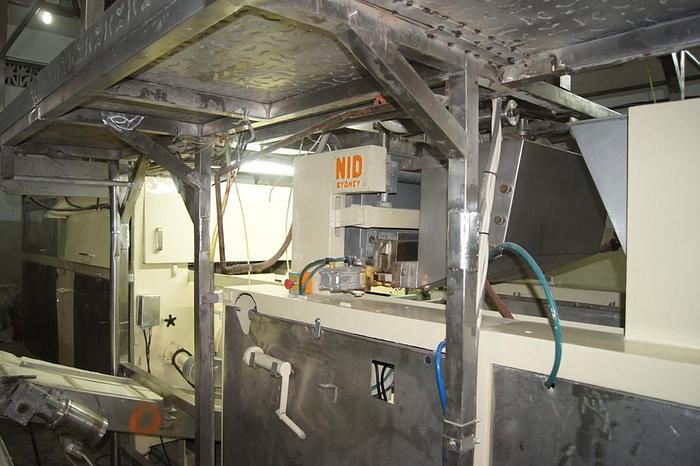

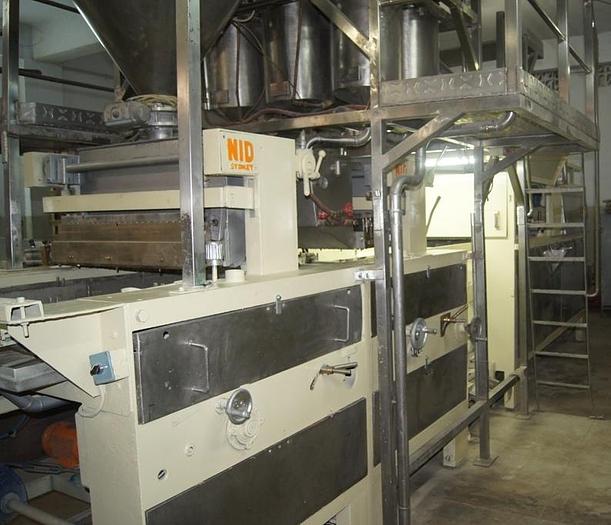

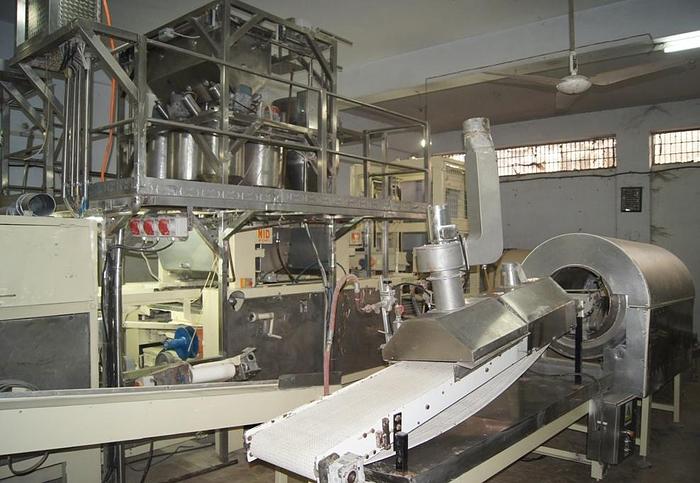

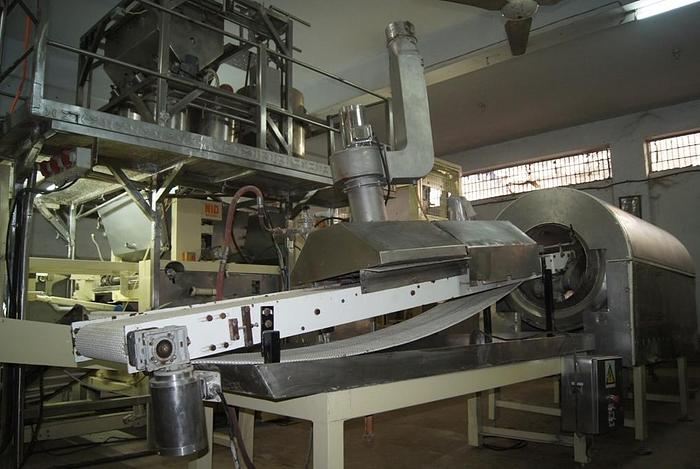

Item # 7339 – STARCH MOGUL Manufactured by NID Model M301 With 2 depositors: The first Depositor is of double head with three hoppers has a 9mm Piston diameter. For a standard gummi density of 1.3g/cm³, this Pump can deposit between 0.5 grams and 3.7 grams per piston per pump stroke. Articles larger than 3.7 grams can be made by allowing more than 1 Piston to feed into a specific mould. (For example, you can make a 10 gram snake with 4 pistons into the same mould). The second depositor has a 21mm Piston diameter. This type of Pump would typically be used to deposit Foam or Aerated masses. For a typical aerated density of 0.9g/cm³, this Pump can deposit between 1.87 grams and 14 grams per piston per pump stroke. Articles larger than 14 grams can be made by allowing more than 1 Piston to feed into a specific mould. This Line comes with • · Main Tank • · 6 colour tanks • · Out Stacker Unit • · 2 Depositors • · Approx 4500 trays with Pallets • · NID Sugaring drum • · NID Steamer • · NID Cleaner • · Main Panel Board • - Conveyors • · Pipes • · 6 Moulds with plates • - Spare Parts • - 2 Extra Depositors

Specifications

ManufacturerNID
ModelM301
ConditionUsed
Stock Number7339
