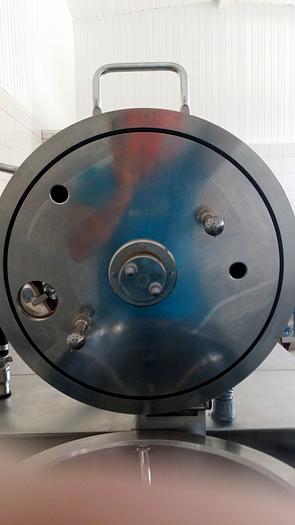

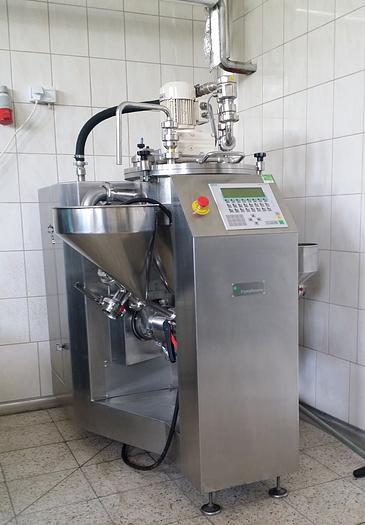

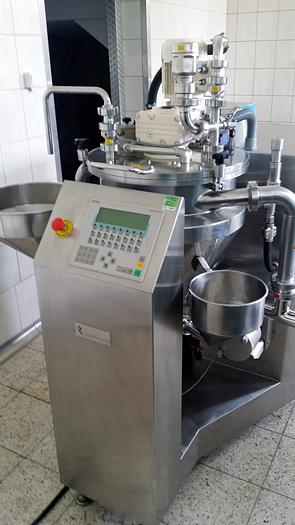

FRYMA KORUMA JACKETED VACUUM MIXING / PROCESSING VESSEL
Item # 7407 - JACKETED VACUUM MIXING / PROCESSING VESSEL

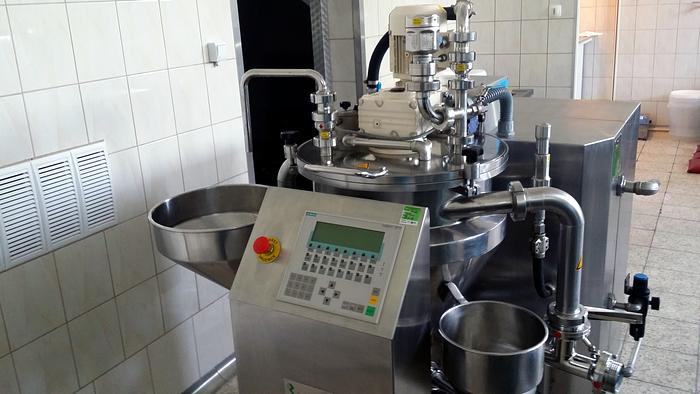

Manufactured by FRYMA KORUMA Model MZM/VK-25 Vacuum Emulsifying System,
the machine virtually unused,
Made of stainless steel (316).
With hopper /stirring vessel, Capacity 48 Ltr,
Hopper jacketed (4,5 Ltr),
Working pressure 2,5 bar
140 Degr, Cylindrical-conical vacuum vessel, double jacketed, emulsifying/homogenising head, product pump, scrape surface mixer, integral vacuum pump,

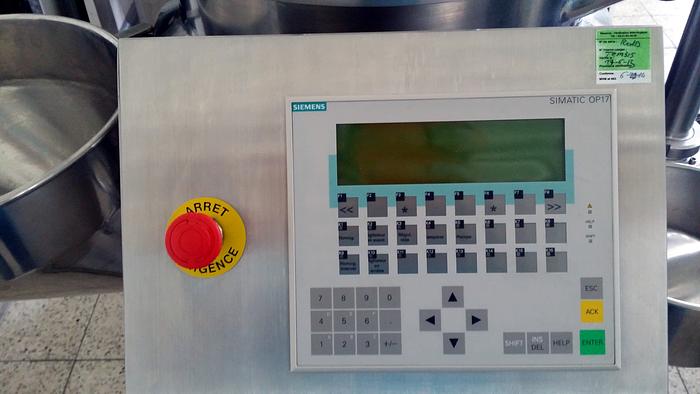

Siemens PLC control unit.
Used to process emulsions and suspensions over a wide viscosity range.
It incorporates elements for pressurization and vacuum.
Cooling and heating system . In order to heat, the device must be connected to steam and water to cool.
Temperature control system both the product and the heating-cooling jacket with scrapers.
CIP cleaning system integrated

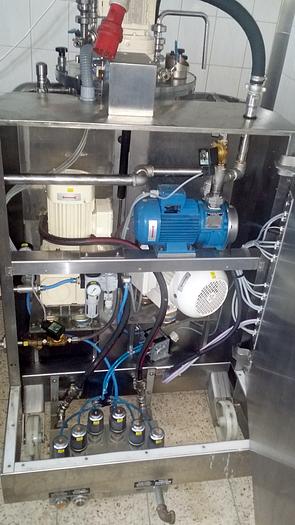

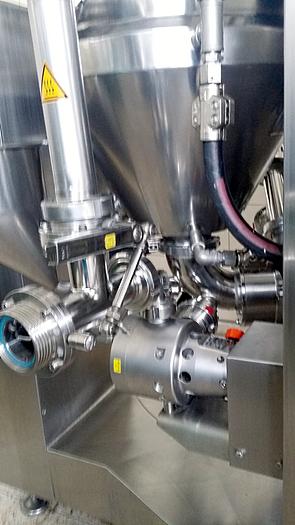

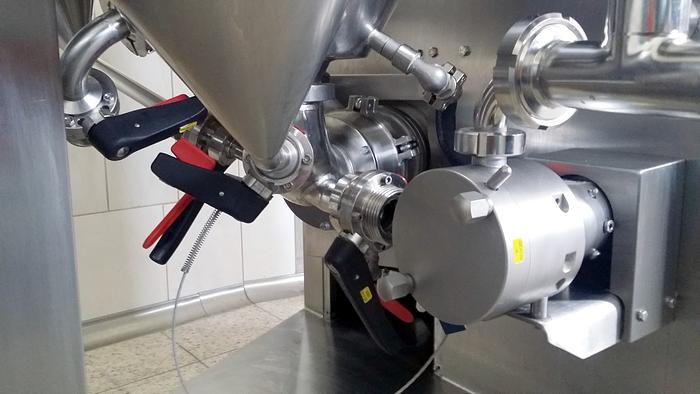

Outlet with Maso SPS pomp (Sanitary Process Pump),
With mechanical seal,
Motor (emulsifier) 4,0 KW, 400 Volt,

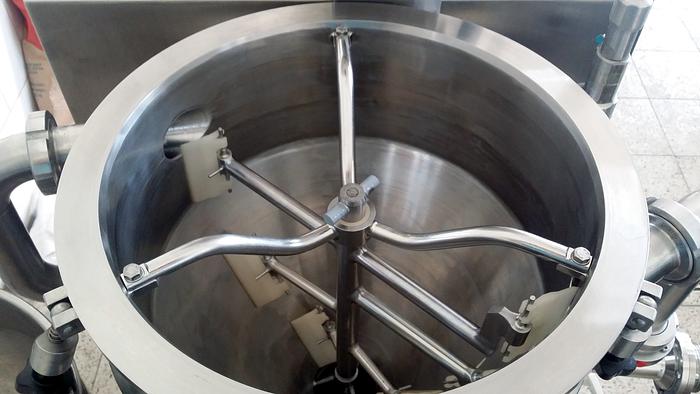

With gate type stirrer /"scraper stirrer" in jacketed vessel,
Motor 0,25 KW, 230/400 Volt, Speed ± 28 Rpm,
With vacuum pump make SIHI type LEMA-25,

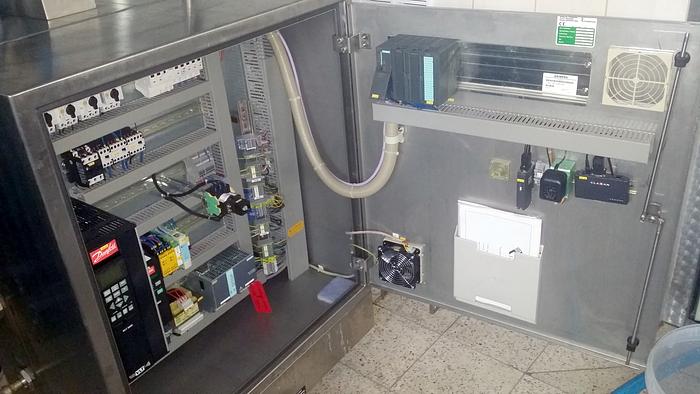

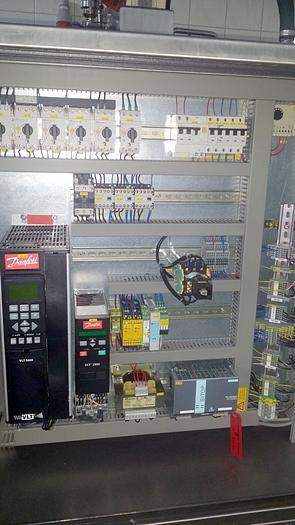

Mounted on frame, With switchgear,
Floorspace 1,5x1,1 M, Total height 1,6 M.
|Model||MZM/VK-25 Vacuum Emulsifying System|
