UNIVERSAL BATCH CANDY COOKER

UNIVERSAL BATCH CANDY COOKER

Description

Item #8348 – UNIVERSAL BATCH CANDY COOKER

Suitable for batch production of : Toffee, Caramel, Binder Solutions for bars, Jelly & Chewy Candy, Candy Filling Masses of all kind, Sugar Solution for liquor sugar.

Manufactured by HANSEL

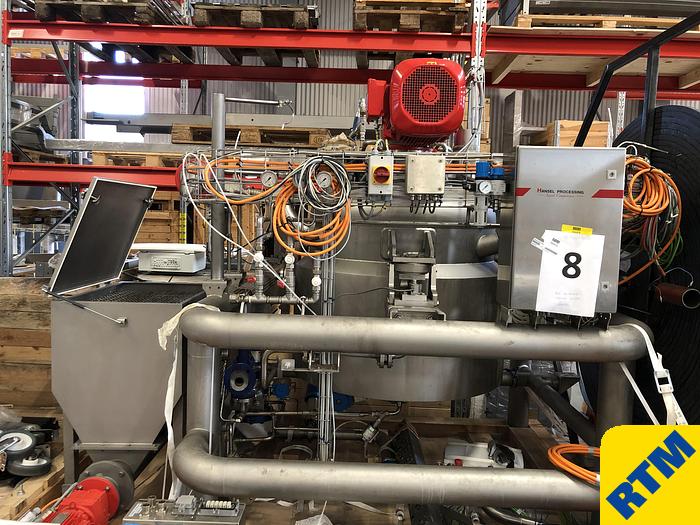

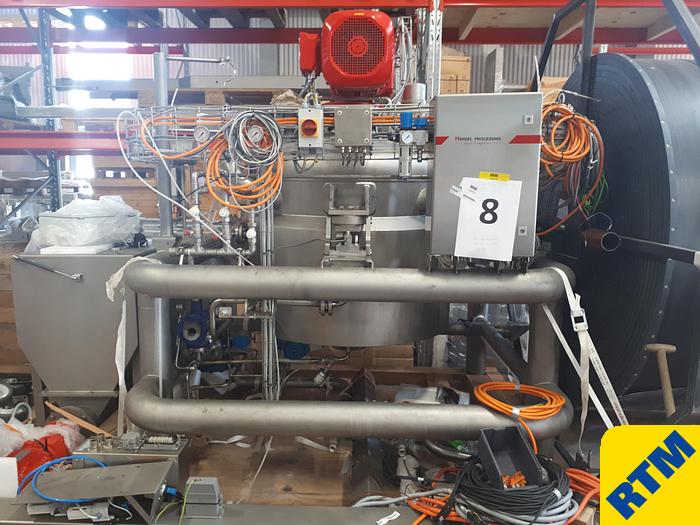

Universal Batch Cooker,

Model Unibatch,

Year 2017, in like new condition and only slightly used

Batch size maximum of 200Kgs, 3 to 4 batches per hour depending on the product & process.

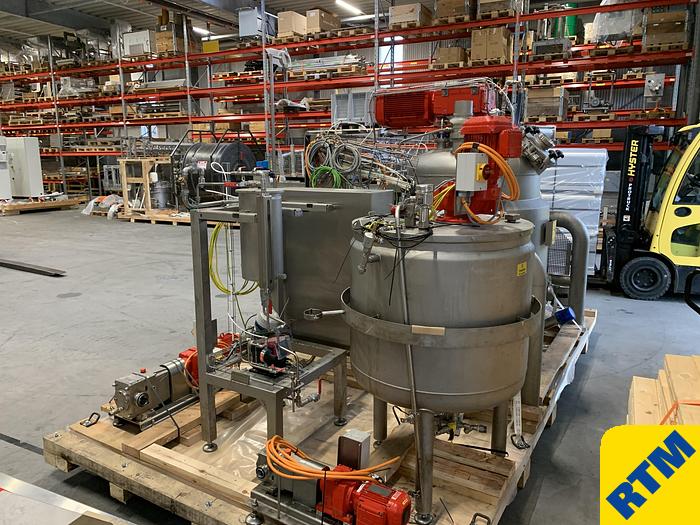

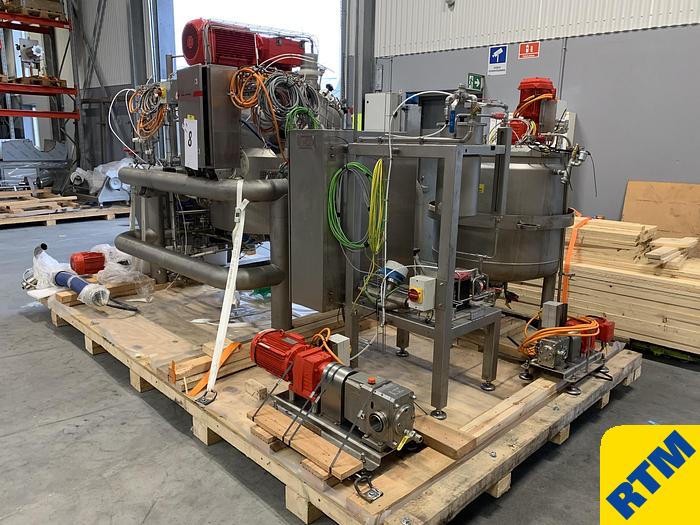

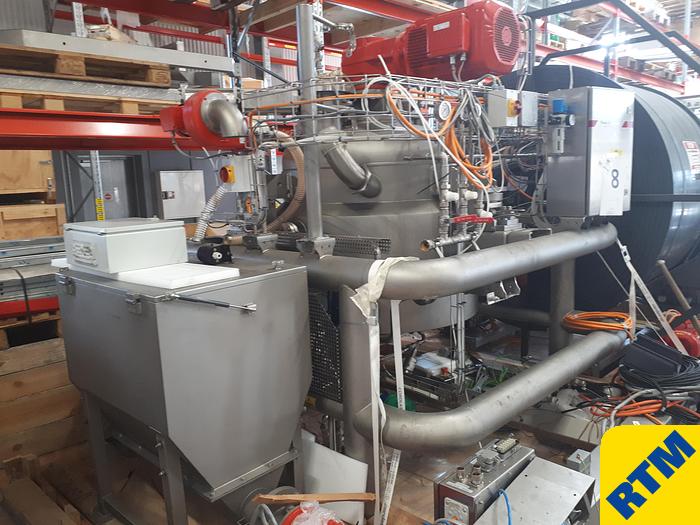

Includes : Unibatch Batch Cooker.

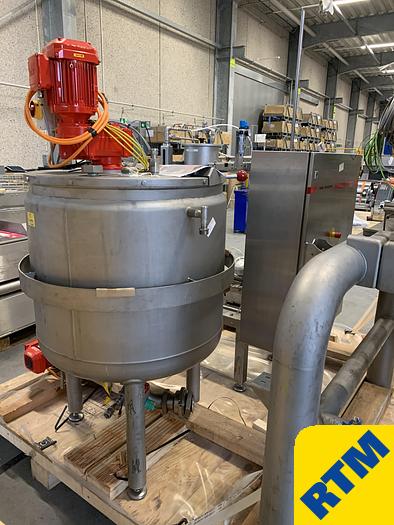

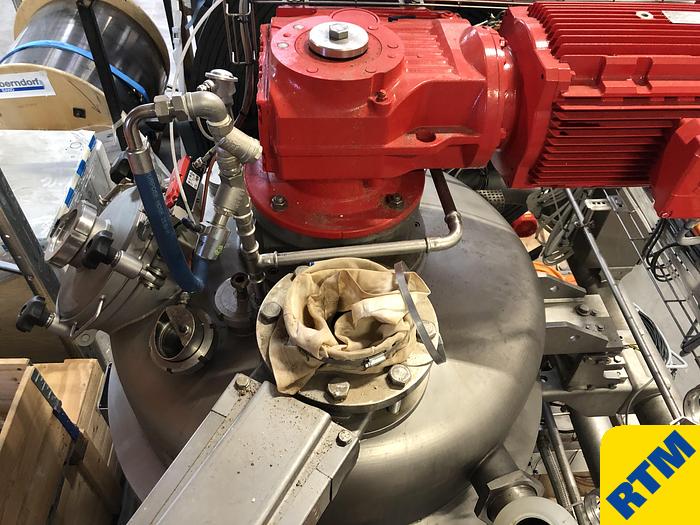

⎯ cooking vessel executed in stainless steel

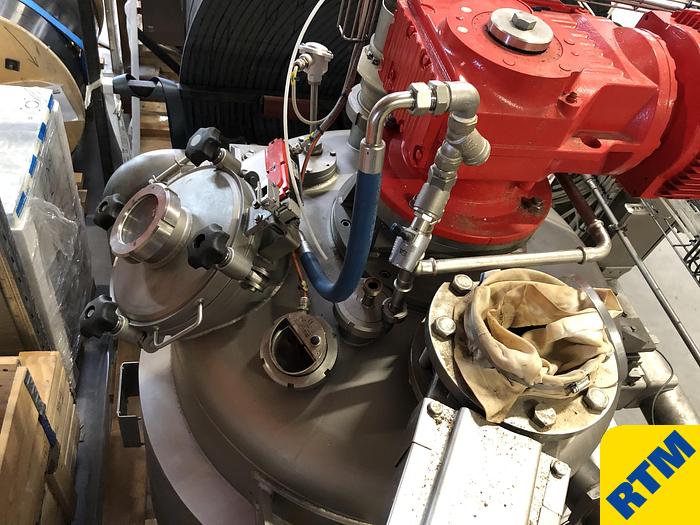

⎯ manhole mounted in the lid, with four manually operated locking handles

⎯ inspection window with light

⎯ vapour exhaust mounted on the lid

⎯ cooker with steam heatable jacket, operating pressure up to 9 bar

⎯ set of steam and condensate valves and fittings, consisting of manually operated pressure regulation valve, safety valve, automatic steam shut off valve, condensate trap

⎯ temperature probe PT 100

⎯ anchor type agitator, speed 85 rpm at 50 Hz, frequency controlled

⎯ set of scrapers made of Teflon PTFE

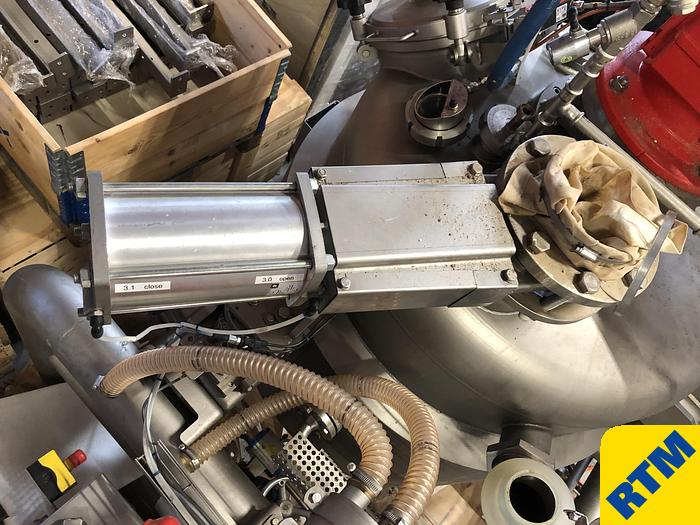

⎯ automatically operated ball discharge valve

⎯ static CIP spray ball with automatic valve for vessel cleaning

Automatic Butterfly Valve for butter dosing.

5 x Dosing valves for Isoglucose, Invert Syrup, Spare, Blend b, and Golden Syrup.

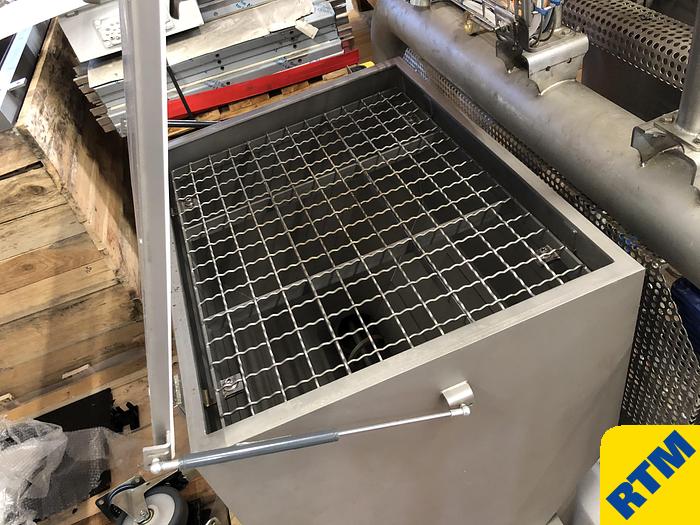

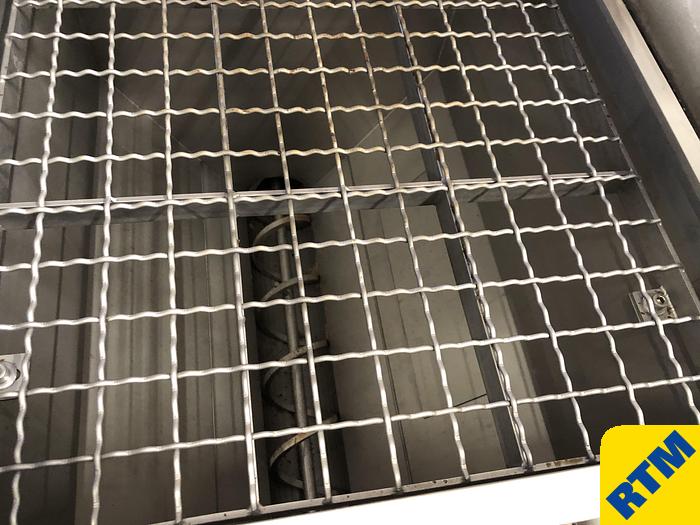

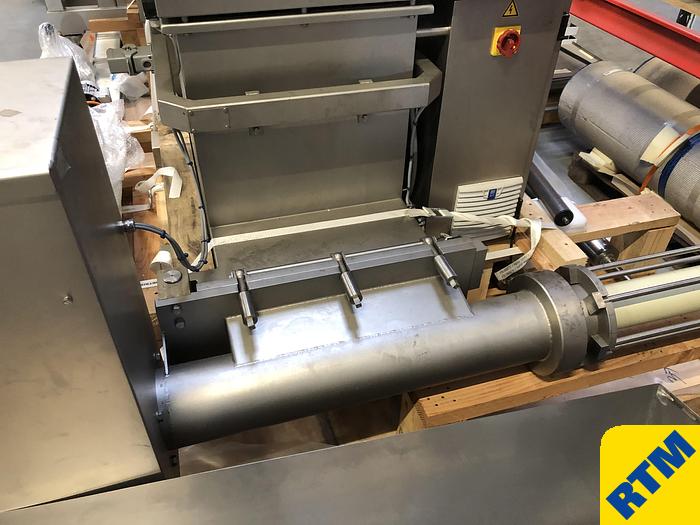

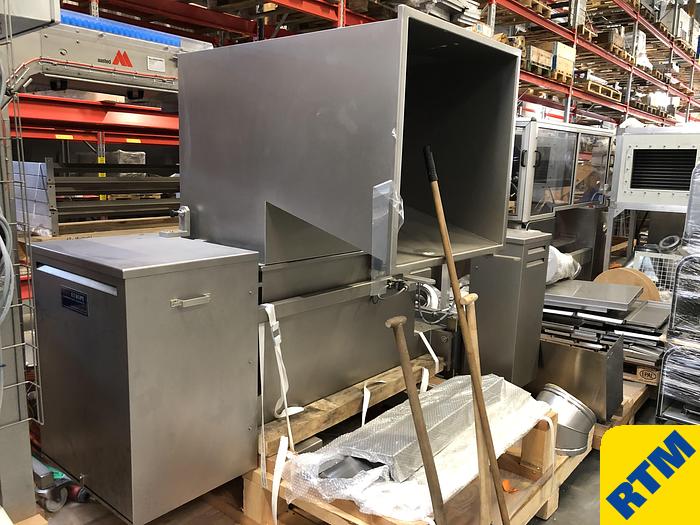

Inclined & Flexible Dosing Screw for up to 6t/h. for course and fine metering of brown sugar into the cooker (coarse and fine setting via frequency inverter of electric motor, controlled by weighing processor signals hopper for manual unloading of sugar bags, with safety grid)

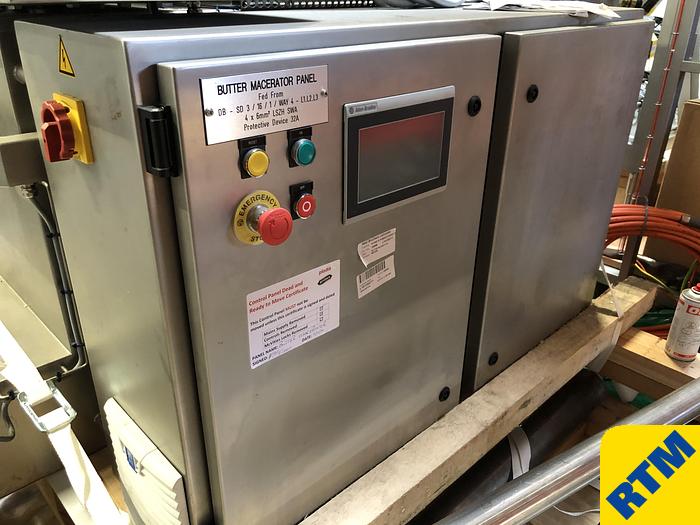

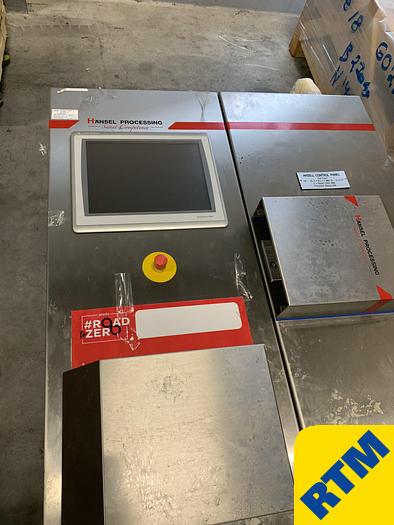

Stainless steel Electrical Cabinet.

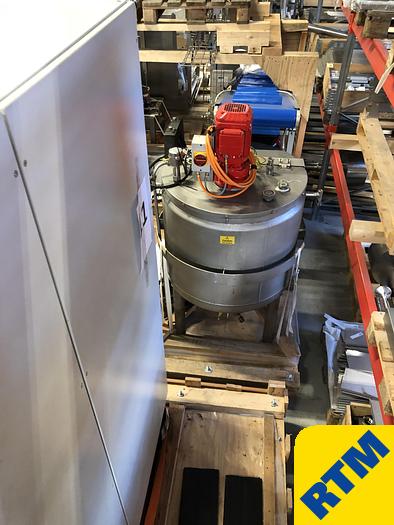

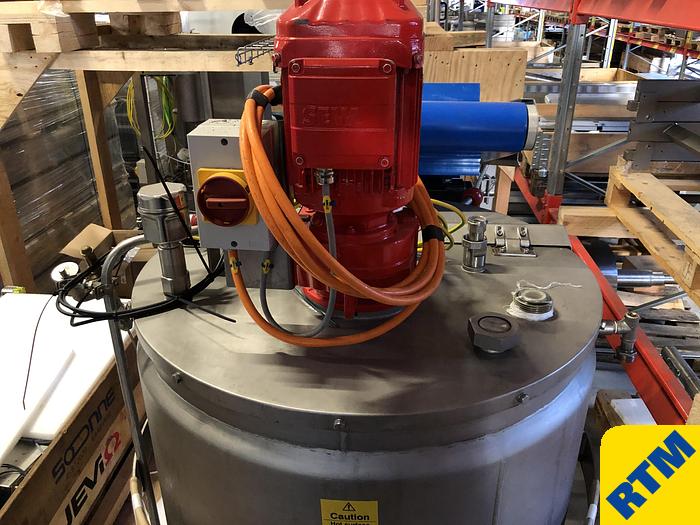

400litres Collecting reservoir.

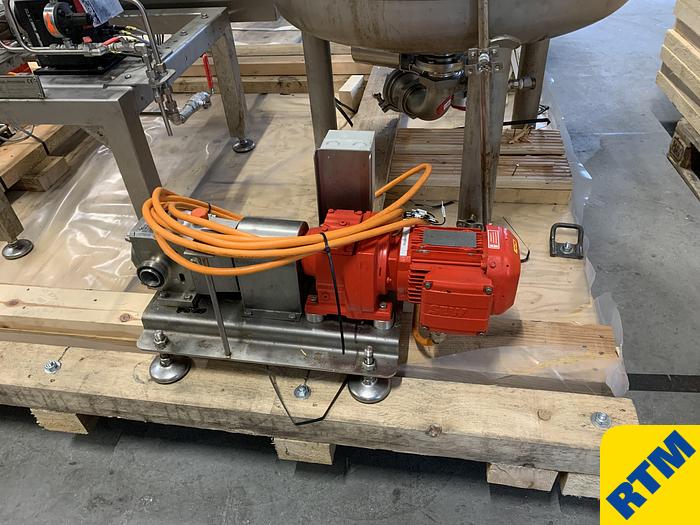

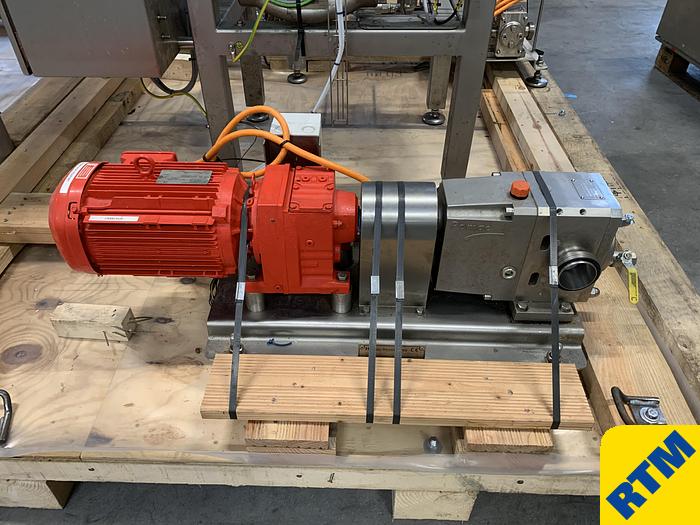

Process Pump to feed downstream mixer

Process Pump to pump binder from cooker to reservoir

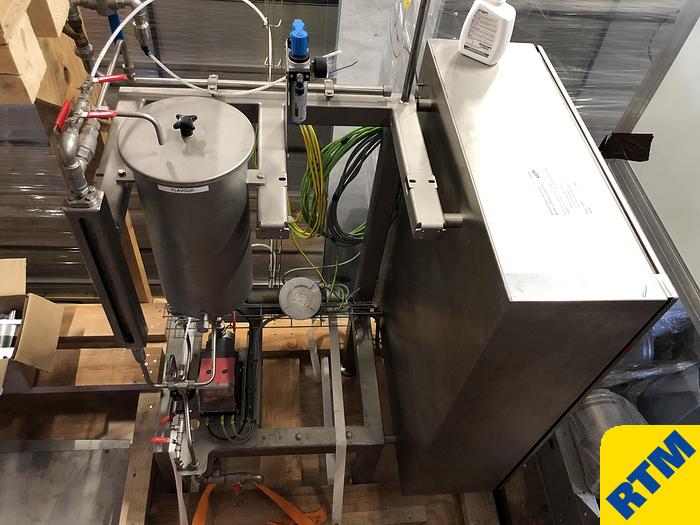

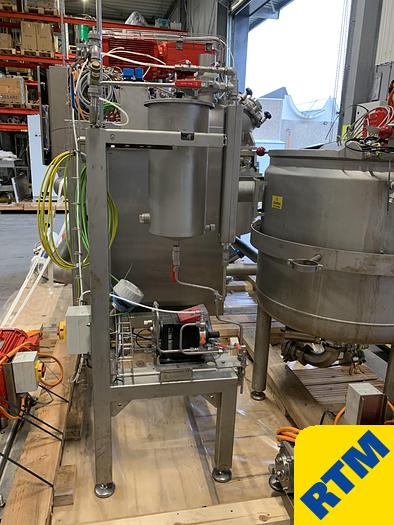

Membrane Metering Pump for continuous dosing of flavour.


Specifications

ManufacturerHANSEL
ModelUnibatch
ConditionUsed
Stock Number8348
