BISCUIT / BAR FLOWPACKING AND CARTONNING PACKING LINE

Item #8953 – BISCUIT / BAR FLOWPACKING AND CARTONNING PACKING LINE

End of Line Packaging Set Up Currently running on Biscuits/Baked Goods

Includes :

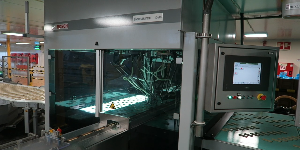

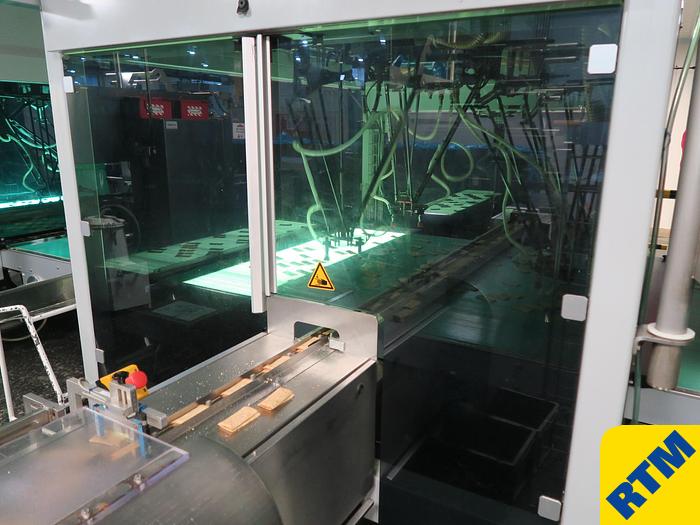

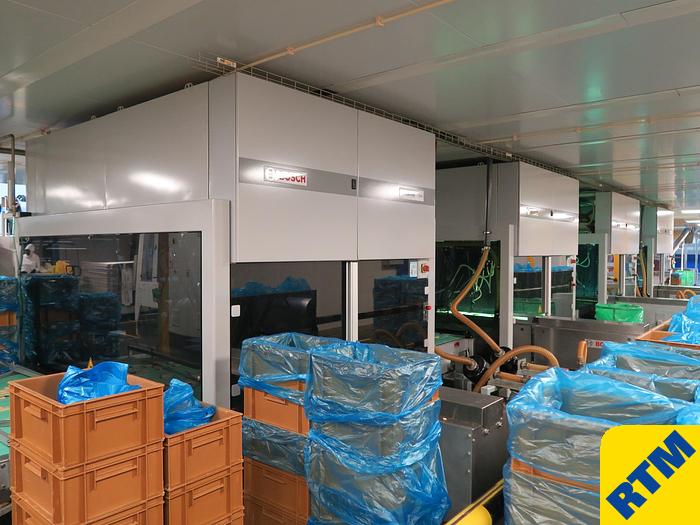

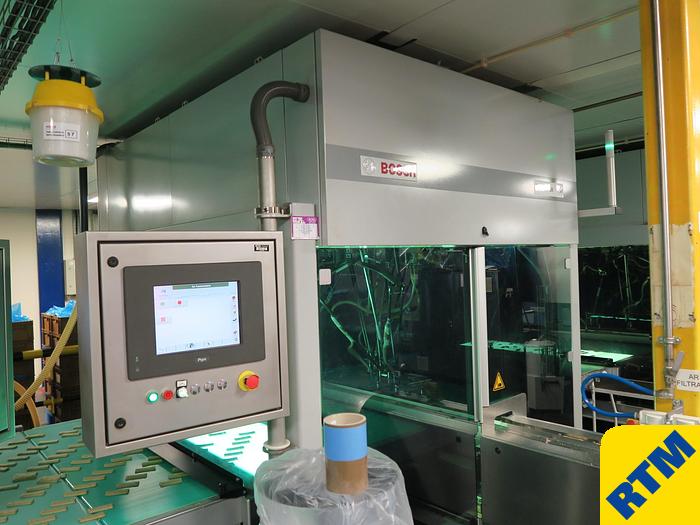

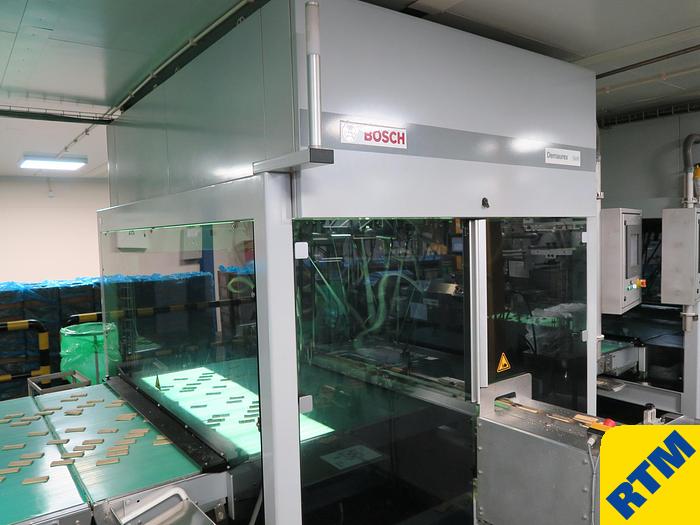

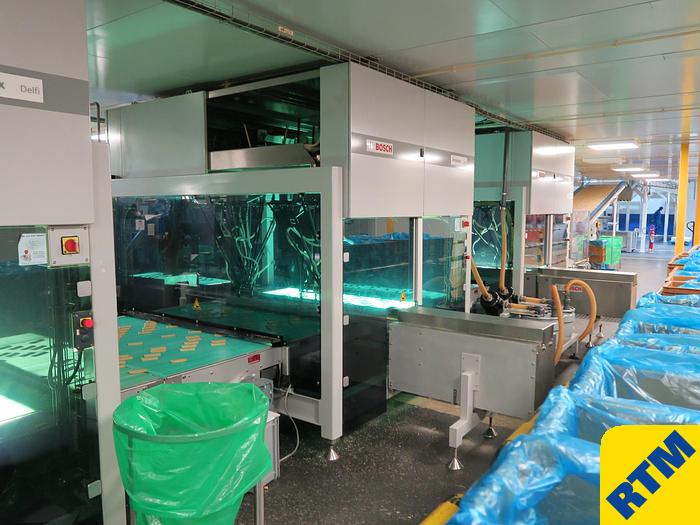

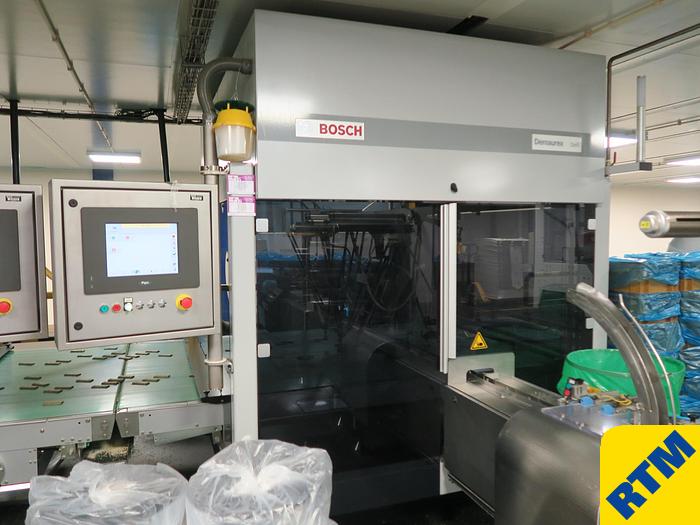

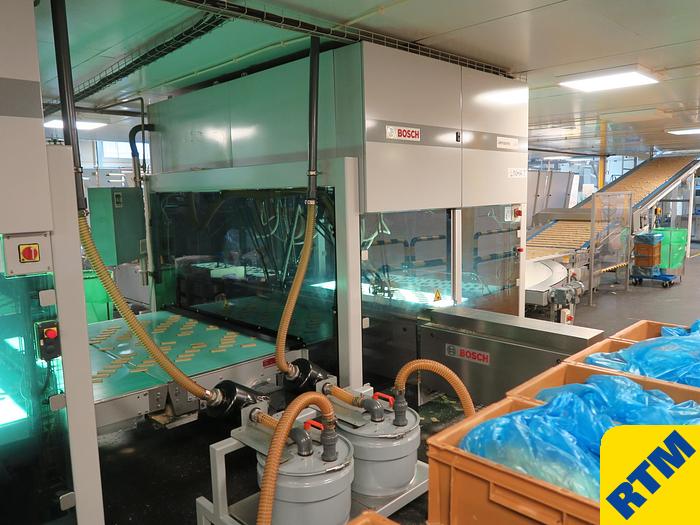

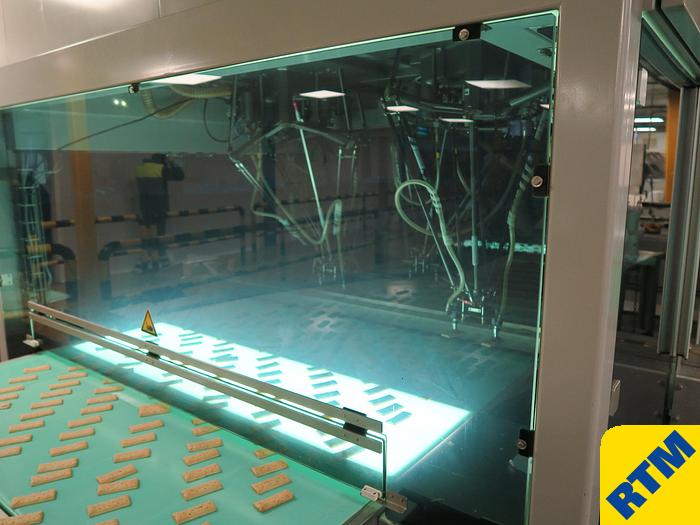

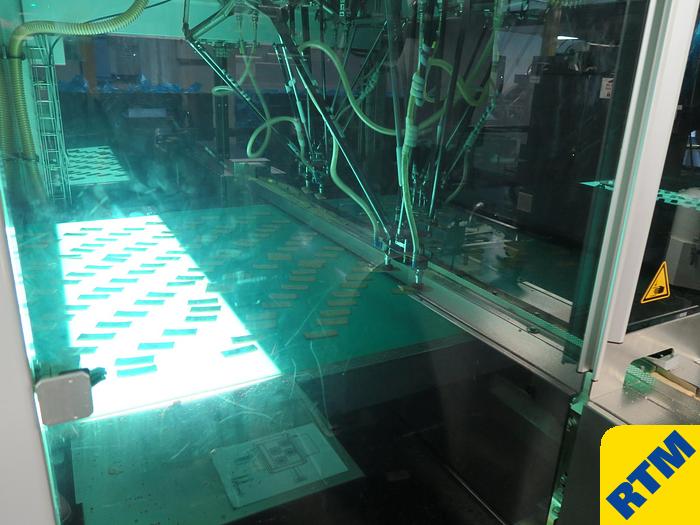

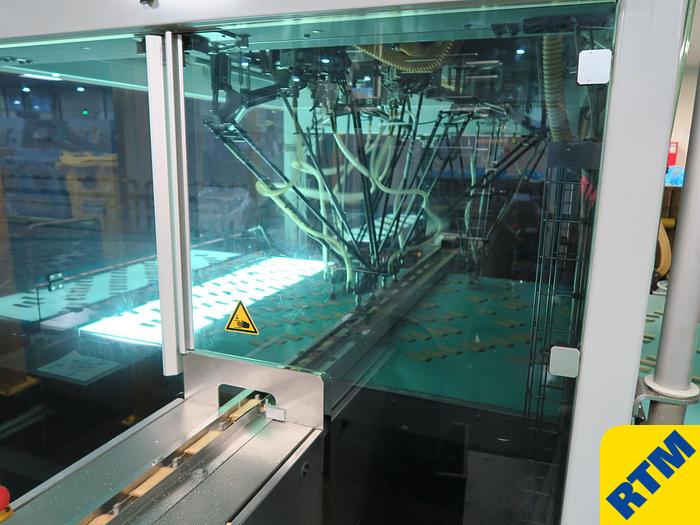

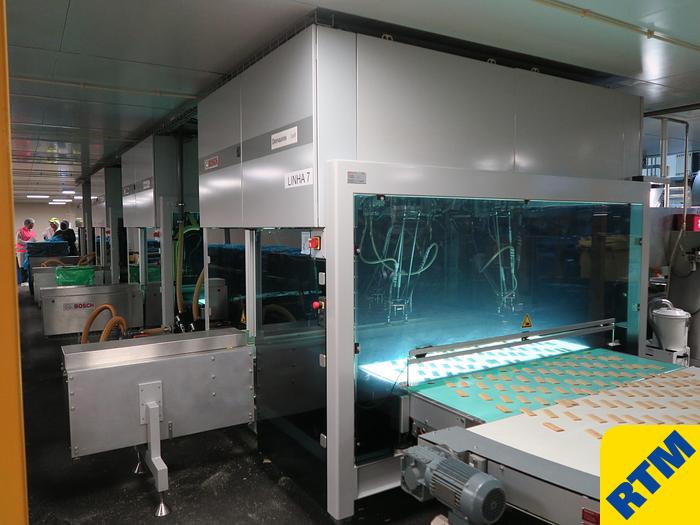

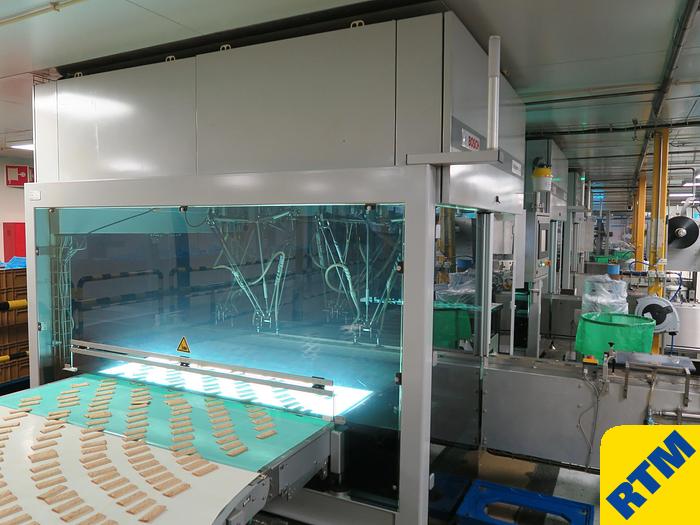

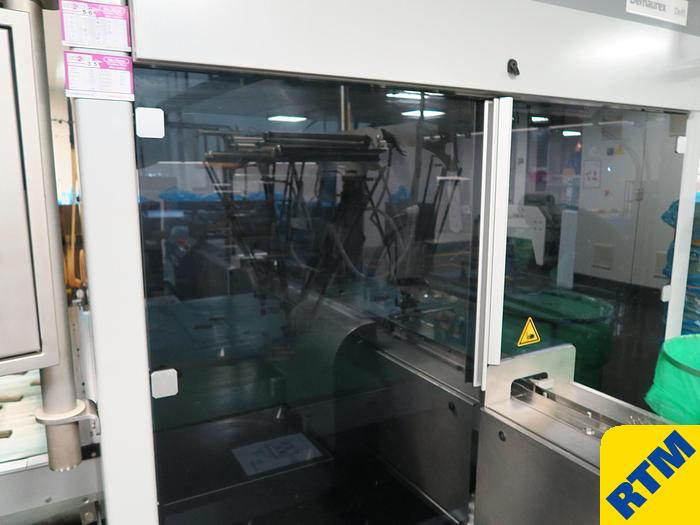

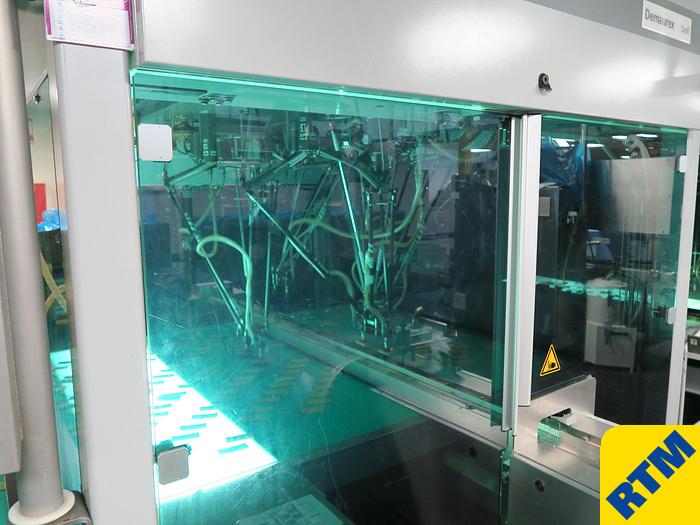

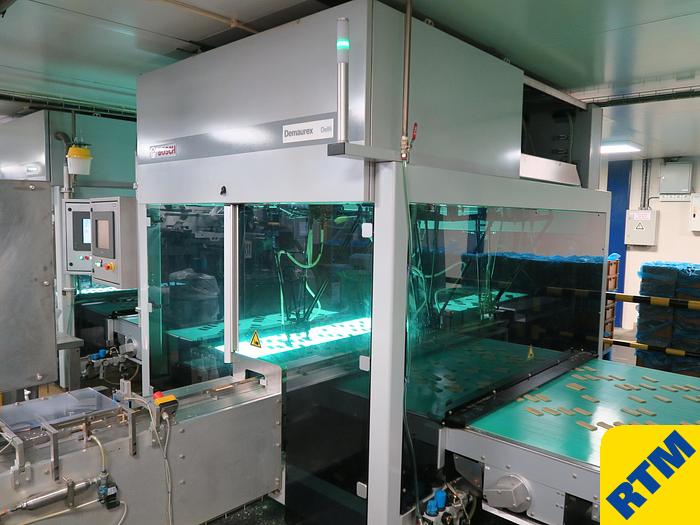

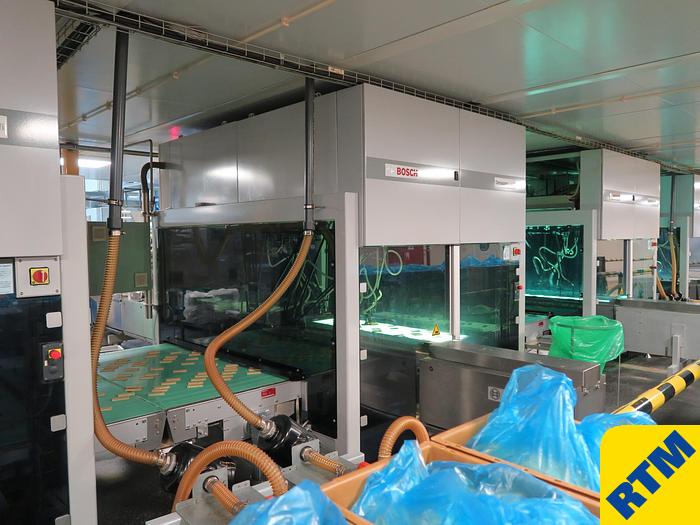

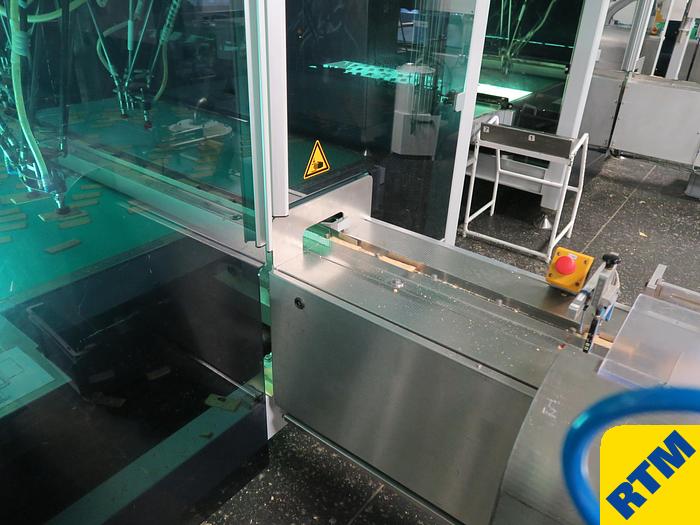

(4) BOSCH Demaurey Delfi Robot Pick N Place Units Type DELFIC23FP4

4-Arm Units, Currently set up to stack products 2-high, ready to be flowpacked

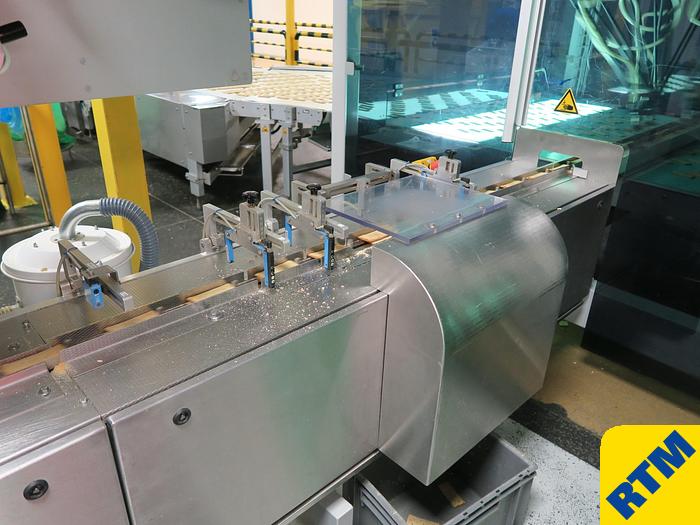

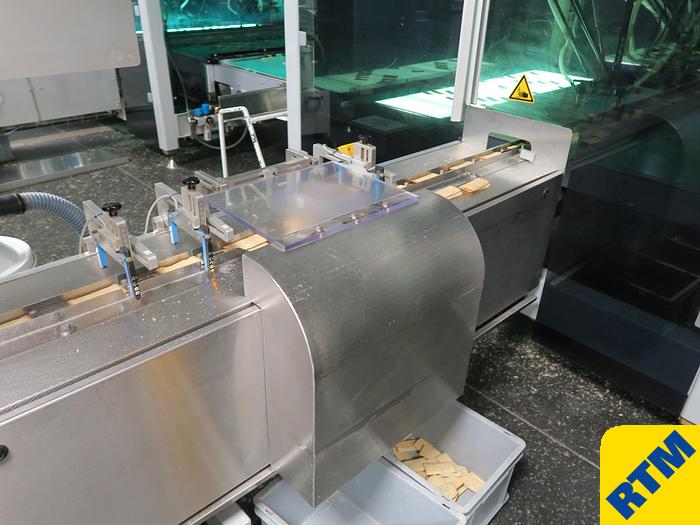

Each also with a Transfer Belt, Type TC3-XP. Each also with Vacuum Pump for the robot arm head.

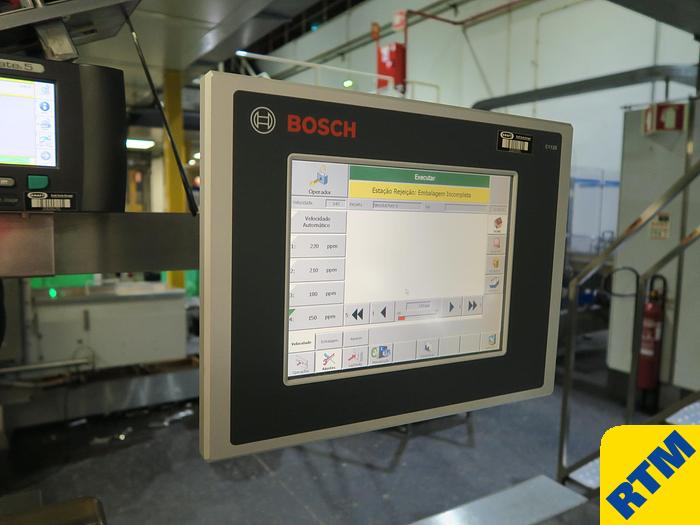

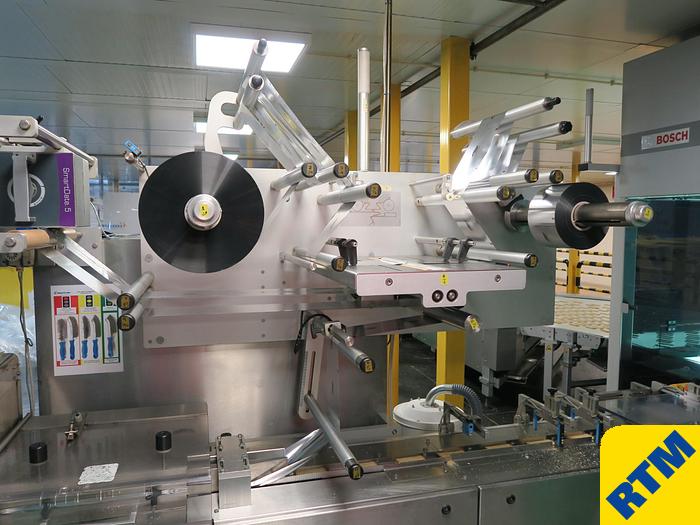

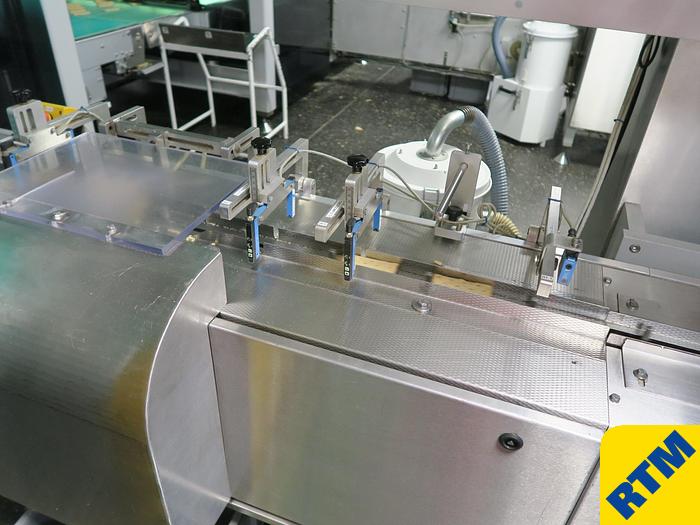

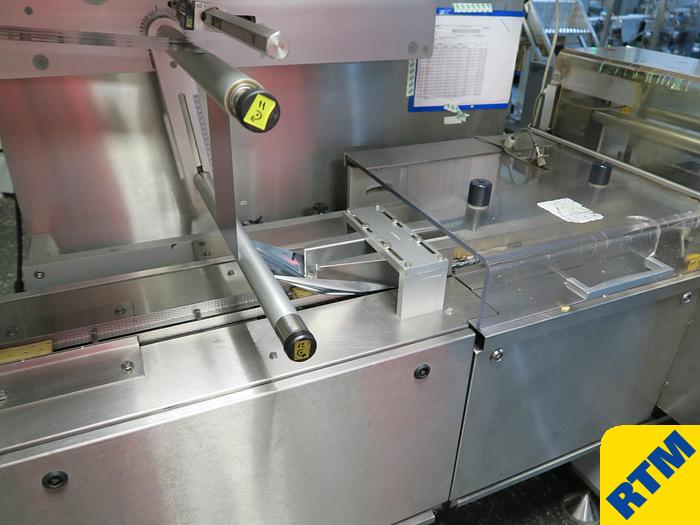

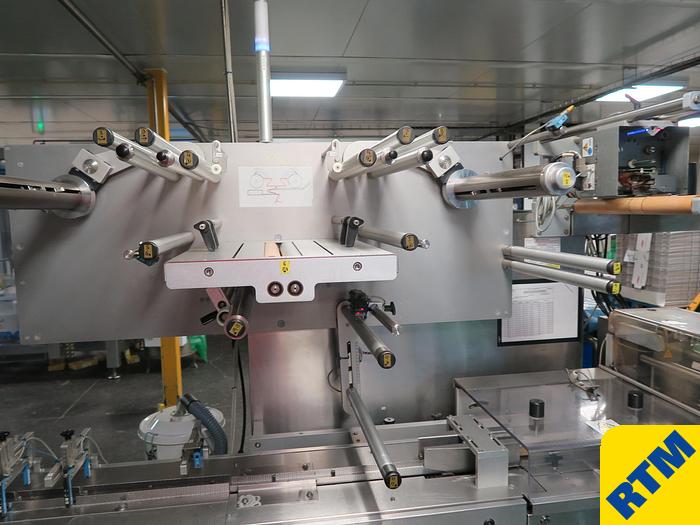

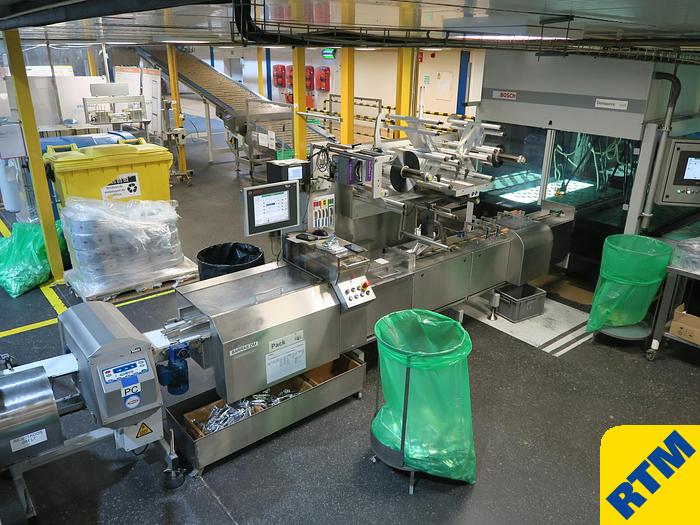

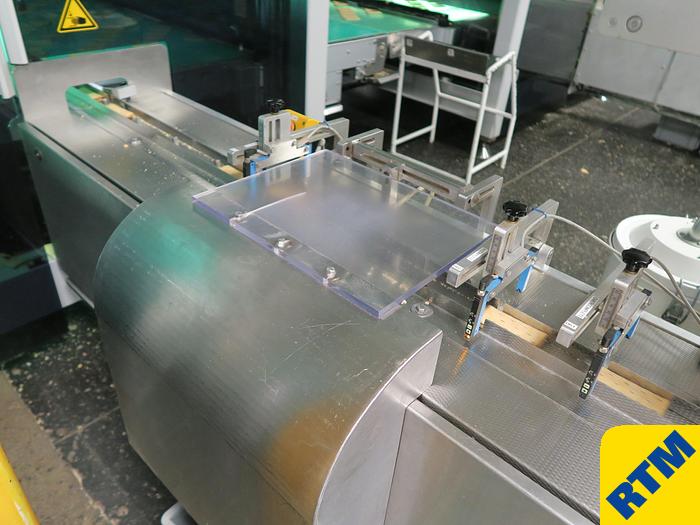

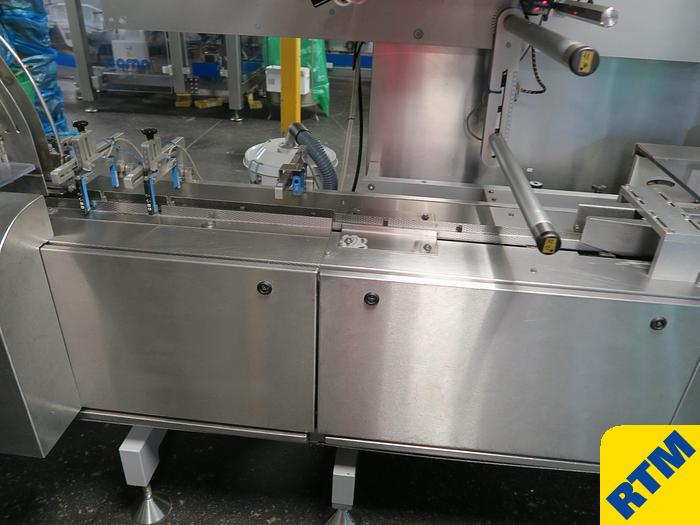

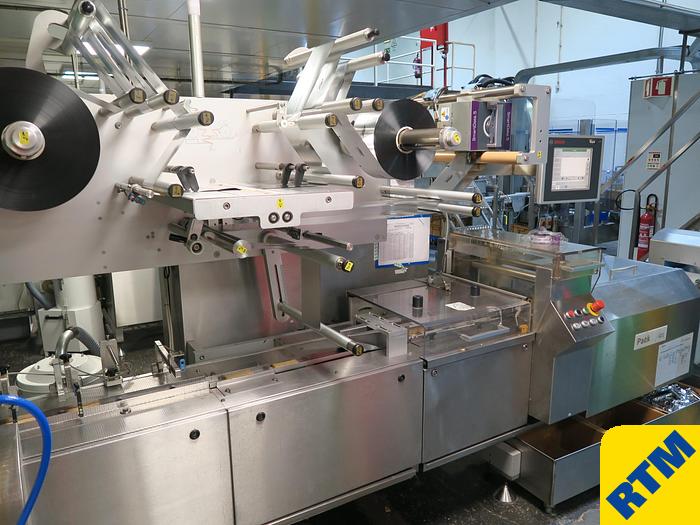

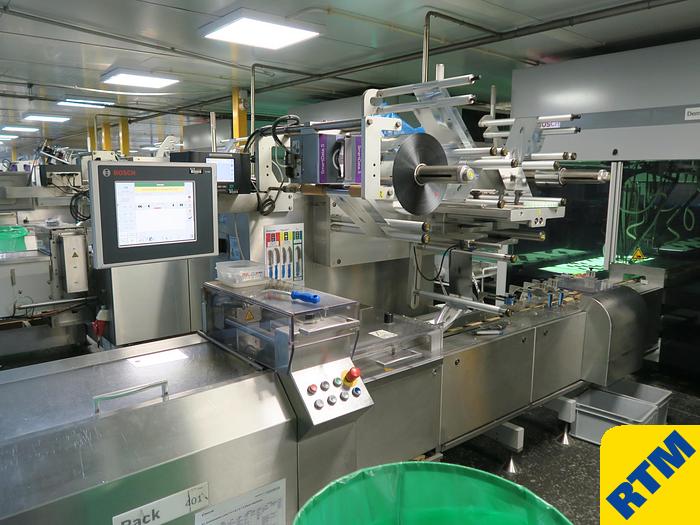

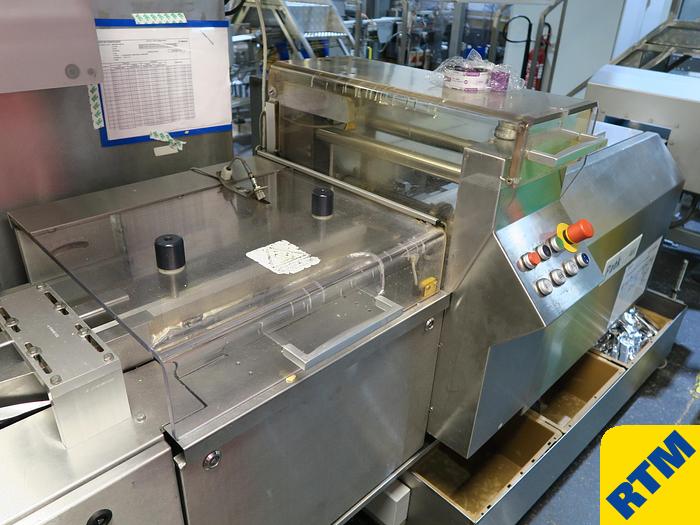

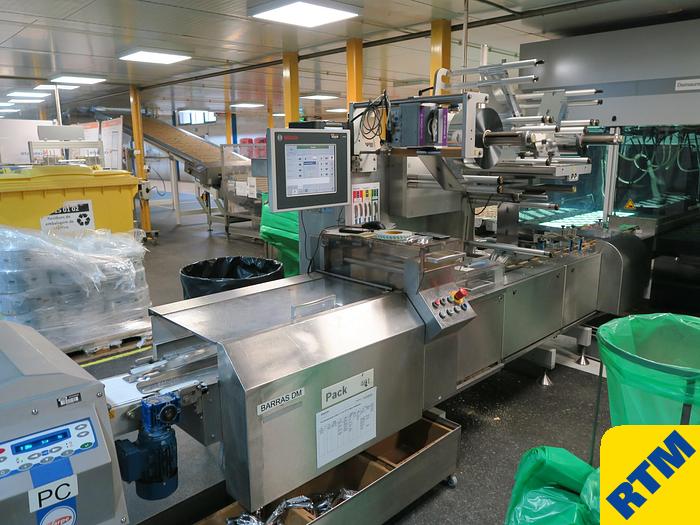

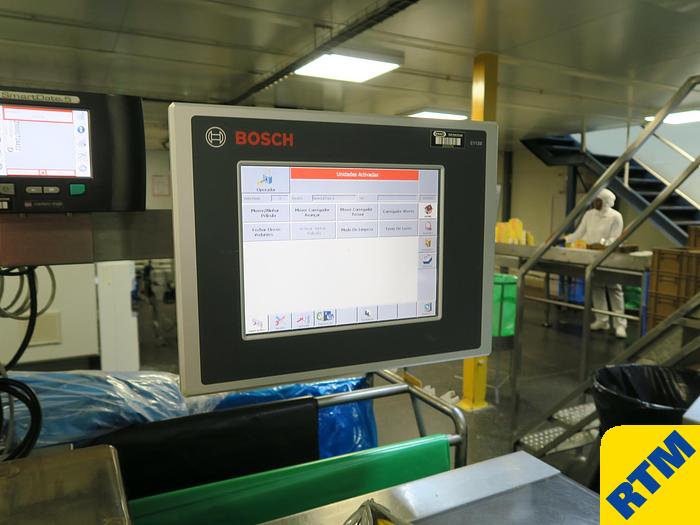

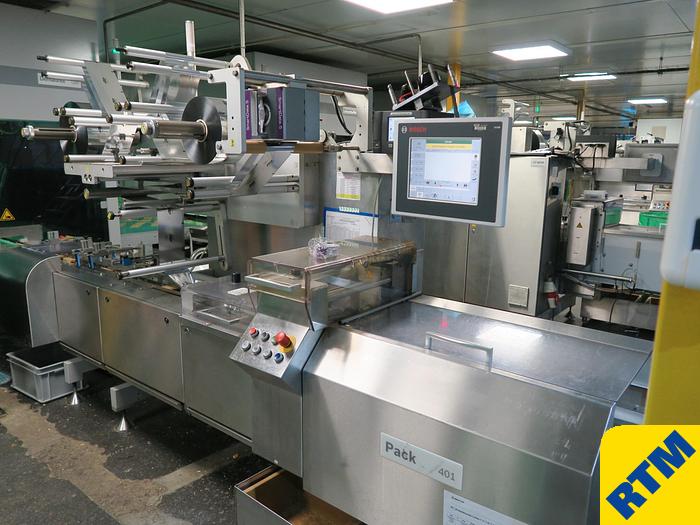

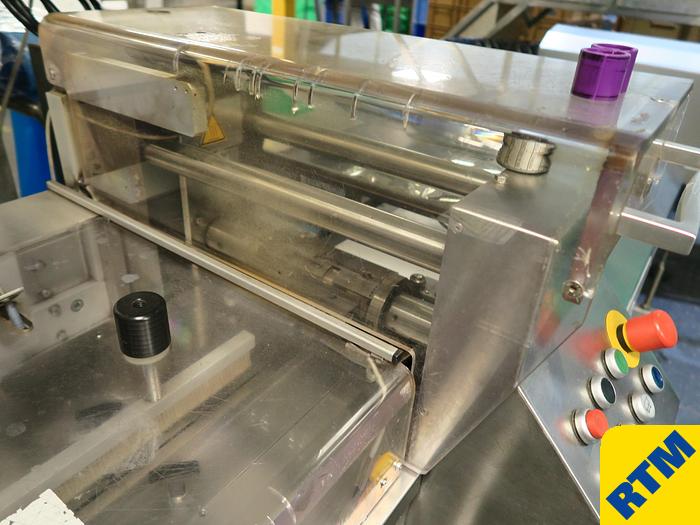

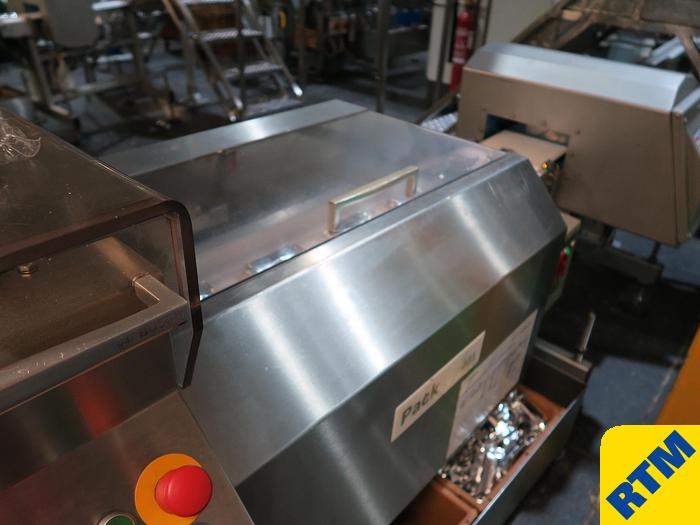

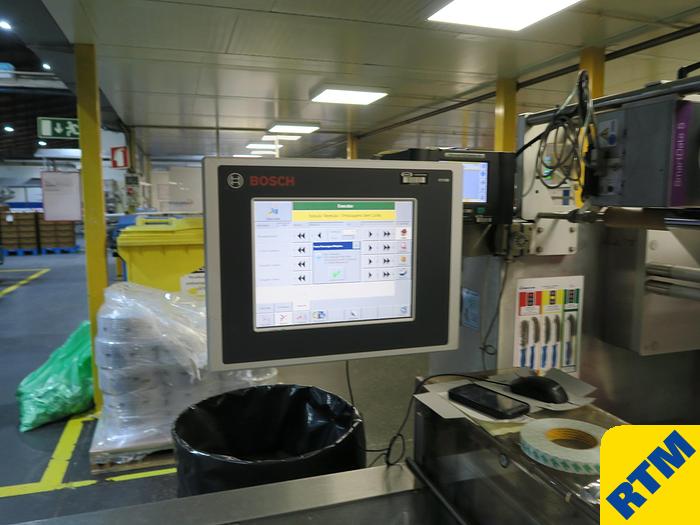

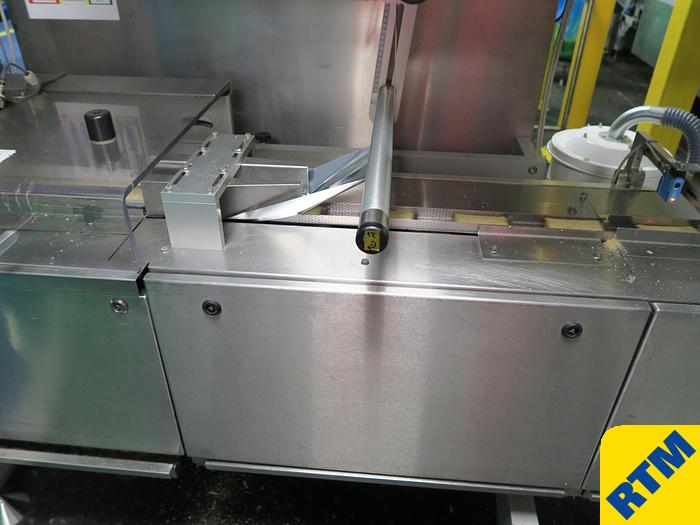

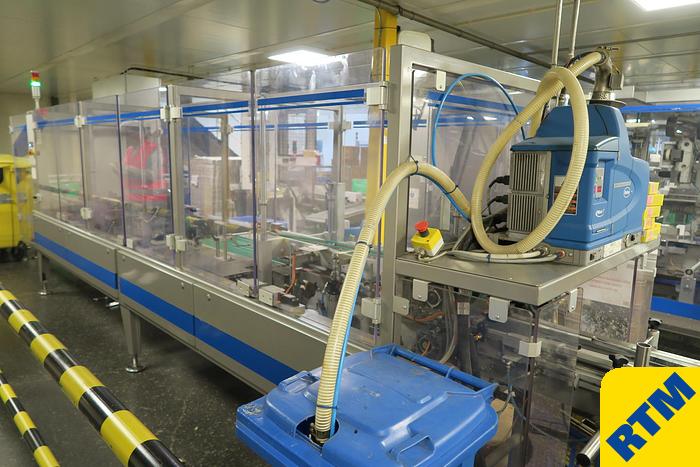

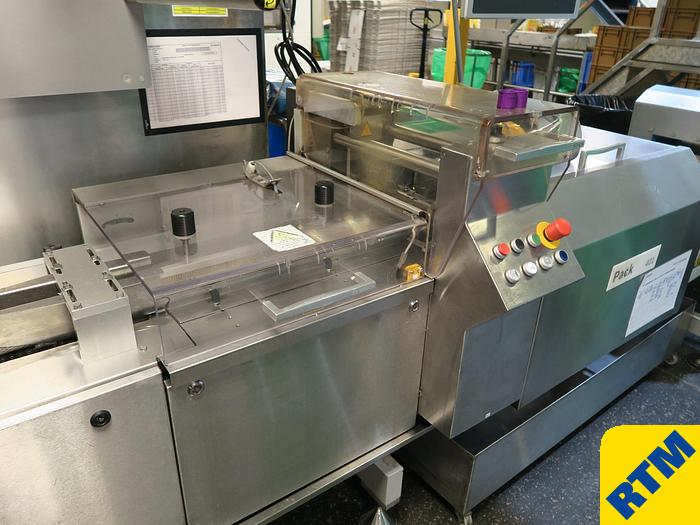

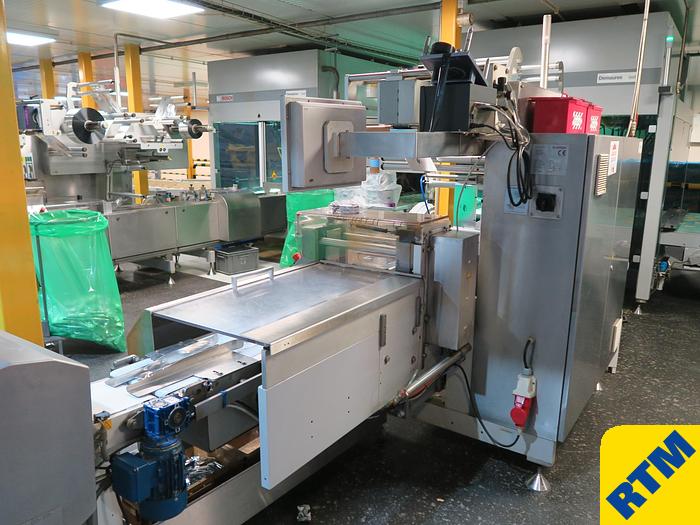

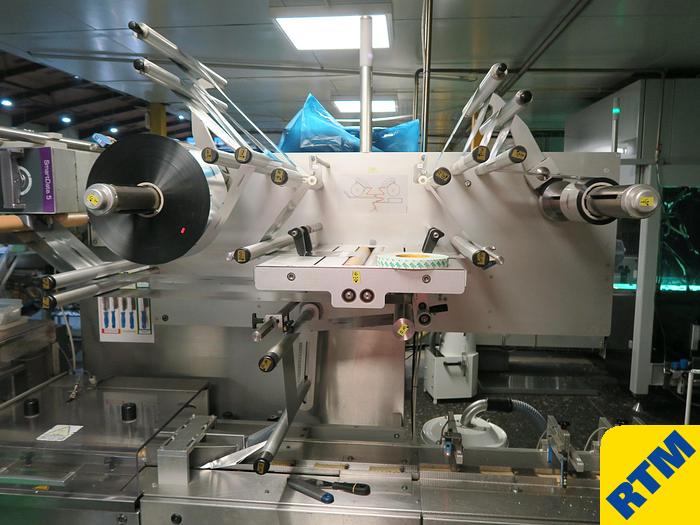

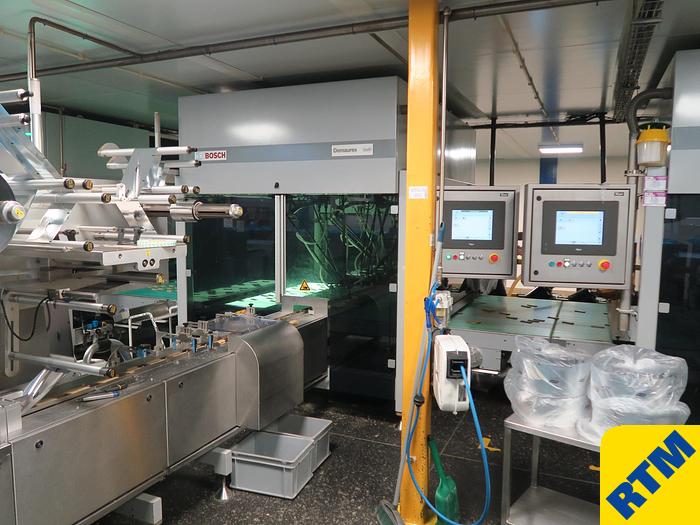

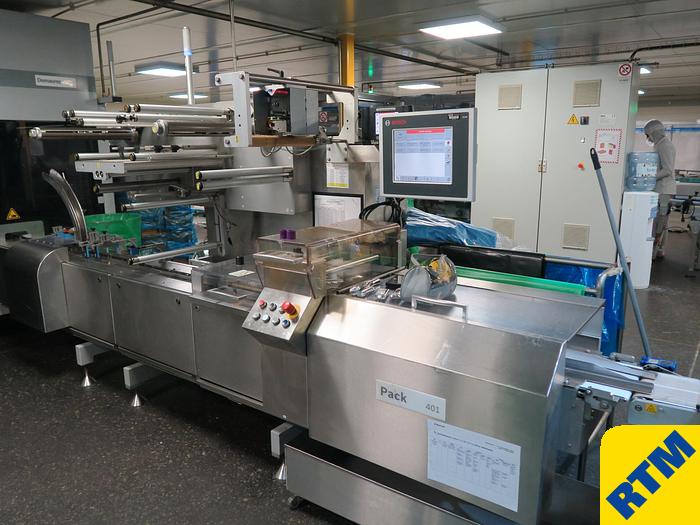

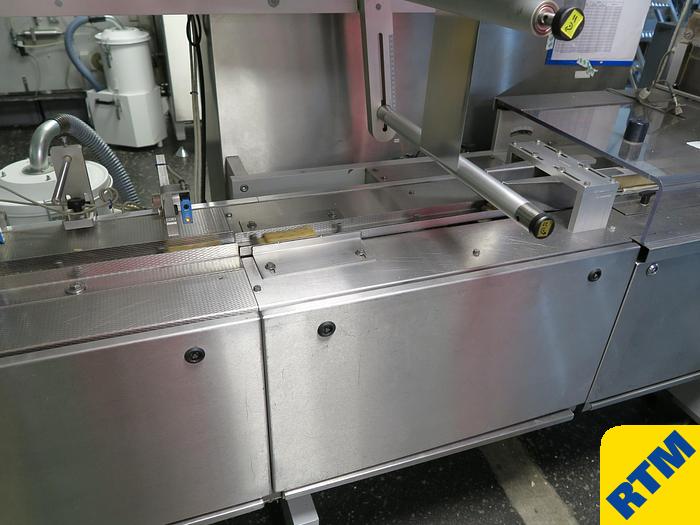

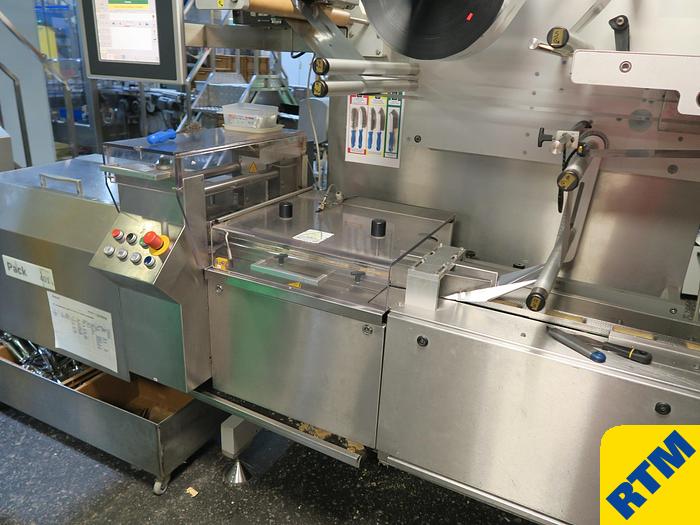

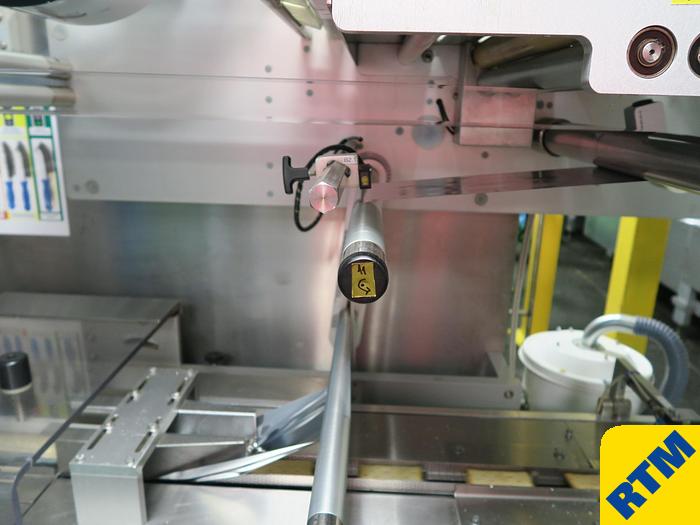

(4) BOSCH Flowpack Wrappers Model Pack 401

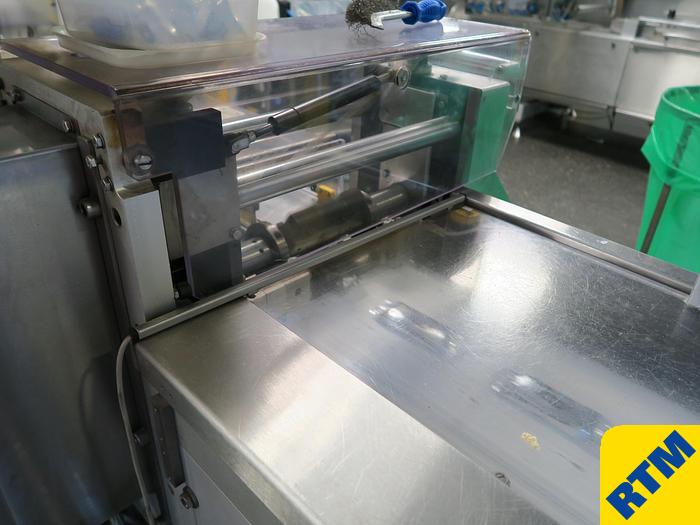

400Volts, 50Hz. 2-Up Knife Heads, PEC for printed films

Each machine running at around 180 packs per minute

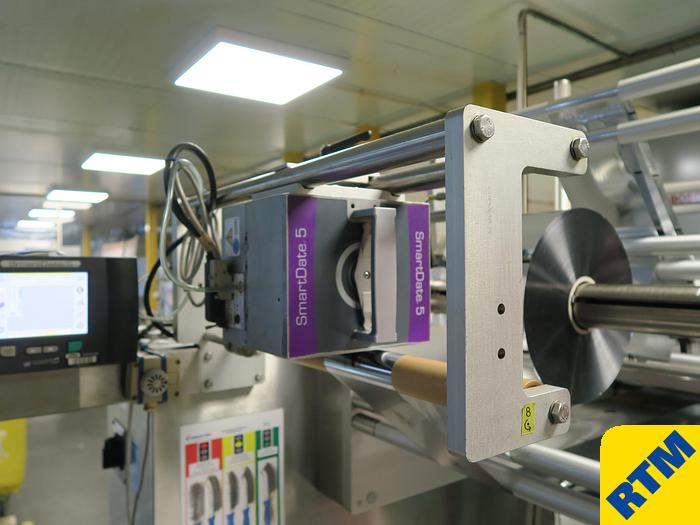

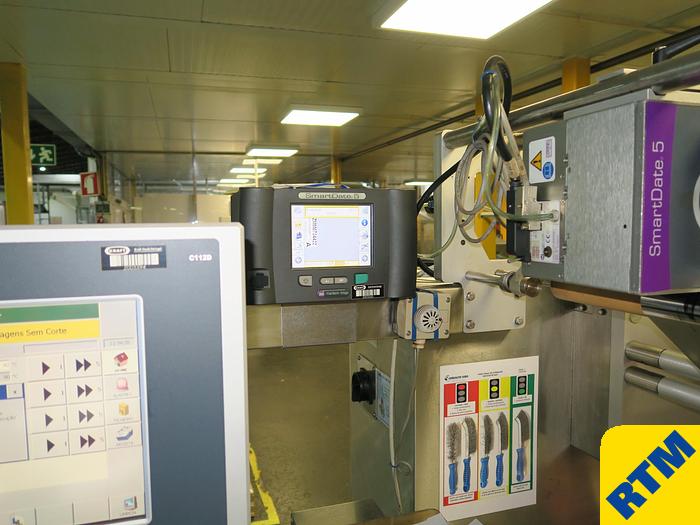

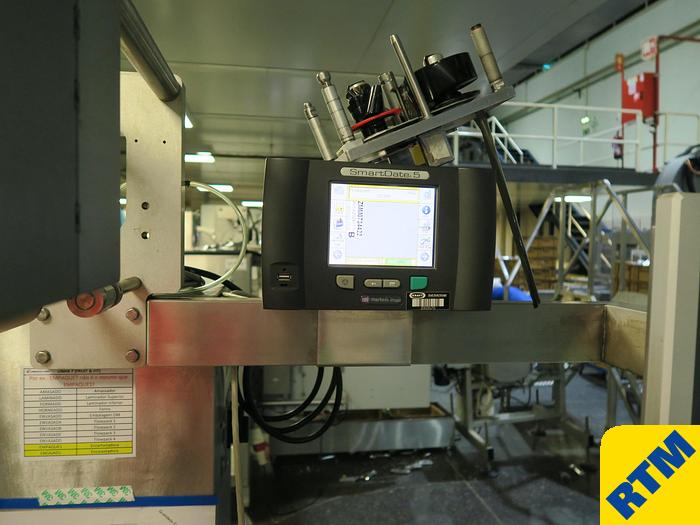

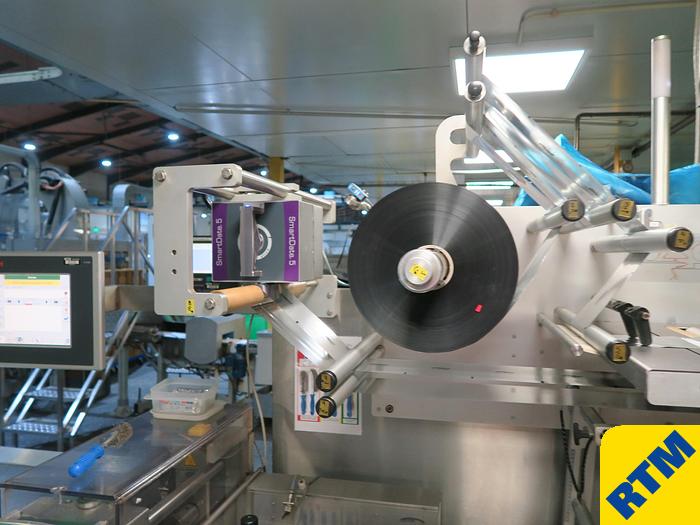

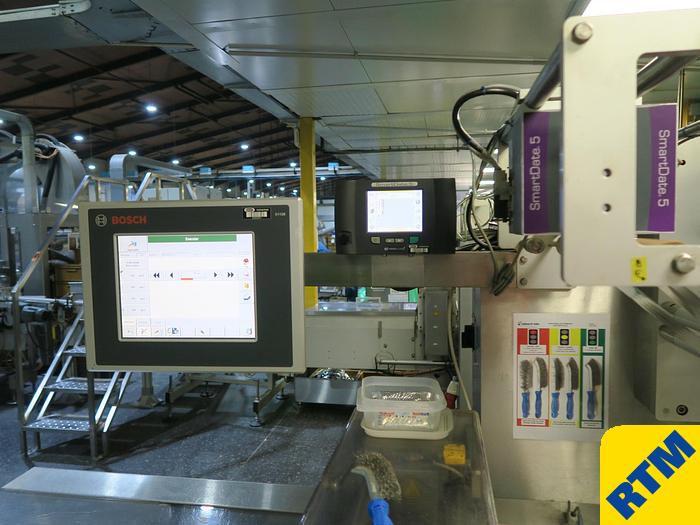

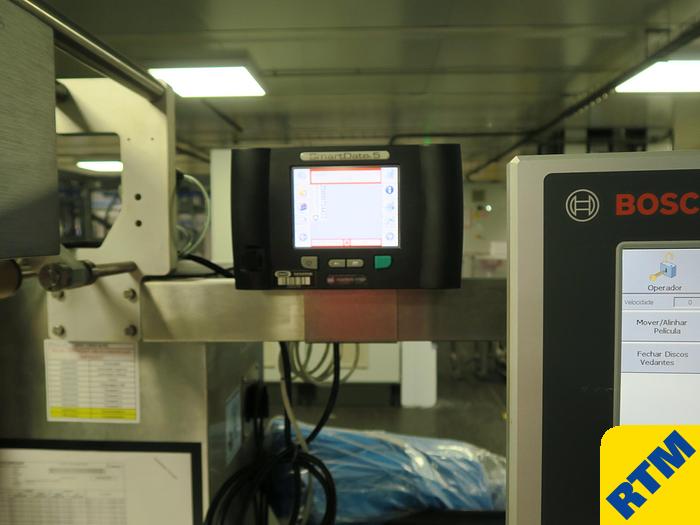

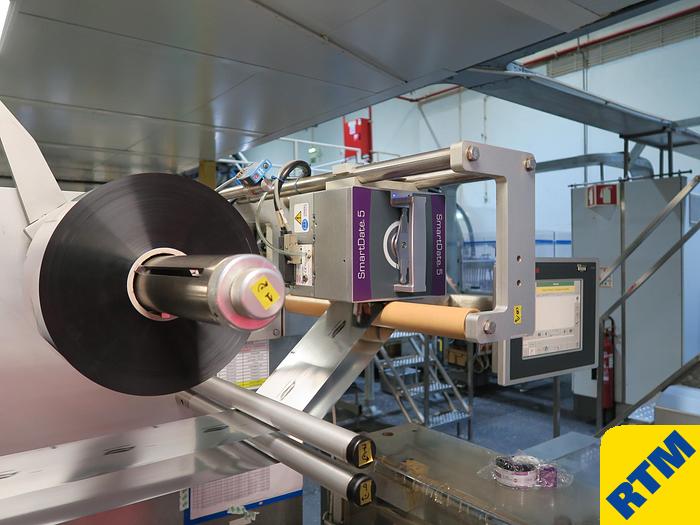

Each with a MARKEM SmartDate 5 Coding Unit

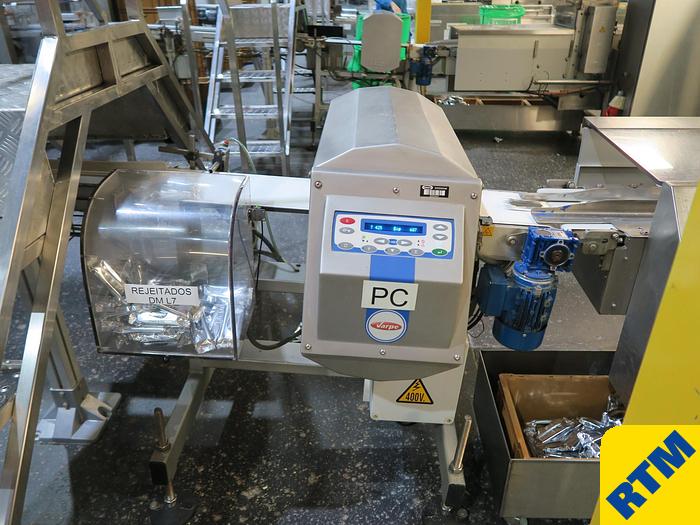

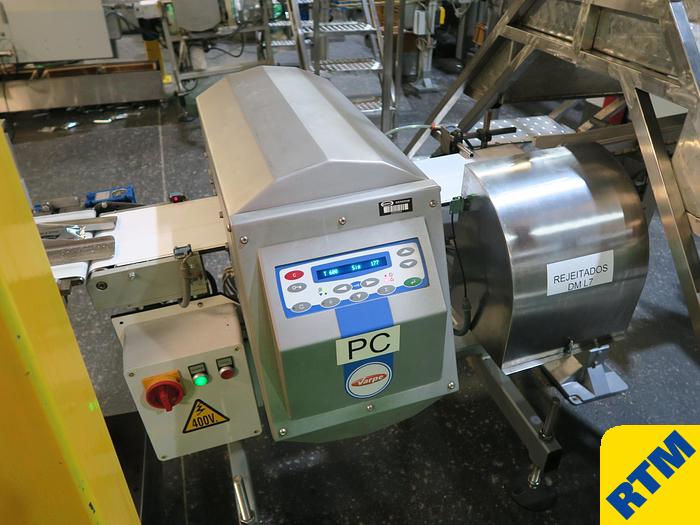

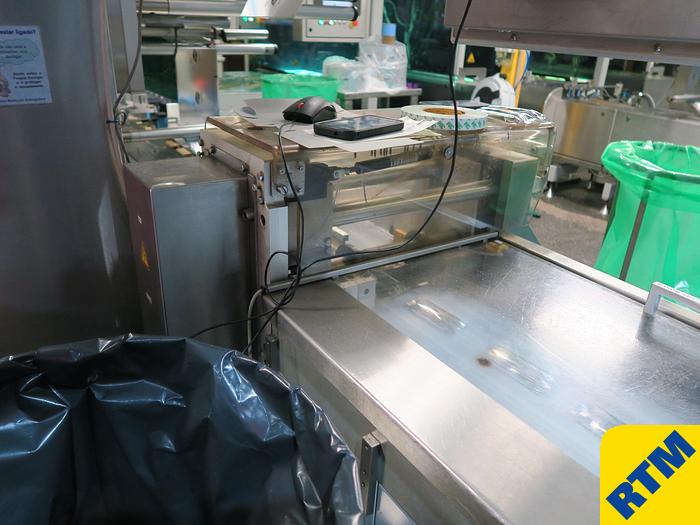

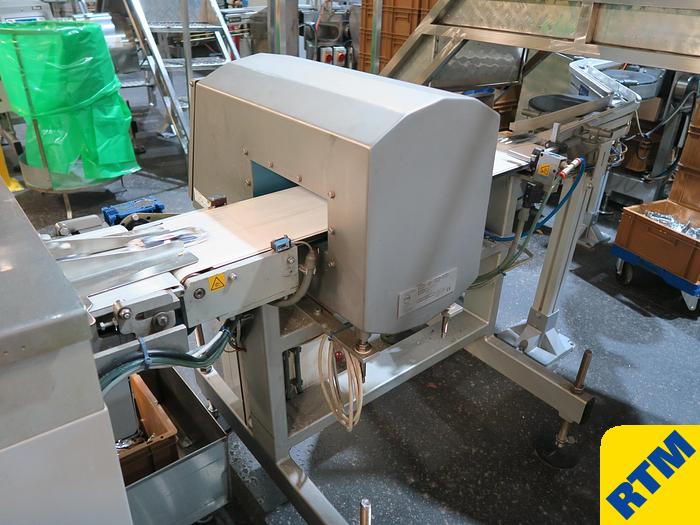

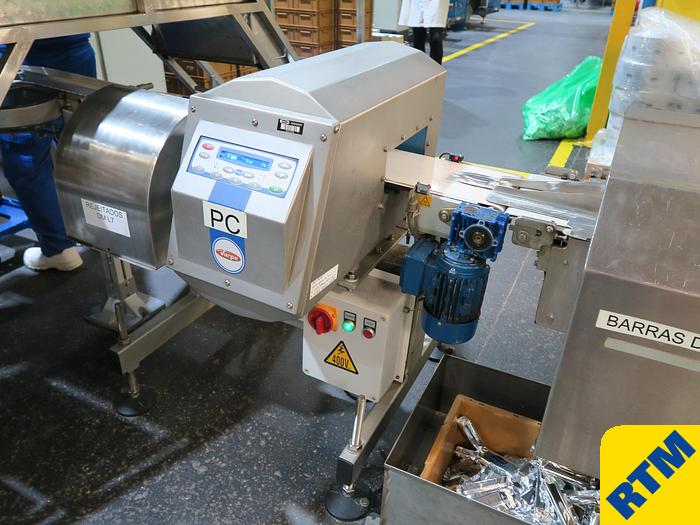

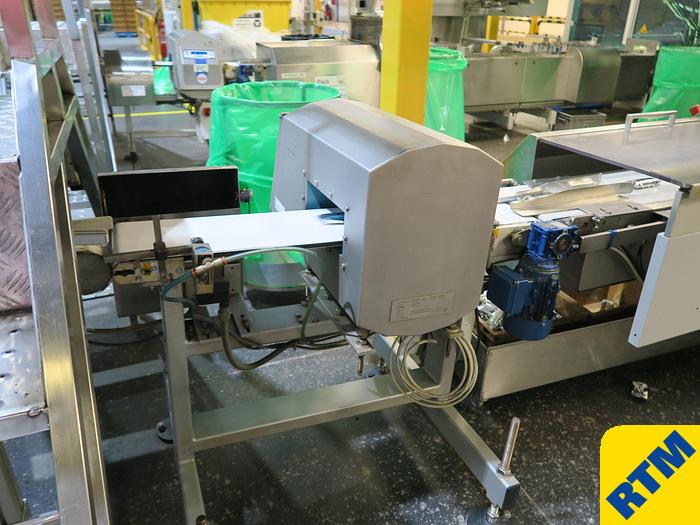

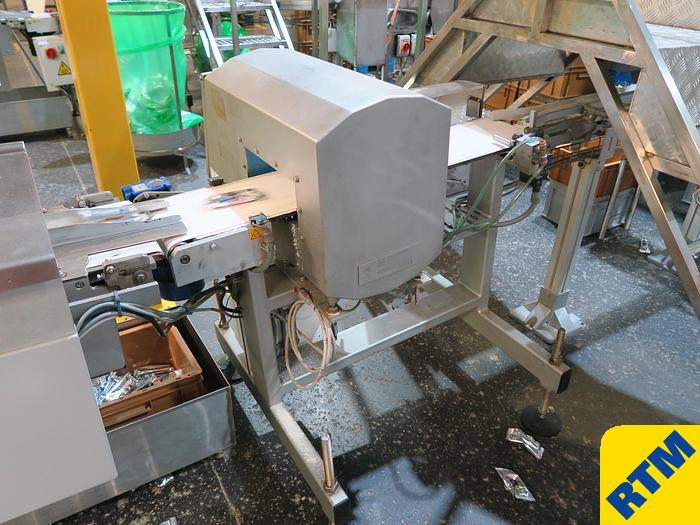

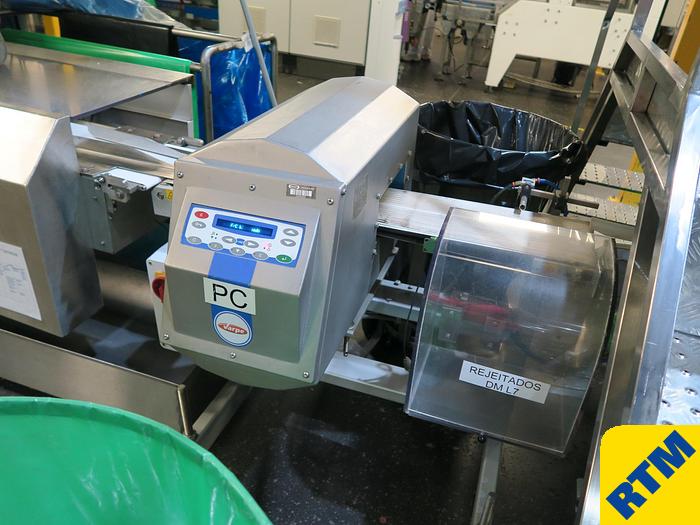

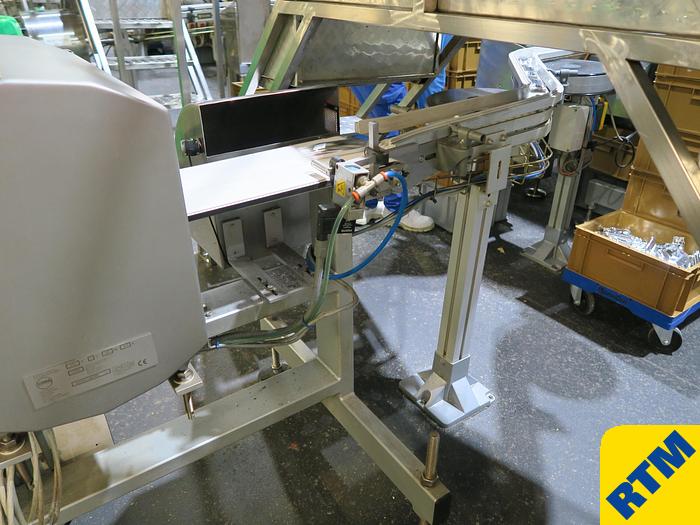

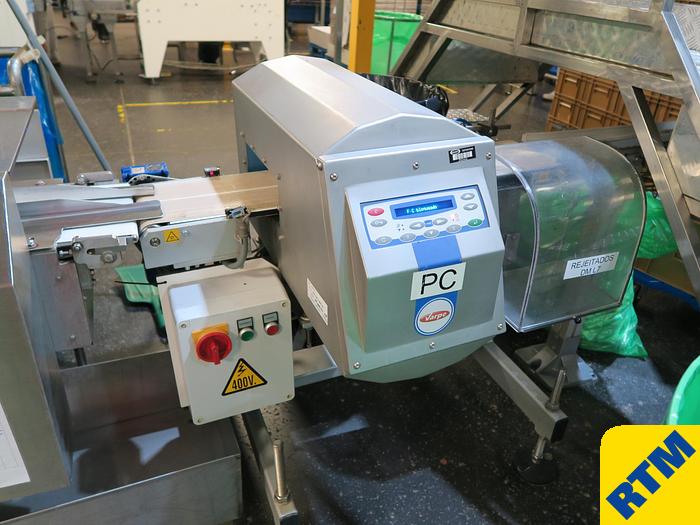

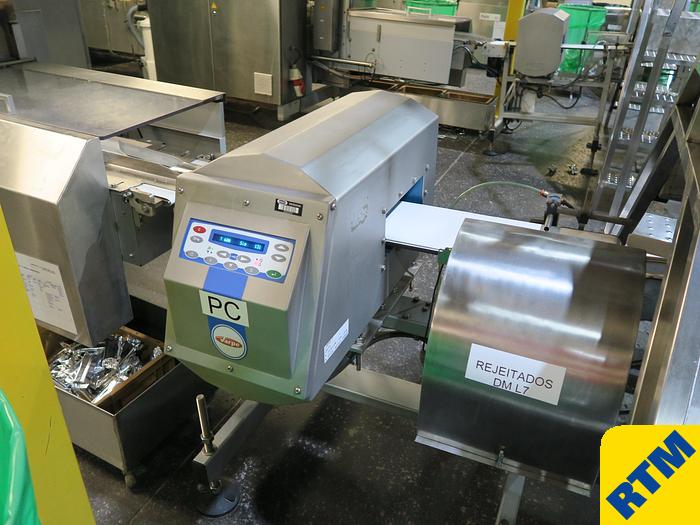

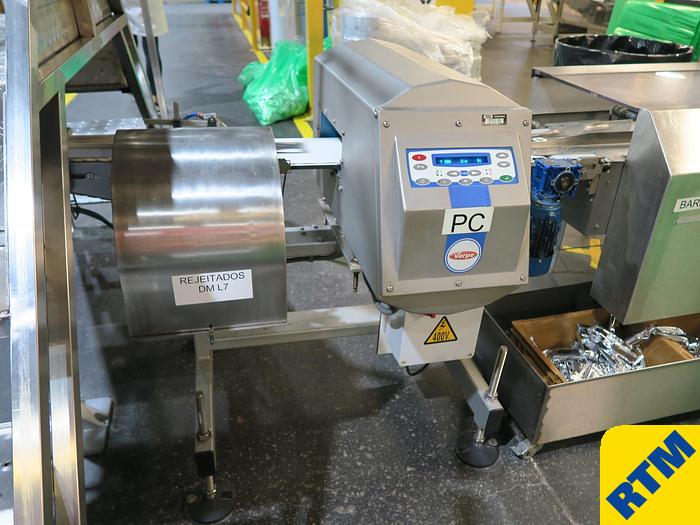

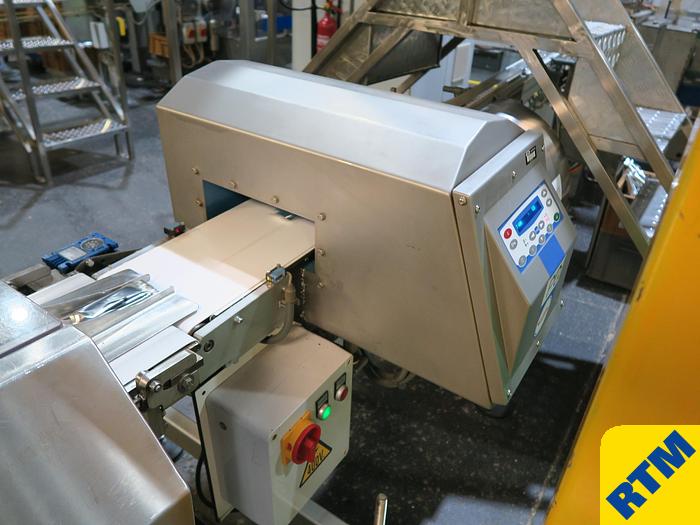

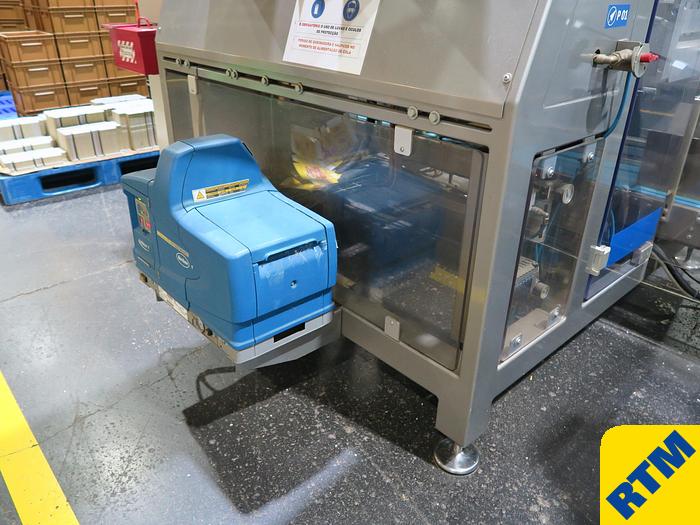

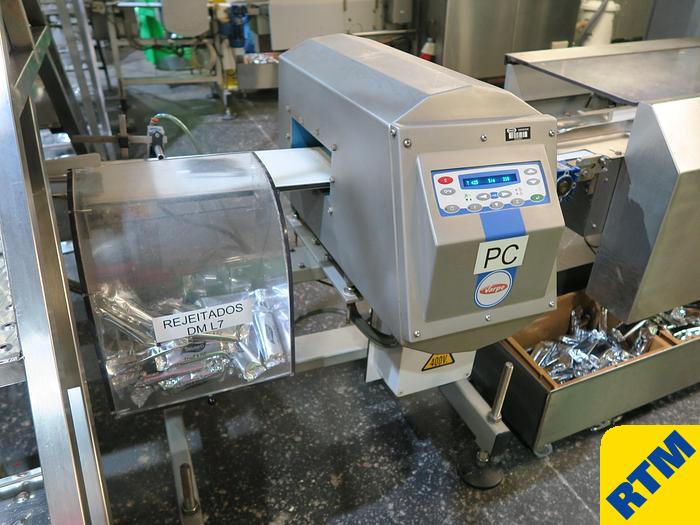

Also with (4) LOMA Metal Detector, with air rejects.

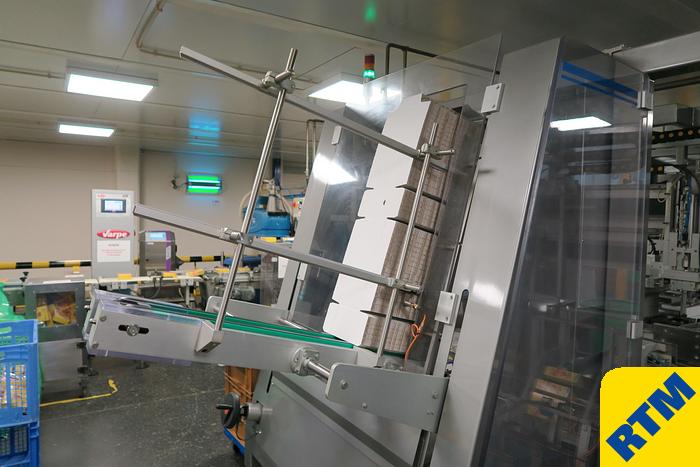

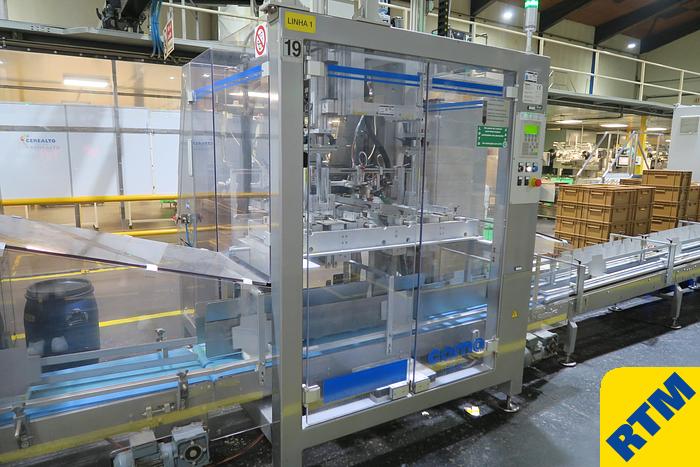

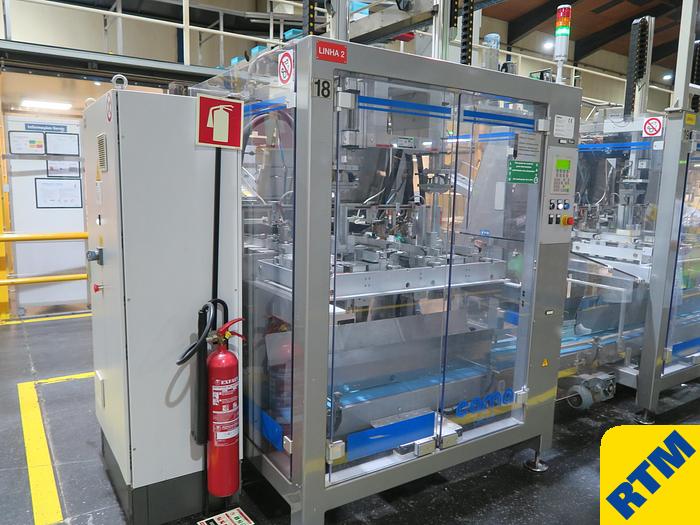

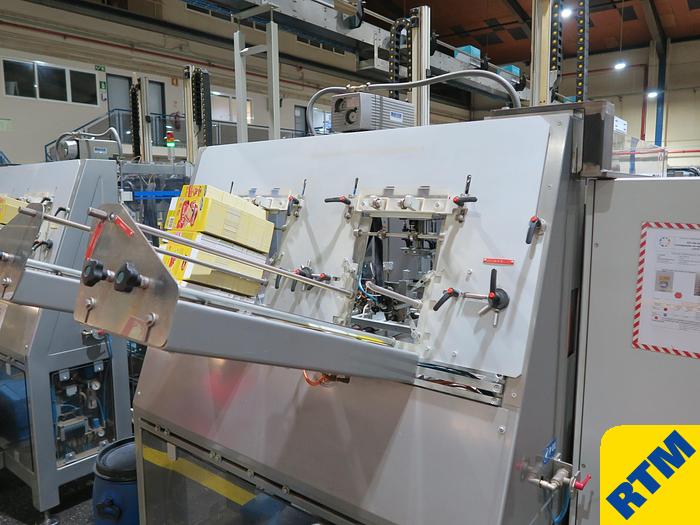

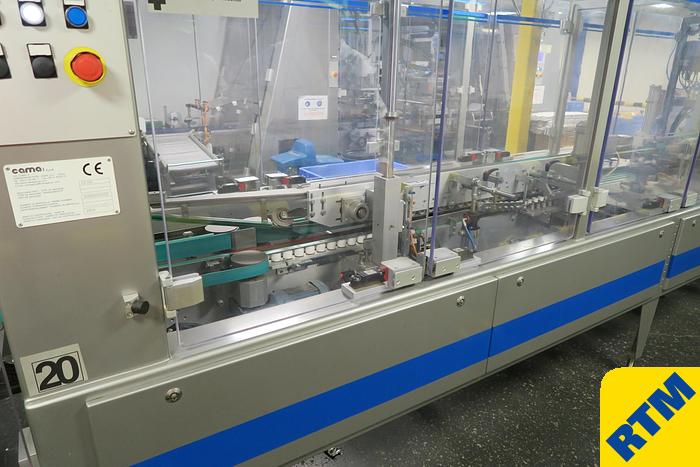

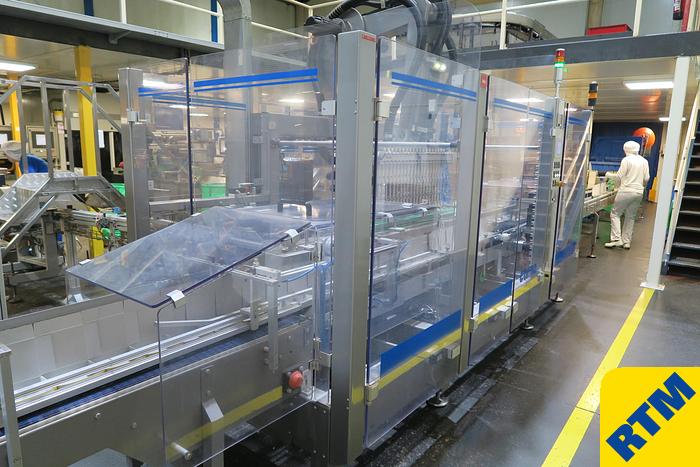

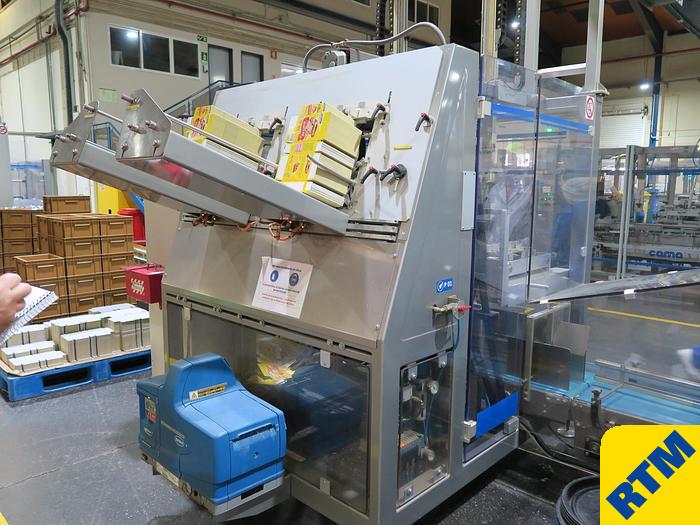

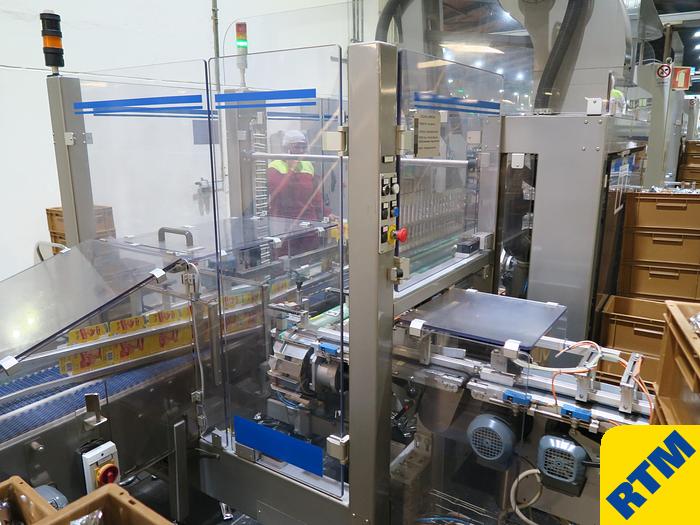

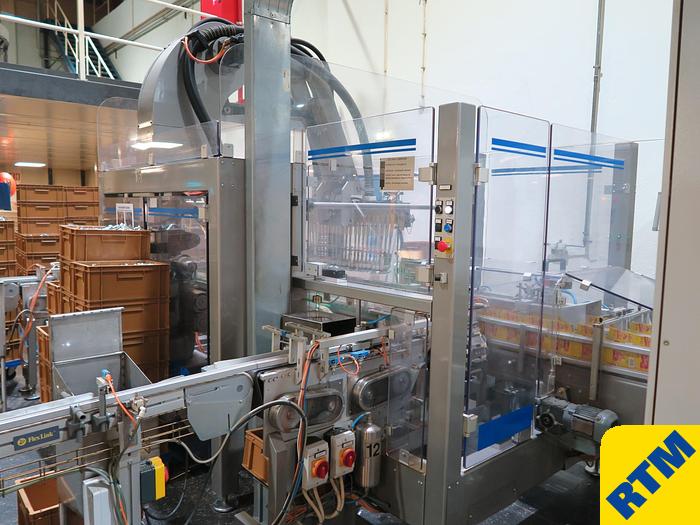

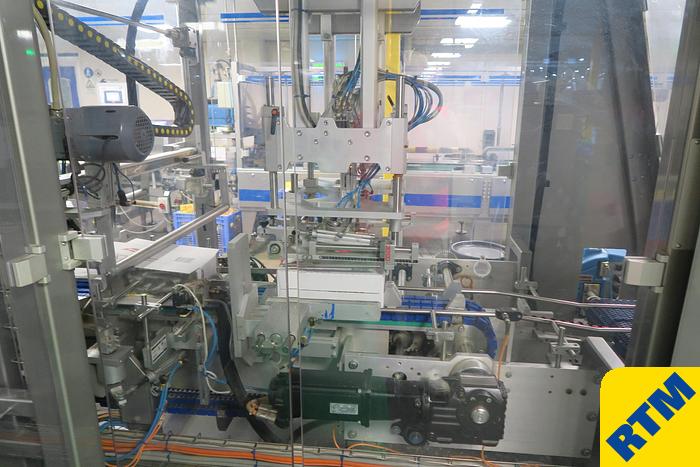

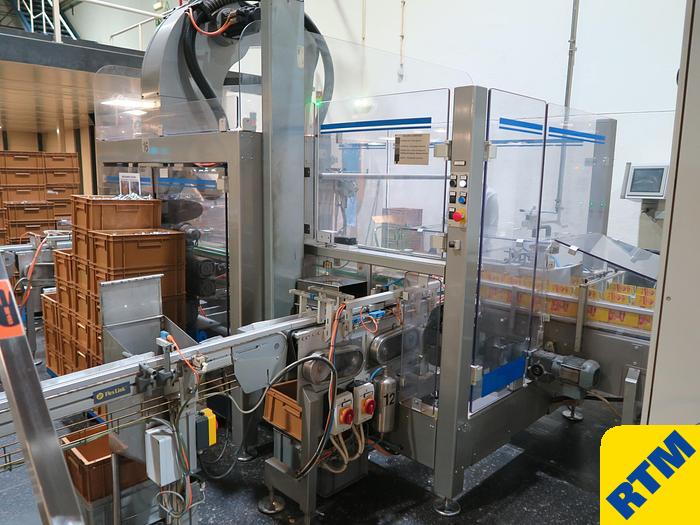

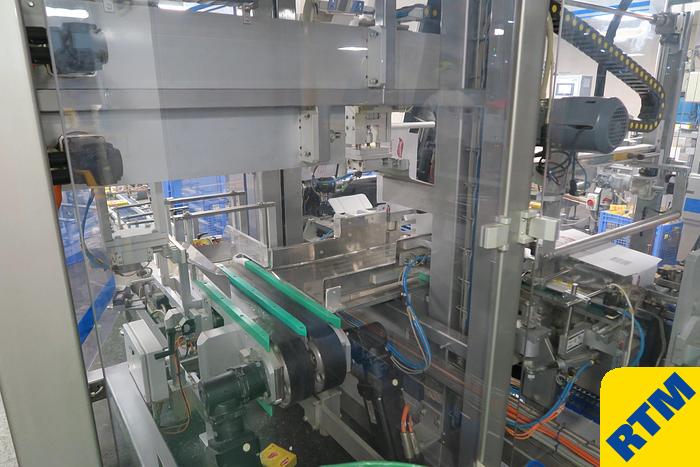

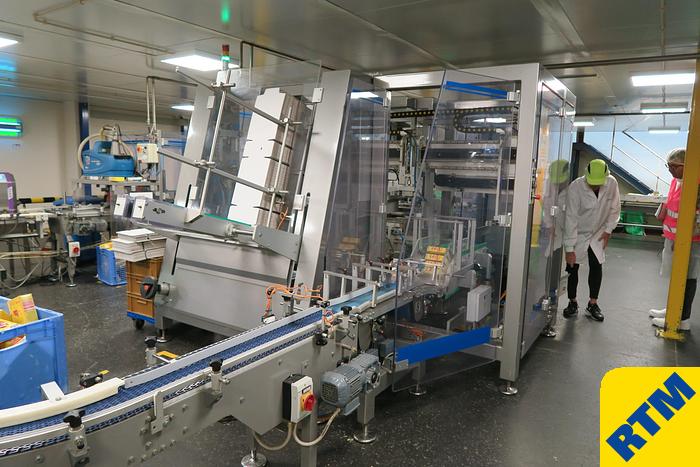

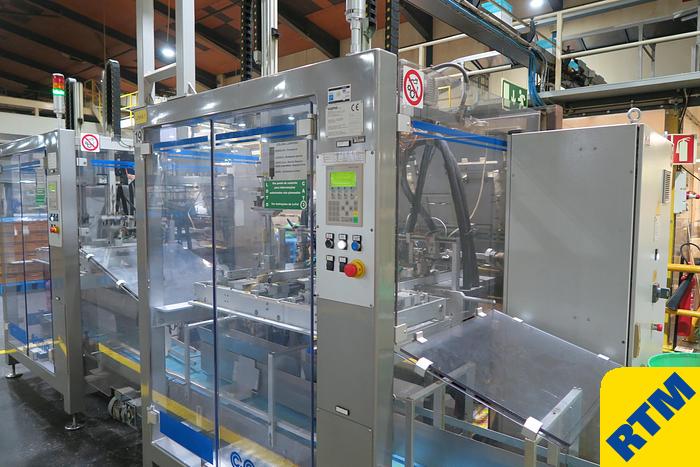

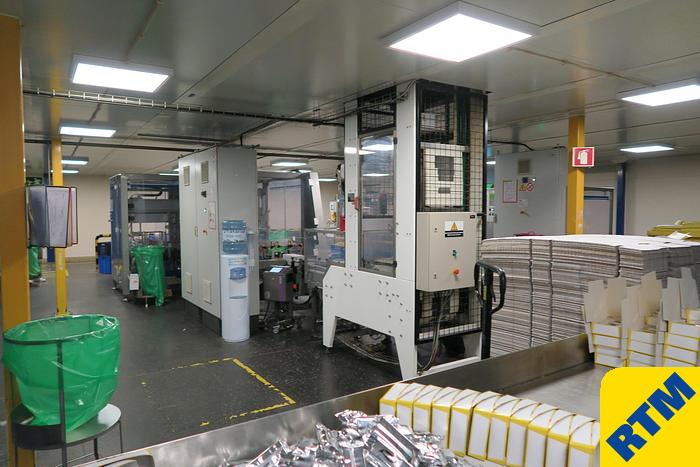

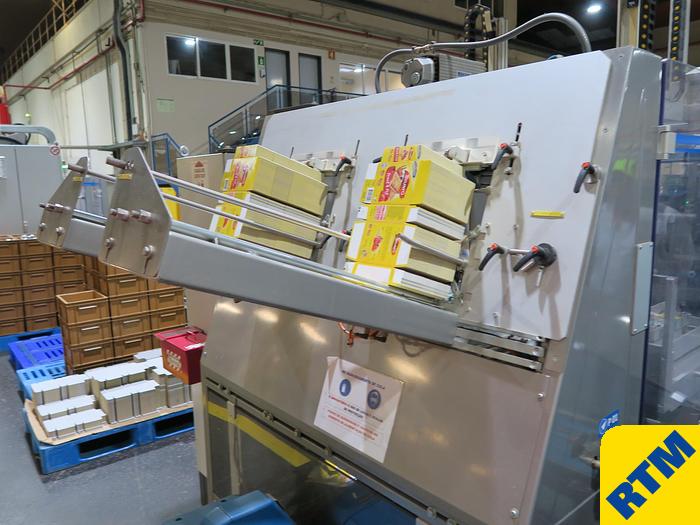

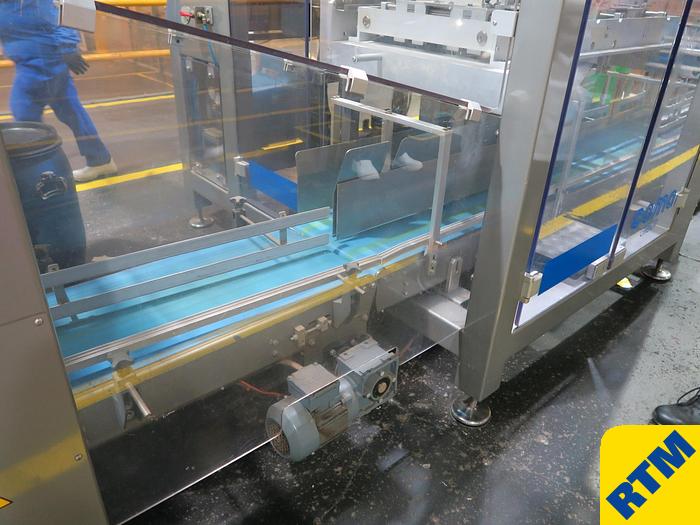

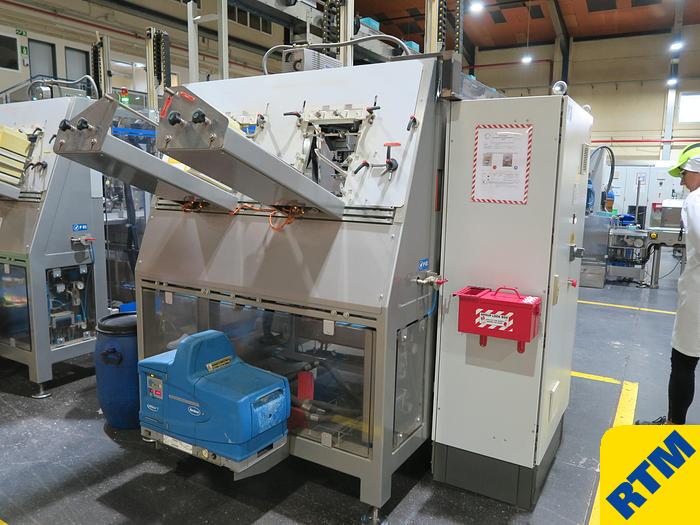

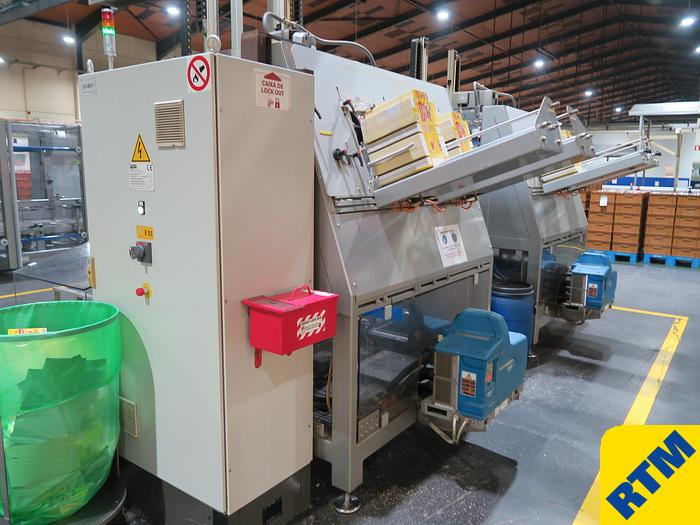

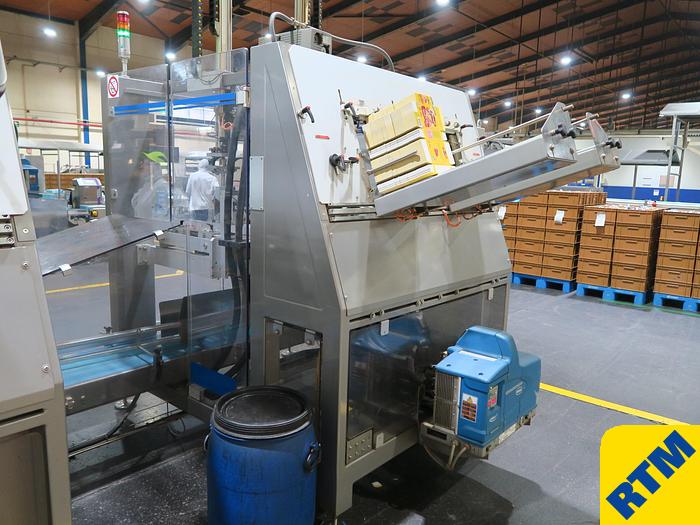

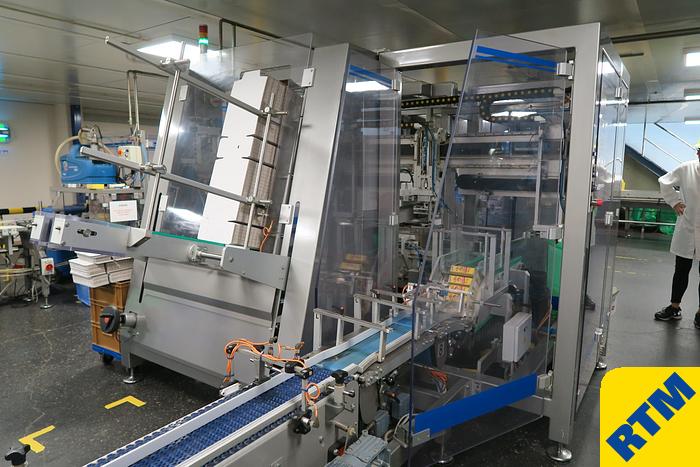

(2) CAMA Carton Erectors Model FAO24

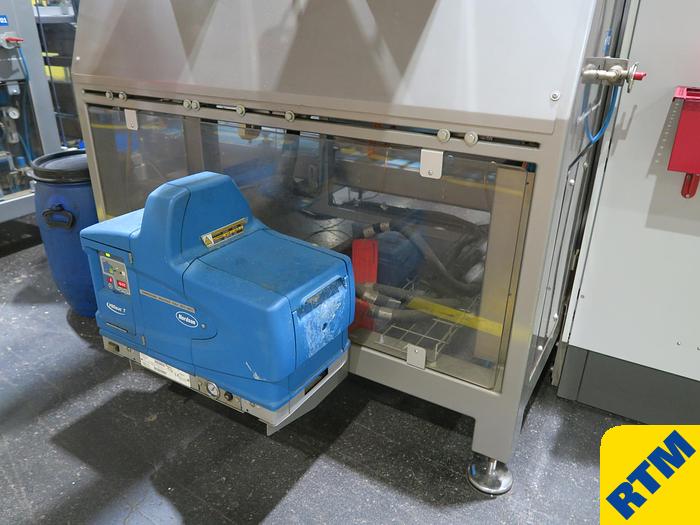

Each with a NORDSON ProBlue-7 Glue Unit

Each machine with twin carton erecting heads

Each Machine running at around 35 cartons per minute

Set up for either 6-pack or 8-pack flowpacked products.

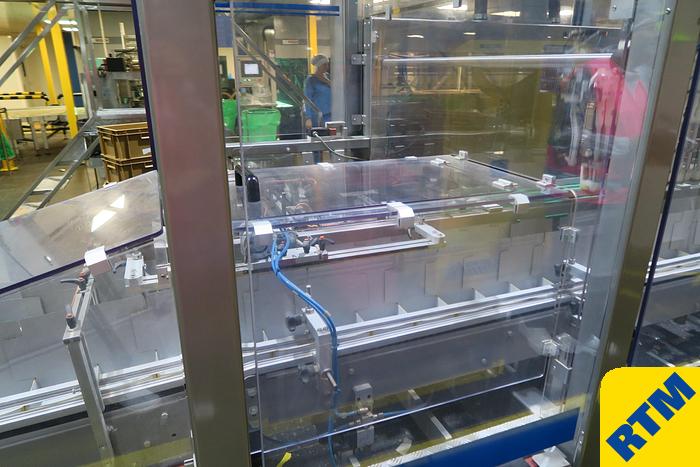

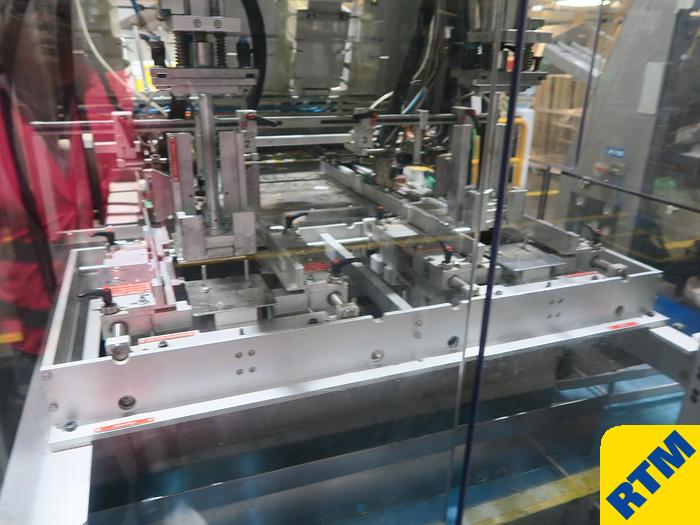

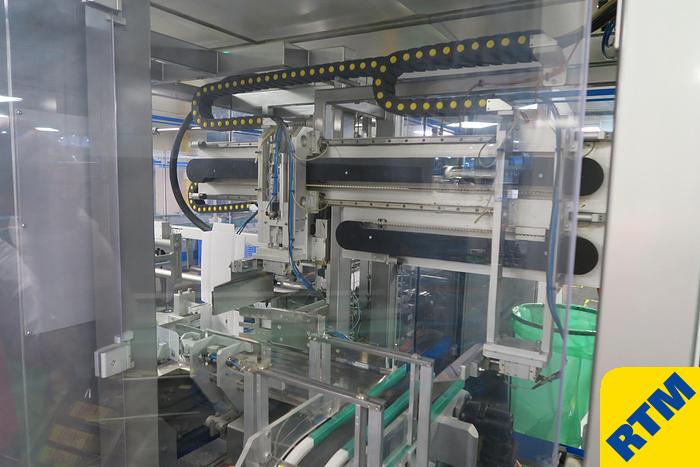

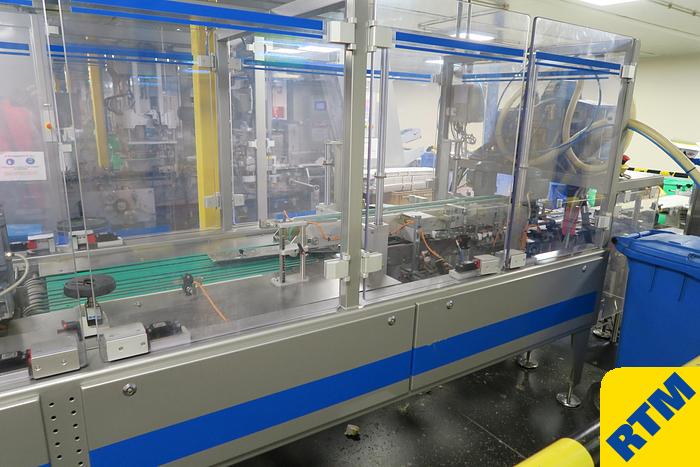

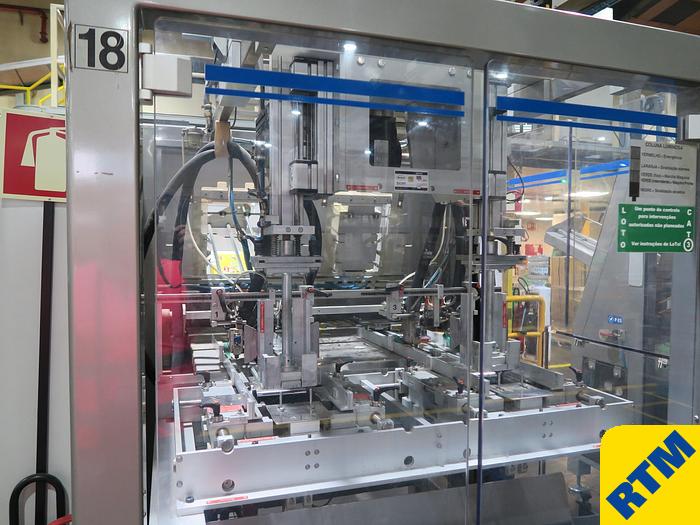

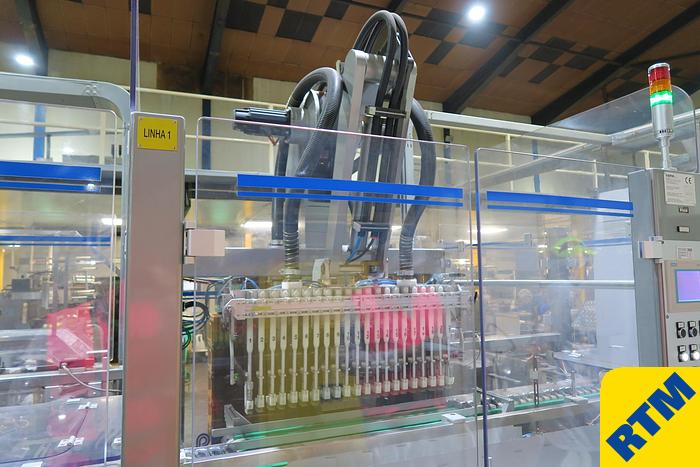

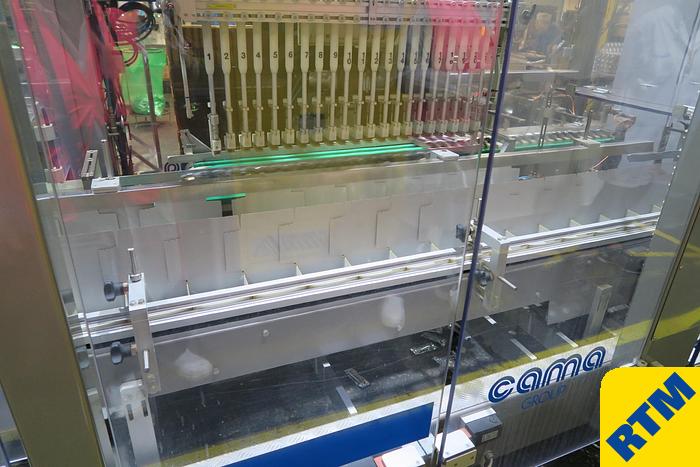

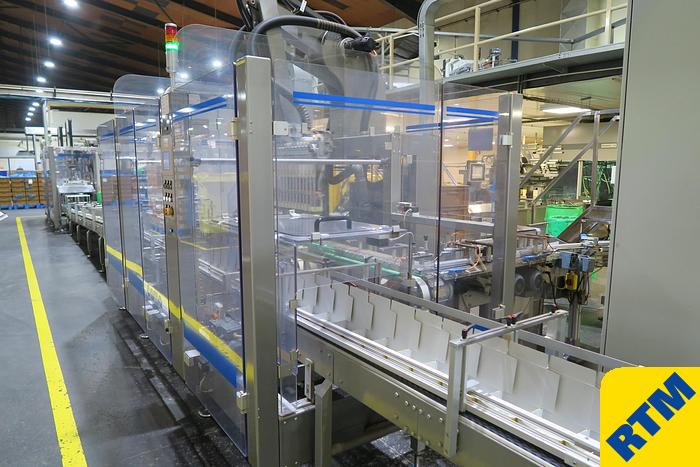

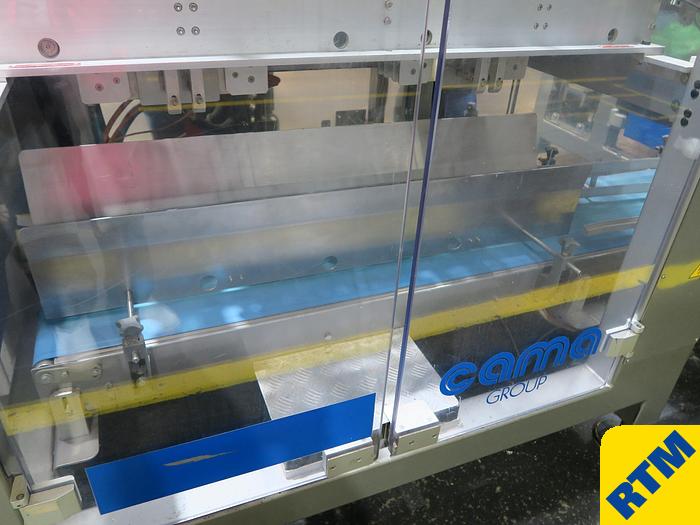

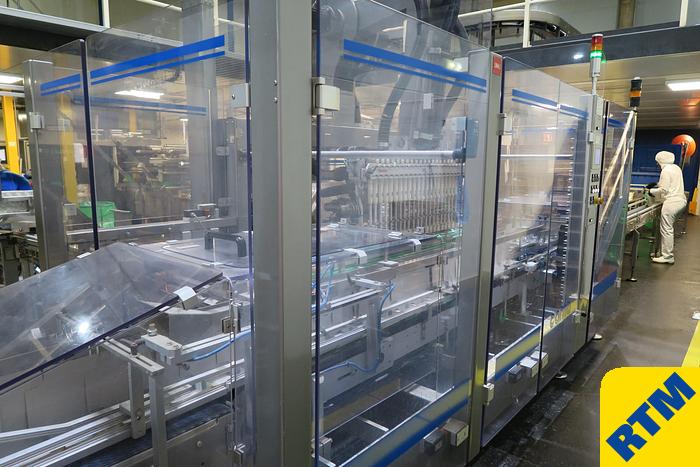

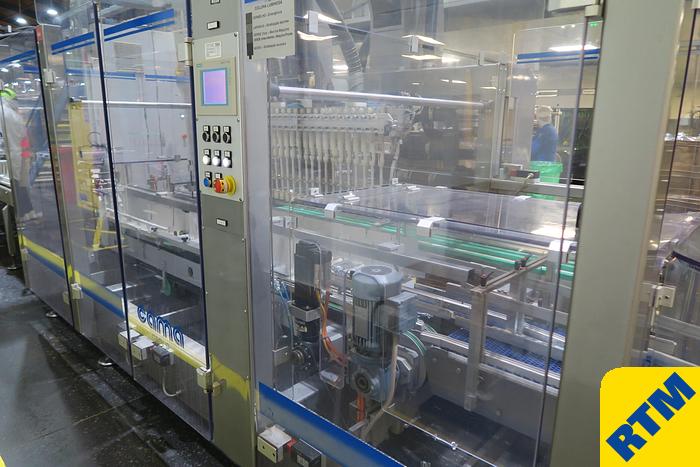

(2) CAMA Pick ‘N’ Place Units Model IT285

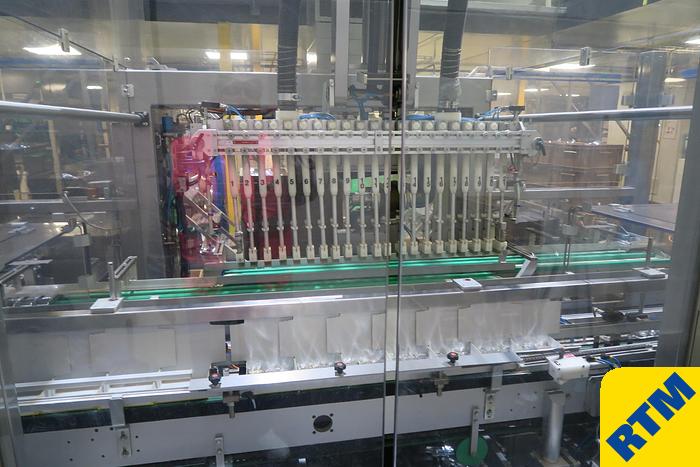

Each machine with 21-Heads, picking up one twin pack per head

Each machine running at around 12 cycles per minute, filling 7-boxes at a time

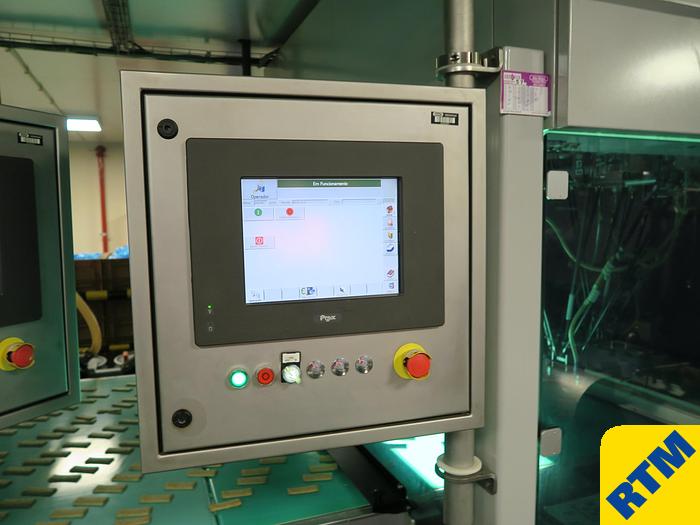

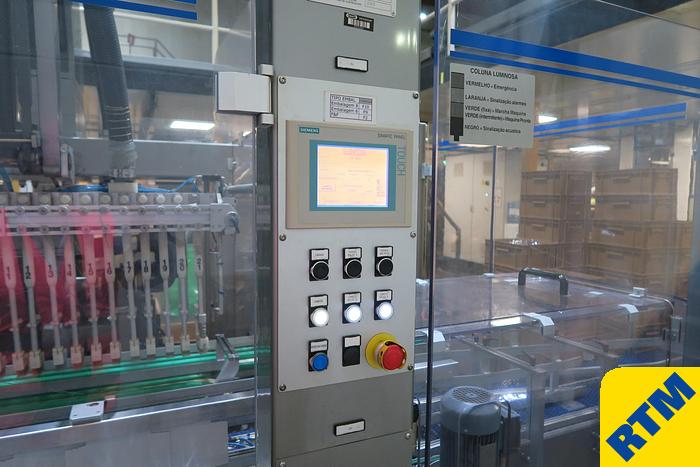

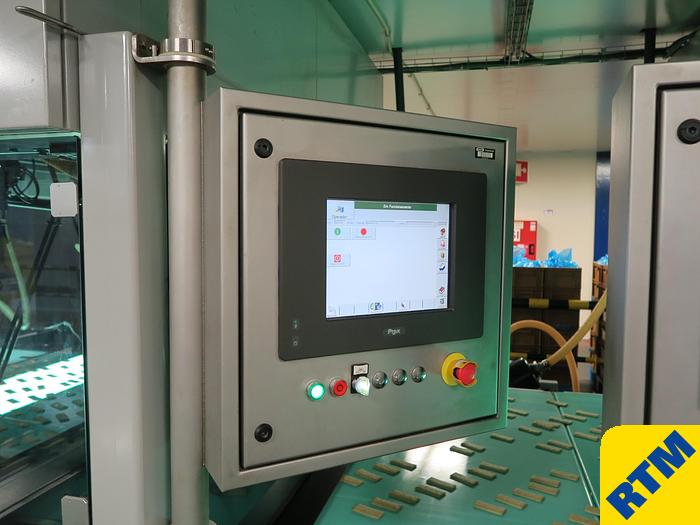

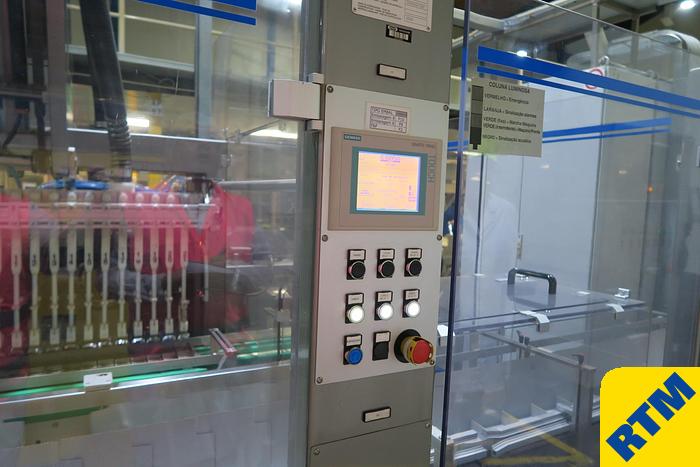

With SIEMENS Simatic PLC Control Panels.

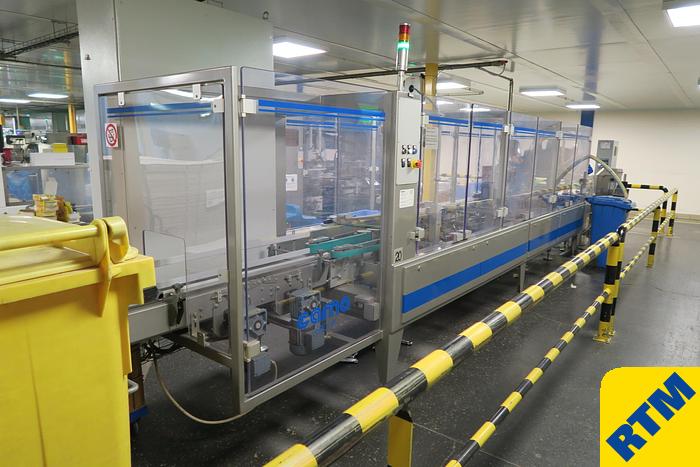

CAMA Carton Closing Machine Model CD059

Continuous Motion

With a NORDSON ProBue-7 Glue Unit.

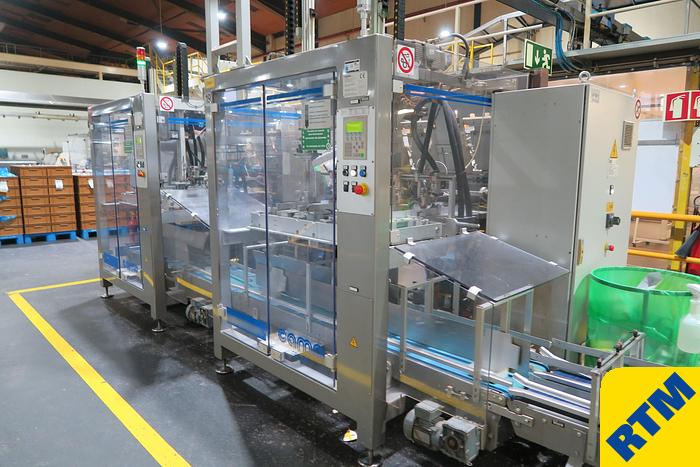

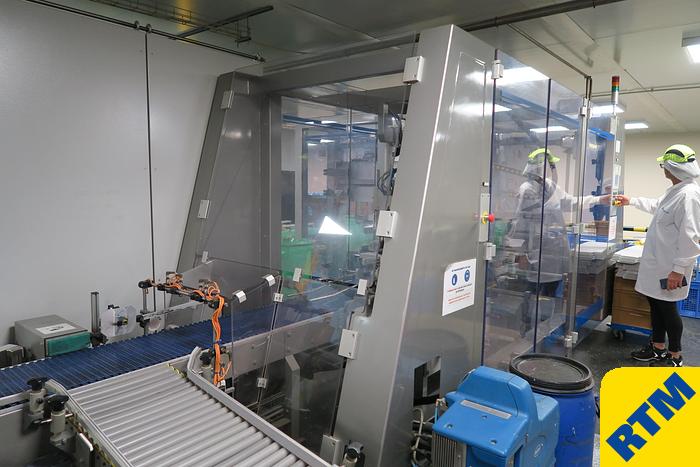

CAMA Case Erector & Closer Model FW78

With NORDSON ProBlue-7 Glue Unit

Set up to pack 8 x cartons per case.

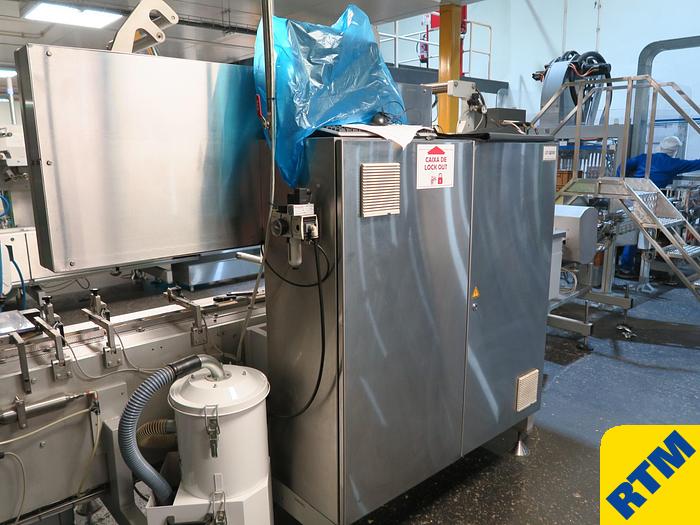

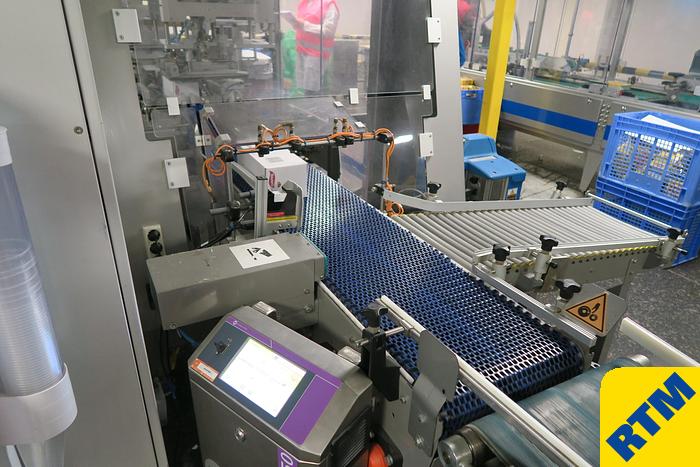

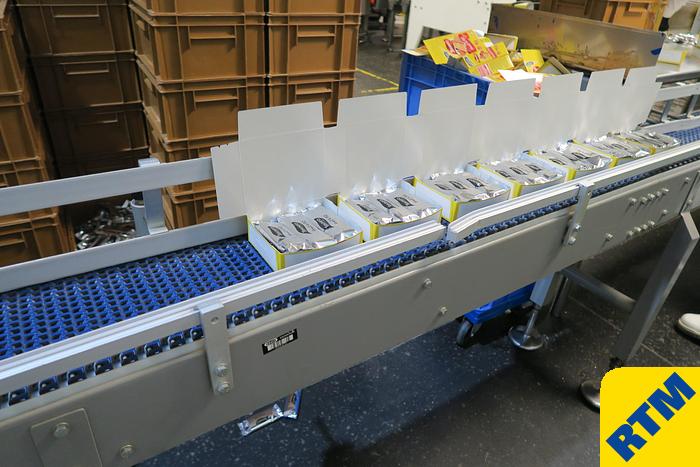

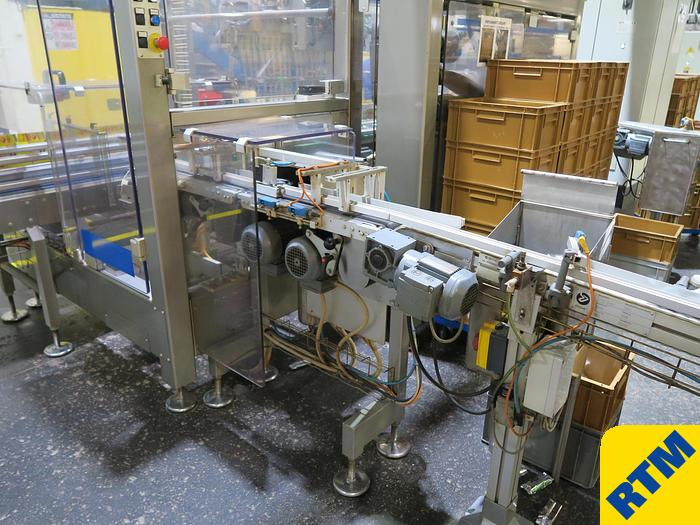

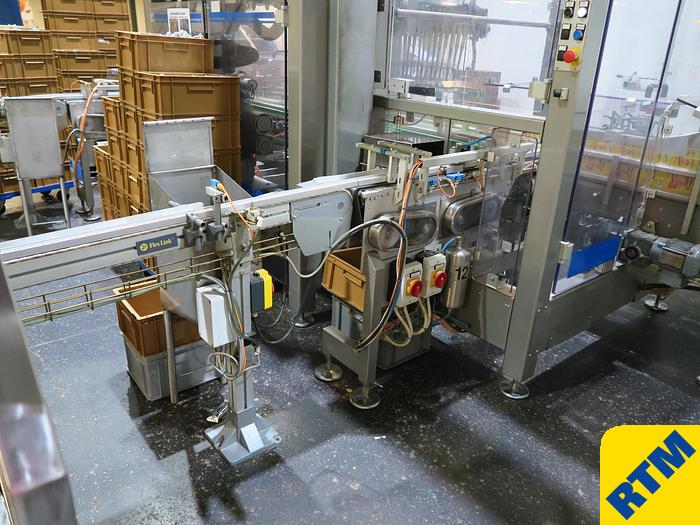

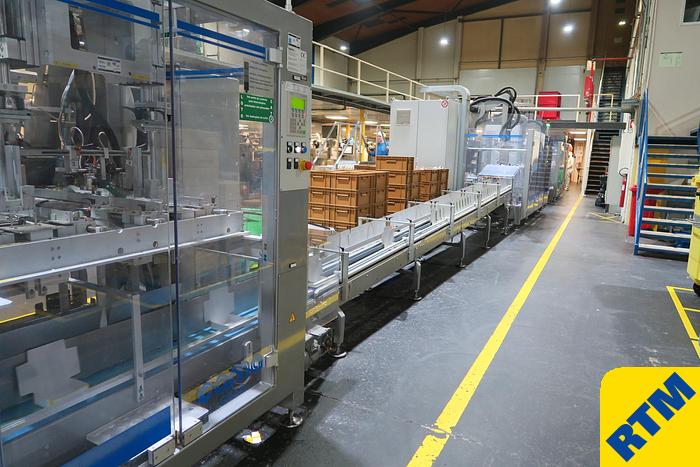

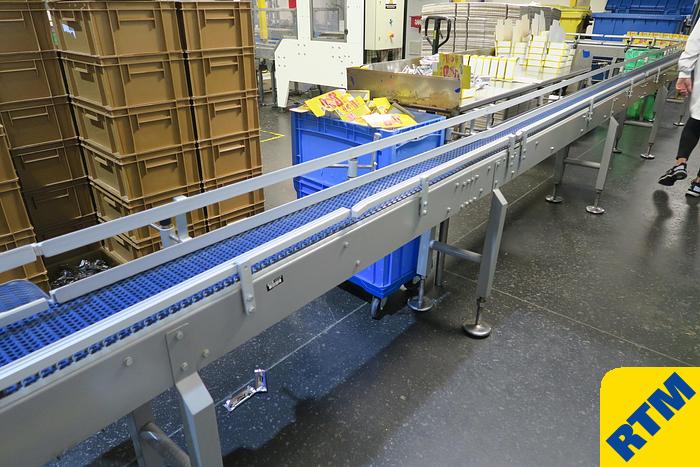

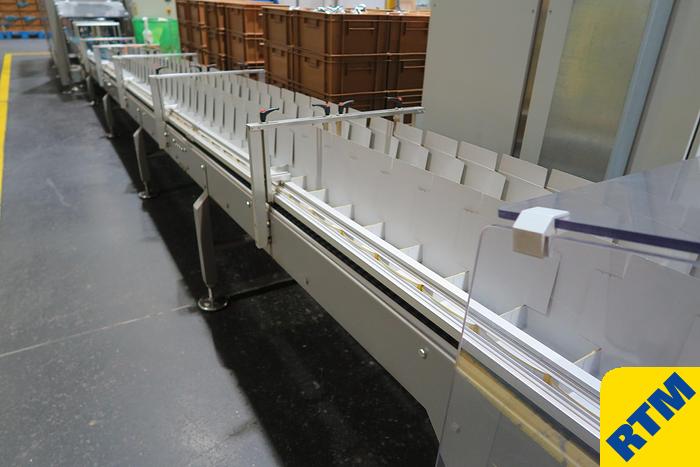

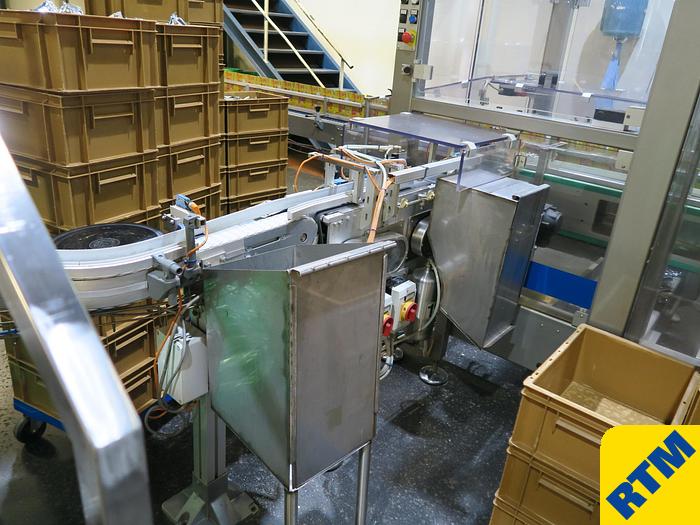

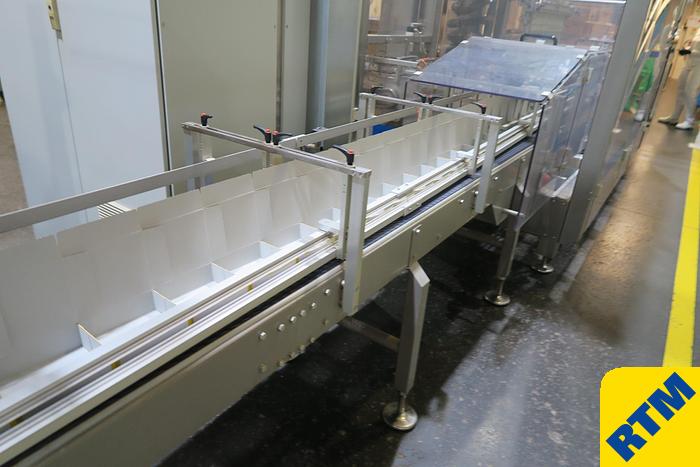

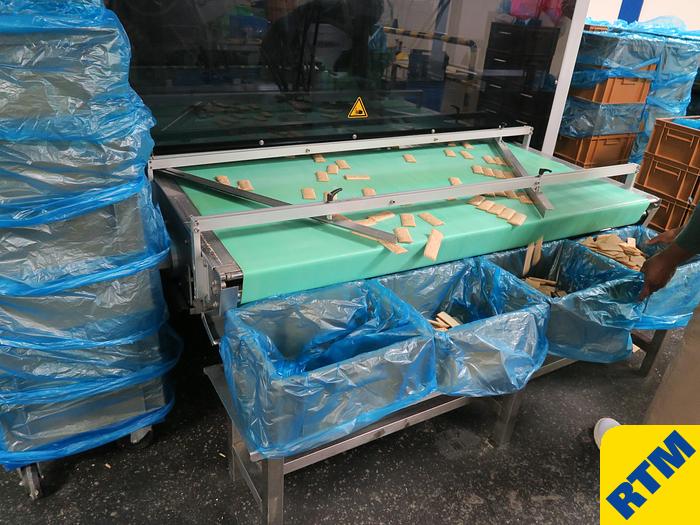

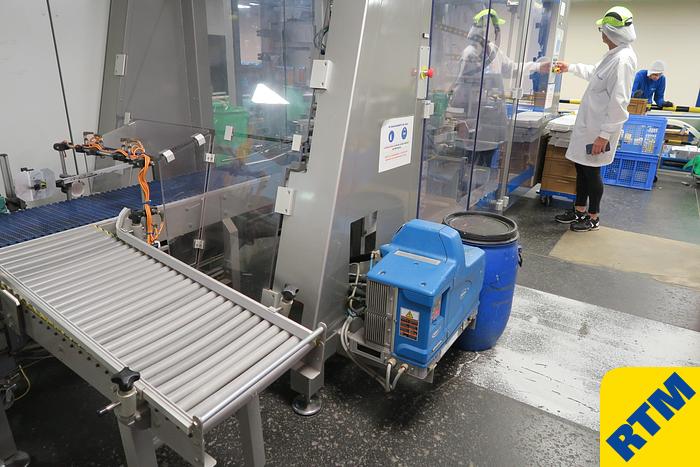

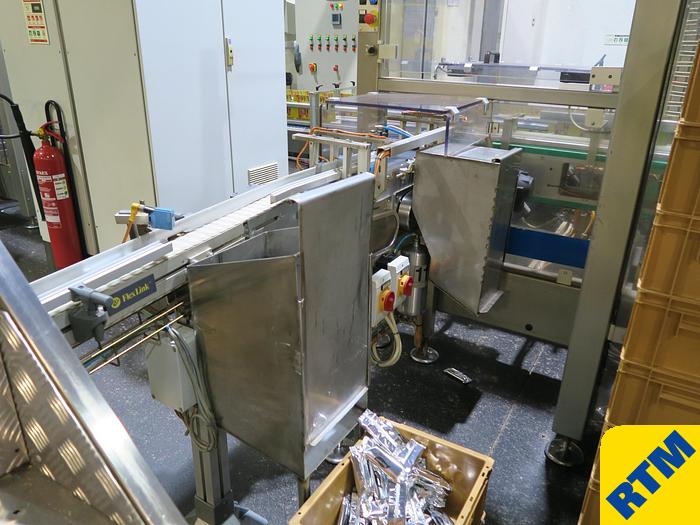

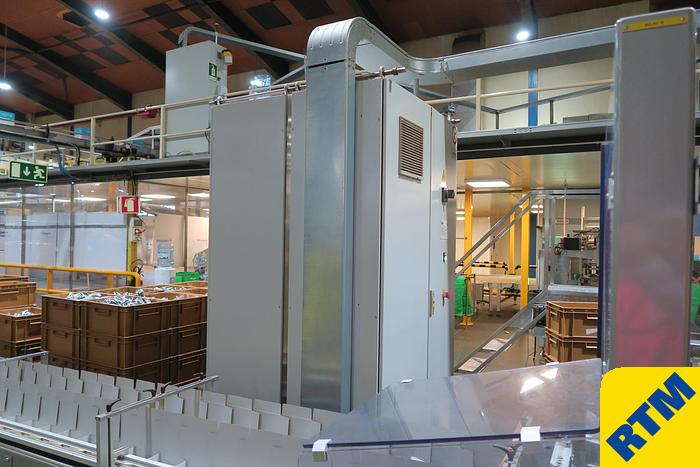

Lines also includes all interconnecting conveyors, control panels.
