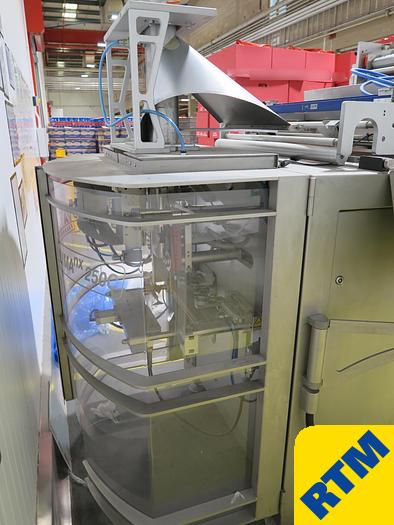

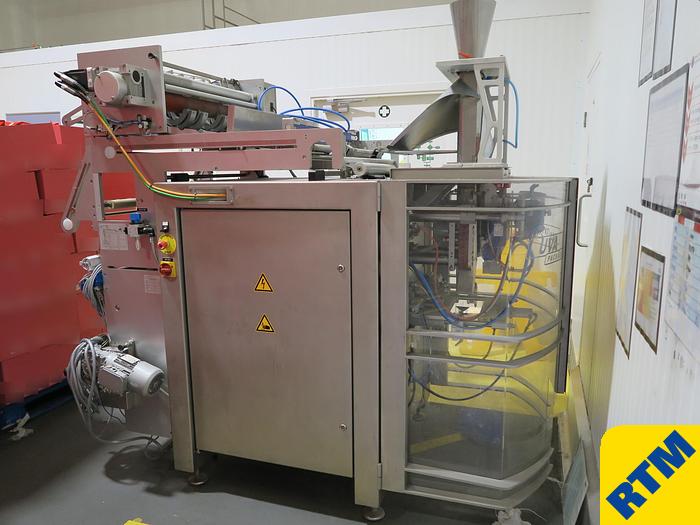

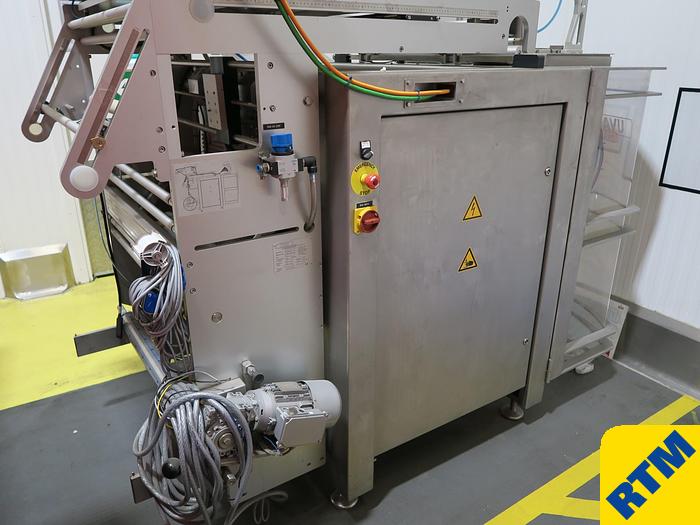

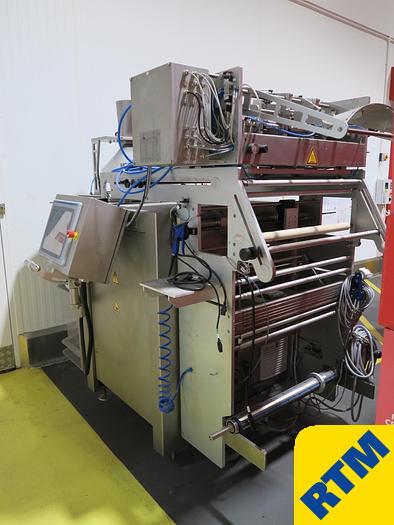

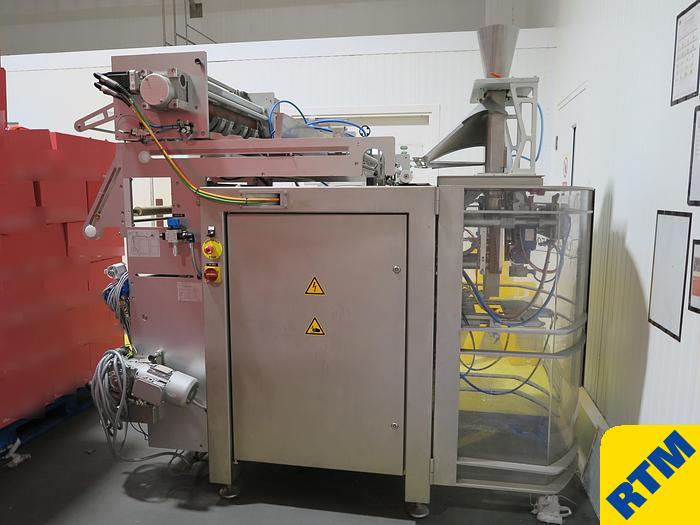

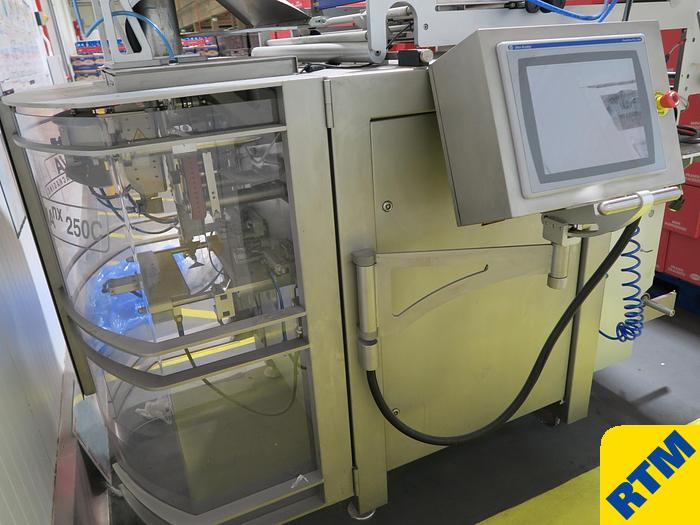

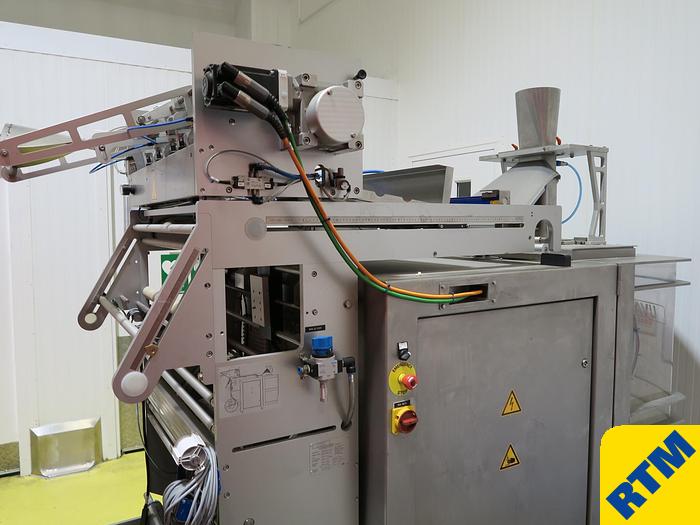

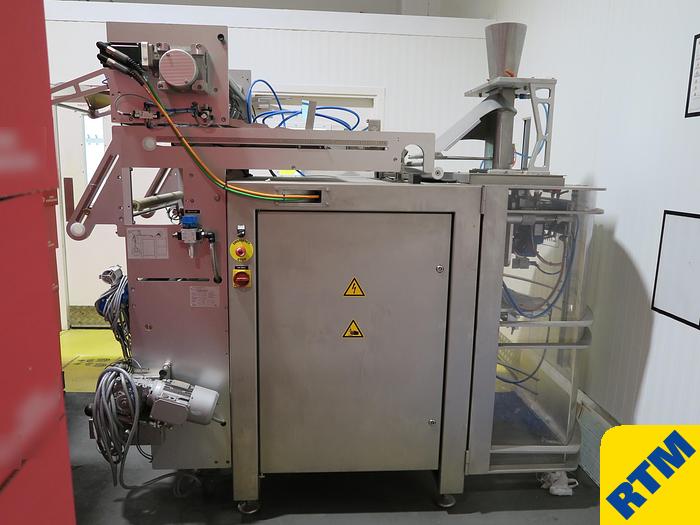

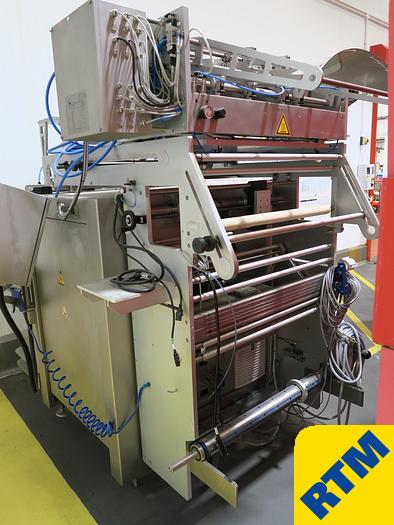

Bagging Machine

Item # 8654 – BAGGING MACHINE

Manufactured by UVA Packaging (Netherlands)

Model Lima 320 CHS

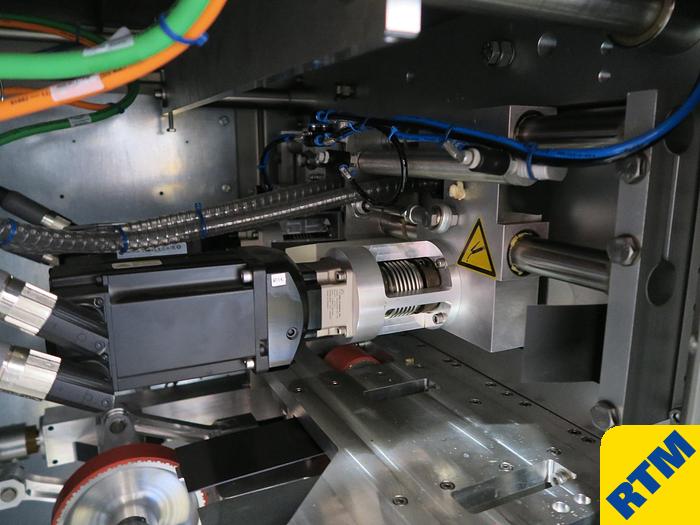

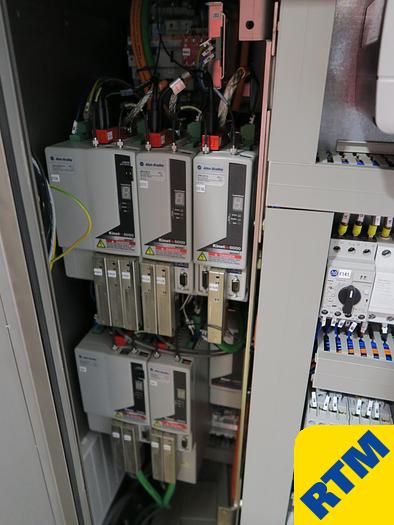

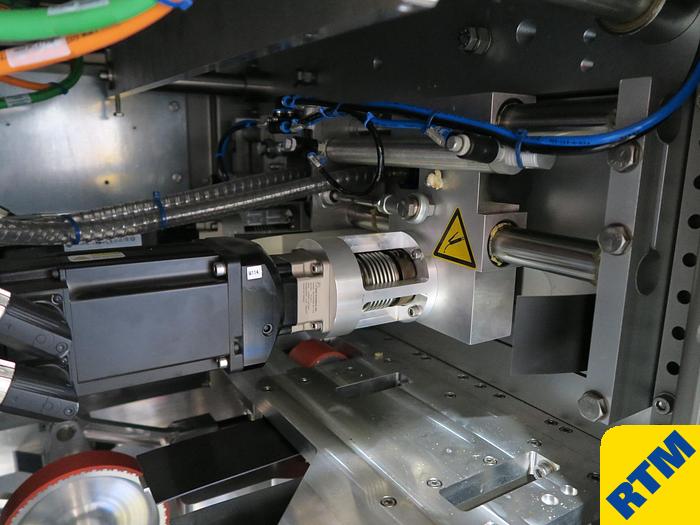

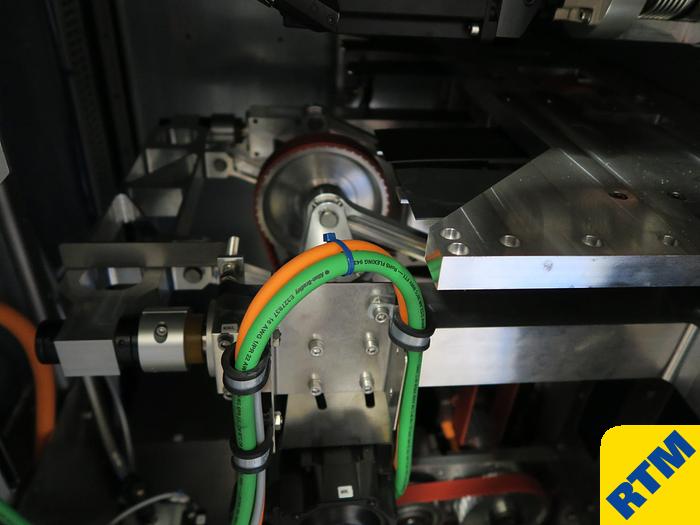

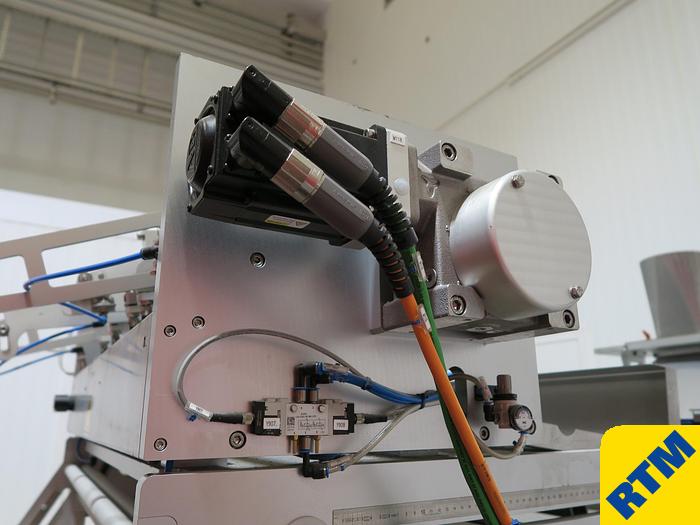

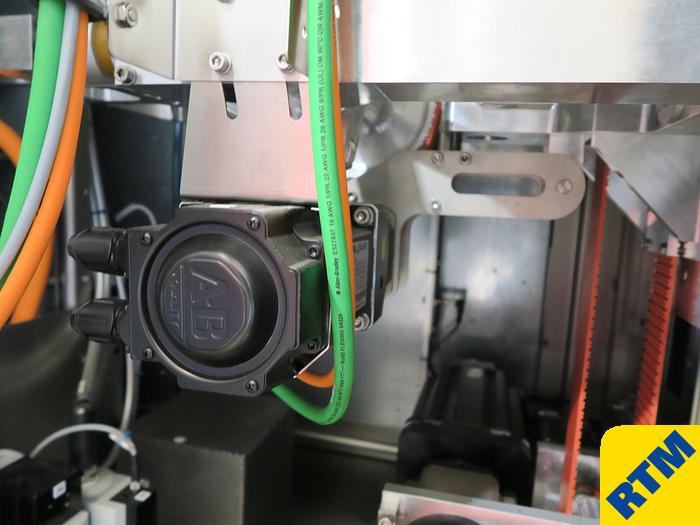

Continuous motion, servo controlled, heat seal technology

Year 2017

Basic machine data:

Stainless steel

7-bag styles possible

Nominal maximum bag speeds of 200 per minute

Bag width pillow pack 50mm to 320mm

Bag width block bottom bag 40mm to 270mm

Front to back block bottom bag 30-130mm

Bag length 50mm to 400mm

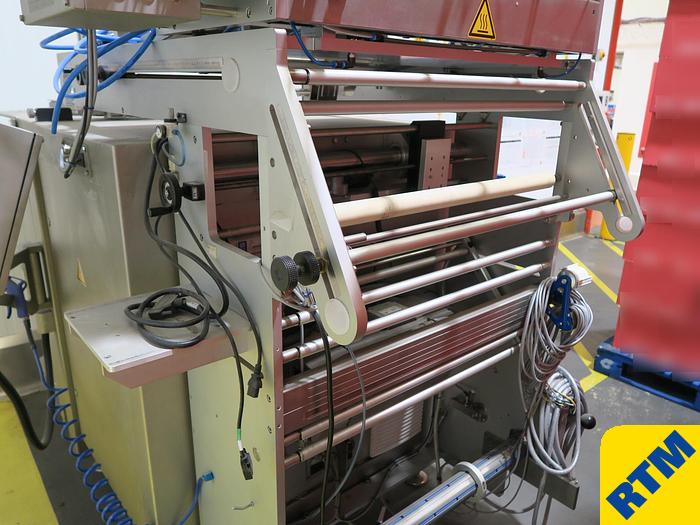

Maximum film reel width 840mm

Maximum film reel diameter 700mm

Maximum film reel weight 100kg

Film reel core diameter 150mm

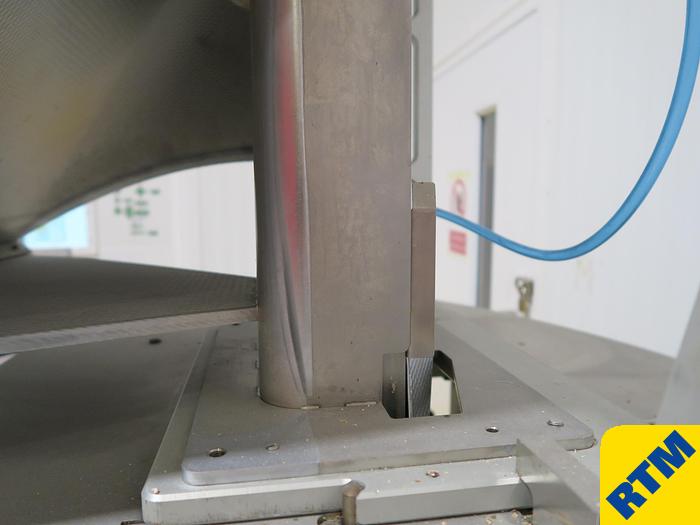

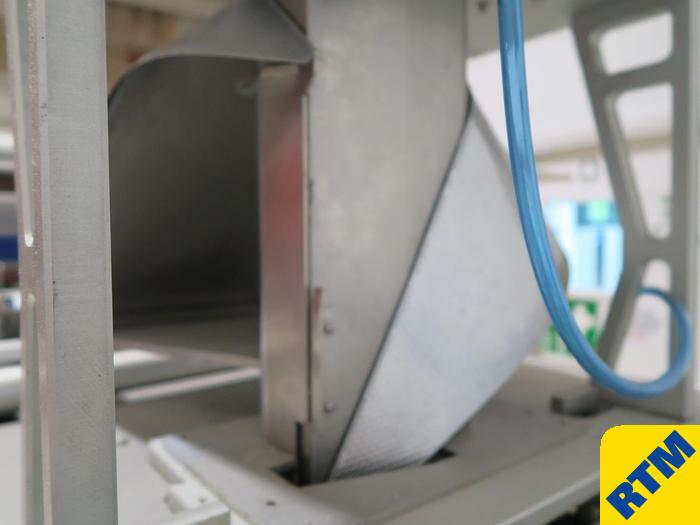

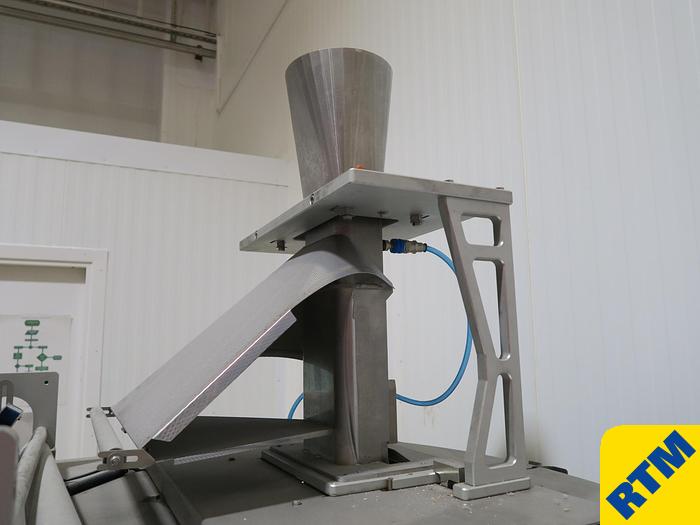

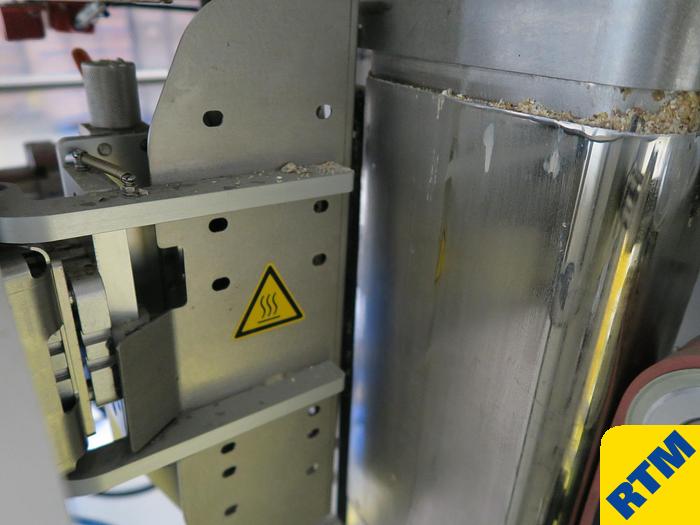

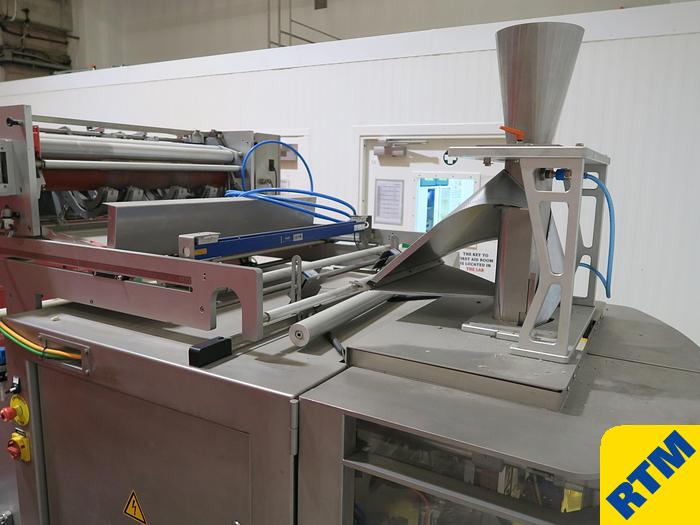

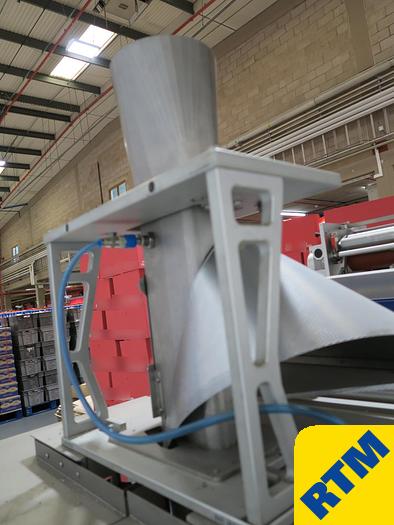

Rectangular forming tube for doy style, A-symmetric long seal for bag size 200mm x 75mm x 220mm including A-symmetric anvil toolset. Hopper above forming set specially made to connect with doser. Connection on forming set for gas flushing

UVA CORNERSEAL folding set

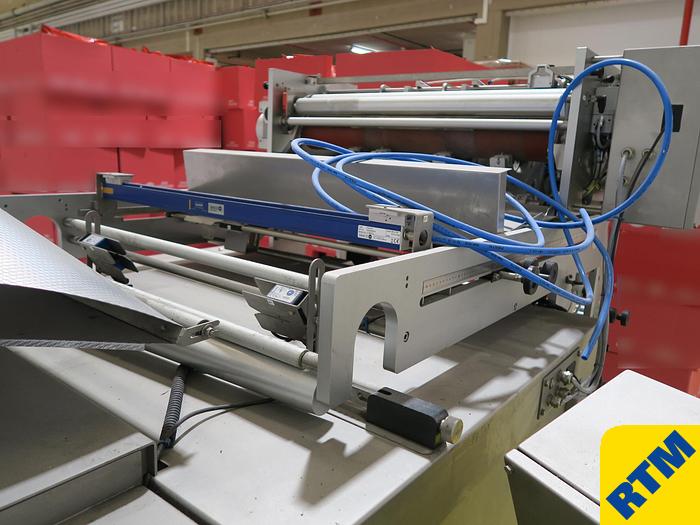

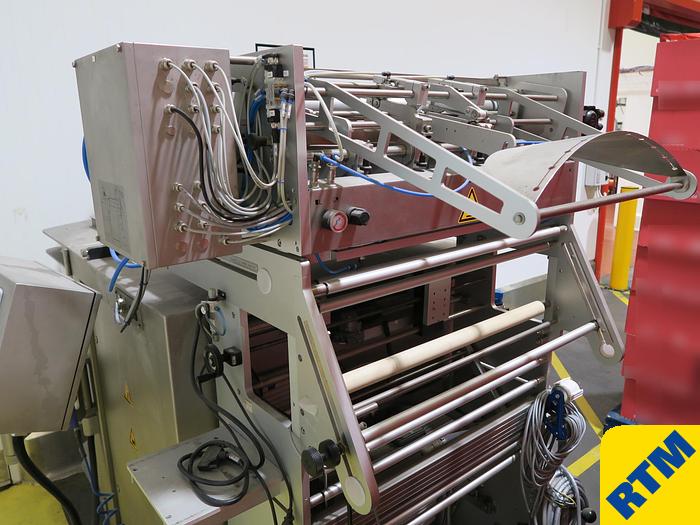

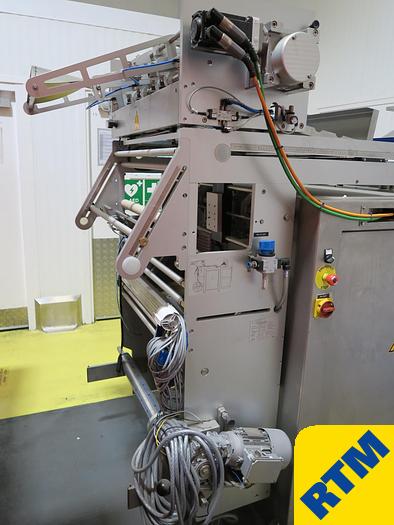

Auto-splice unit for film change and auto alignment

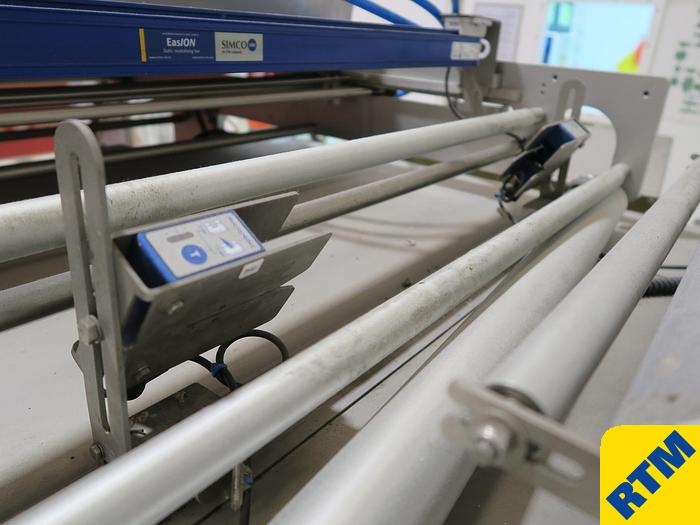

Static eliminator

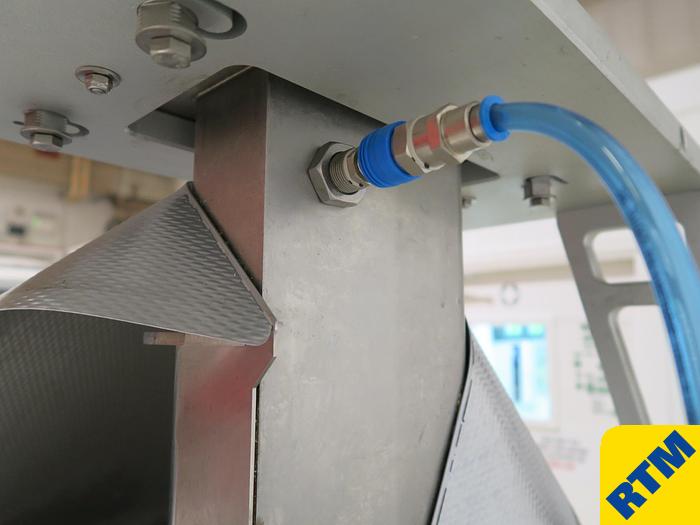

Connection on forming set for gas flushing

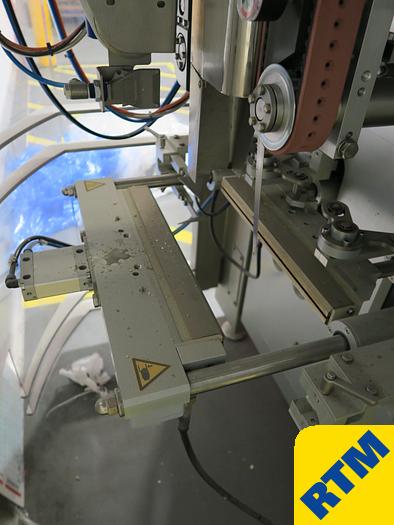

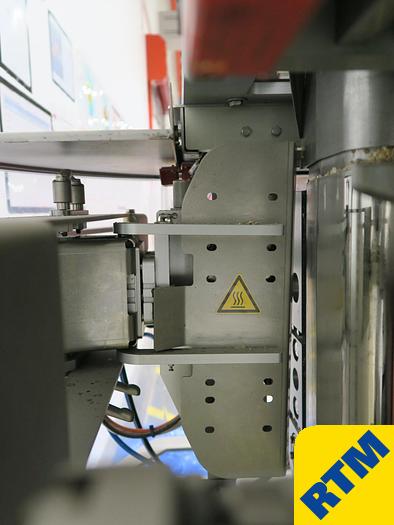

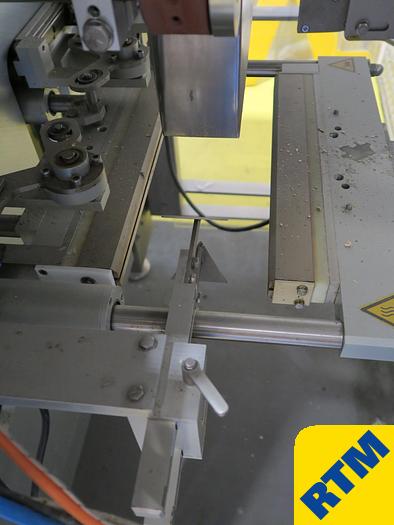

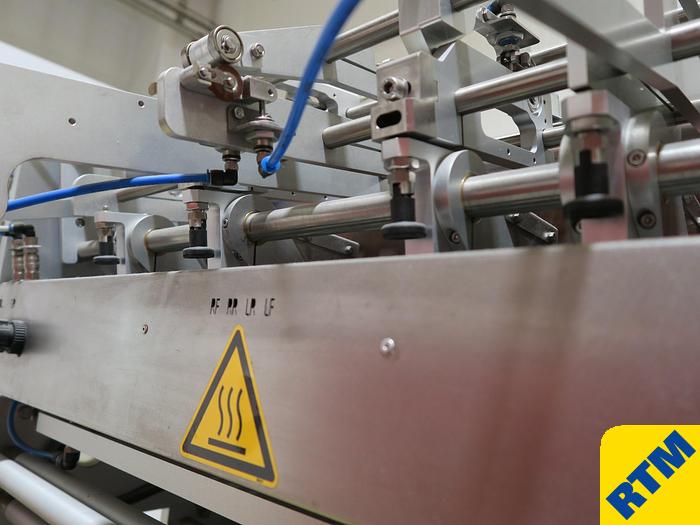

Heat-seal corner seal unit for making max. 4 corner seals of 5mm

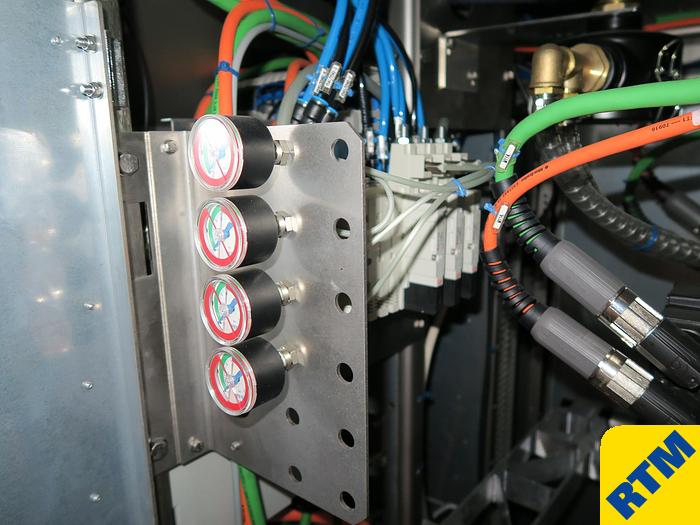

Gas flushing system with analogue flow control/synchronisation

Block bottom bag device

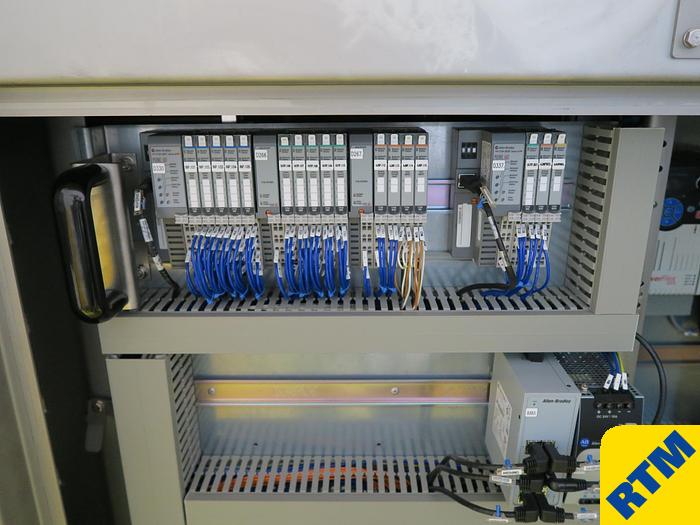

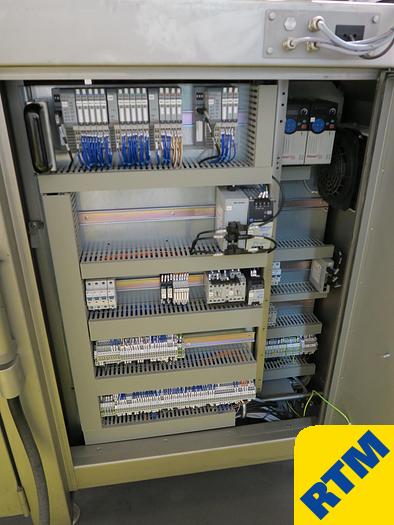

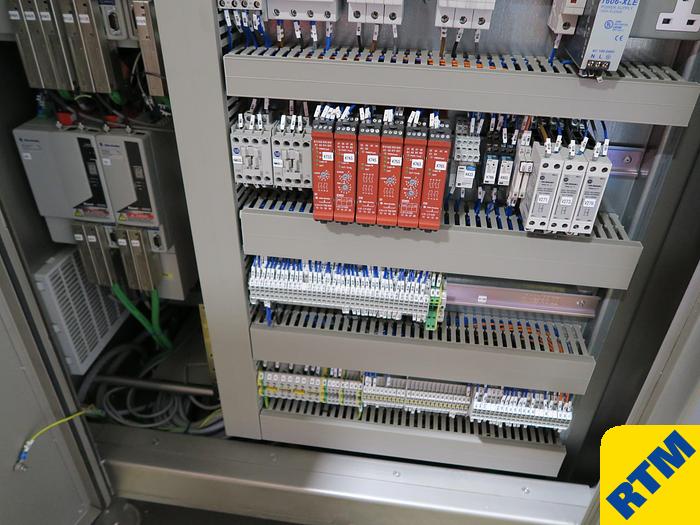

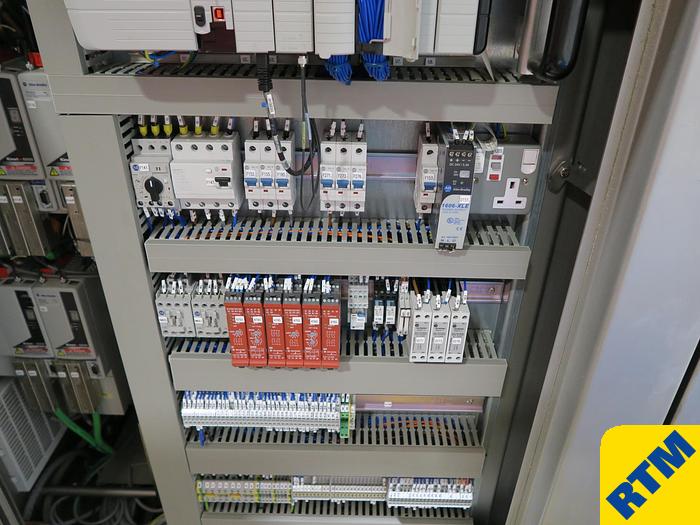

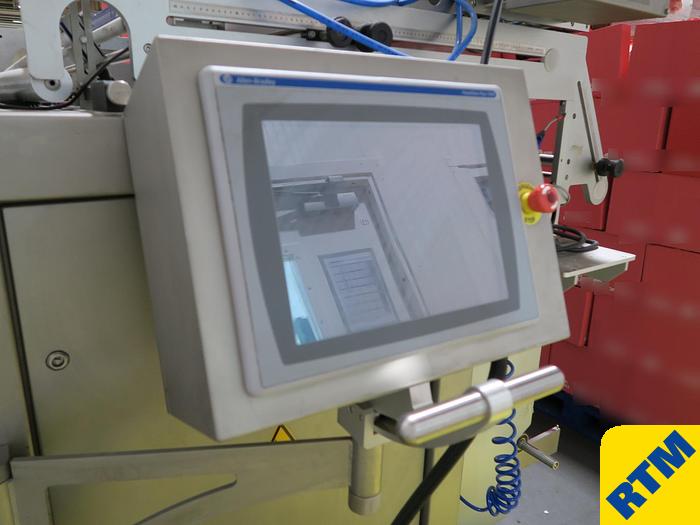

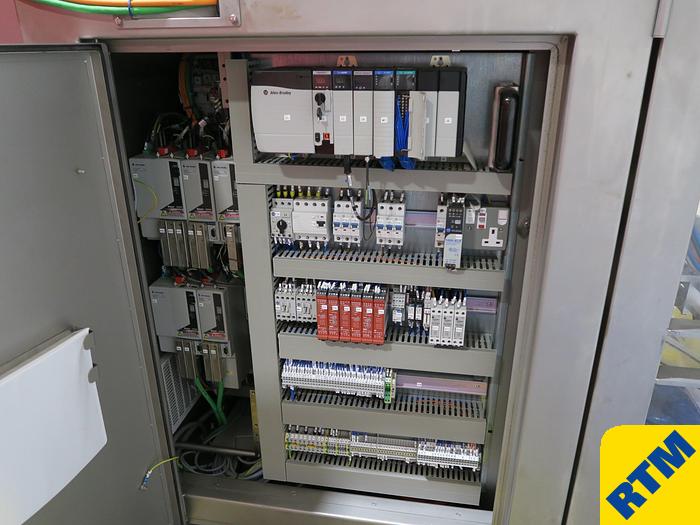

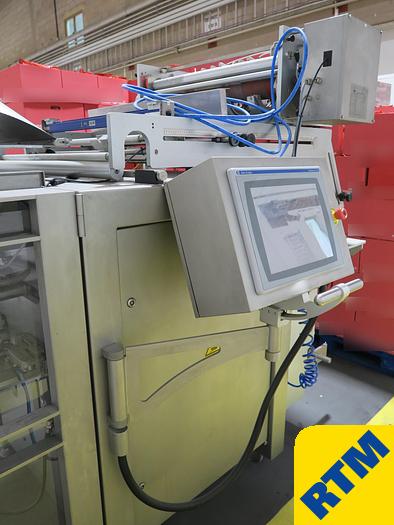

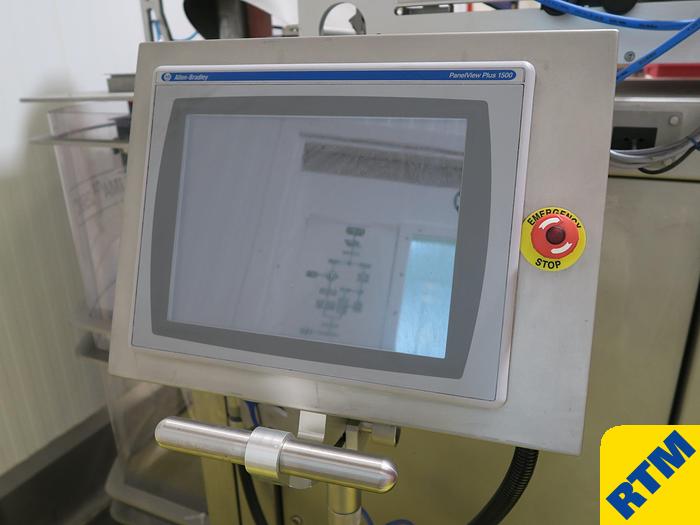

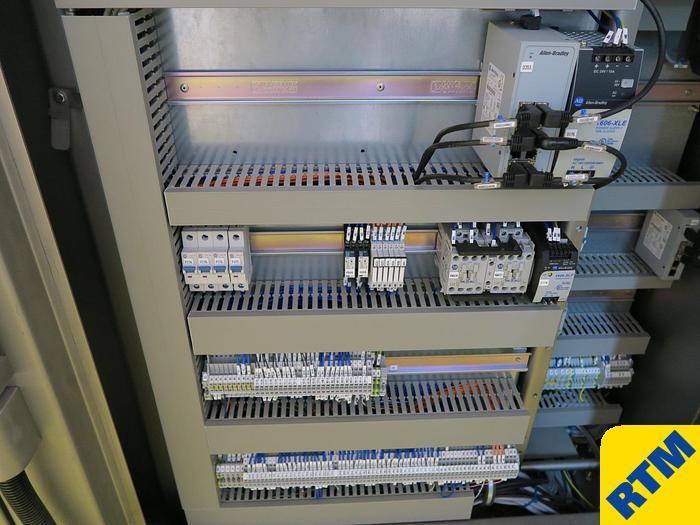

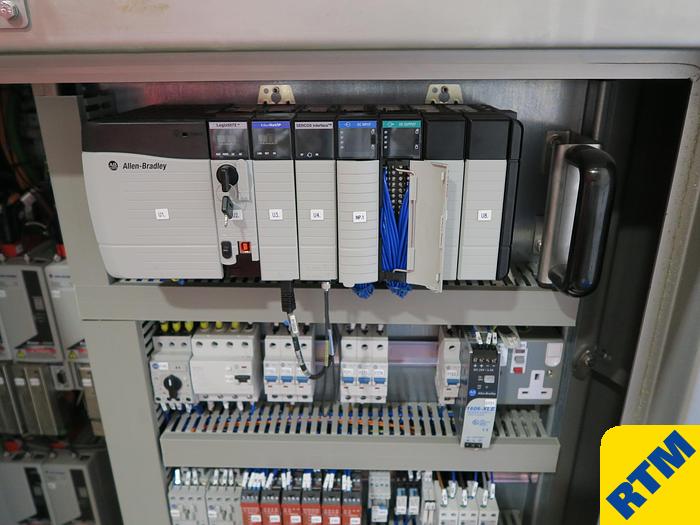

ALLEN BRADLEY Control Logix

Power supply : 3 x 400v, 50/60hz

Previously used for packing popcorn in both Pillow Pack style and Doypack Style: Intended operating speeds of 90 bags per minute Pillow Pack and 60 per minute Doypack. Limited production time.

No longer in production, currently in storage. Does not come with an exit conveyor.

Mounting for date printer (not included)

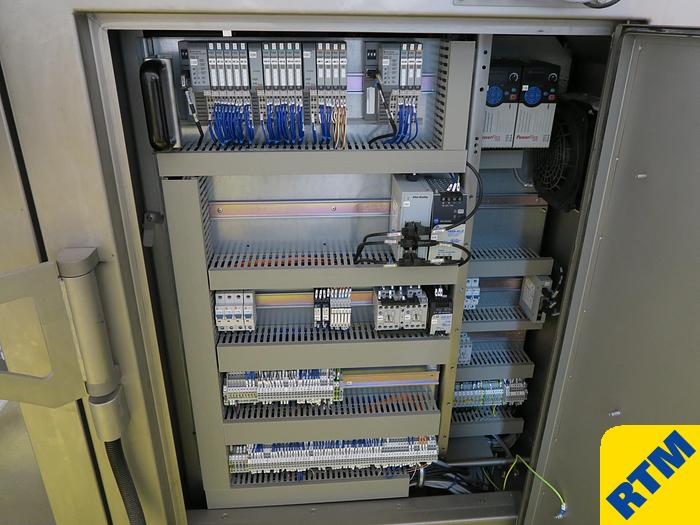

Electrical manuals included
