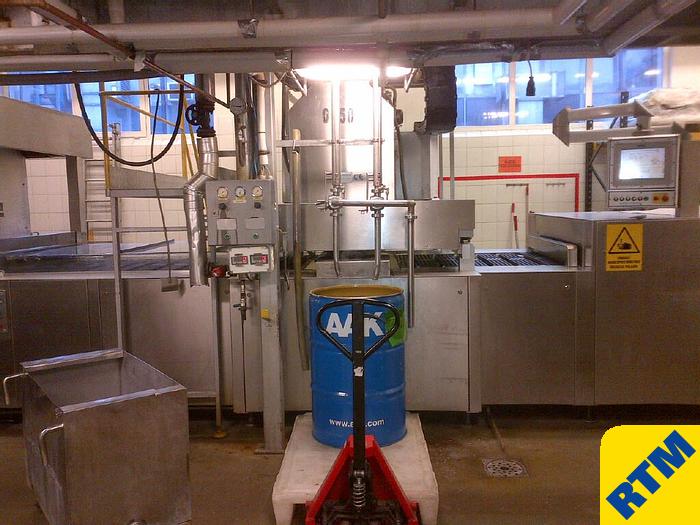

Deposited Hard Candy Line

Item #8549 – DEPOSITED HARD CANDY LINE

Complete with cooking, depositing and packaging machinery

Suitable for hard candies and milk candies, Capacity 1500kg per hour

Suitable for 2-colour products,

Line includes :

-----

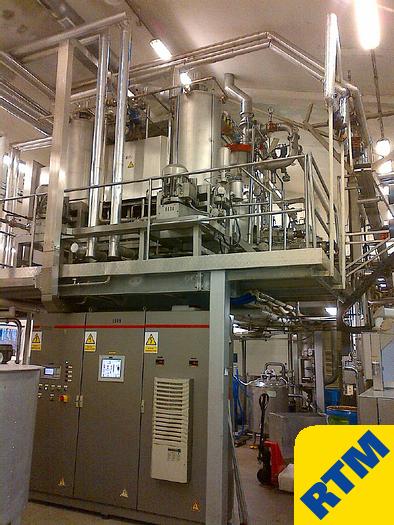

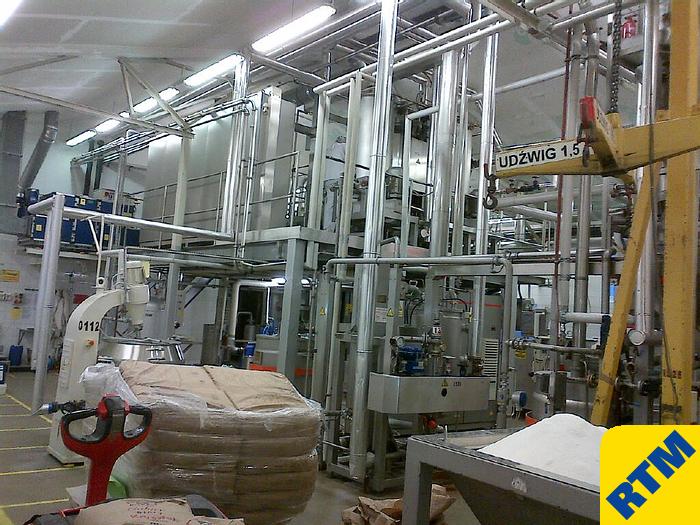

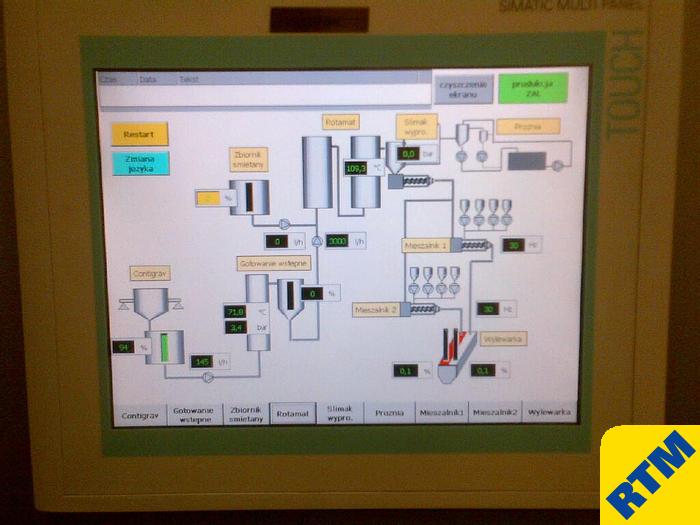

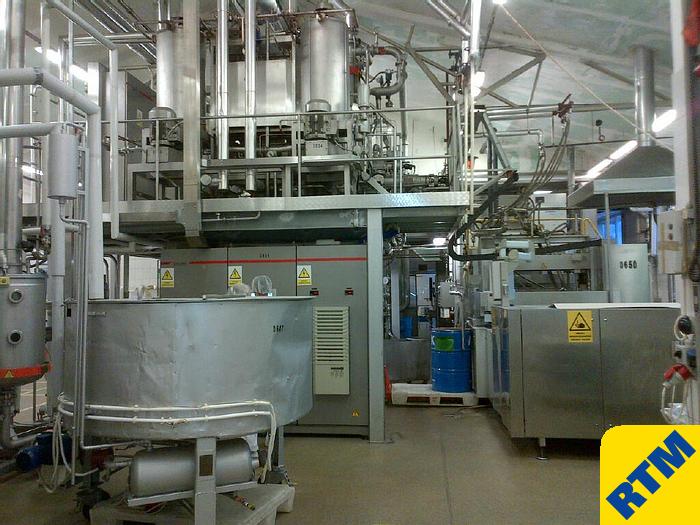

KLOCKNER HANSEL PROCESS KITCHEN

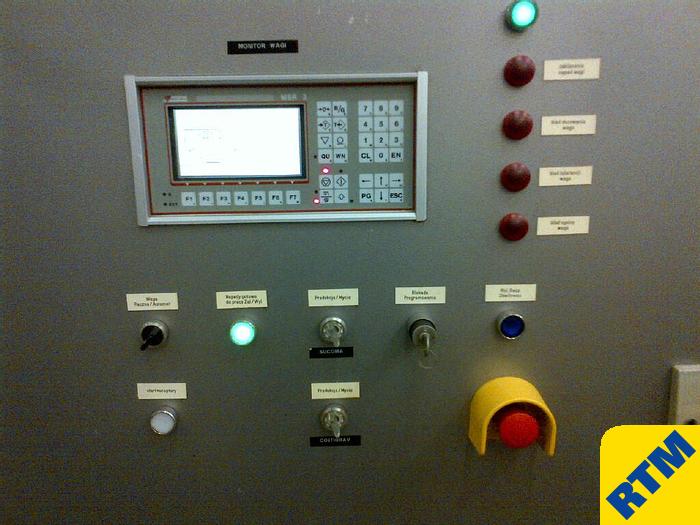

* CONTIGRAV 1030 serial number 101069 Weight and mixing station (sugar, syrup, water, fat,)

* Buffer for milk

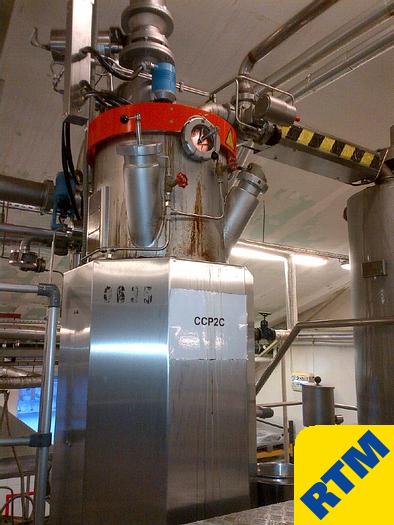

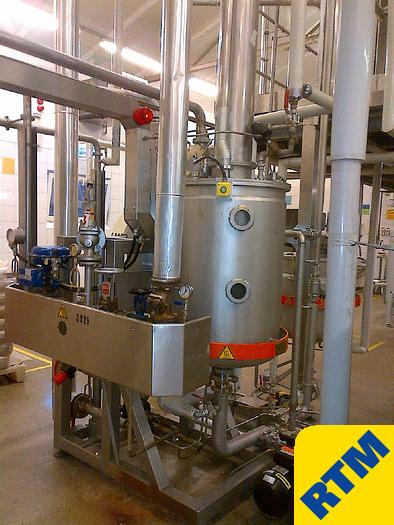

* CROSSFLOW 1913, dissolver / pre-cooker

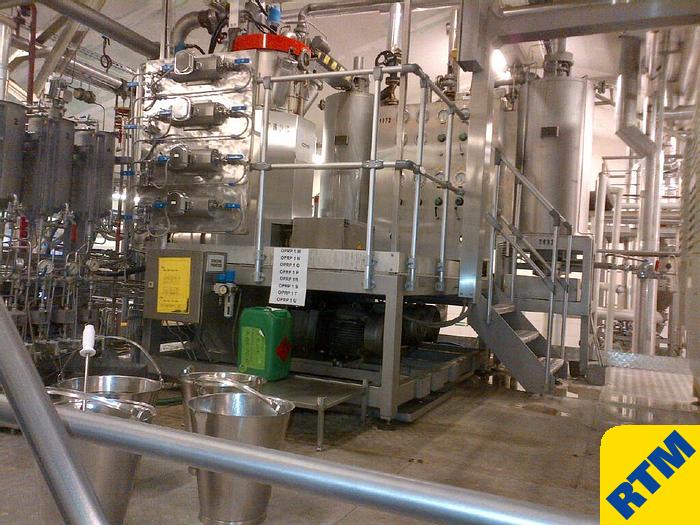

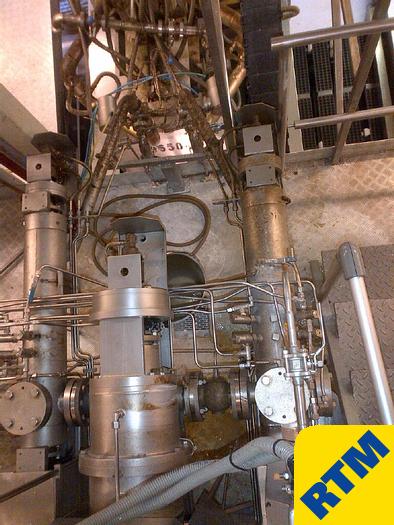

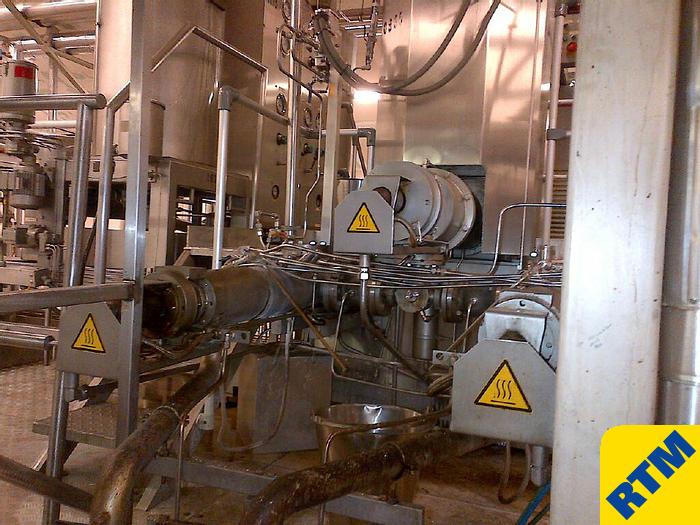

* 2 x ROTOMAT cookers 3610 (Duplex) , continuous rotor cooking system

* Vacuum cooling condenser

* Buffer for slurry

* Evaporator

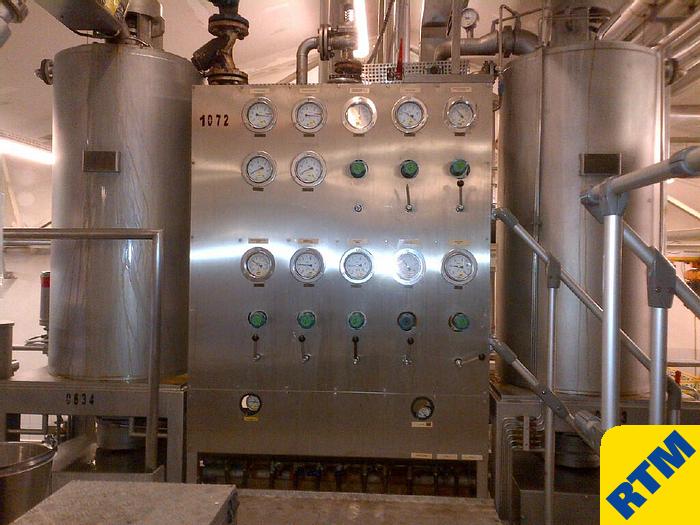

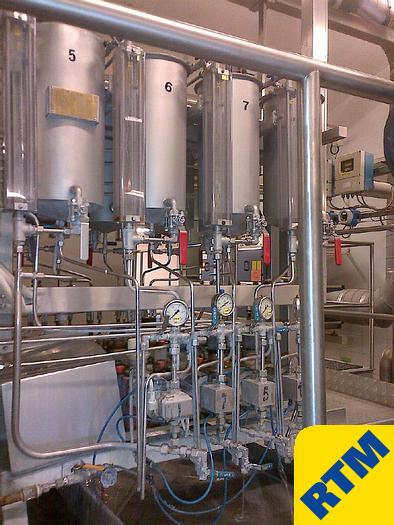

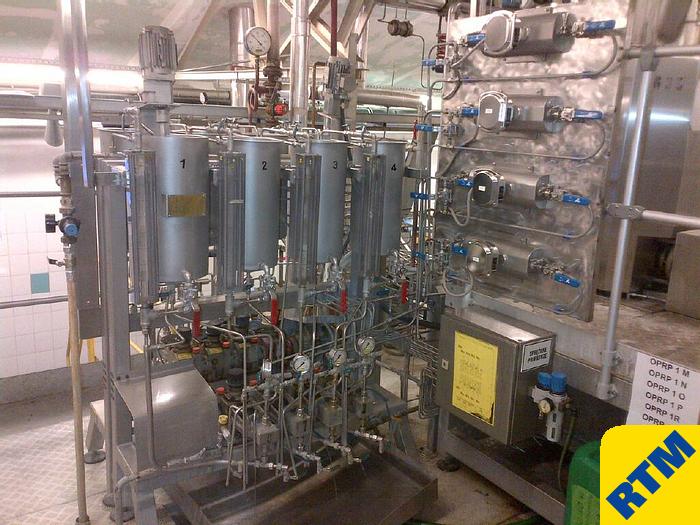

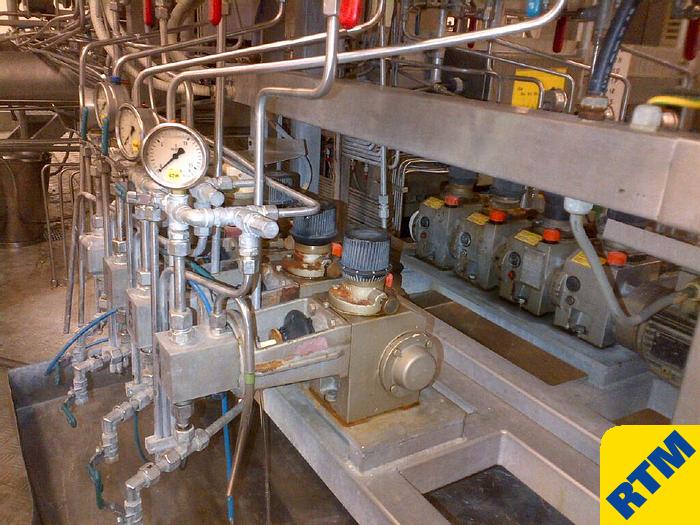

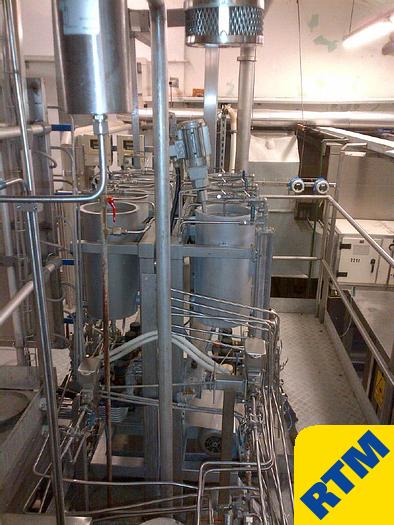

* Dosing and mixing station

* Vacuum pumps

Number of colours: there are two dosing and mixing stations each four dosing units. For example it can be used

a) on first dosing and mixing unit:    dosing unit 1: first colour,    dosing unit 2: first flavour,    dosing unit 3: first citron acid,   dosing unit 4: first titanium oxide;

b) on second dosing and mixing unit:  dosing unit 1: second colour, dosing unit 2: second flavour,  dosing unit 3: second citron acid, dosing unit 4: second titanium oxide

-----

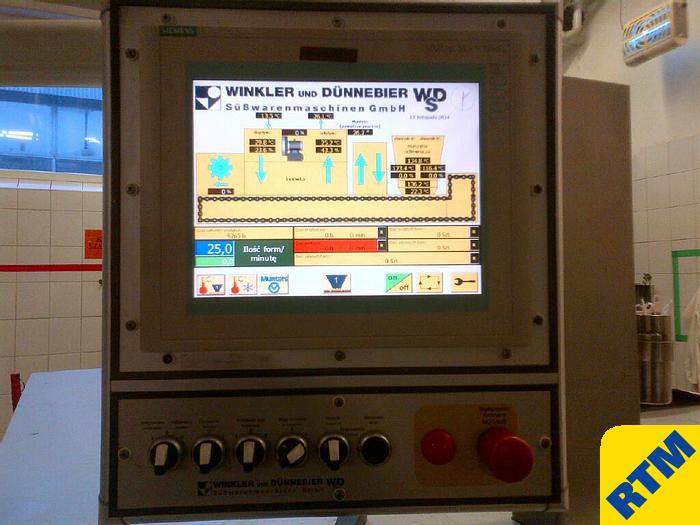

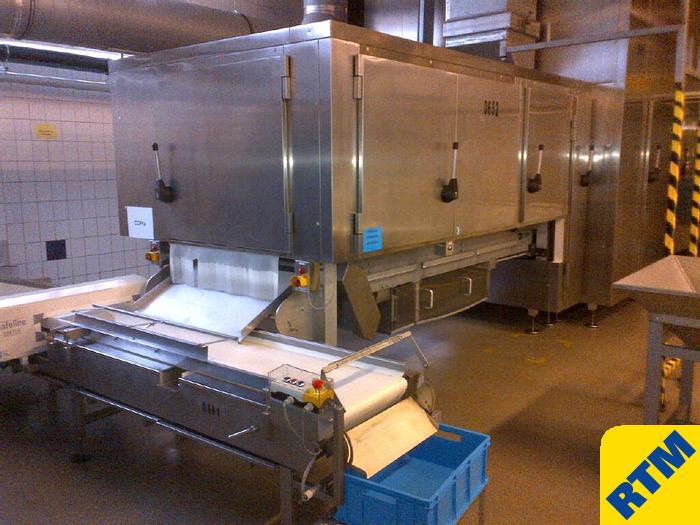

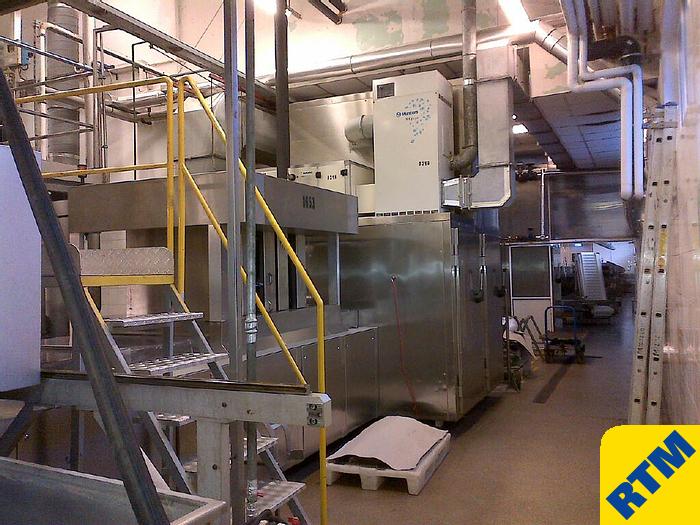

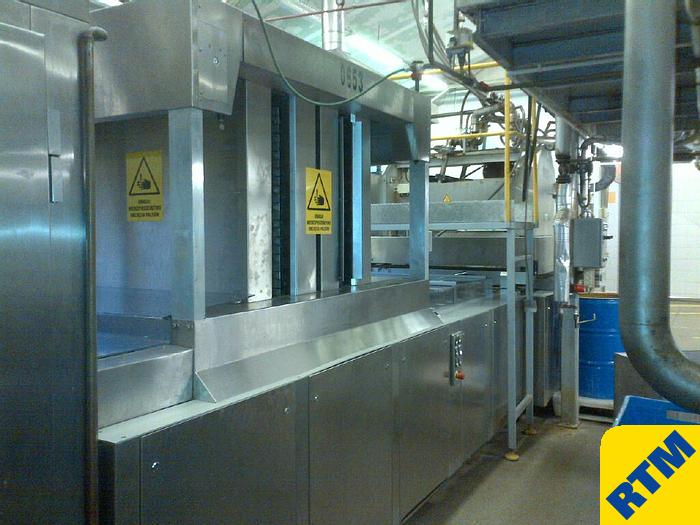

WINKLER & DUNNEBIER HARD CANDY LINE

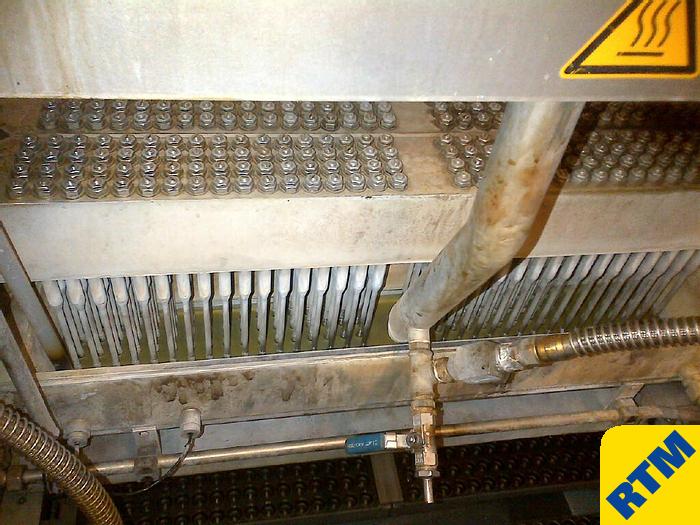

One-shot depositing, Type: 163.24,

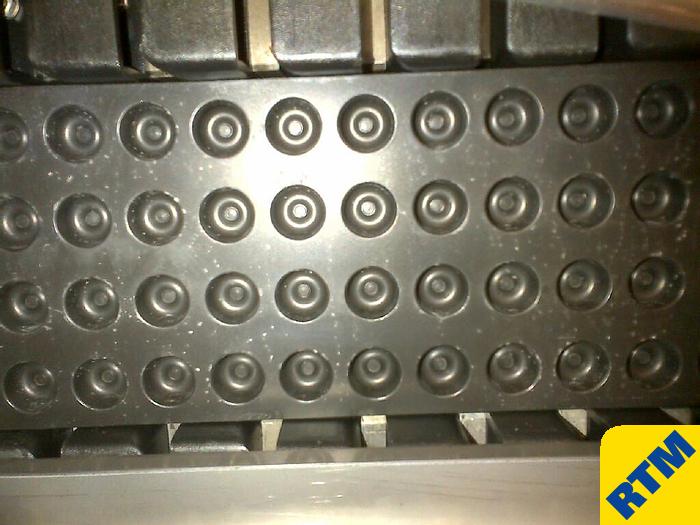

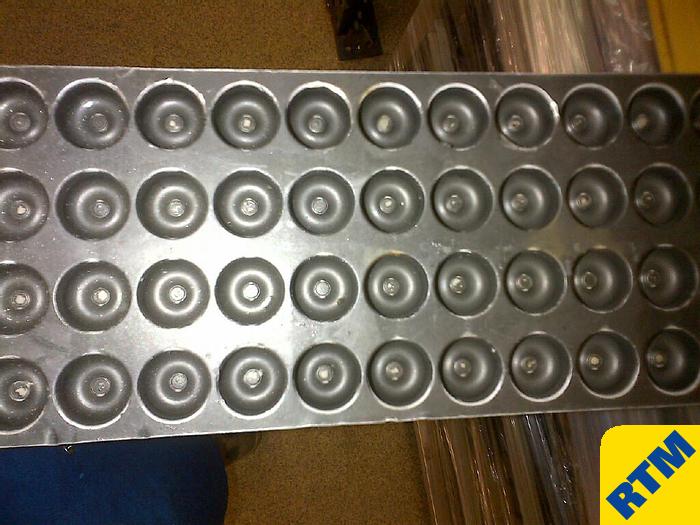

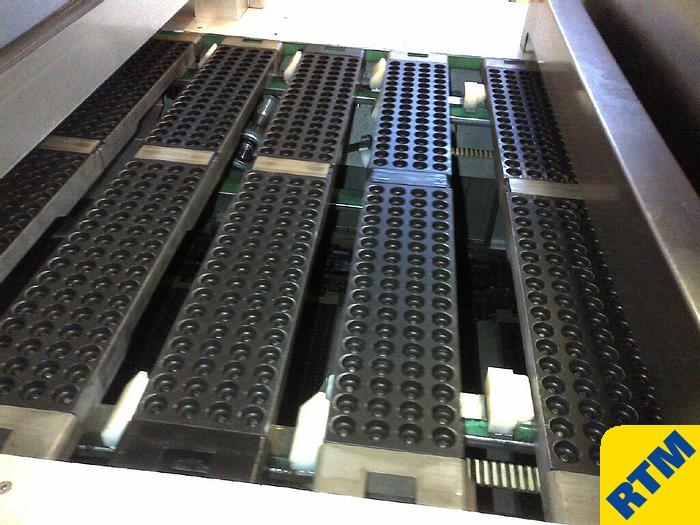

Mould size: 1052x135mm

Mould transport: continuous

Amount of mould in the Line:  approx. 585 moulds

Capacity calculated: for 1836 kg/h at 50 moulds/min and 4.5g product = 6.800 pcs/min

Cooling Time: 6.84 min

Dimensions of the Line: approx. 21m (length) x 3.5m (width) x 3.85m (height)

Reference product: designed for products similar to Campino, 4g and “Minis” 2g

Format parts: -

-     One-shot Products (nozzle plate available)

-     Striped products (for 2 colours 50/50, nozzle plate available)

Incl. Automatic mould exchanger (production and exchange of moulds can be done in parallel).

-----

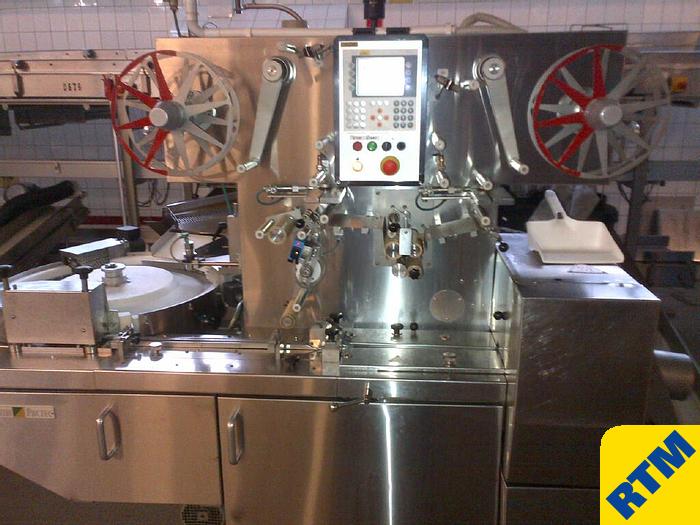

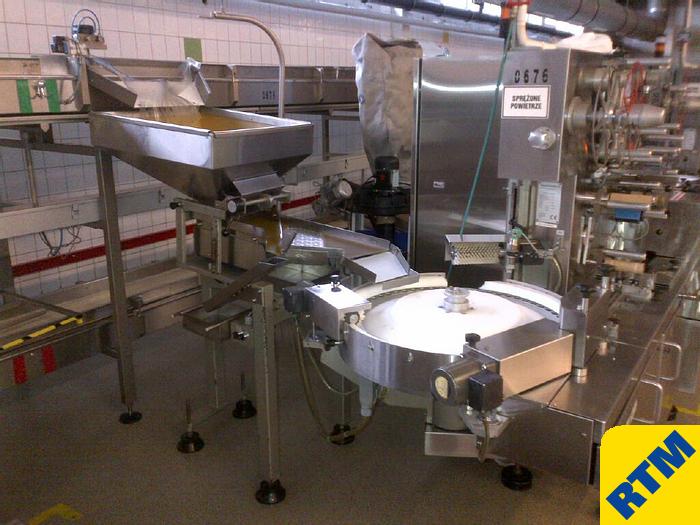

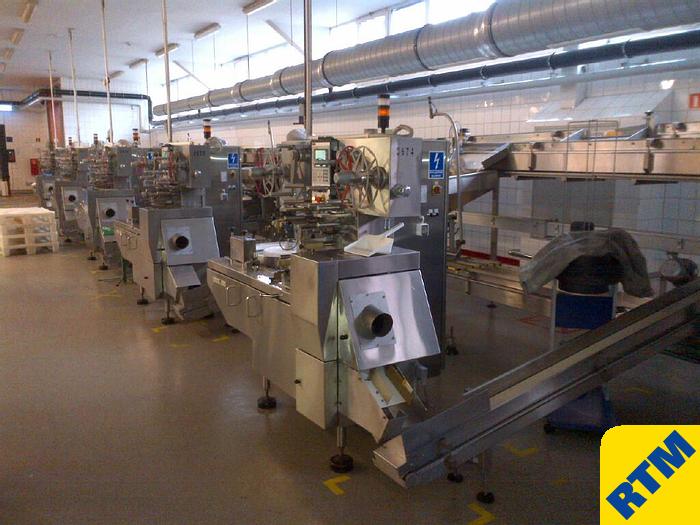

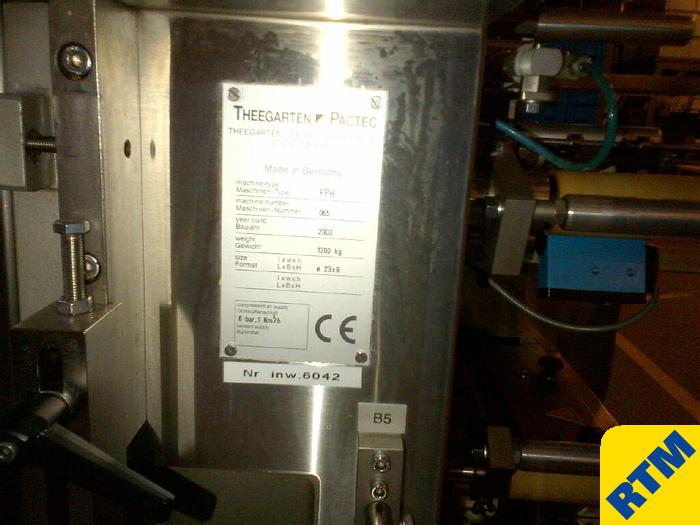

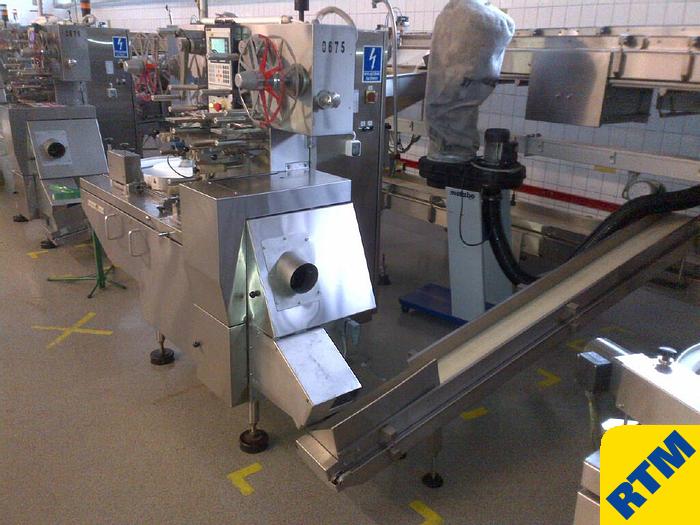

5 x THEEGARTEN PACTEC MINIPACK/FLOWPACK WRAPPERS for individual piece wrapping

Type FPH, Up to 1400 pieces per minute, Format 23mm x 9mm
