Chocolate Moulding Line complete with packaging machinery

Description

Item # 8538 - CHOCOLATE MOULDING LINE with WRAPPING MACHINES

(Packaging Machinery Could Be Sold Separately)

Suitable for solid bars or bars with inclusions such as chopped nuts, cornflakes and similar fillings, with a size of up to 4 mm

This line has been run on bars/neapolitans of 5g 36x36mm, 10g 74x24mm, 30g 145x30mm, 45g 145x45mm and 100g 84x180mm bars

Line includes one set of moulds for 100g bars (667 moulds in the set)

Manufactured by AASTED

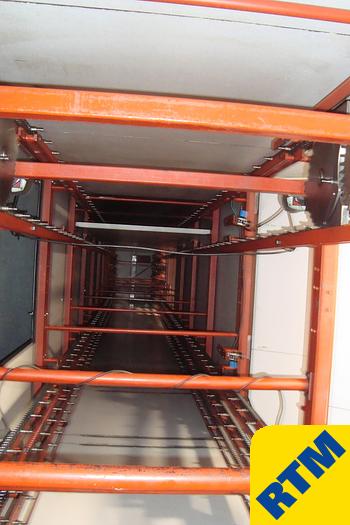

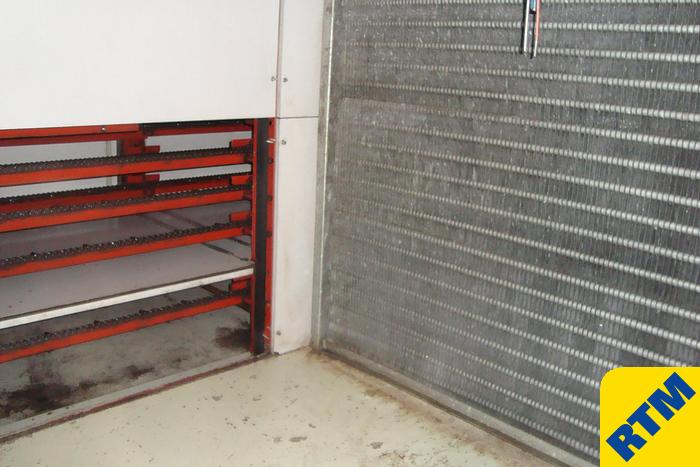

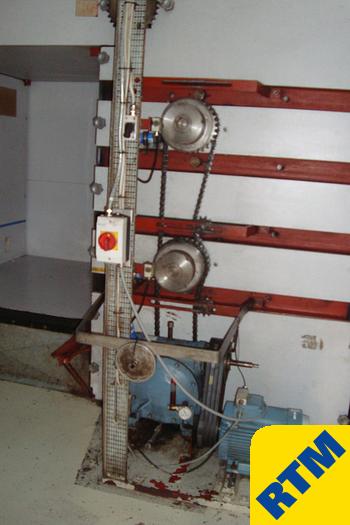

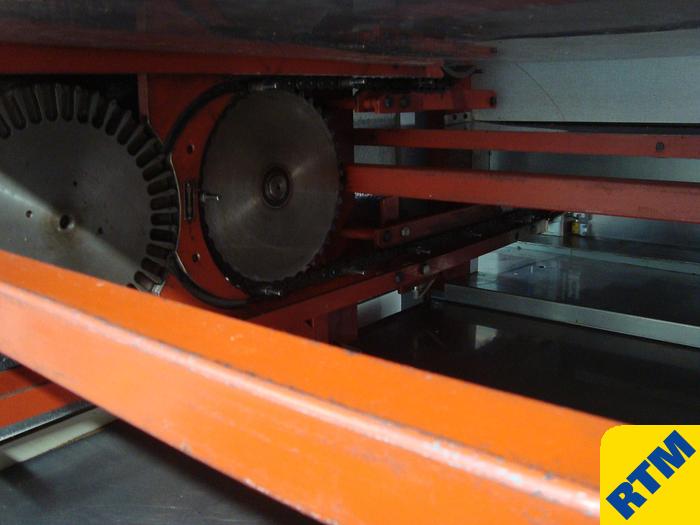

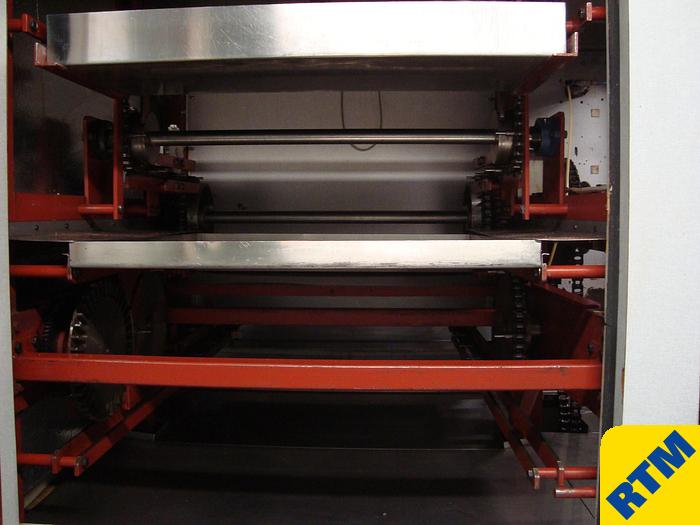

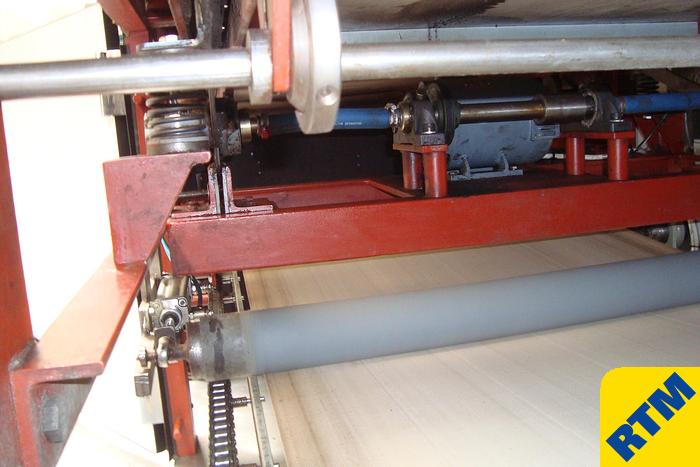

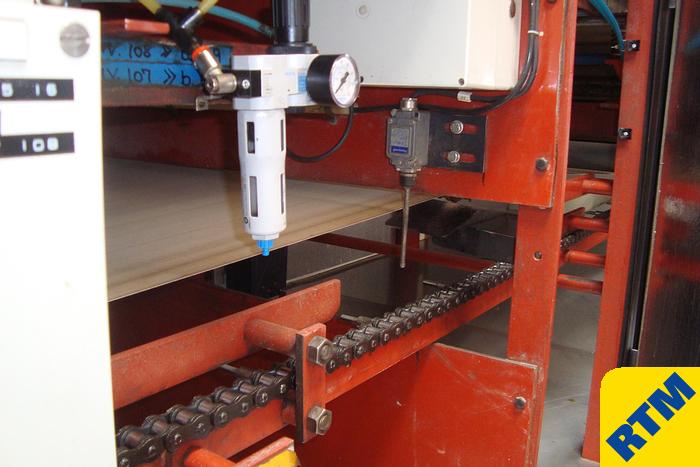

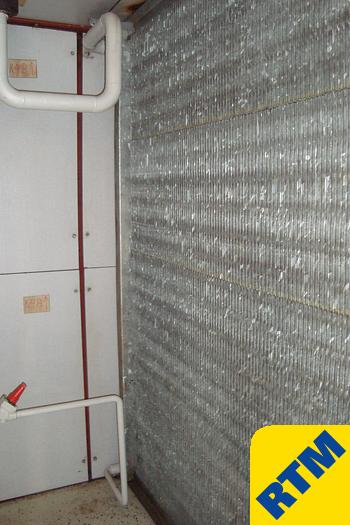

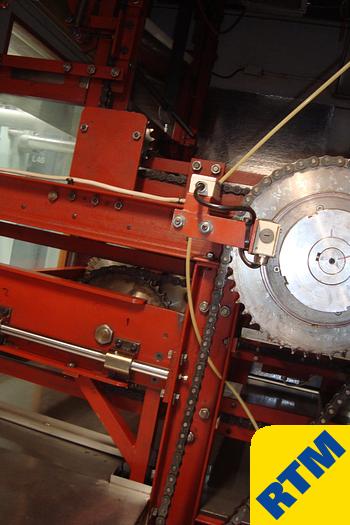

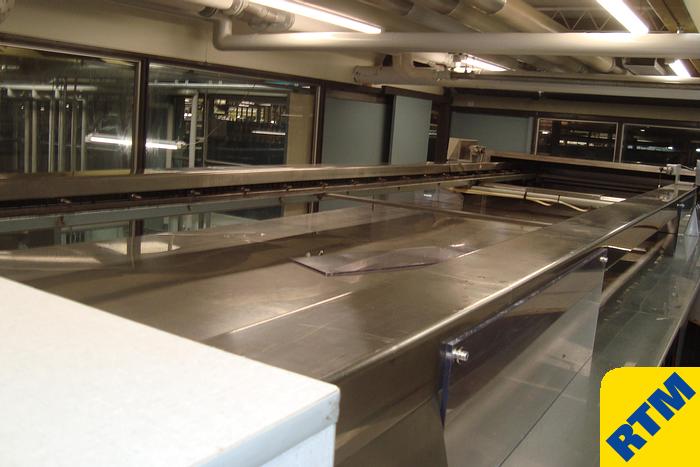

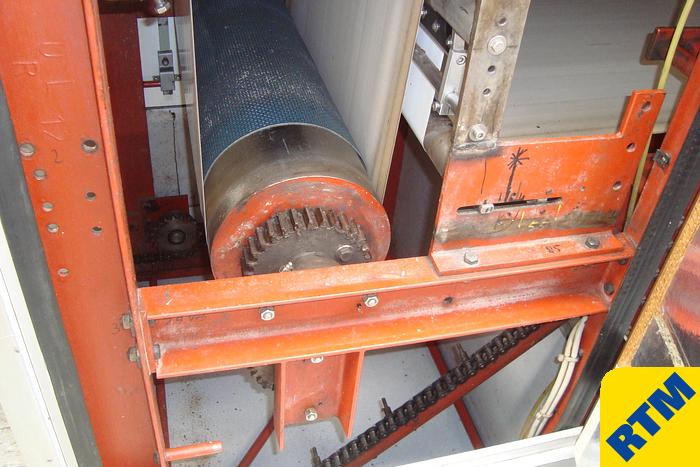

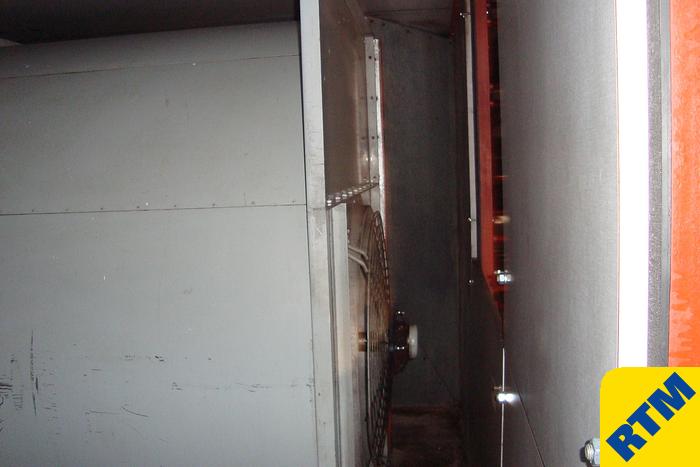

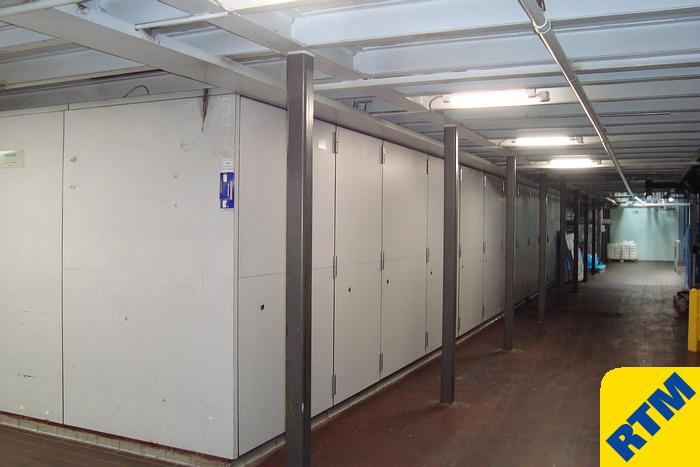

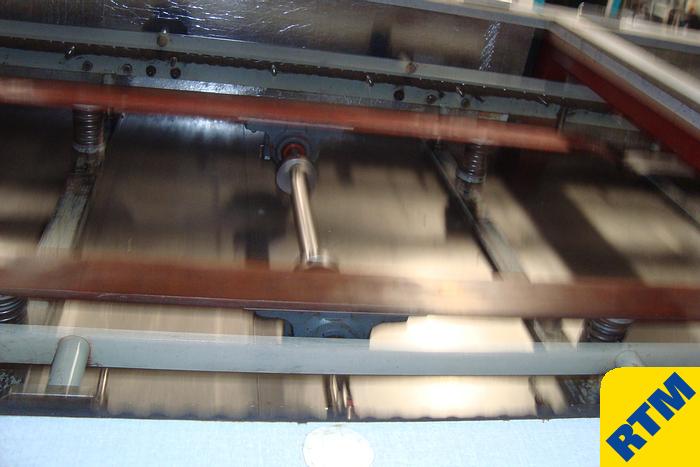

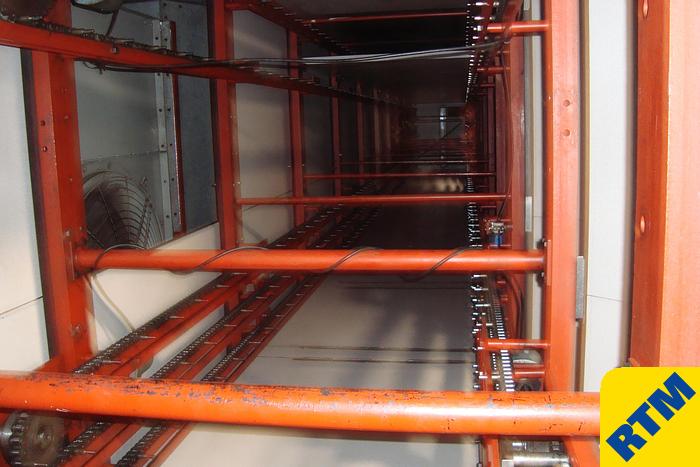

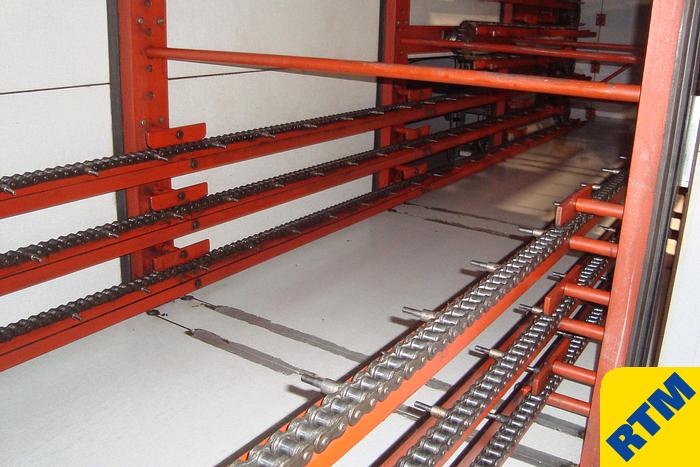

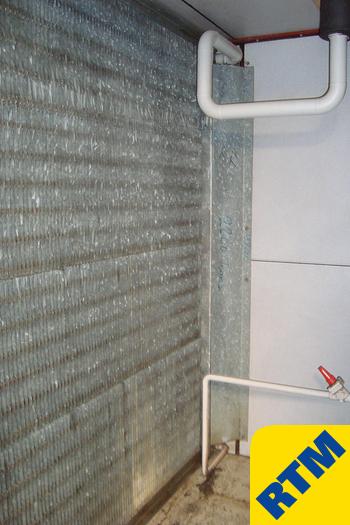

Depositing line with Chain drive with Space for 667 moulds, Mould size: 870x170 mm for solid chocolate, cooling section, and discharge belt

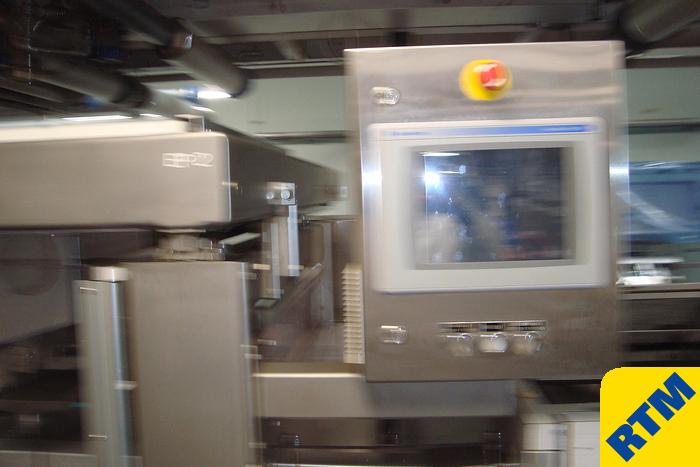

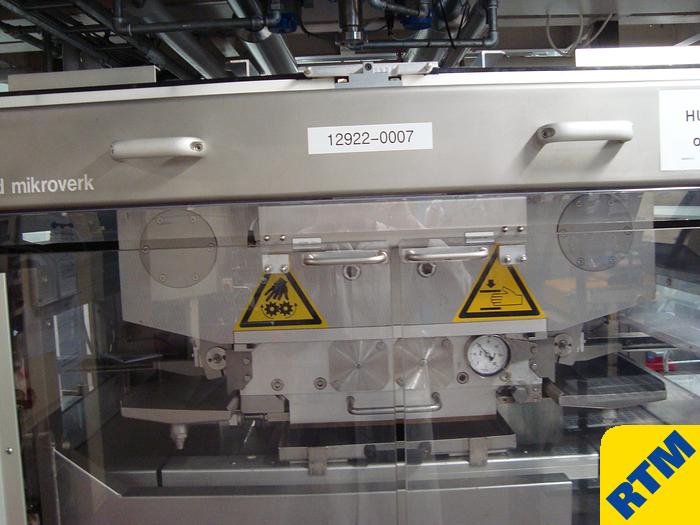

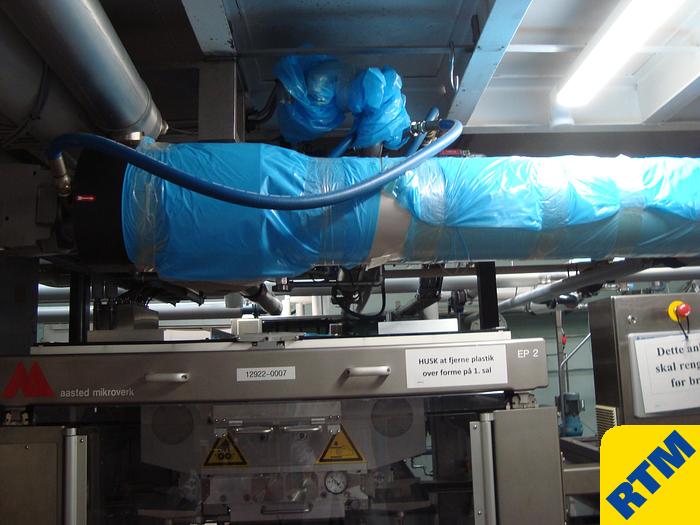

Depositor head model EP2

Feeder Mixer

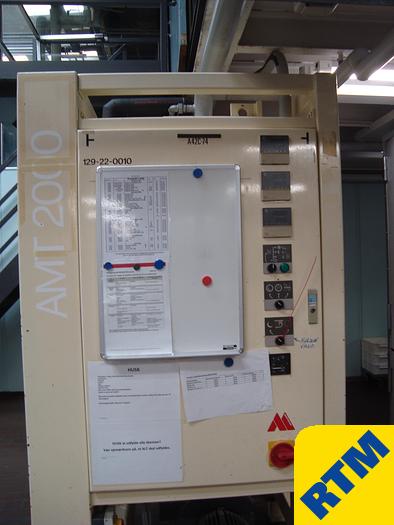

Aasted temperer model AMT 2000, , 2000kg/hr

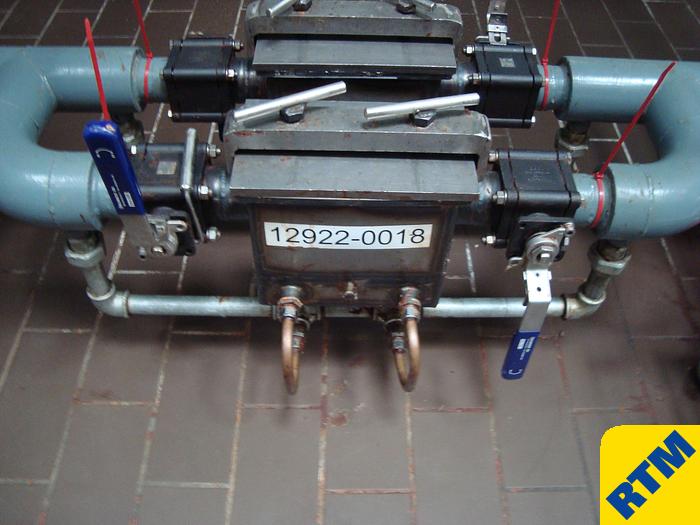

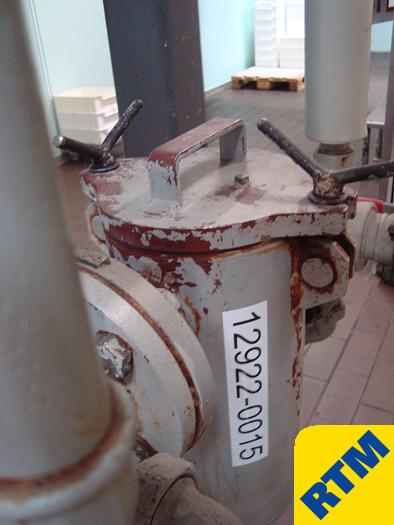

Heco Magnetic Filter type TMS1-375

additional Magnetic Filter

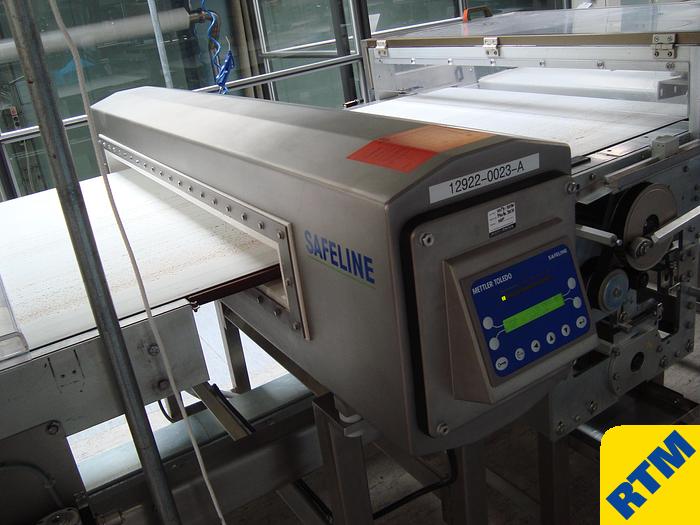

Safeline Metal Detector type 400303,

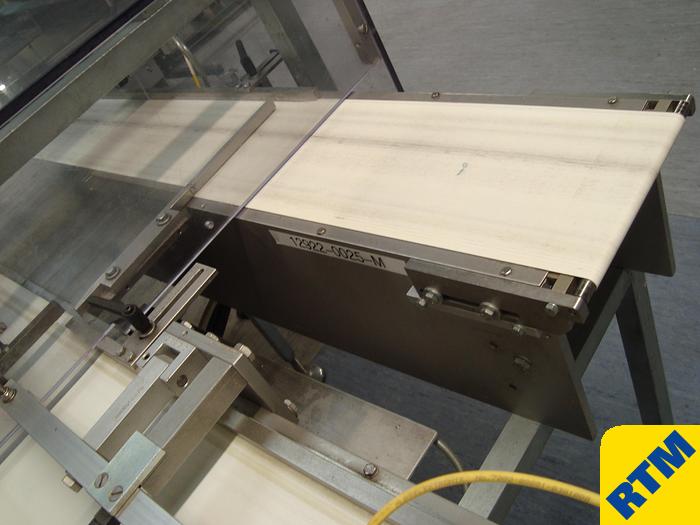

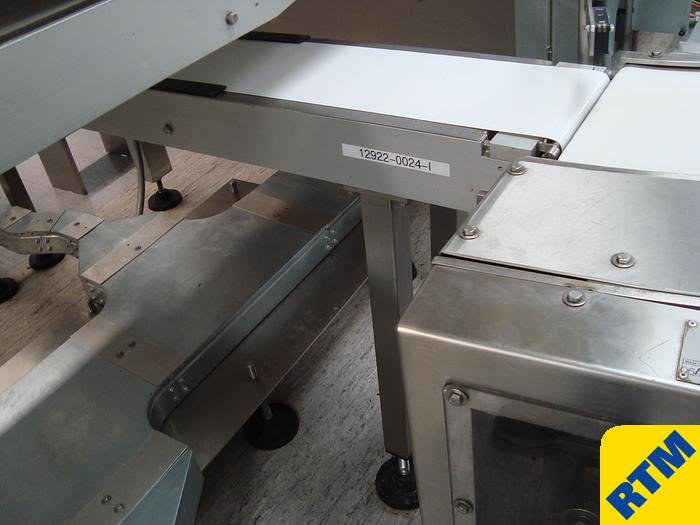

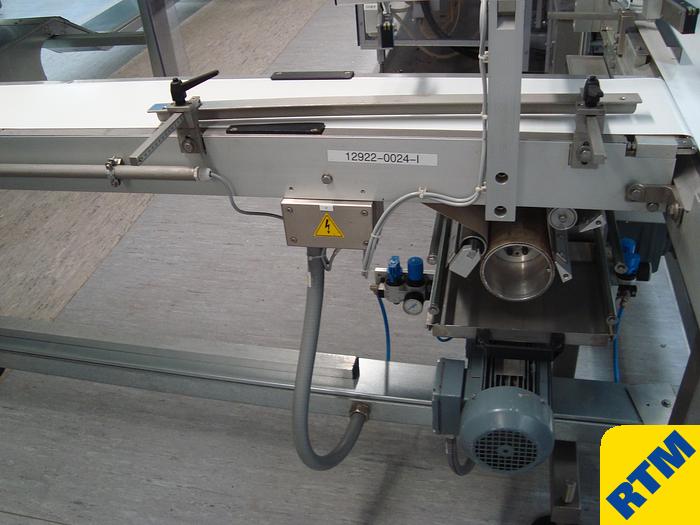

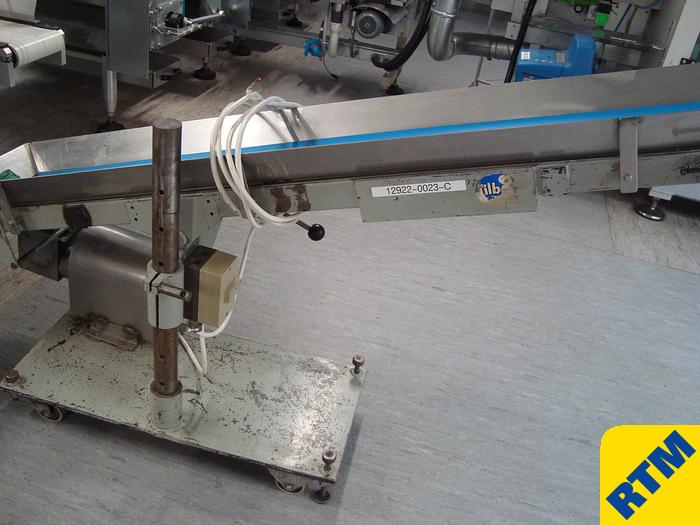

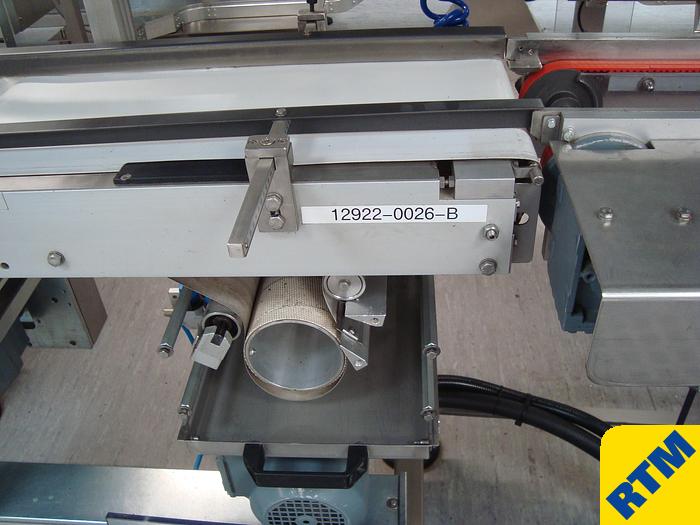

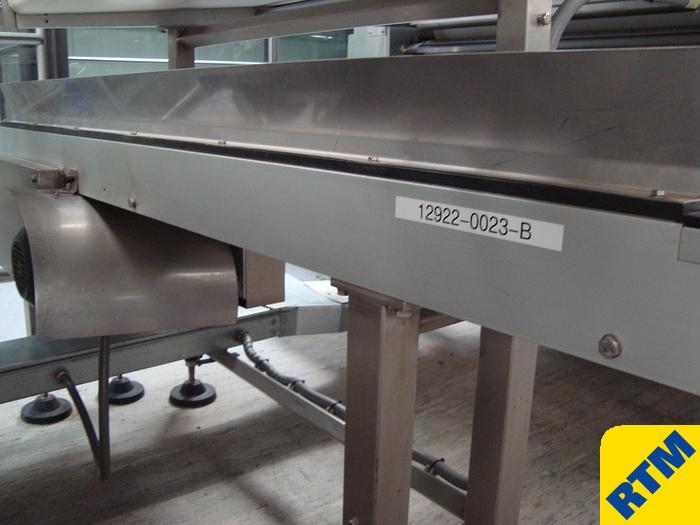

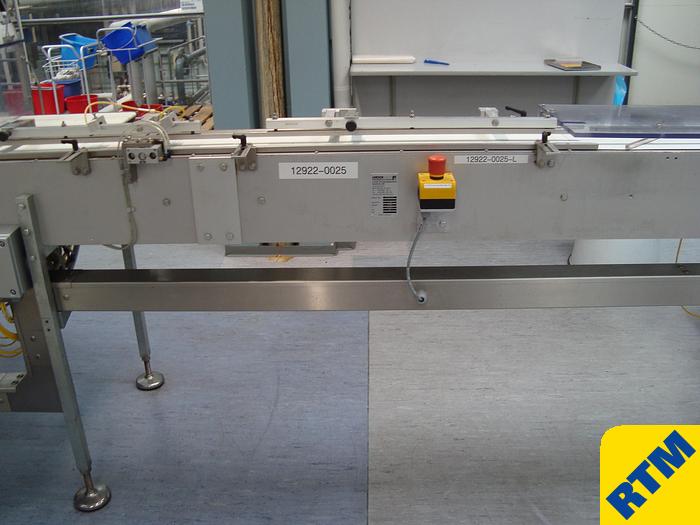

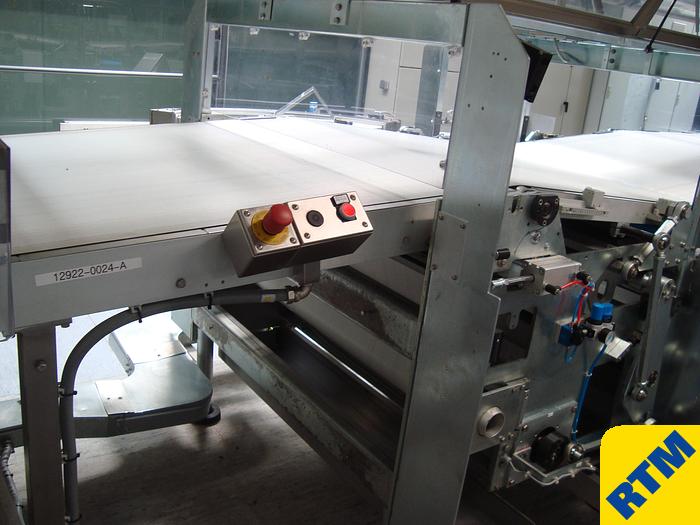

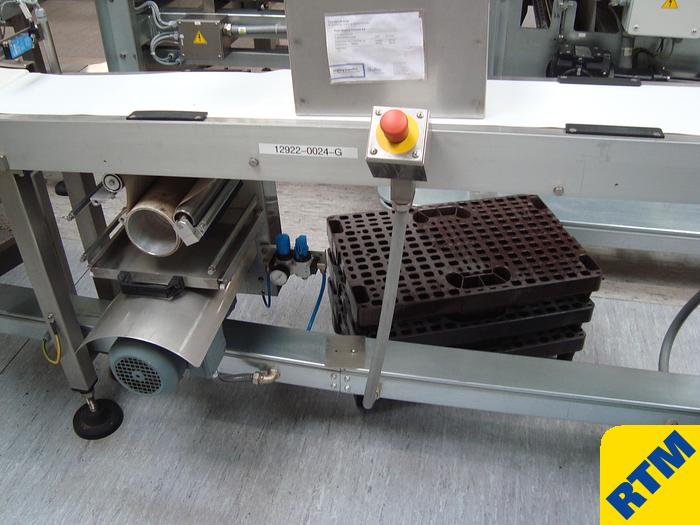

Loesch Conveyor belt Width: 200 mm, length: 1700 mm

Conveyor belt Width: 200 mm, length: 1800 mm

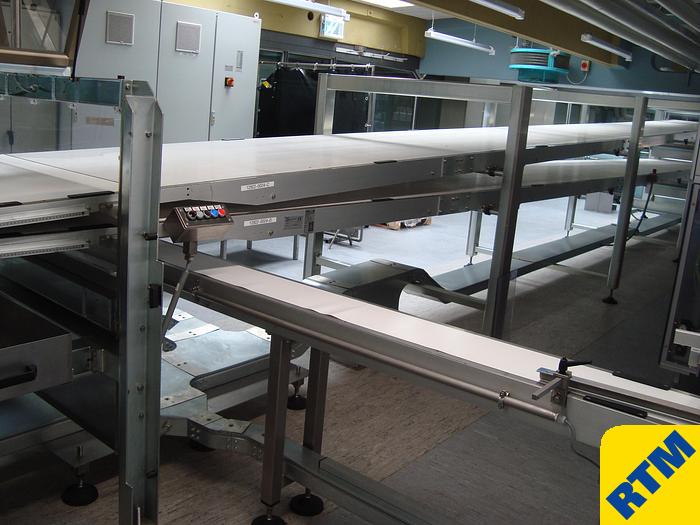

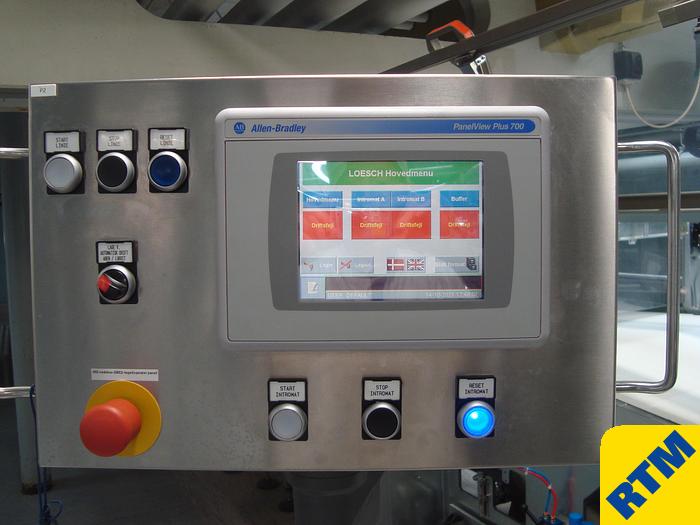

Mopa / Loesch Distribution and Buffer system model INTR2-MD-MLD, feeding product to the LRM or LTM wrapping machines

Loesch Conveyor belt Width: 200 mm, length: 3350 mm

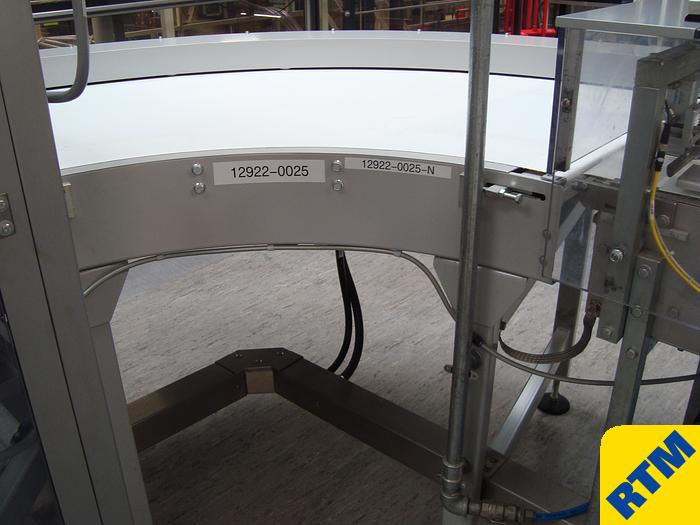

(2) Loesch Curve belts LM-SPA, Width: 320 mm, 90 degree

Loesch Conveyor belt Width: 200 mm, length: 1580 mm

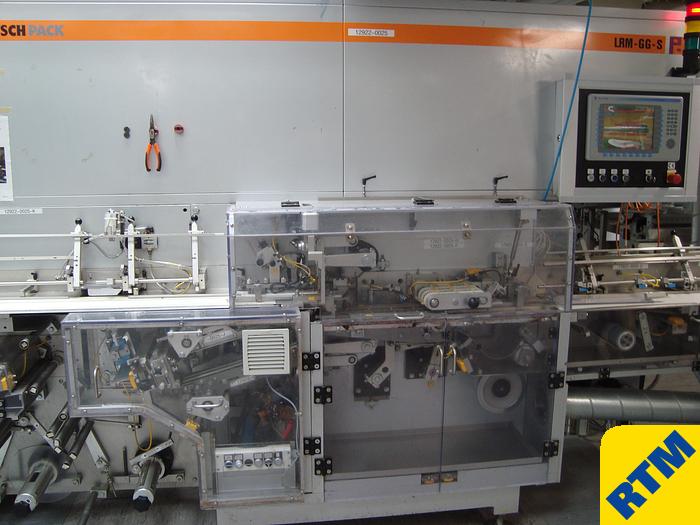

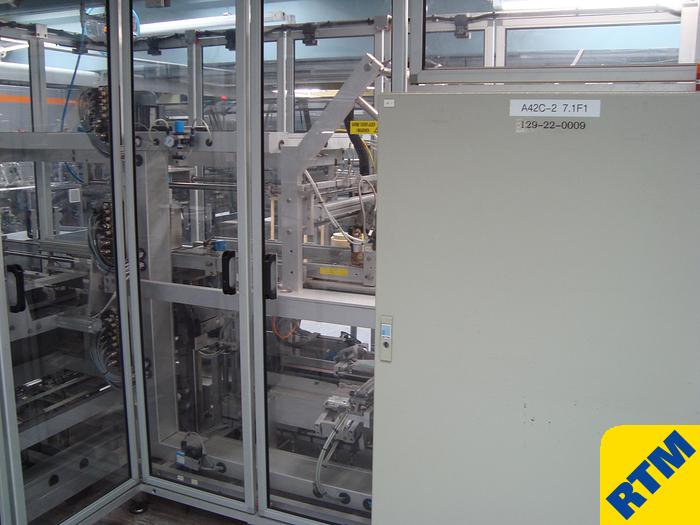

Loesch Pack Wrapping machine Type: LRM-GG-S

Loesch Pack Wrapping machine Type: LTM-DUO

(2) Markem Laser printers Type: Smart Laser 130i,

Markem Vacuum cleaner for laser printer Type: ES 400 i,

Loesch Conveyor belt Width: 200 mm, length: 1120 mm

Loesch Conveyor belt Width: 170 mm, length: 3000 mm,

Loesch Conveyor belt Width: 170 mm, length: 1200 mm

(2) Loesch Curve belts Width: 650 mm, 90 degree

Loesch Double Conveyor belt : 2x Width: 170 mm, length: 2050 mm

Nor-Reg Carton Packaging Machine Type: WP 3000,

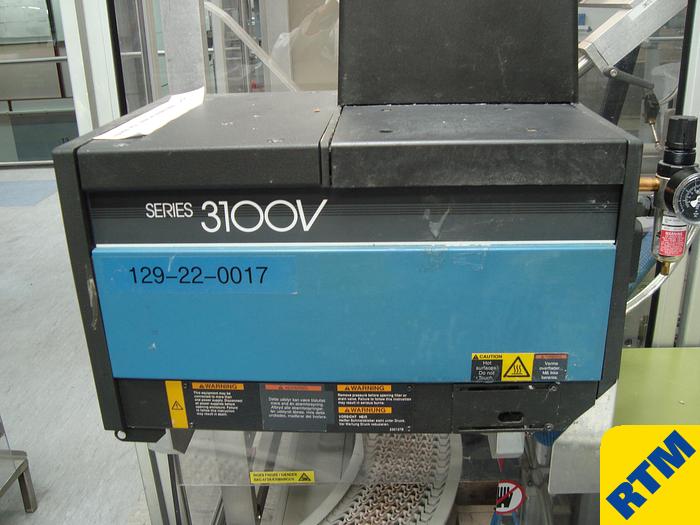

Nordson Gluing device Type: 3100V

Dansk vægtindustri weighing belt conveyor, weighing belts for continuous weighing

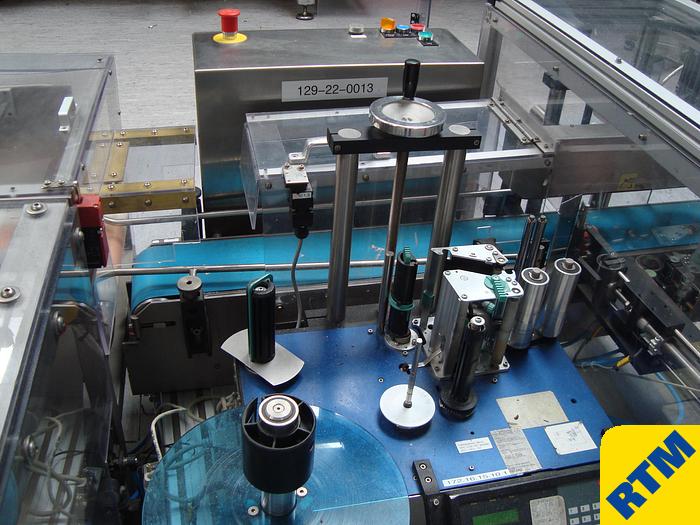

Fischer Labelling machine with belt Type: F501XP

Chain conveyor

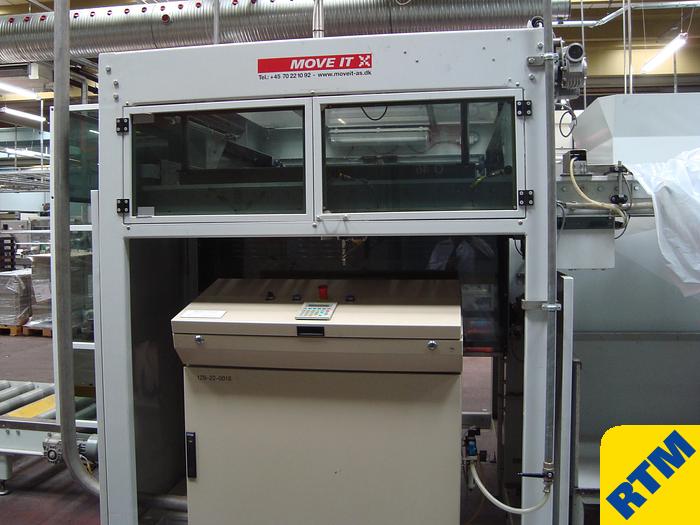

Move-It Palletizer : palletizing plant for euro pallets.

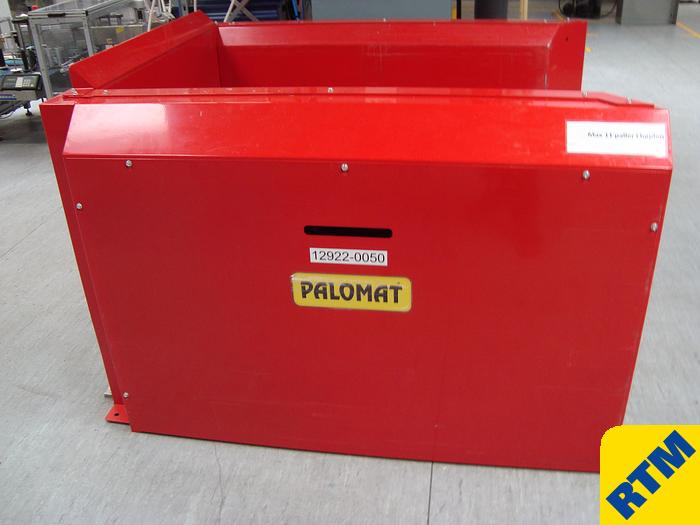

Bila Palomat Flexomatic Type: 150001-04-3002, designed for stacking and destacking up to 15 empty pallets at floor level.

100g bars were run at 29 molds per. minute with 4 bars/mold, and packed on the LTM-Duo 116 bars per min in foil and cardboard cover.

5g / 10g has run 20 molds per min 20 bars per mold and packed 380 bars / min on LRM in envelope pack 5g also revenue label.

30g has run 16 molds / min, 23 bars / mold and packed 368bars / min on LRM.

45g has run 20 molds / min, 17 bars / mold and packed 340bars / min on LRM.


Specifications

ManufacturerAasted / Loesch
ConditionUsed
Stock Number8538
