Preformed Paper Bag Filling Line

Preformed Paper Bag Filling Line

Description

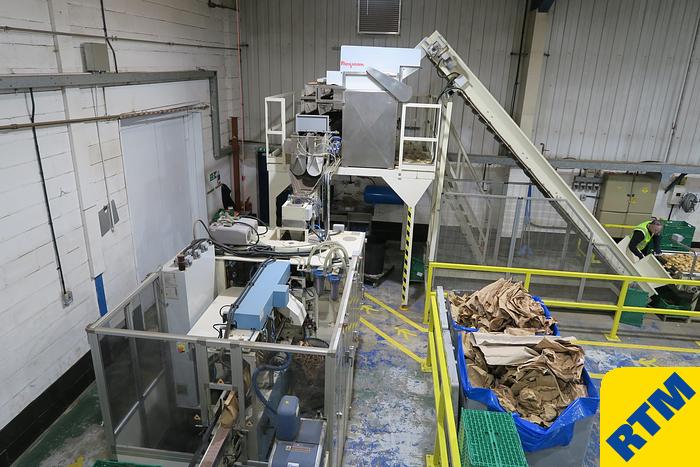

Item # 8523 - PRE-FORMED BAG FILLING LINE

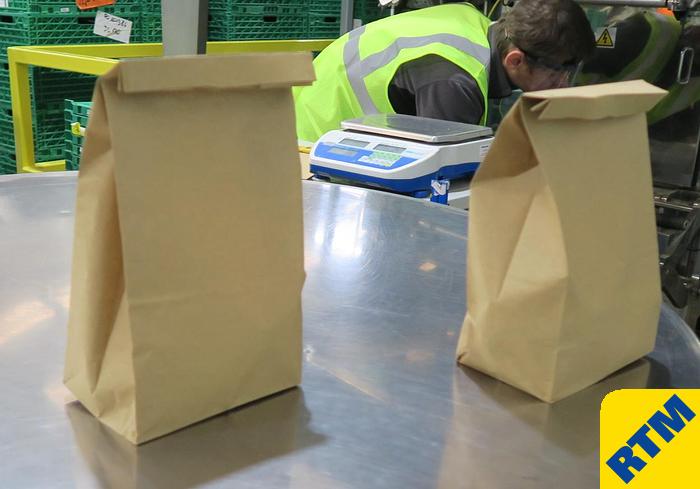

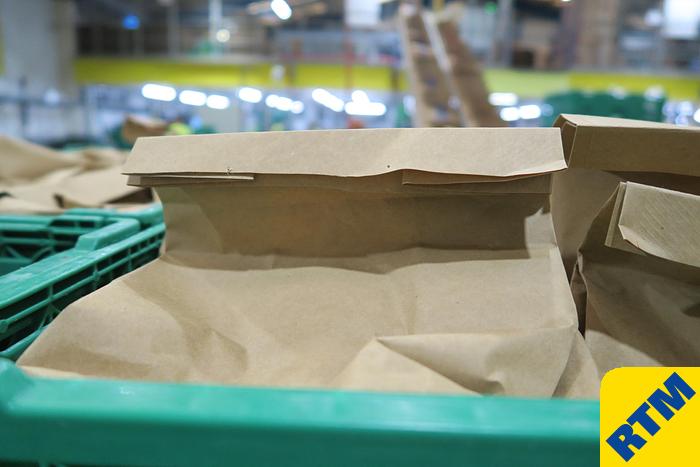

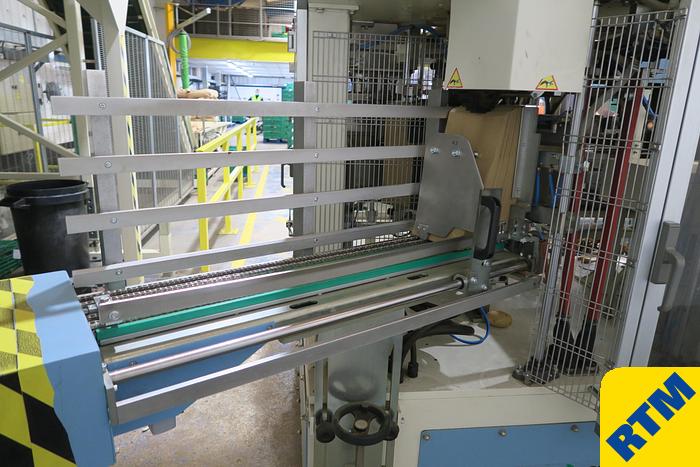

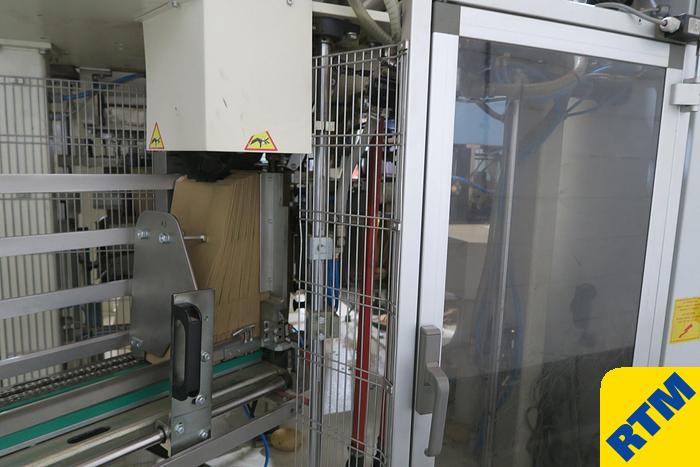

Preformed flat-bottom bag (brick block) fed from magazine with fold and glue top seal

Currently packing potatoes into a paper bag, could also be used for other similar food items weighed into bags

Manufactured by ITALPACK

Year 2015

Including

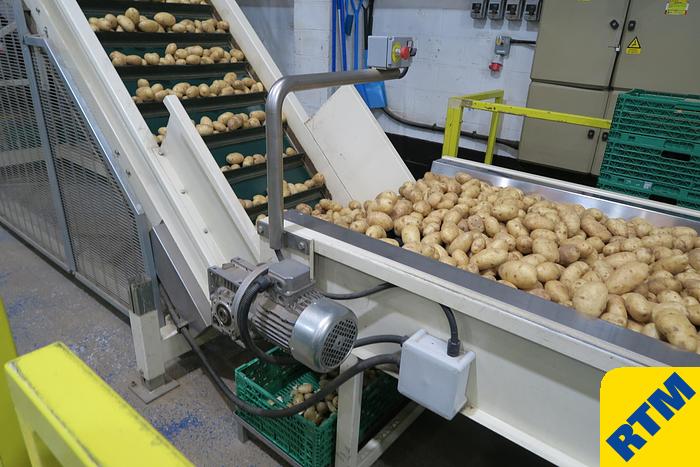

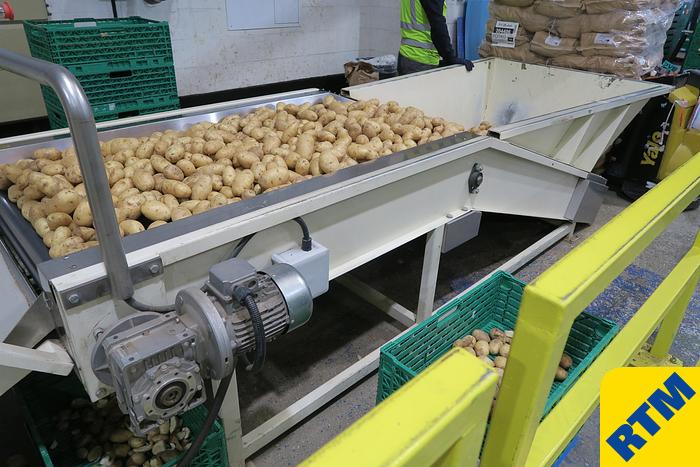

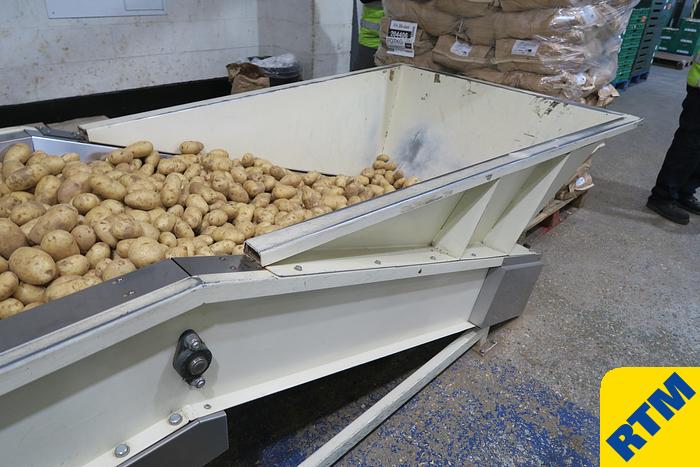

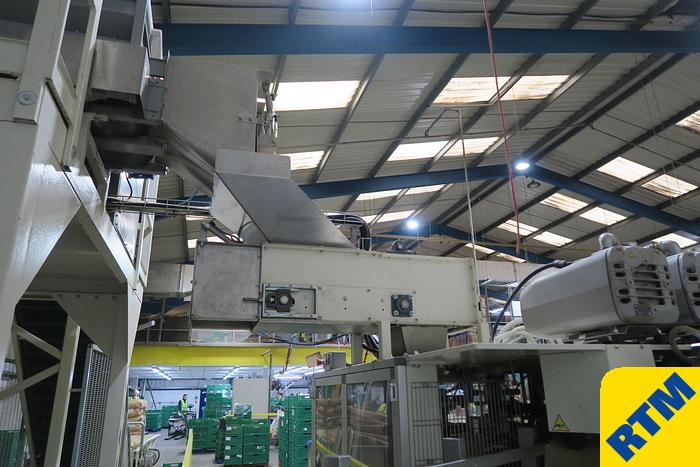

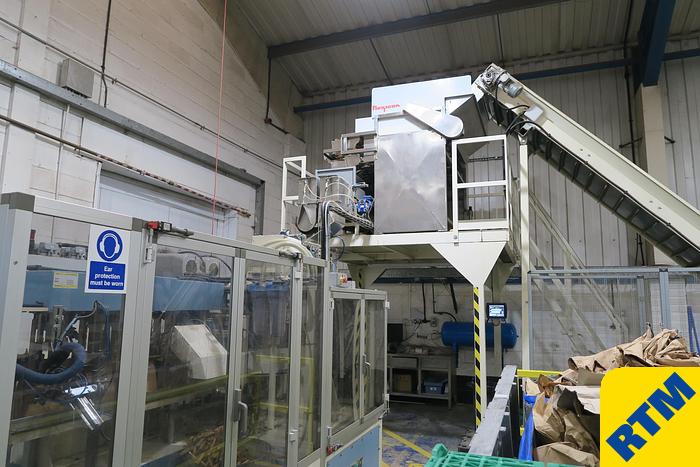

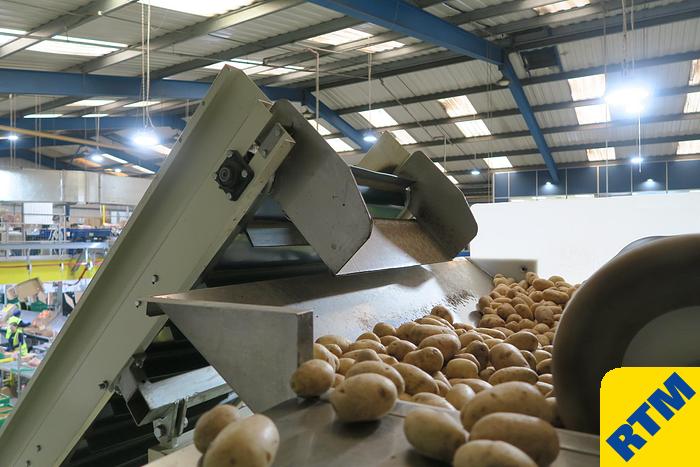

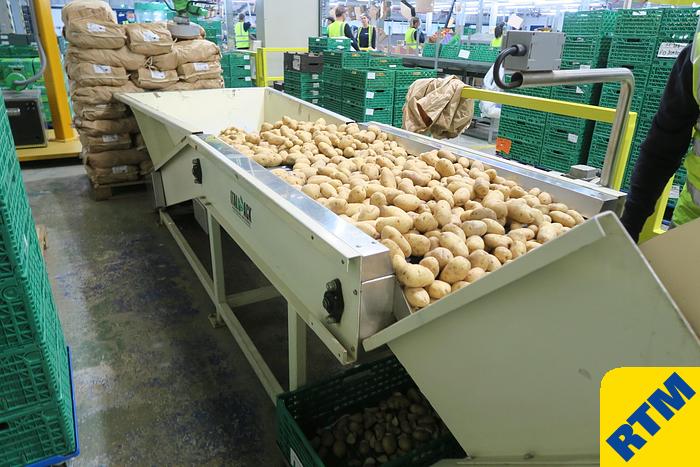

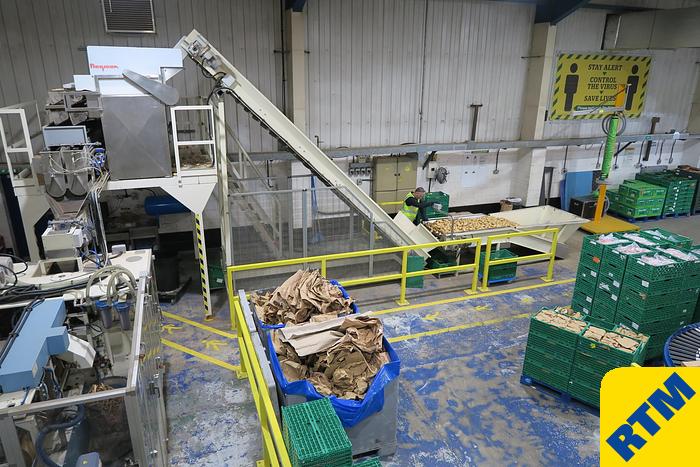

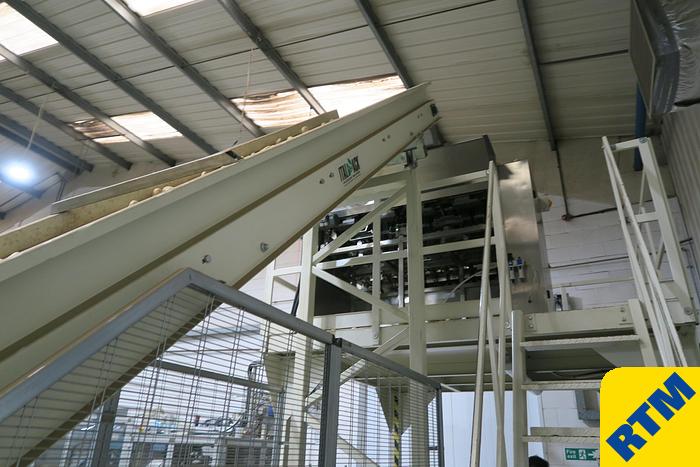

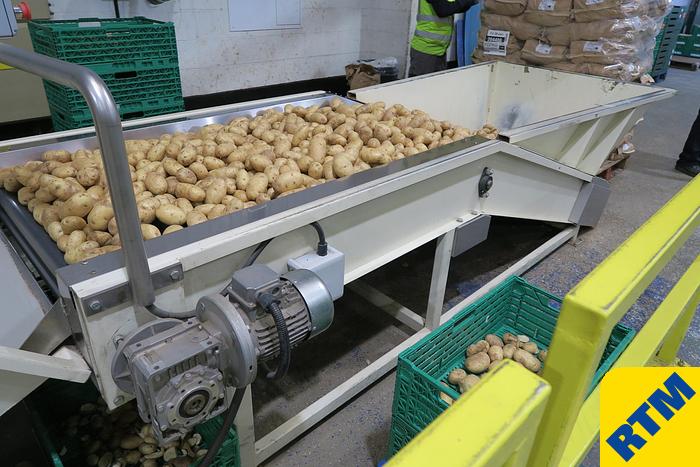

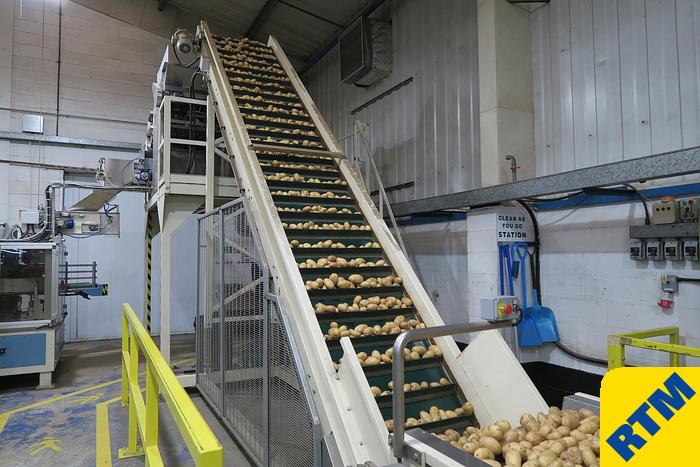

Product feed hopper with conveyor to inclined conveyor

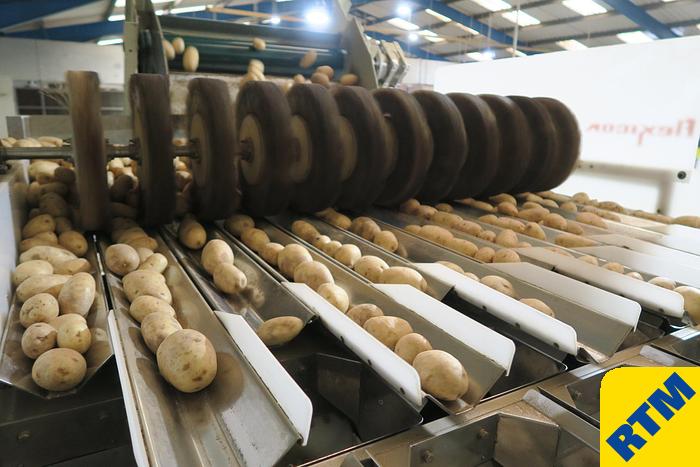

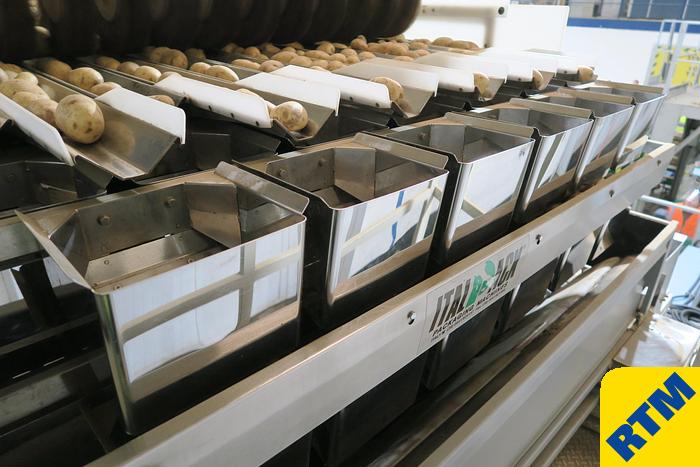

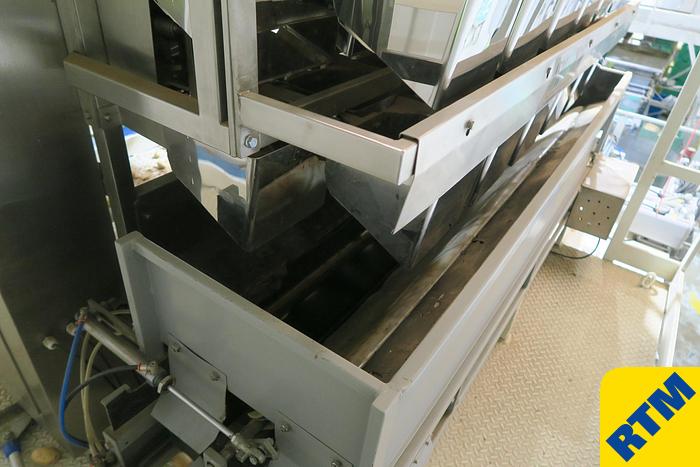

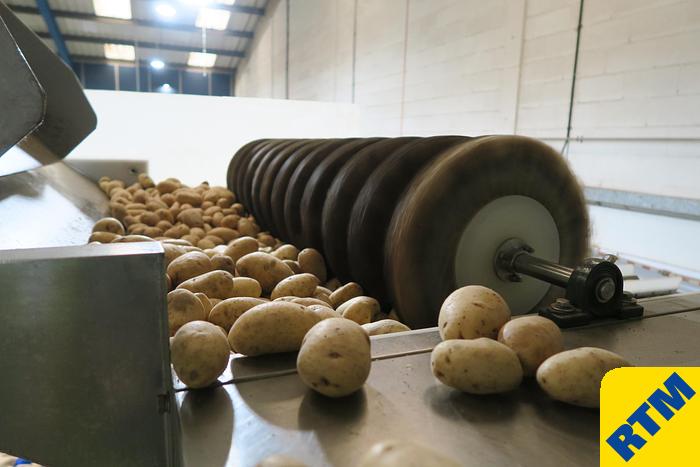

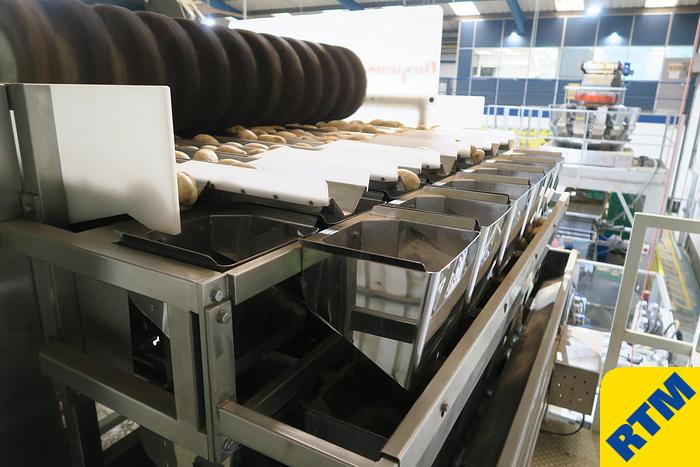

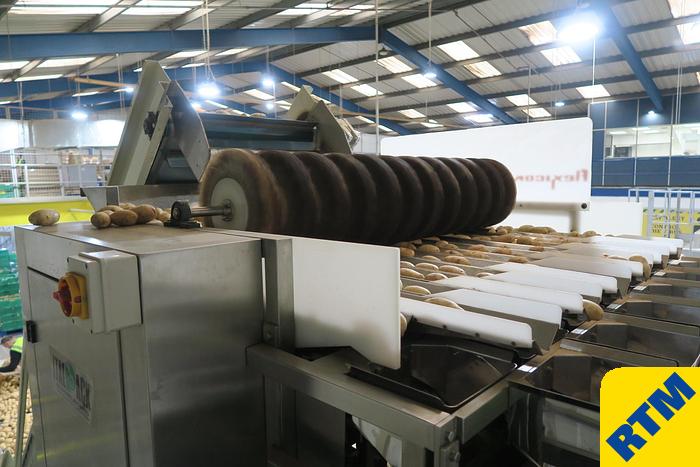

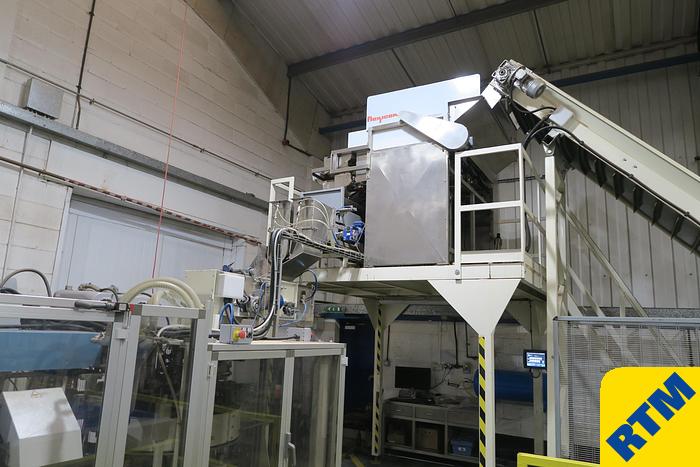

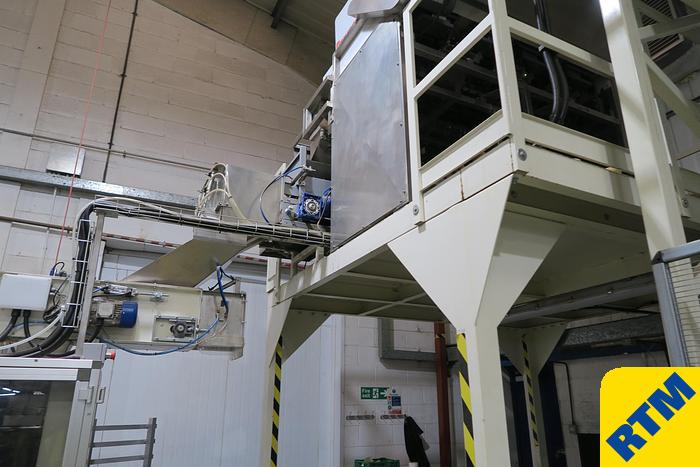

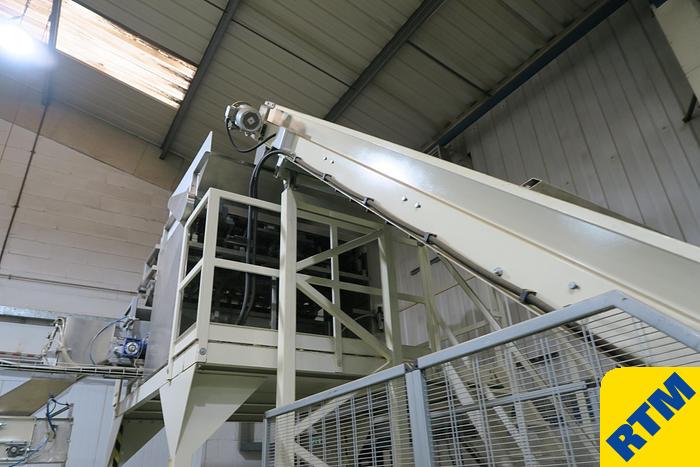

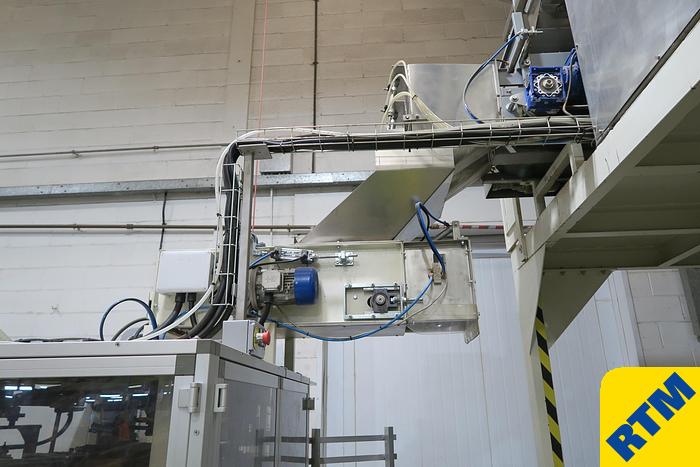

FLEXICON Feeder mechanism to ITALPACK 6-lane weigher, 25-weighings per minute

Into

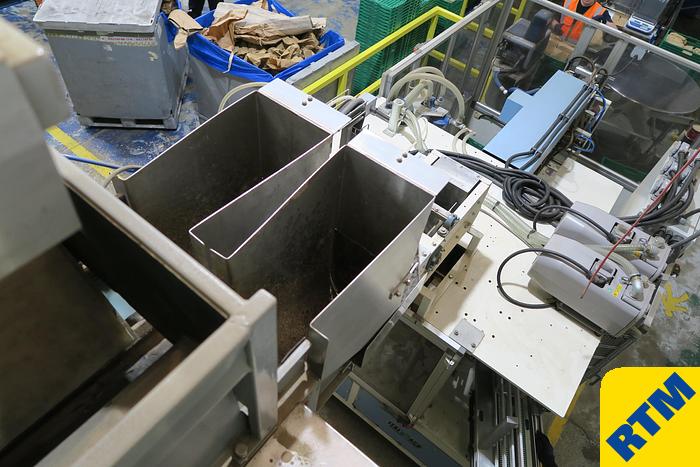

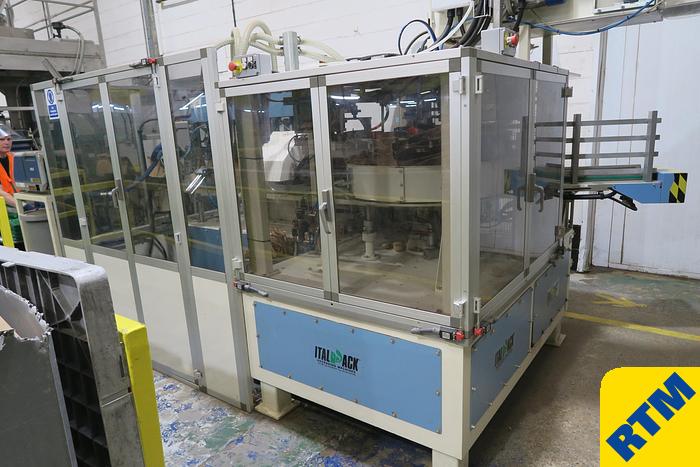

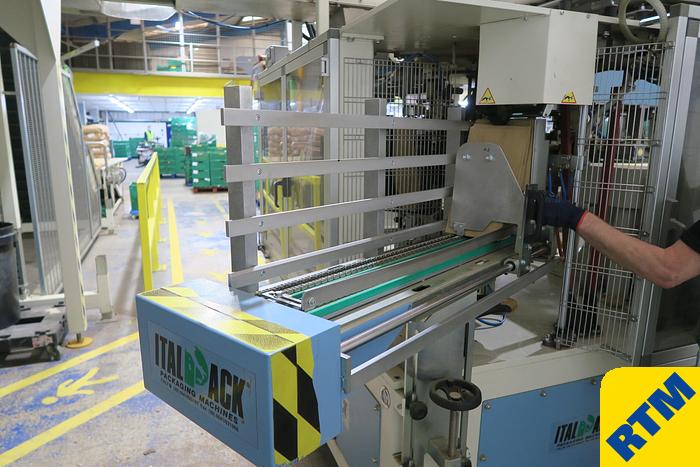

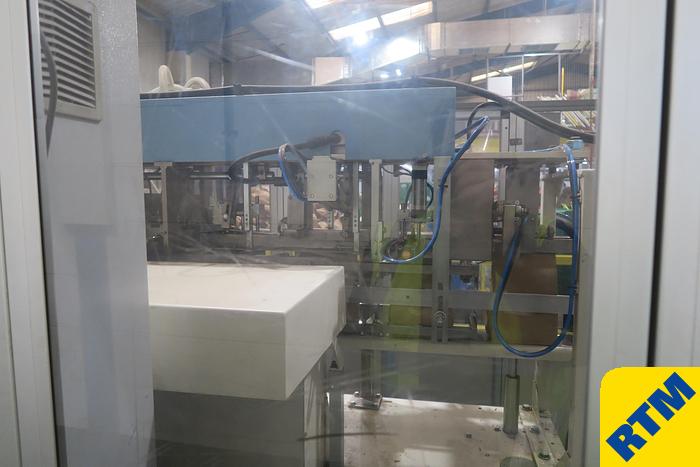

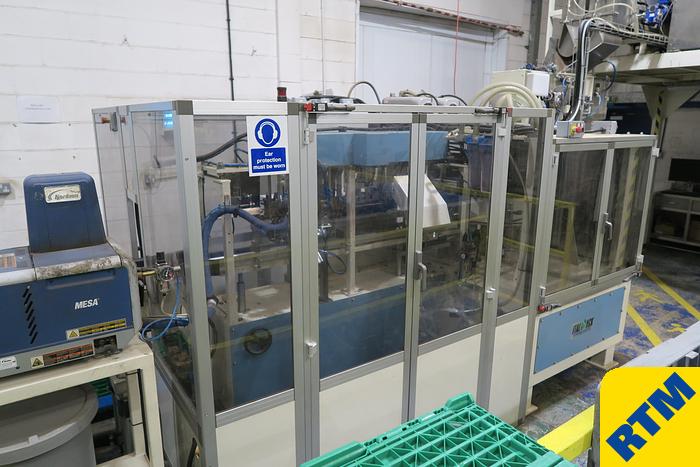

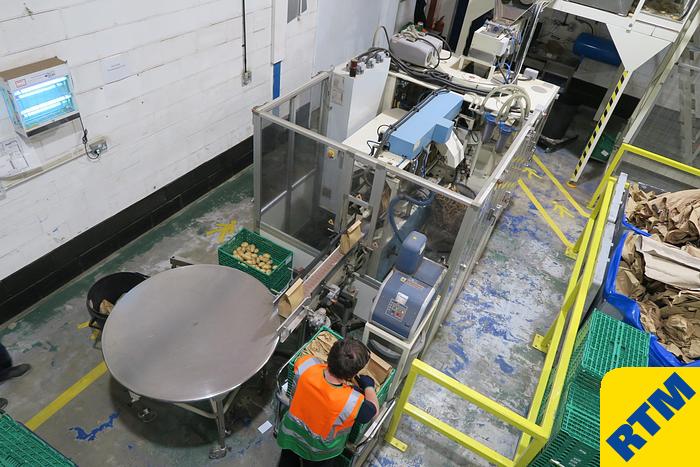

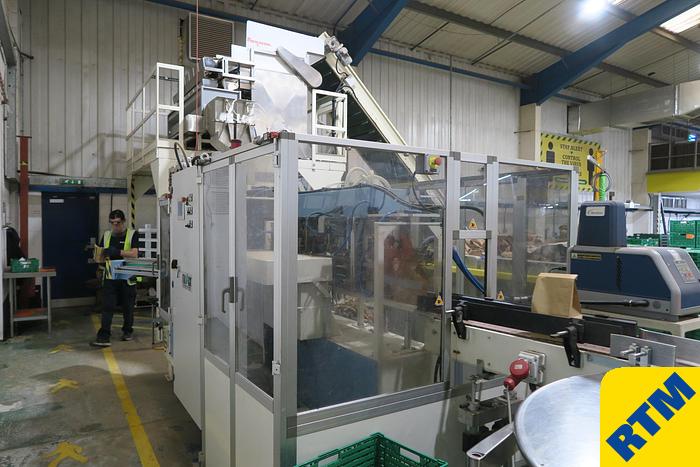

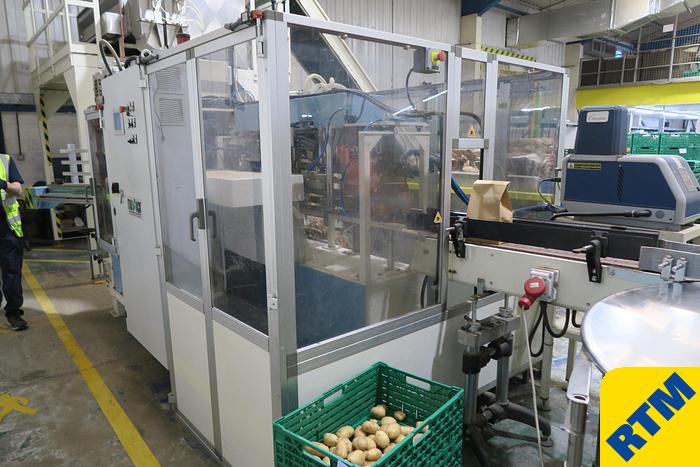

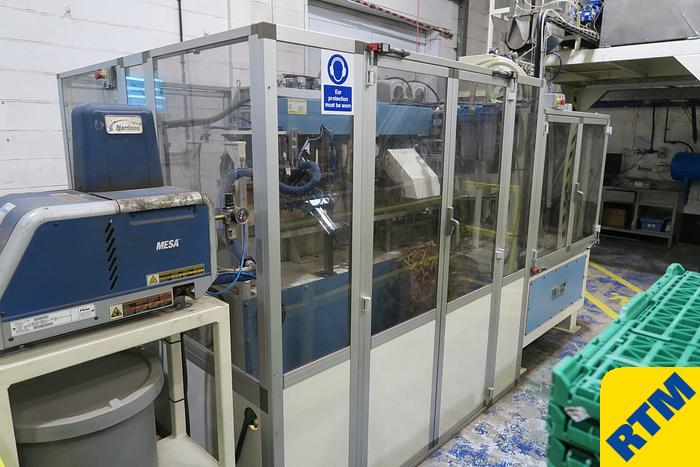

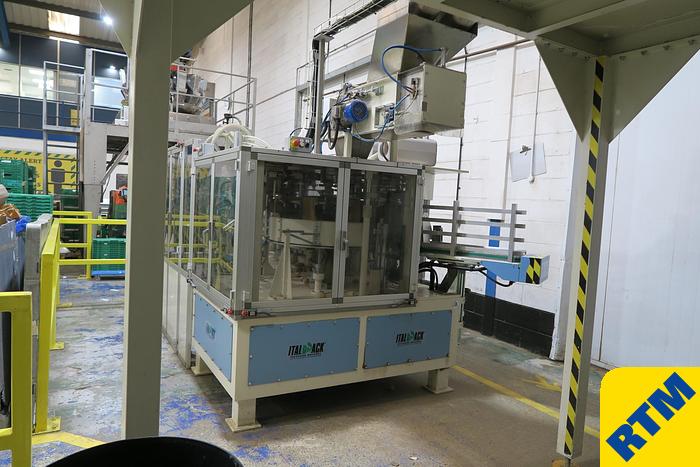

ITALPACK 50/5 bag filling machine

Pack size range possible A=90 to 240mm; B=50 to 130mm; H=220 to 520mm. Bags up to 5kg fill weight

Speeds up to 38 bags per minute depending on product, volume etc

With bag trimmer, fold mechanism

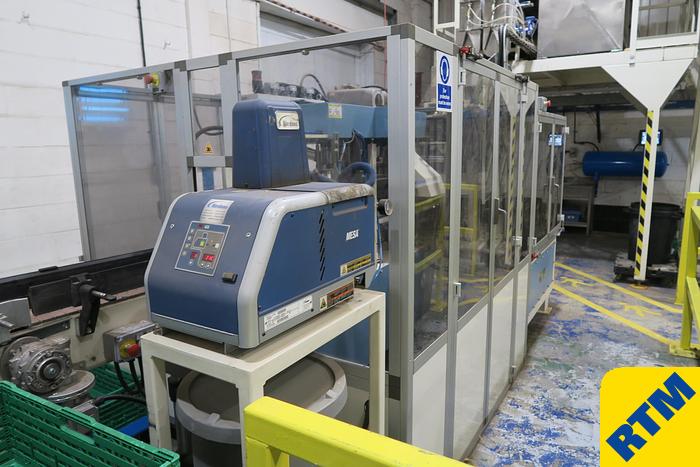

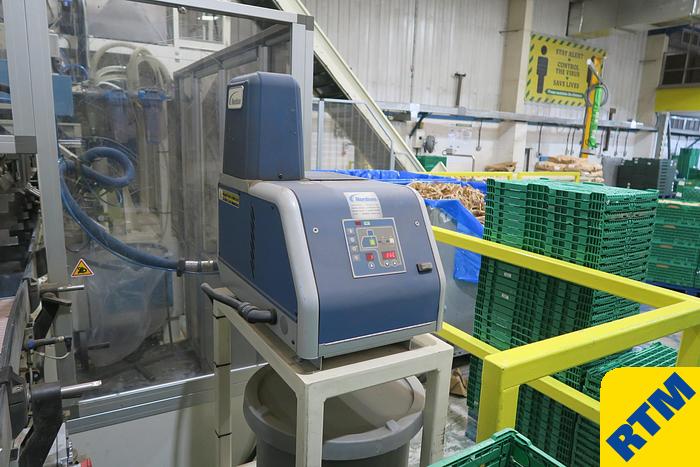

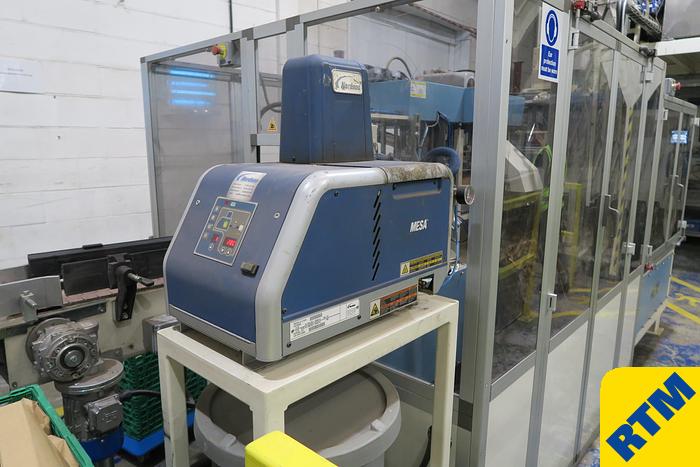

NORDSON Mesa glue unit

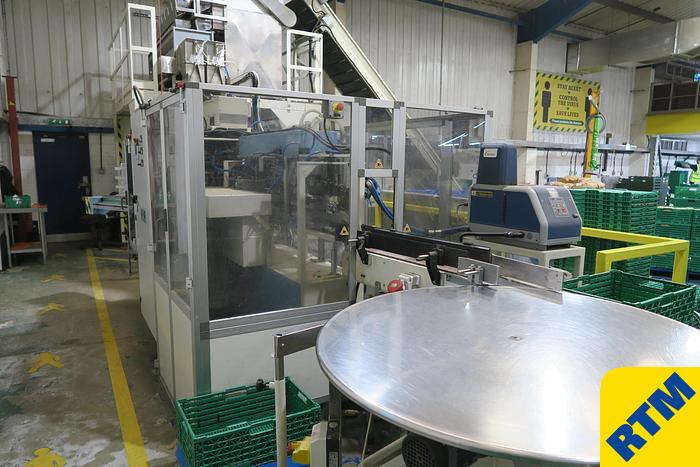

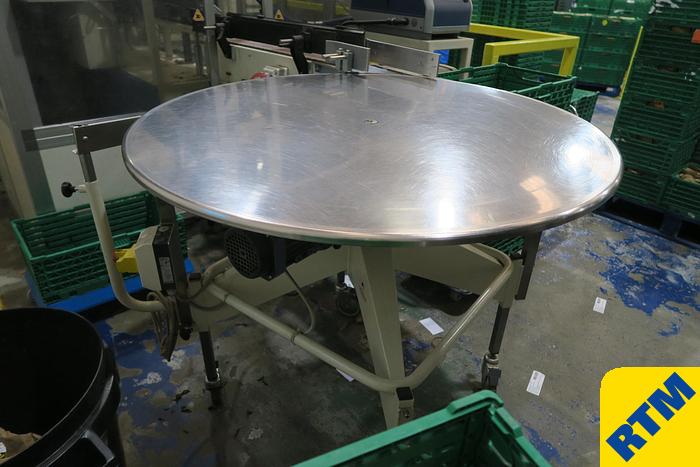

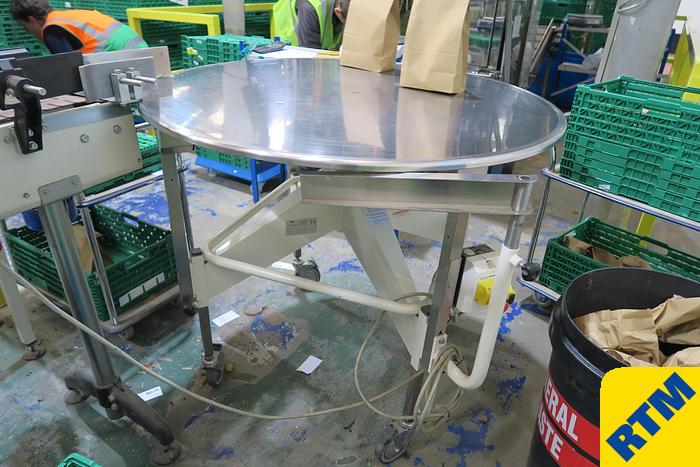

CIDIESSE rotary table

380v, 50hz, 3ph


Specifications

ManufacturerItalpack
ModelPack 50/5
ConditionUsed
Stock Number8523
