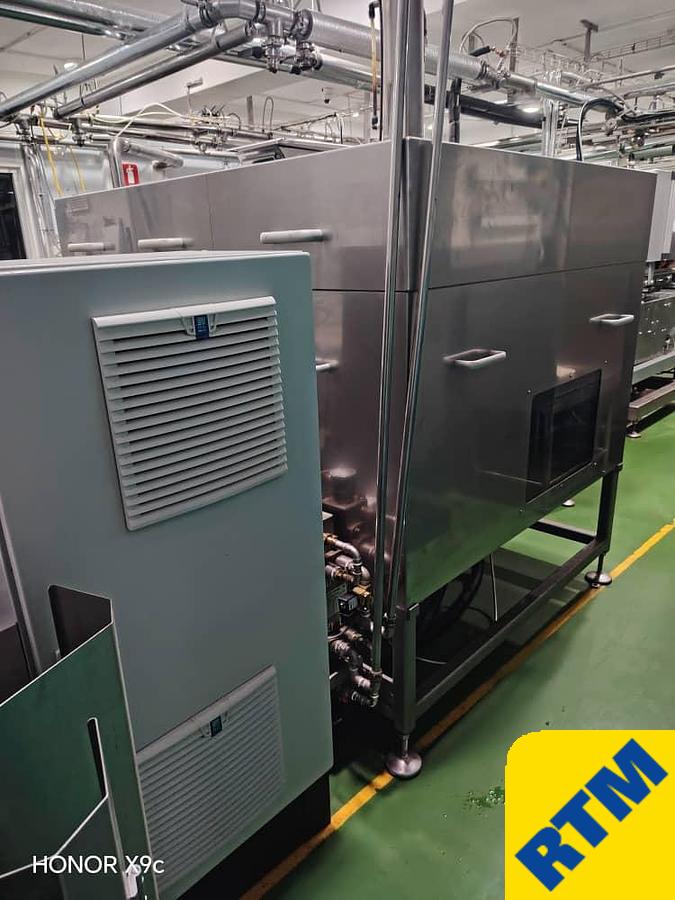

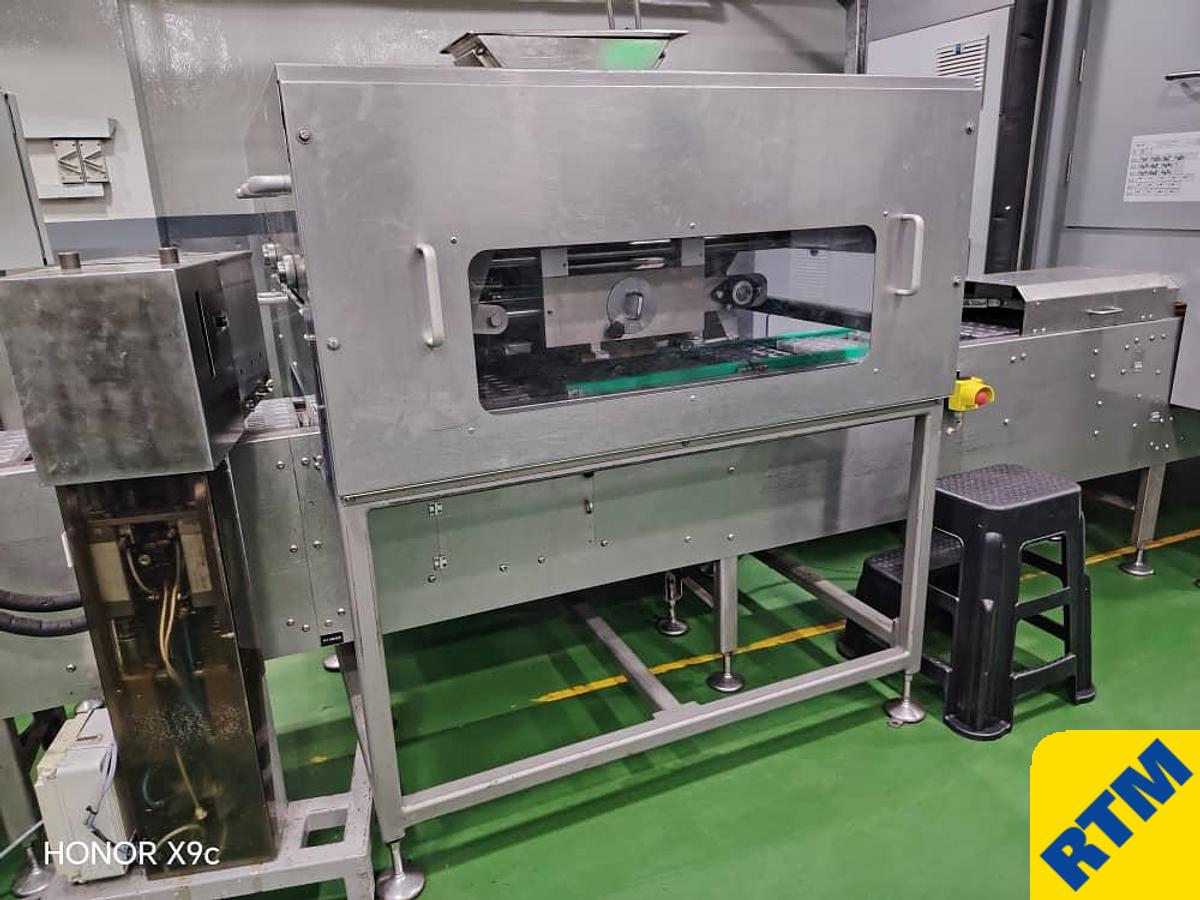

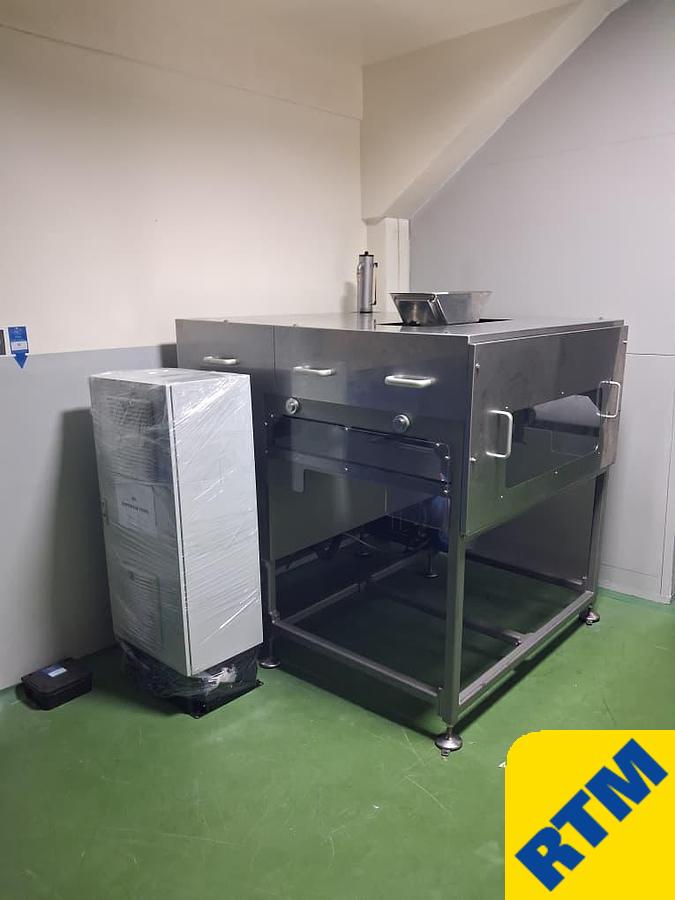

Chocolate Depositor

Item # 9365 - CHOCOLATE DEPOSITOR

Manufactured by BOHNKE & LUCKAU

Model BL SD-275

For the depositing of chocolate with inclusions into moulds

Including :

Jacketted Stainless Steel Infeed Hopper

Including a Stirrer with fixed 19rpm speed, driven by geared motor

Rotary Valve Housing & corresponding depositing plate dosing nozzles

Warm Water Heating System

Servo Driven Cam/Piston Movement 5-Pistons at 40mms diameter

80mms maximum stroke, 5mms minimum stroke

Including a depositing plate configured for 100g bars (3 bars per mould, mould size 275 x 205 x 30 mm)
