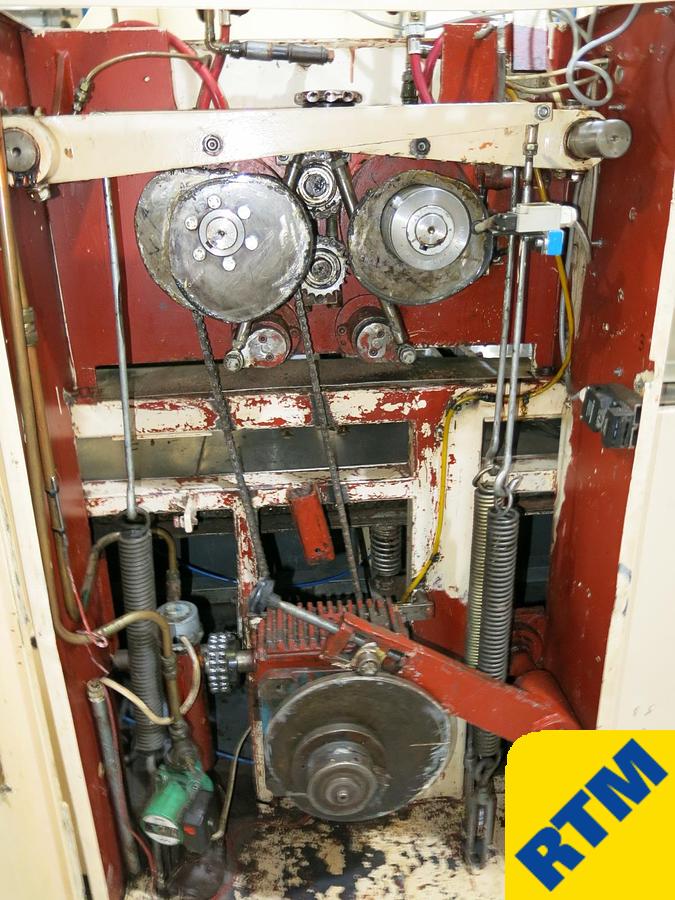

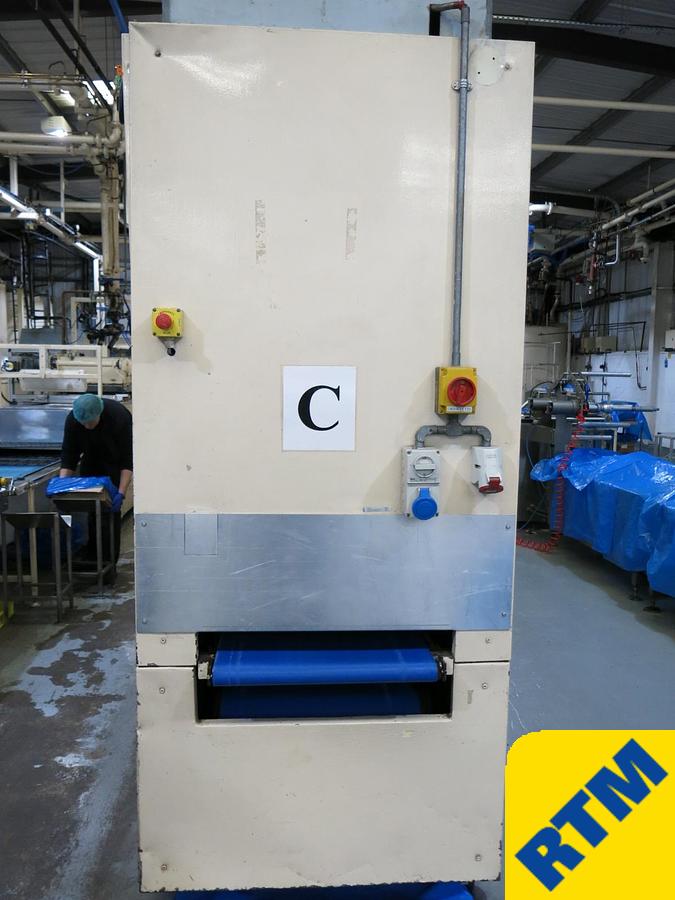

Chocolate Moulding Line

Item # 9308 - ONE SHOT CHOCOLATE MOULDING LINE

Manufactured by WESTAL

600mms wide Line

Year of Manufacture not known (approximately 35 years old)

Still set up in the factory, in full working order

Up to 500Kgs per hour (around 4000Kgs per 8 hour shift), depending on product

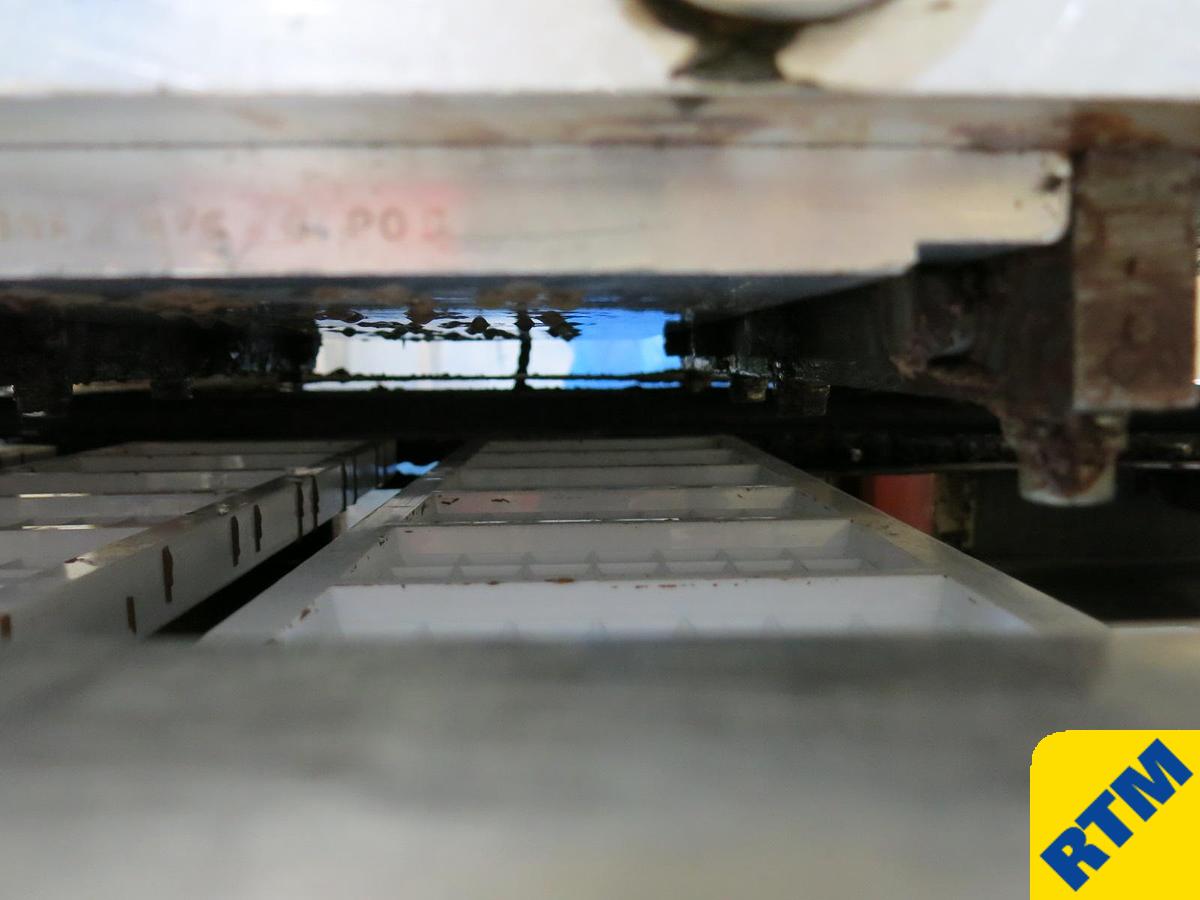

Line holds 420 moulds

capacity up to about 25 moulds per minute, depending on product

Including One Shot Depositor which was only being used for solid bars

Could also include some types of inclusions

Line with :

Mould Warmer, automatic rising up from line when not being used

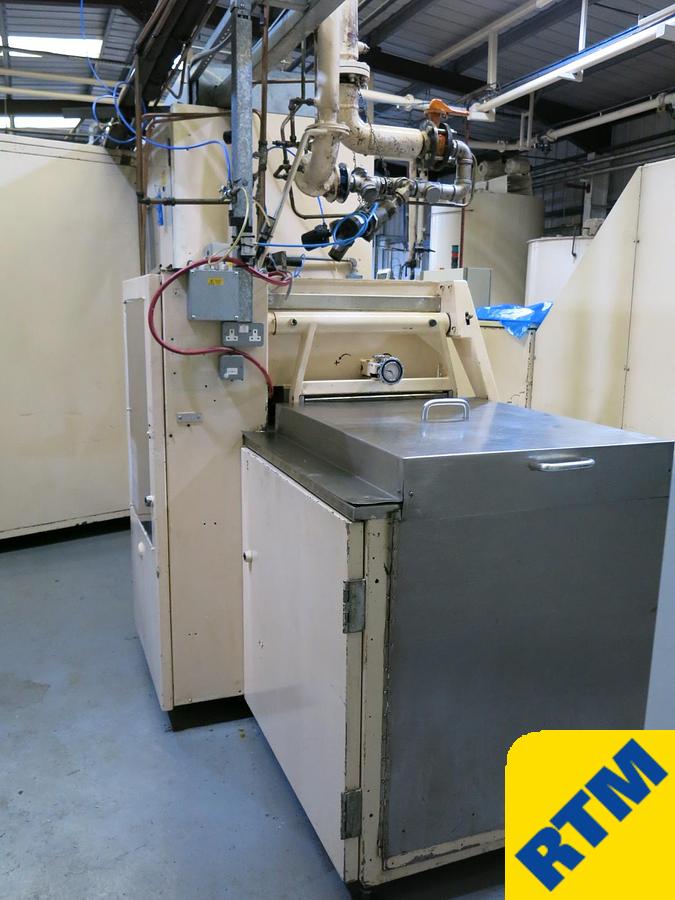

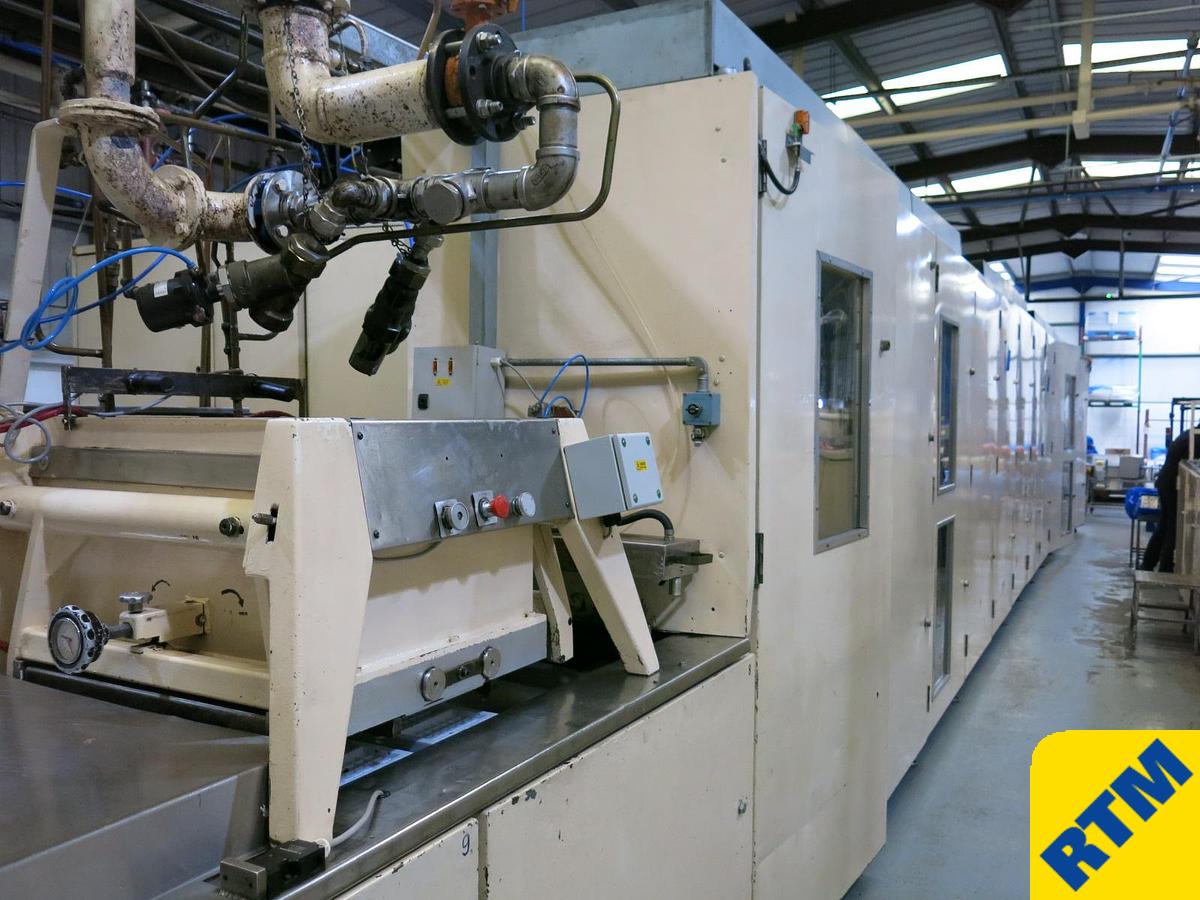

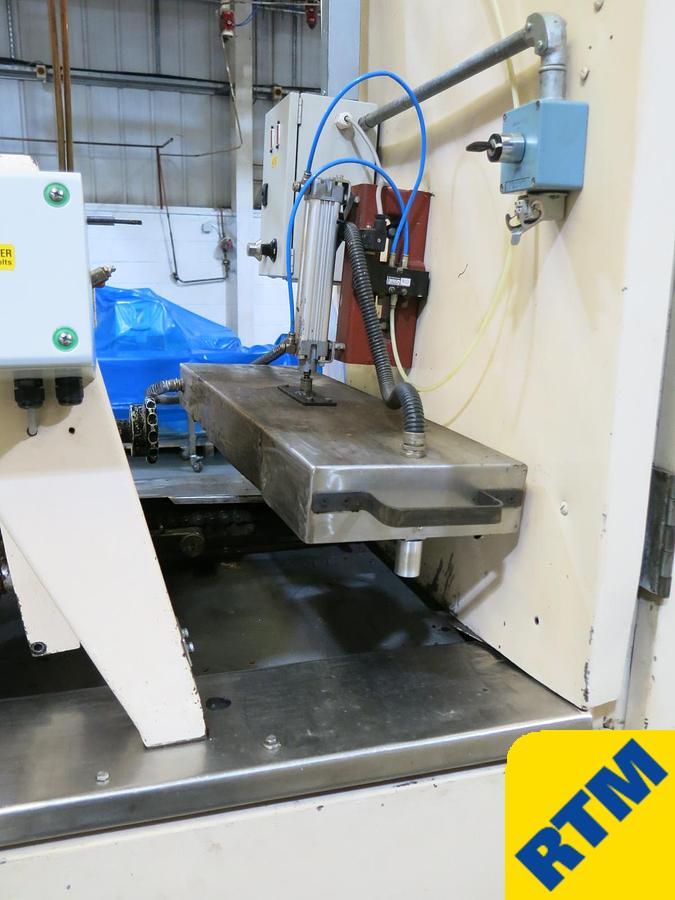

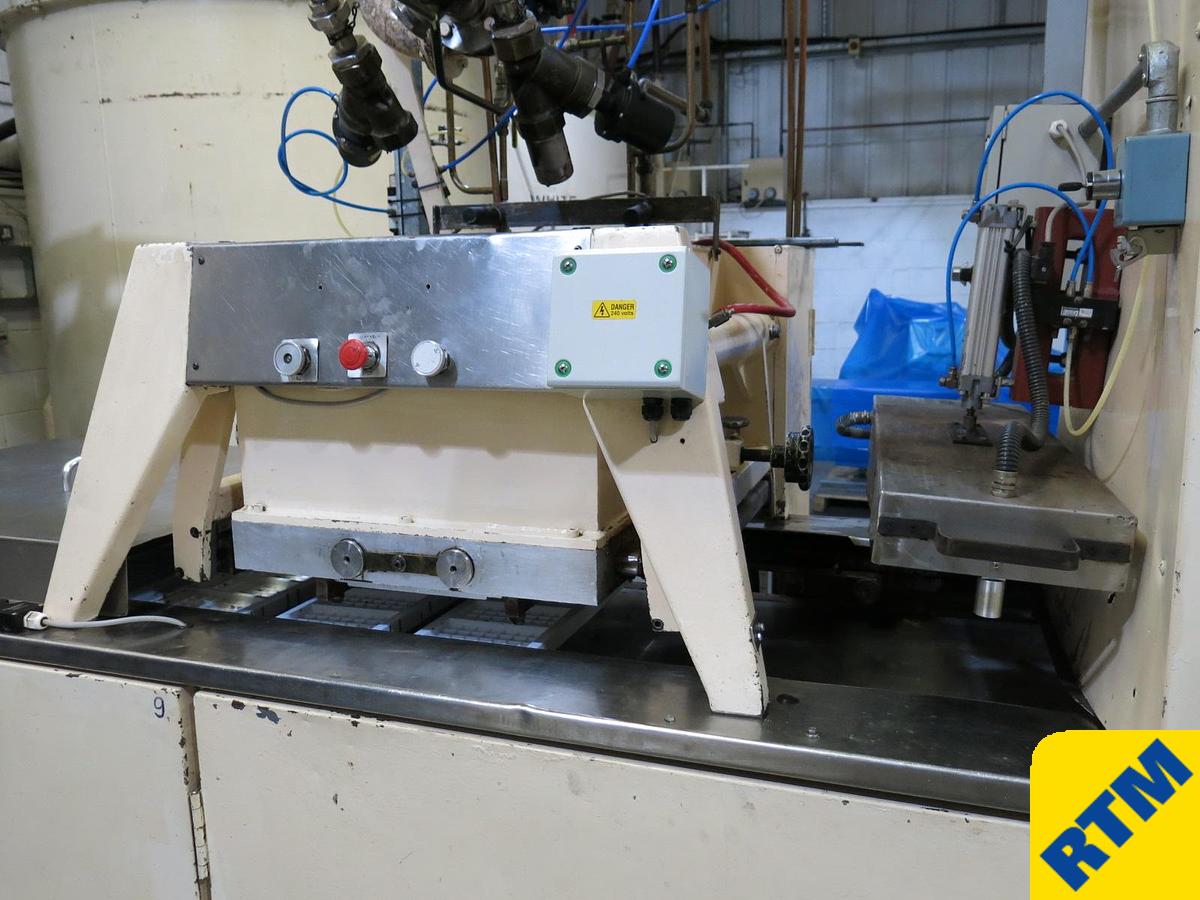

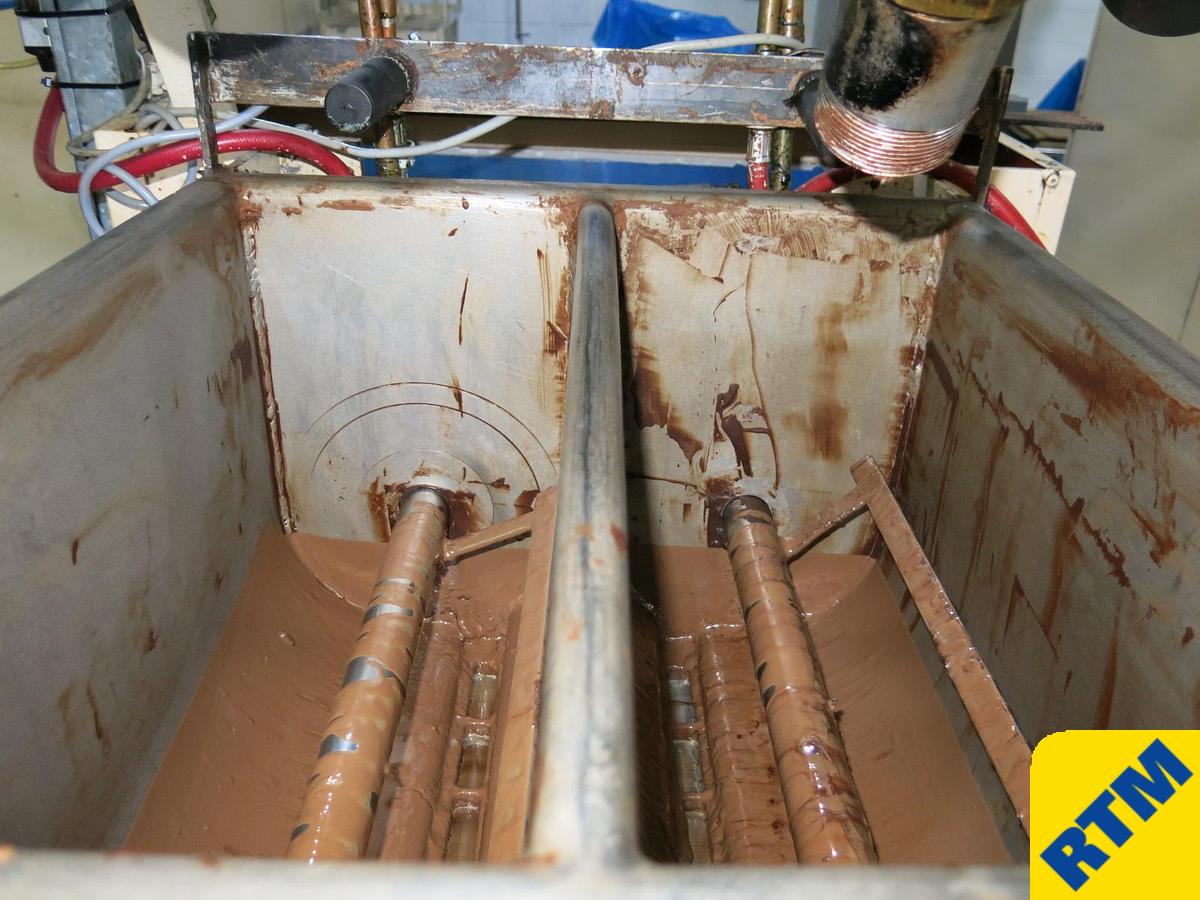

One Shot Depositing head, last being used for solid bars

Mould Vibration

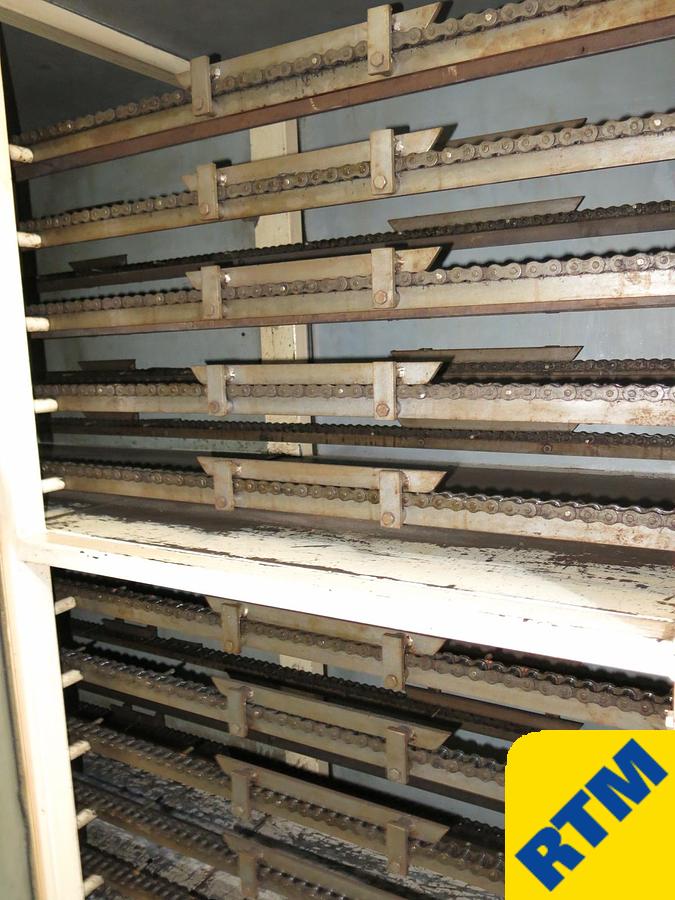

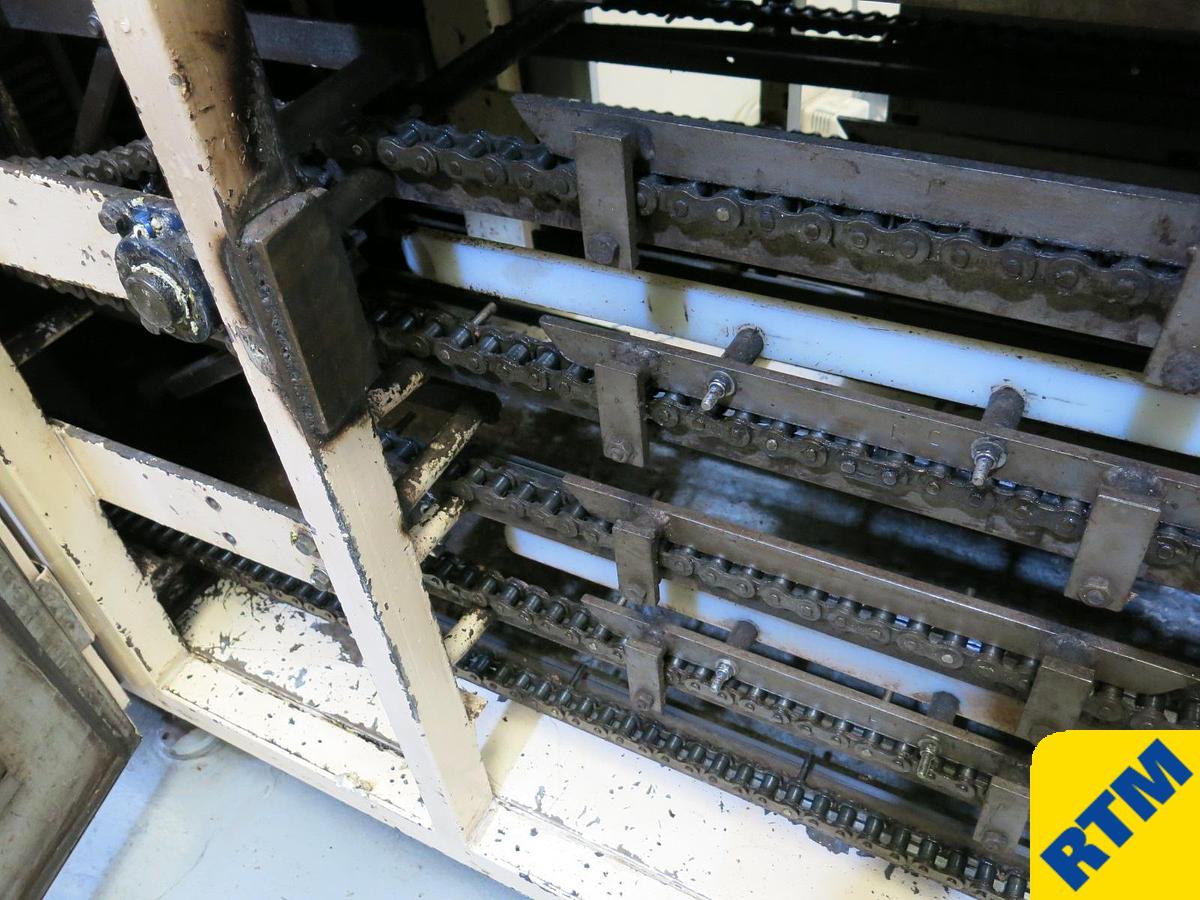

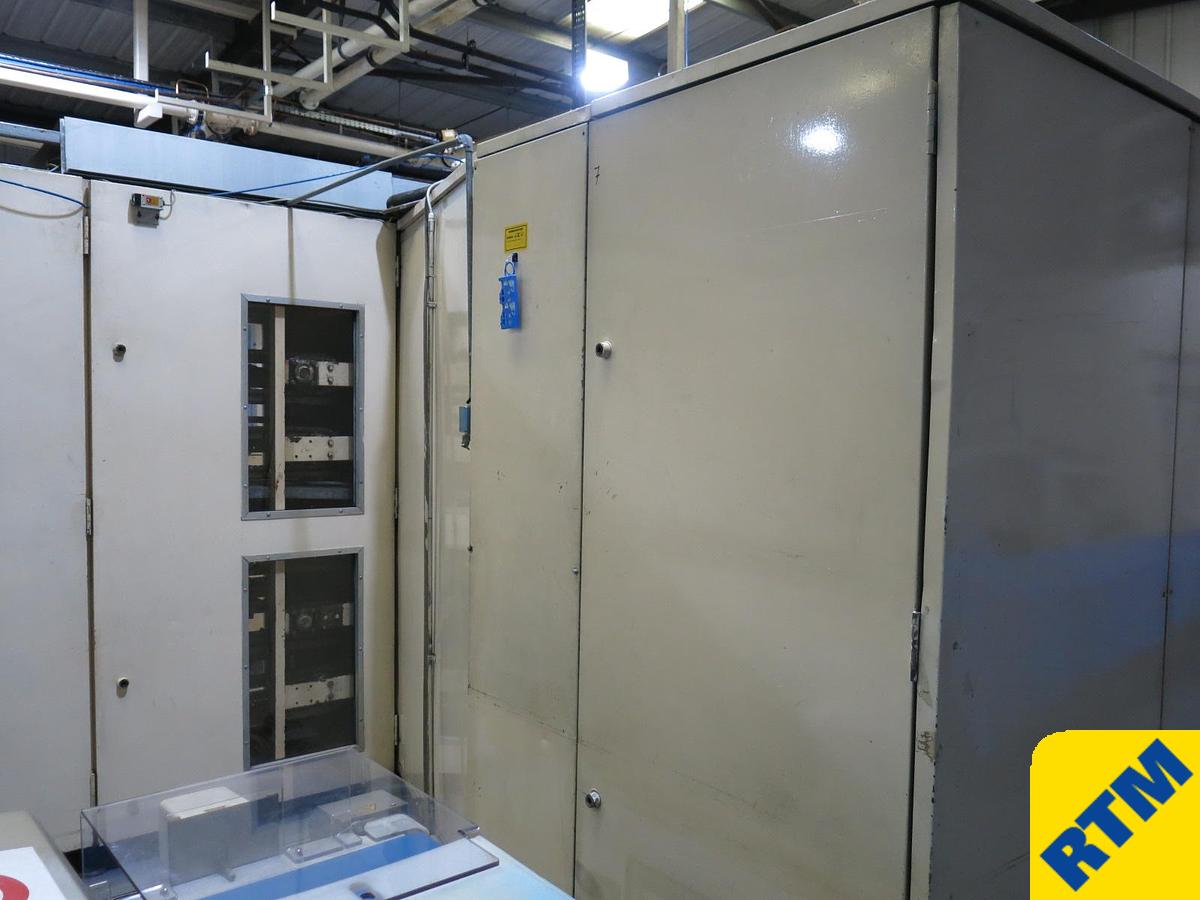

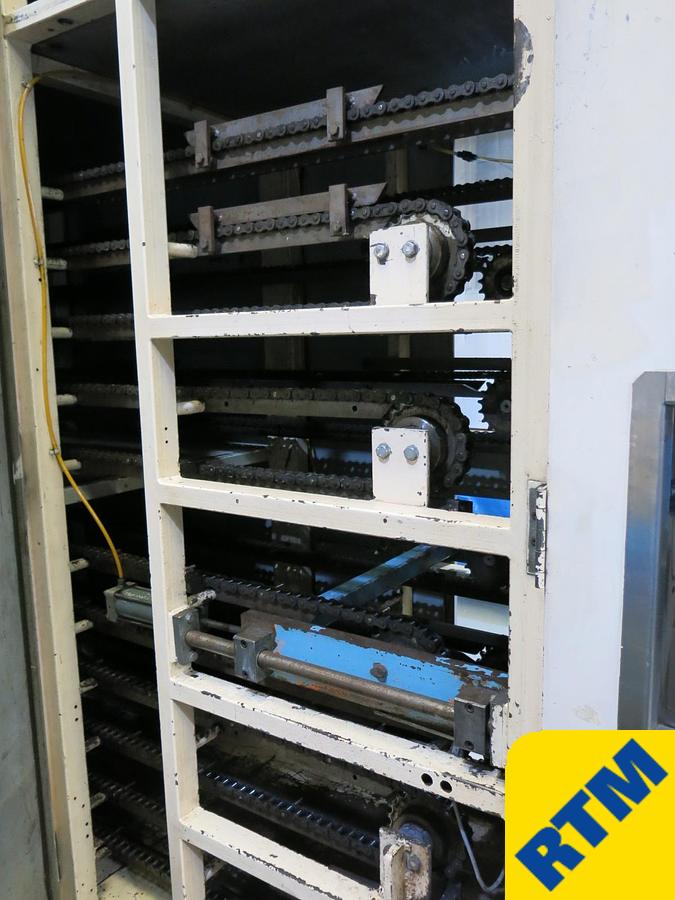

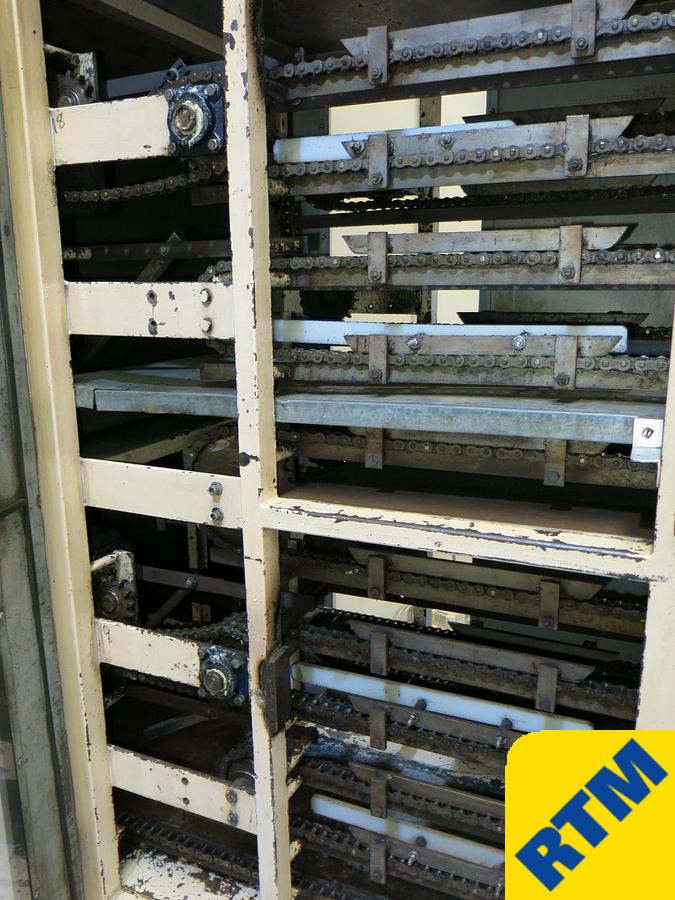

Mould Cooling, snake style through line

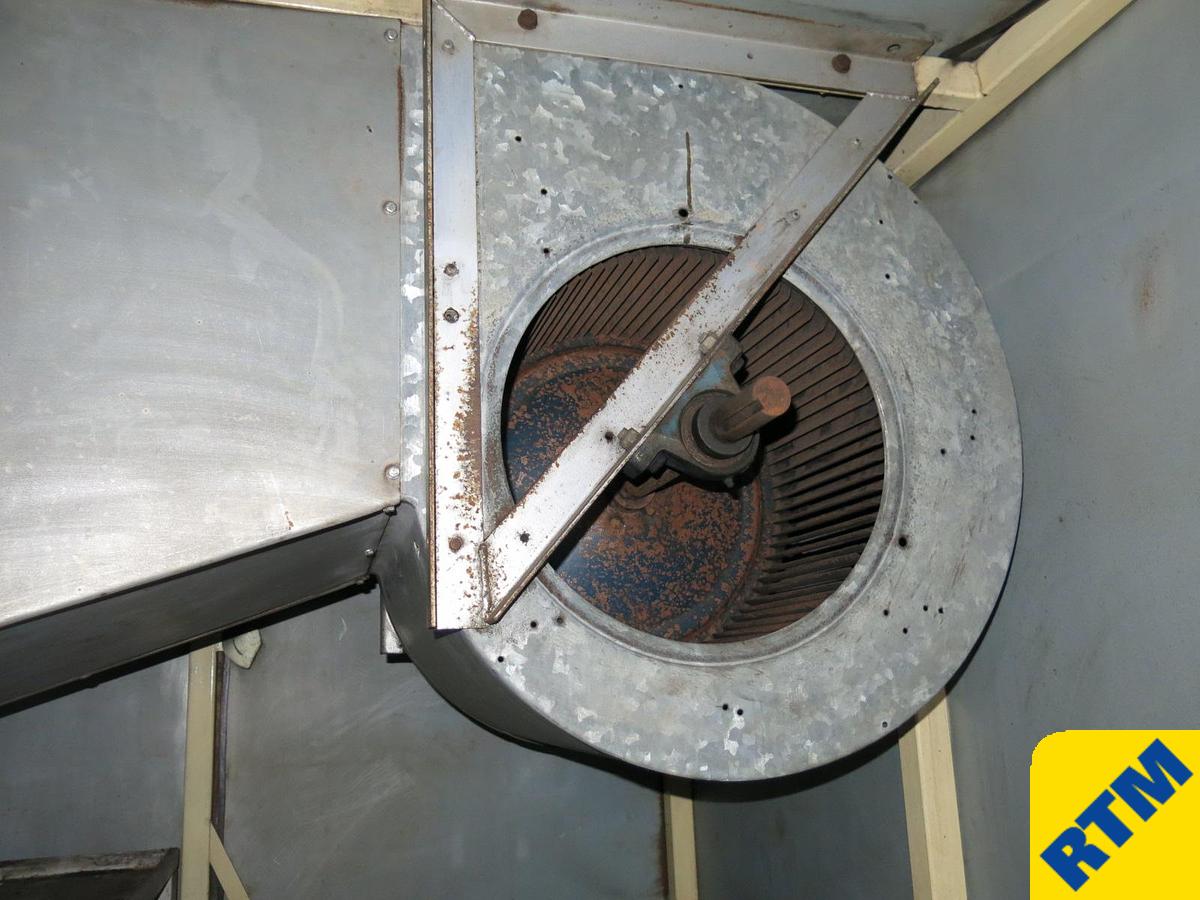

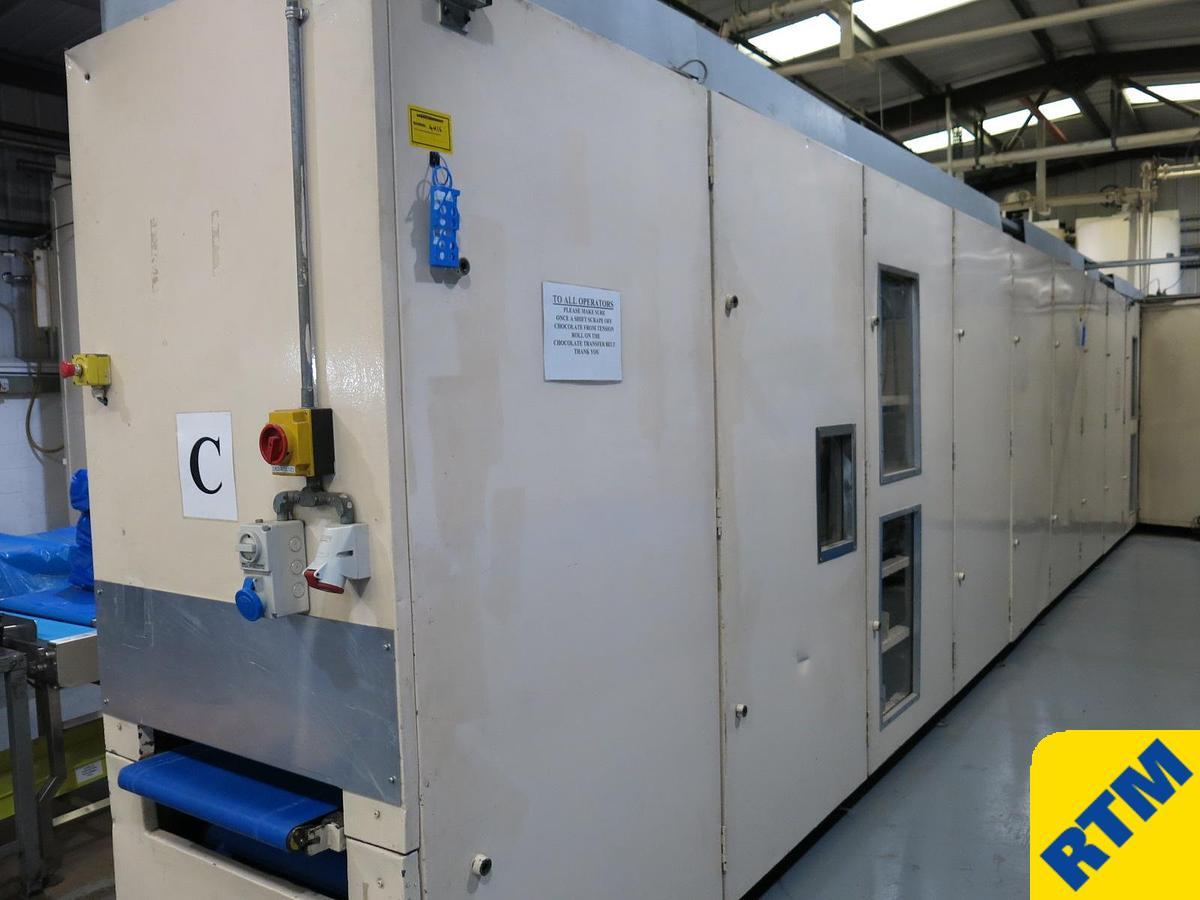

Cooling by cold air, cooling fan included, cooling compressor also available if required (on outside of building)

Mould Turnover & Mould De-Moulding, with hammer

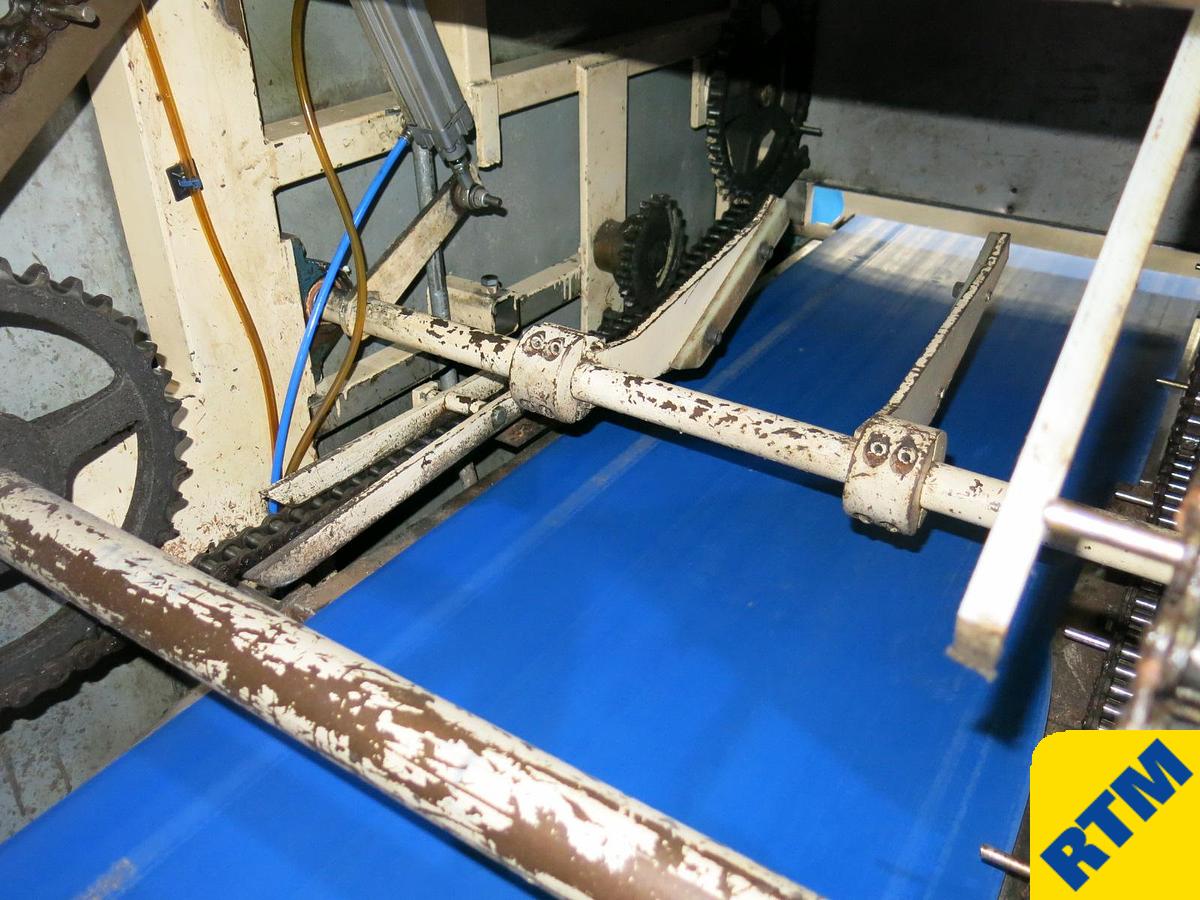

Product Exit

Mould Return to start of line

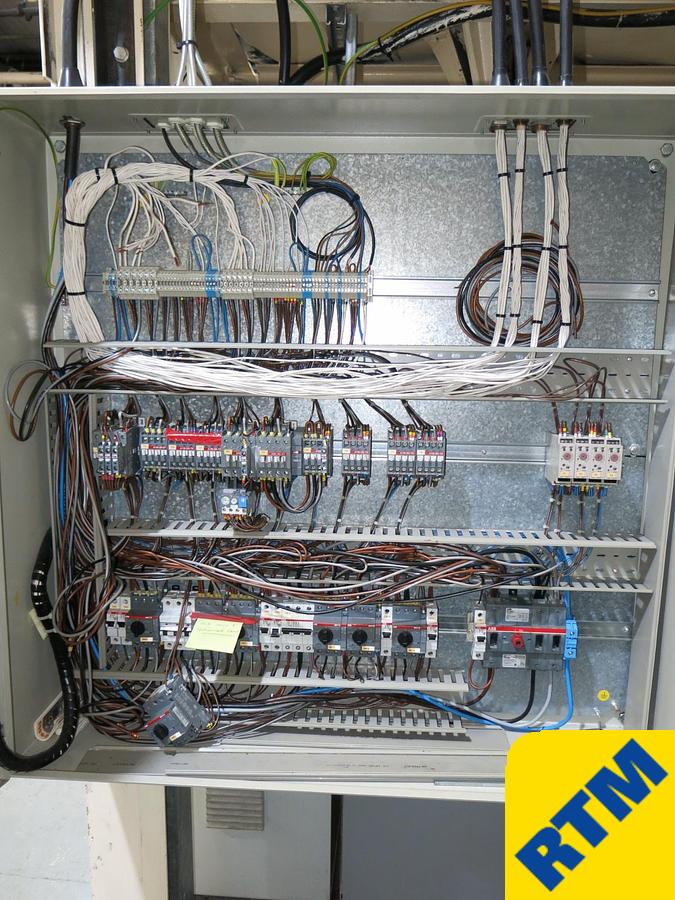

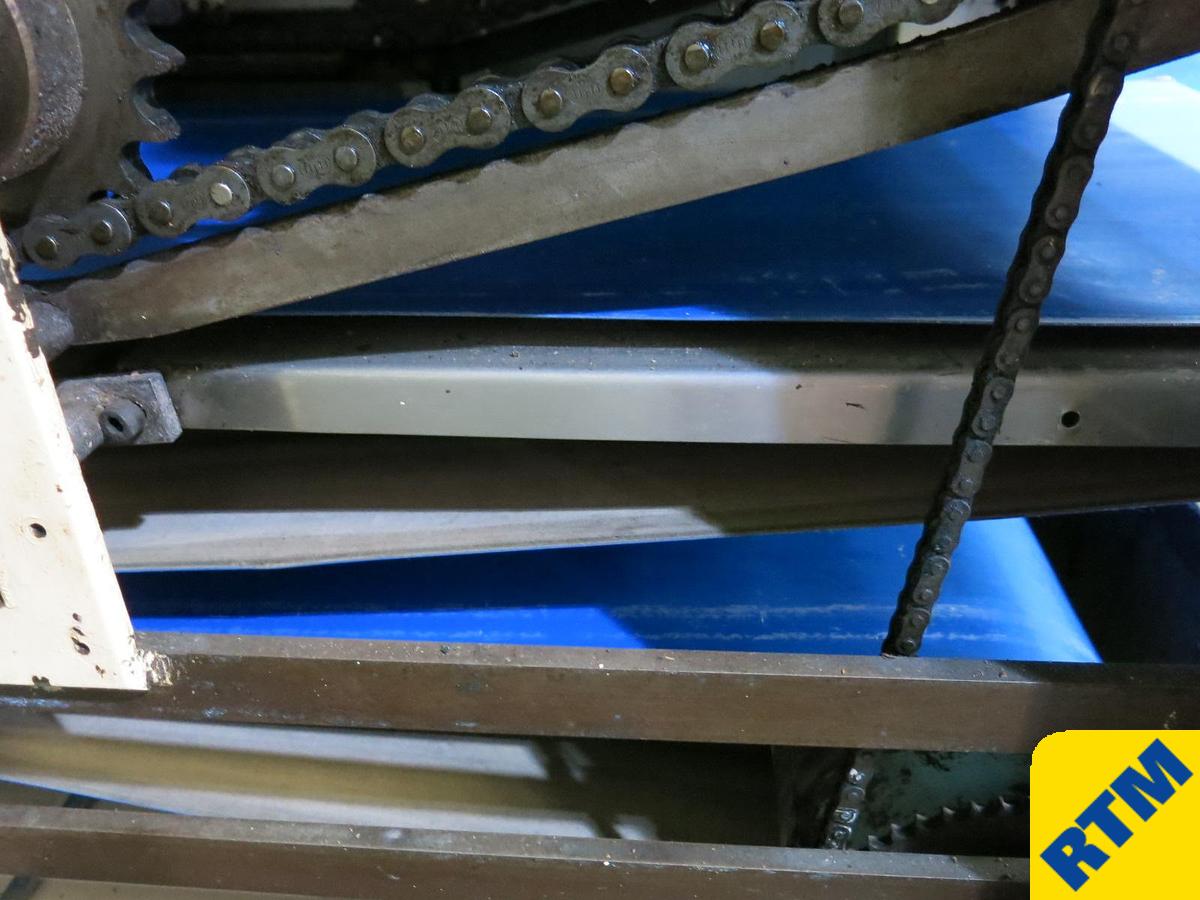

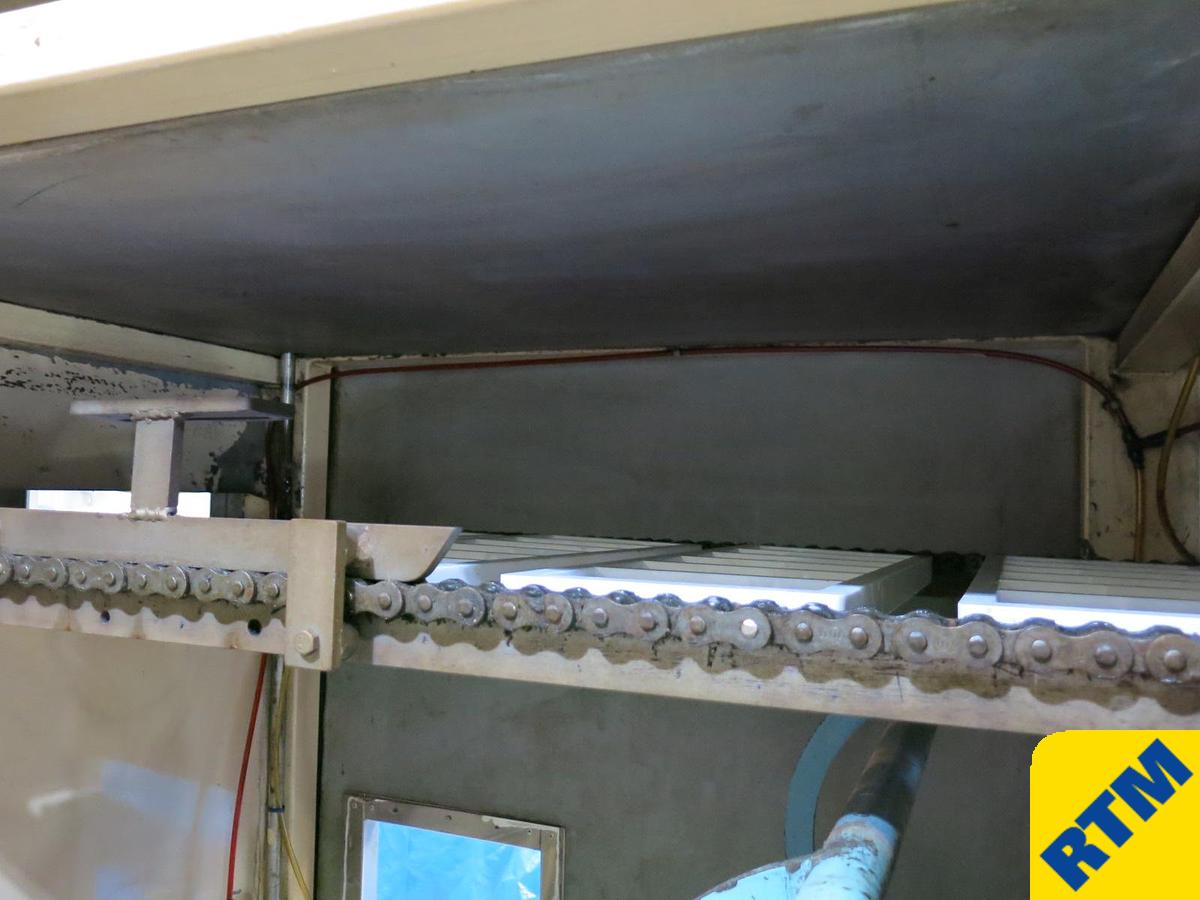

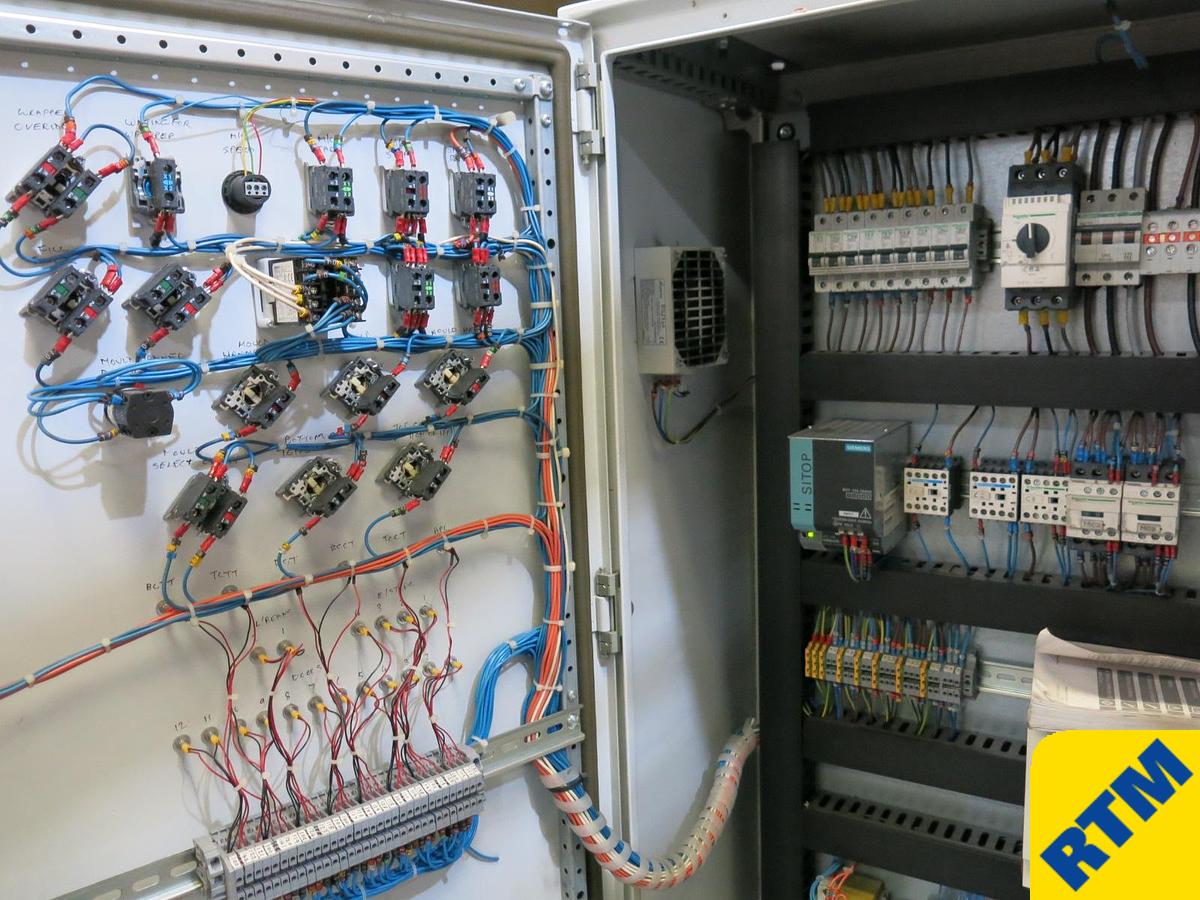

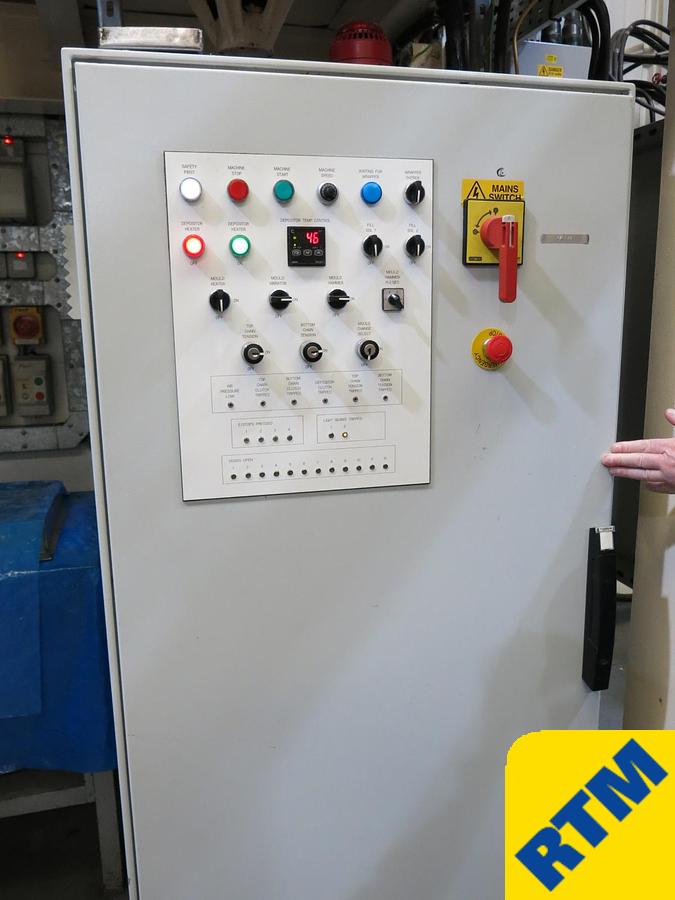

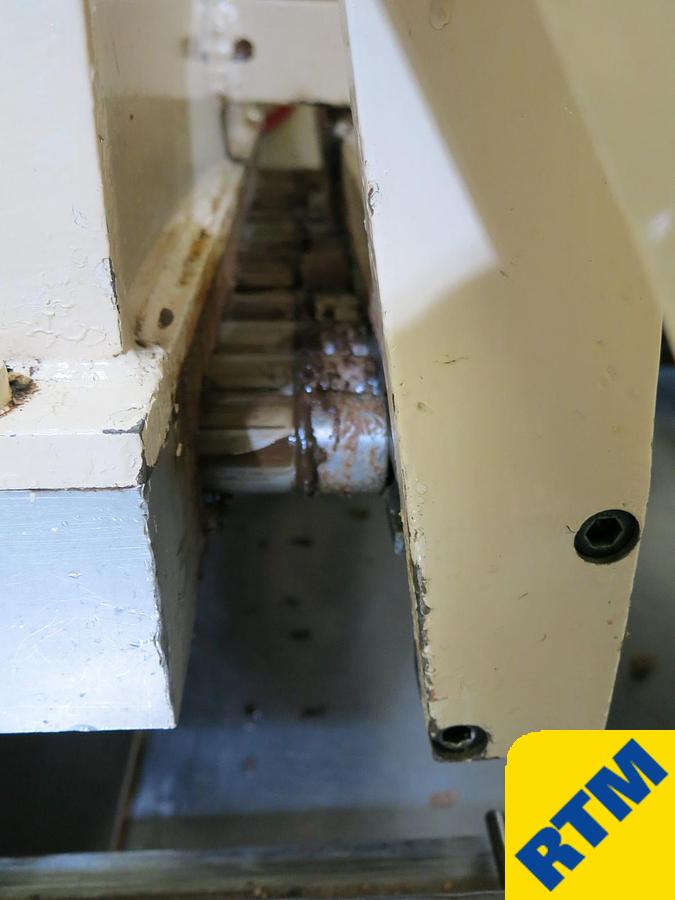

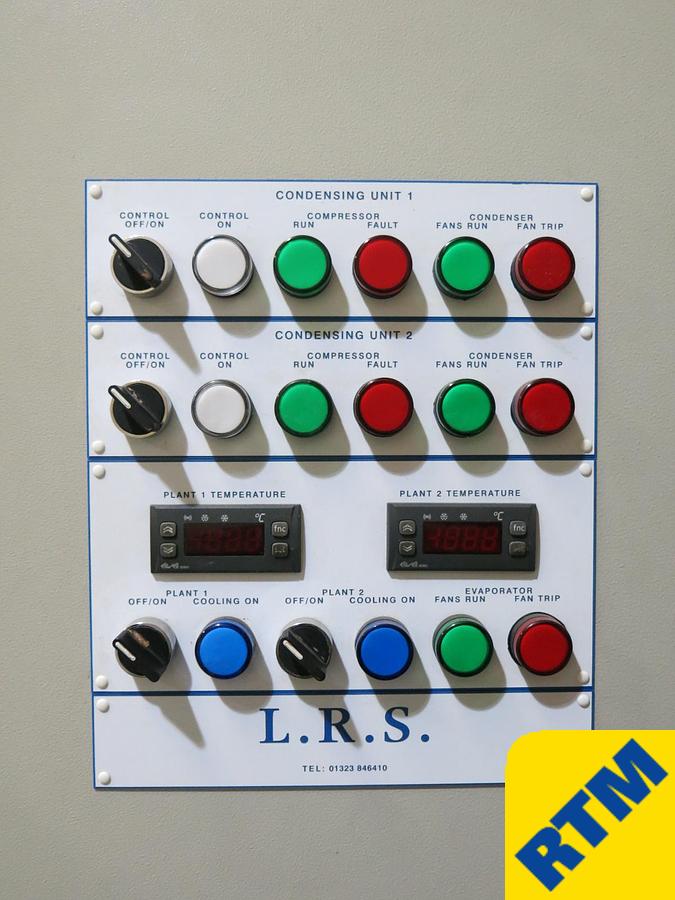

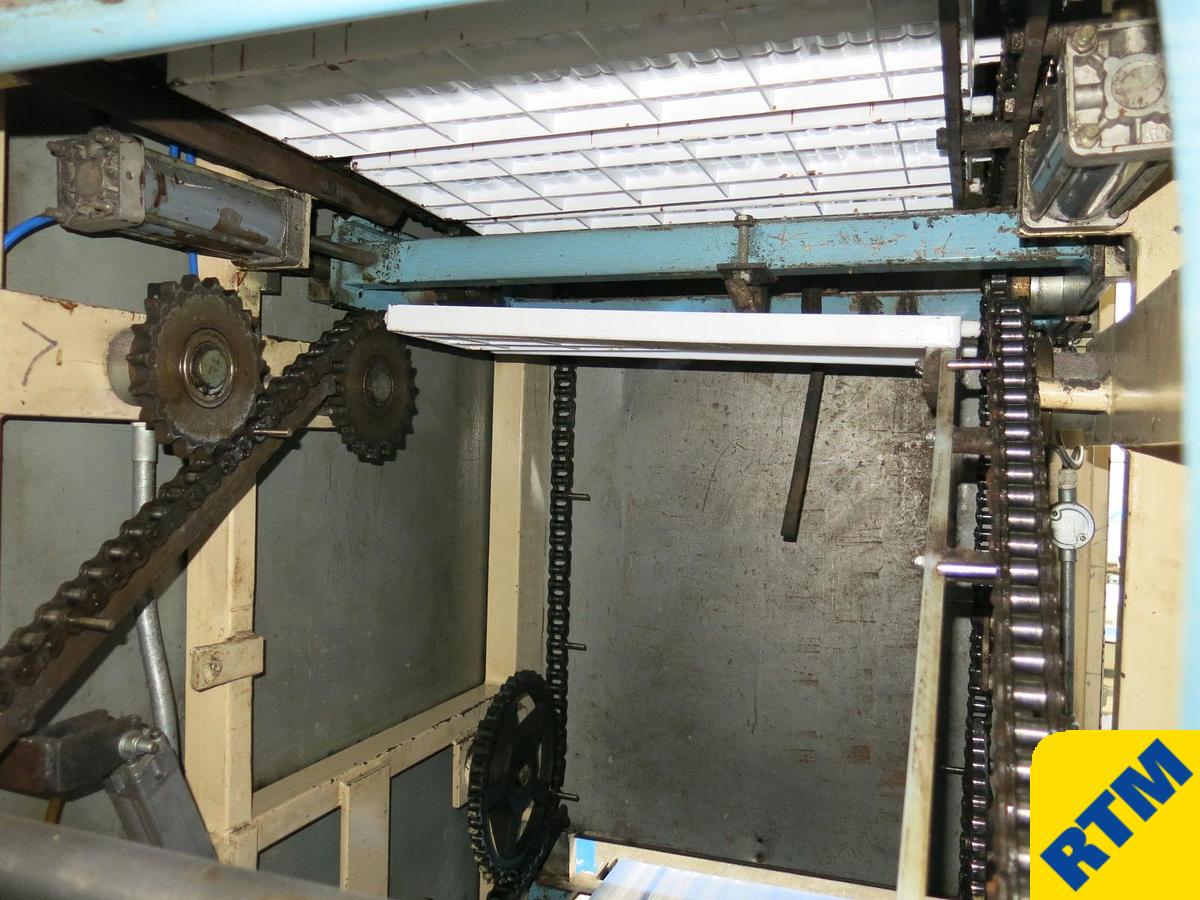

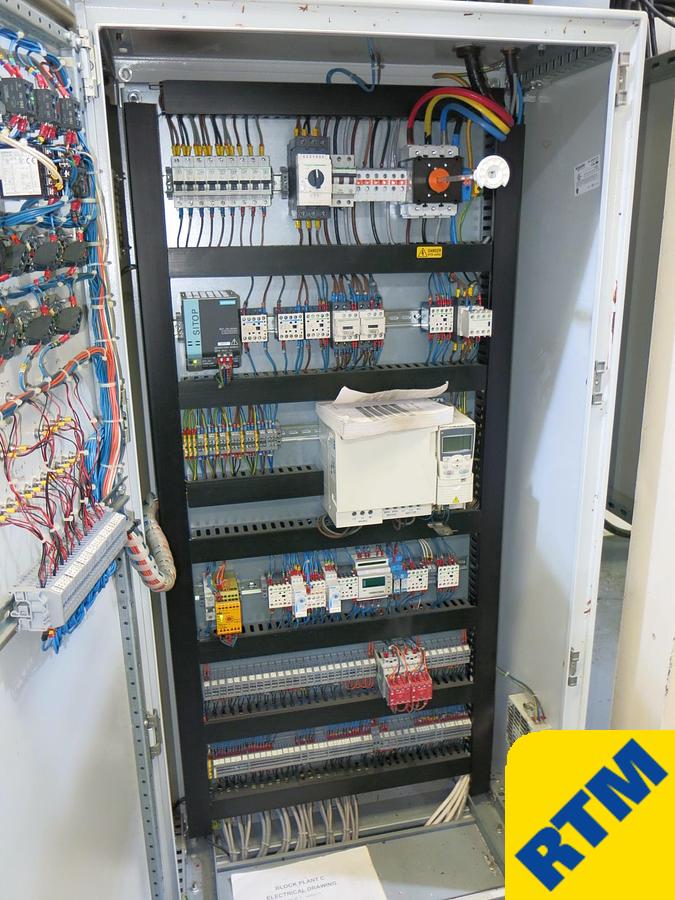

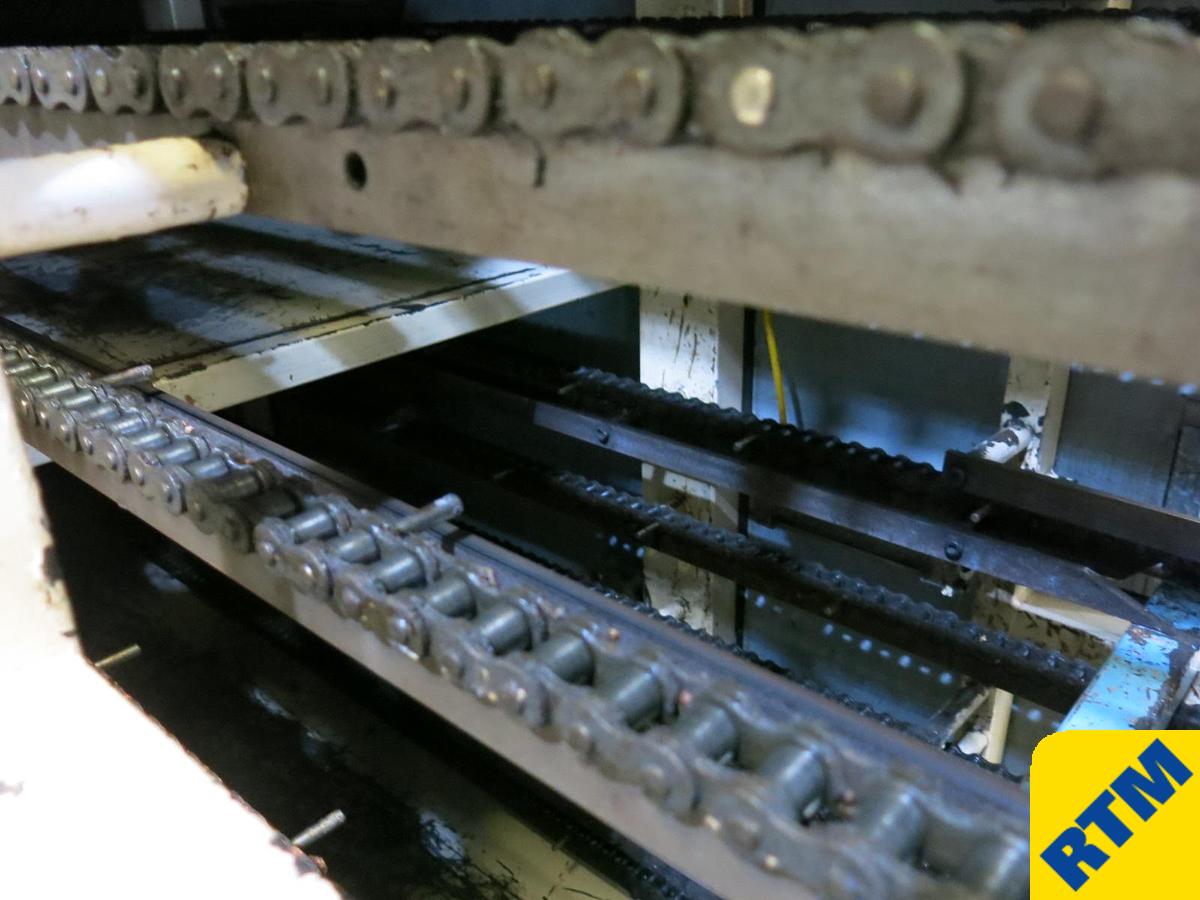

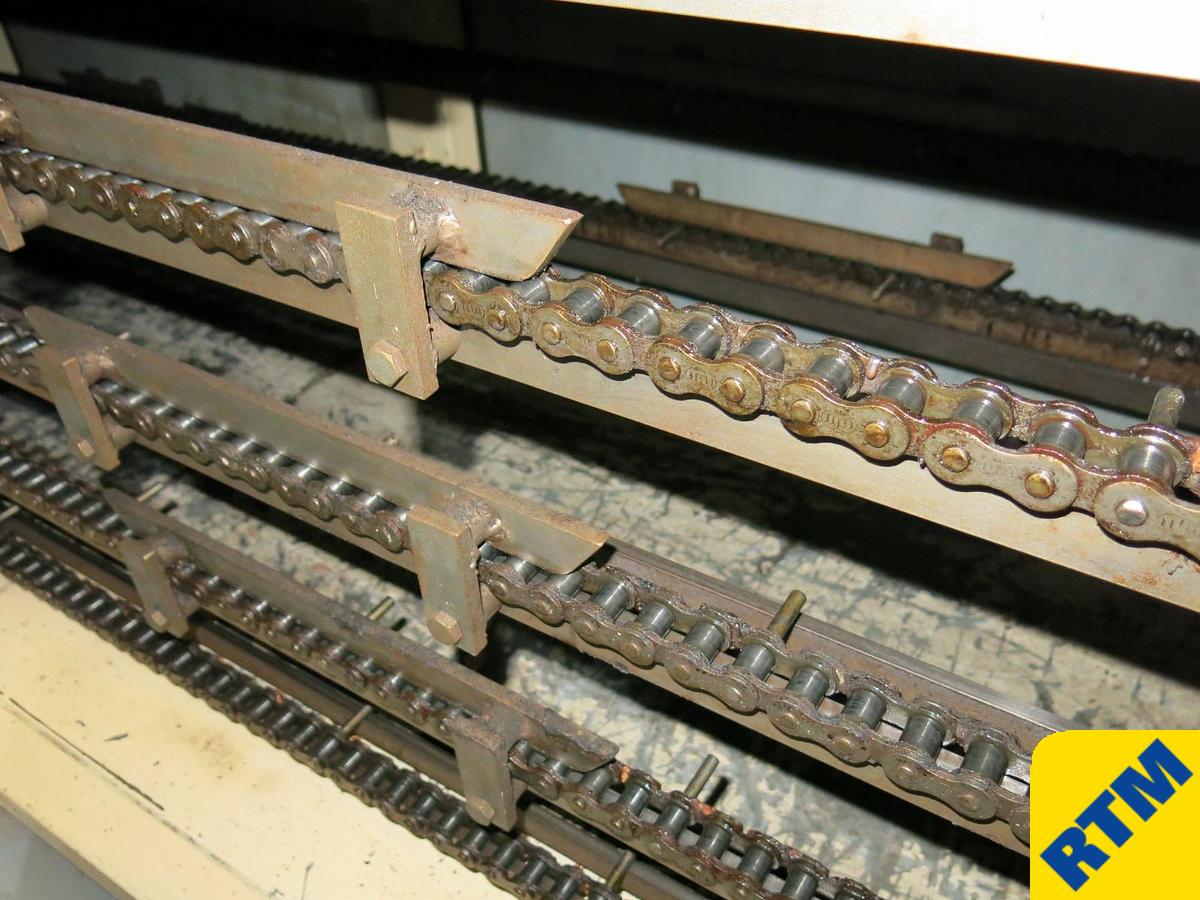

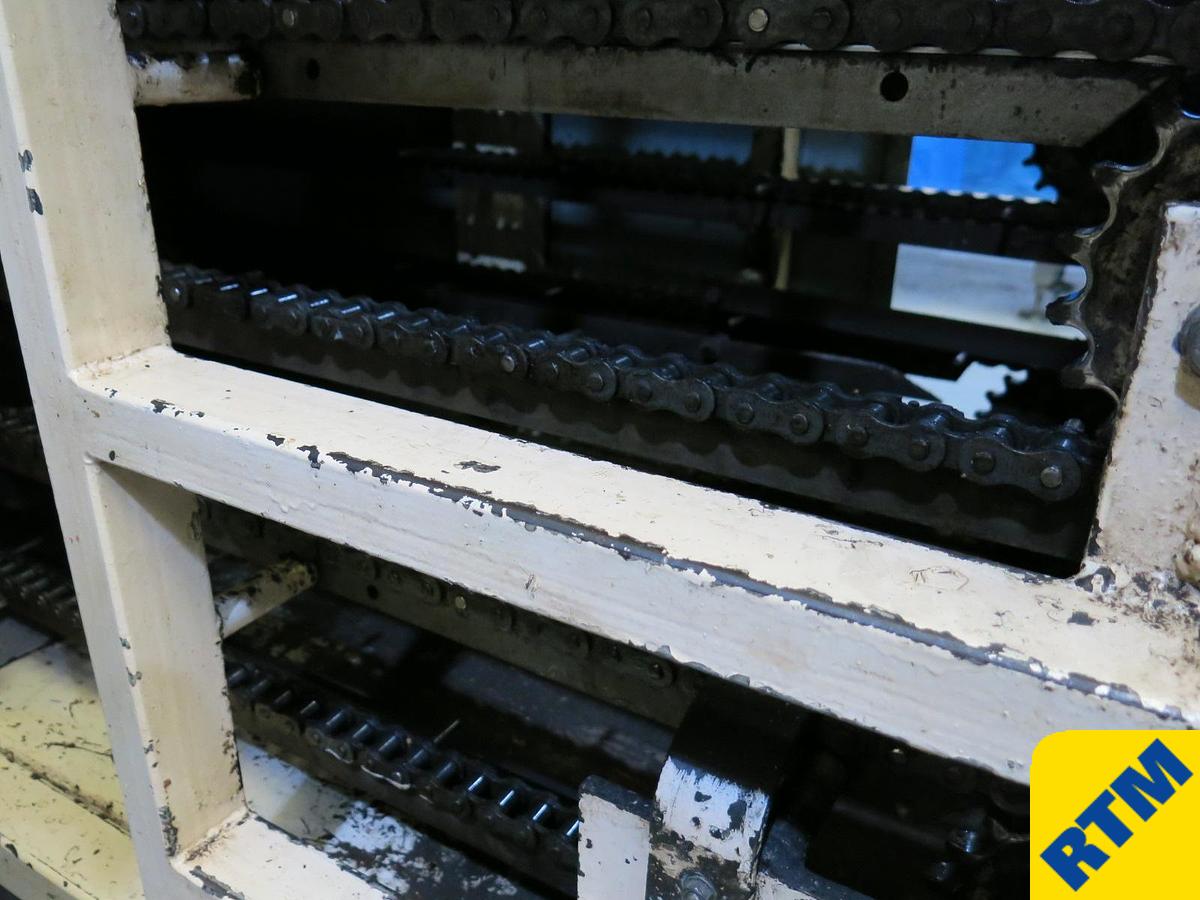

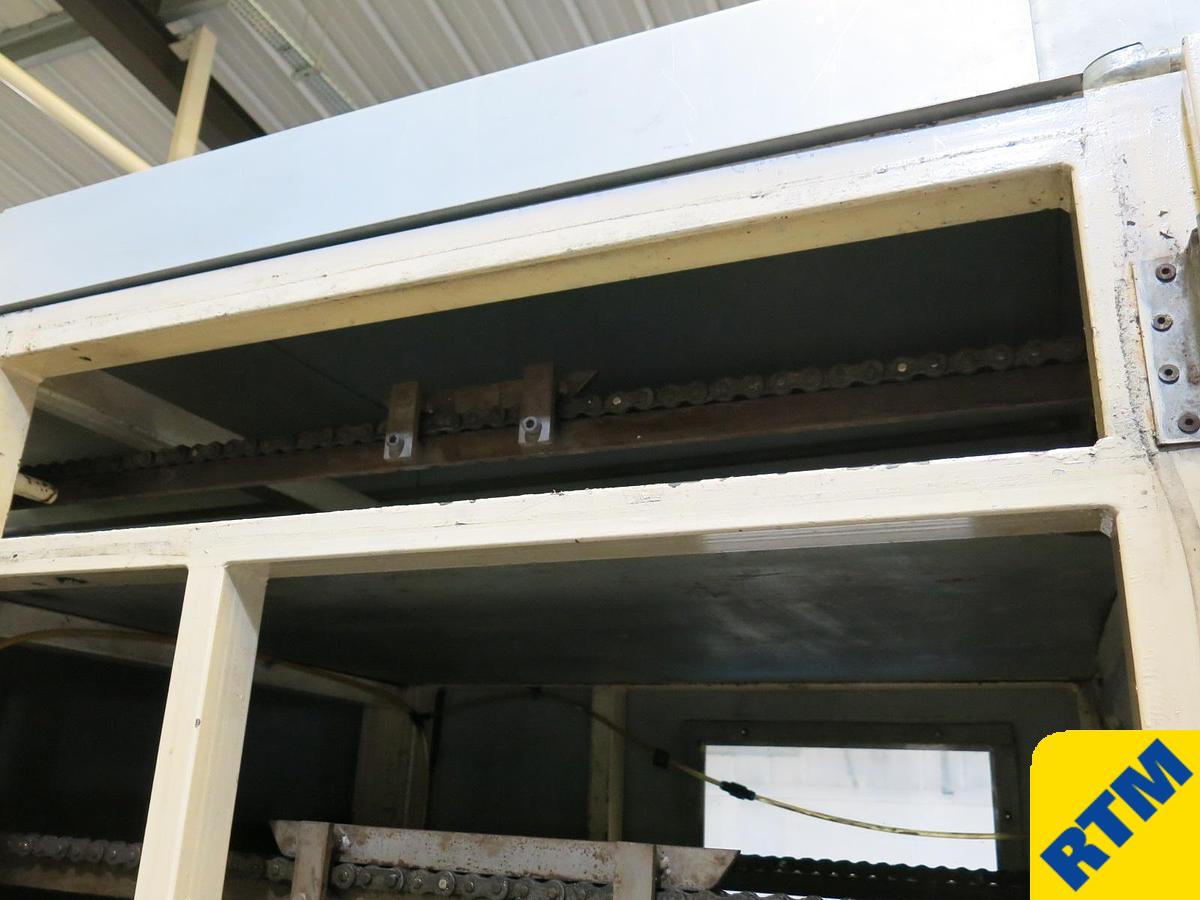

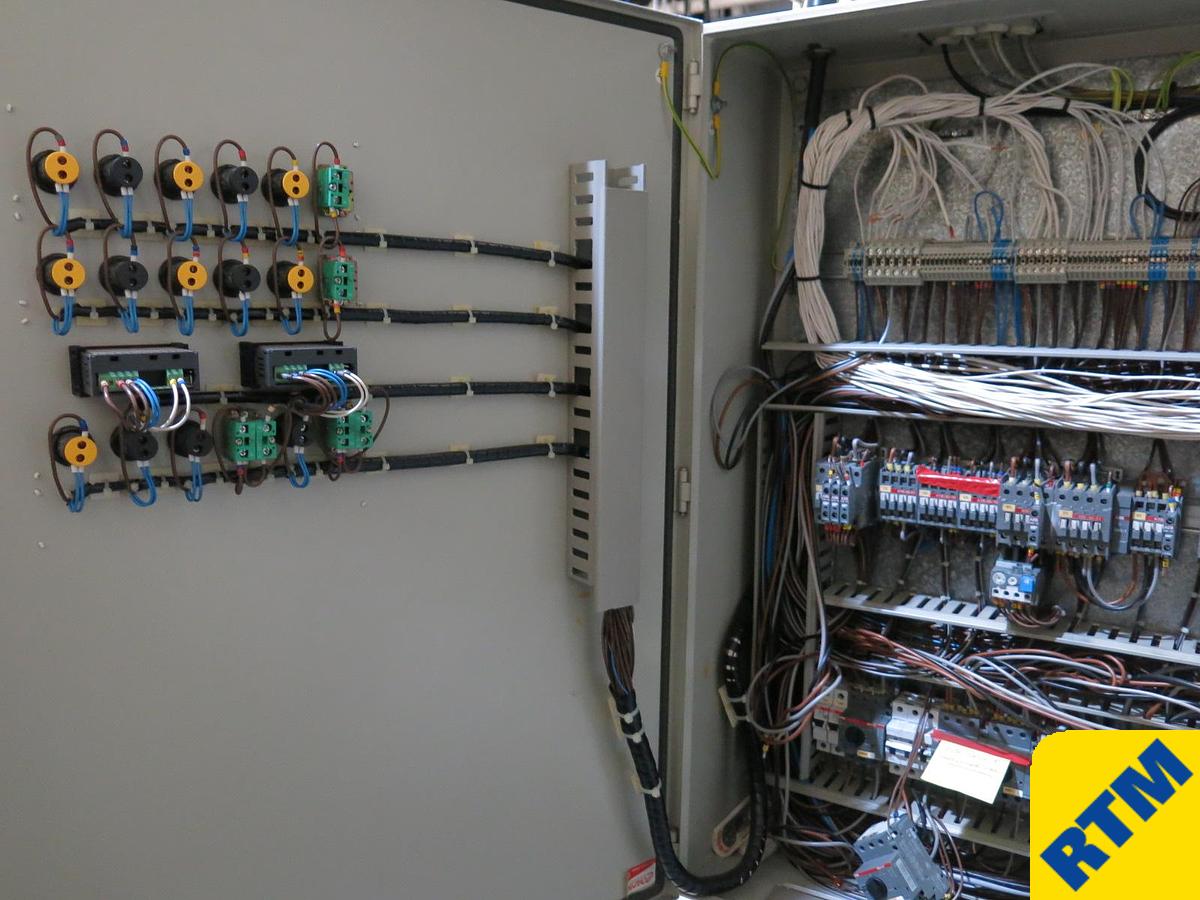

Line has had a New Carrier Chain in last 18 months. New Control Cabinets also for both moulding line, and cooling section

Machine Dimensions:

 • Machine width: 1.07 m

 • Overall height: 2.72 m

 • Total machine length: 16.00 m

 • Length to mould heater: 13.45 m

 • Height from floor to top of depositor: 2.10 m

 • Height from floor to bottom of depositor: 1.65 m

 • Distance from machine start to CAM cabinet: 1.00 m

 • Distance from CAM cabinet to chiller: 1.77 m

 • Chiller projection: 2.89 m

 • Chiller width: 2.06 m

 • Distance from chiller cabin to end of machine: 10.90 m

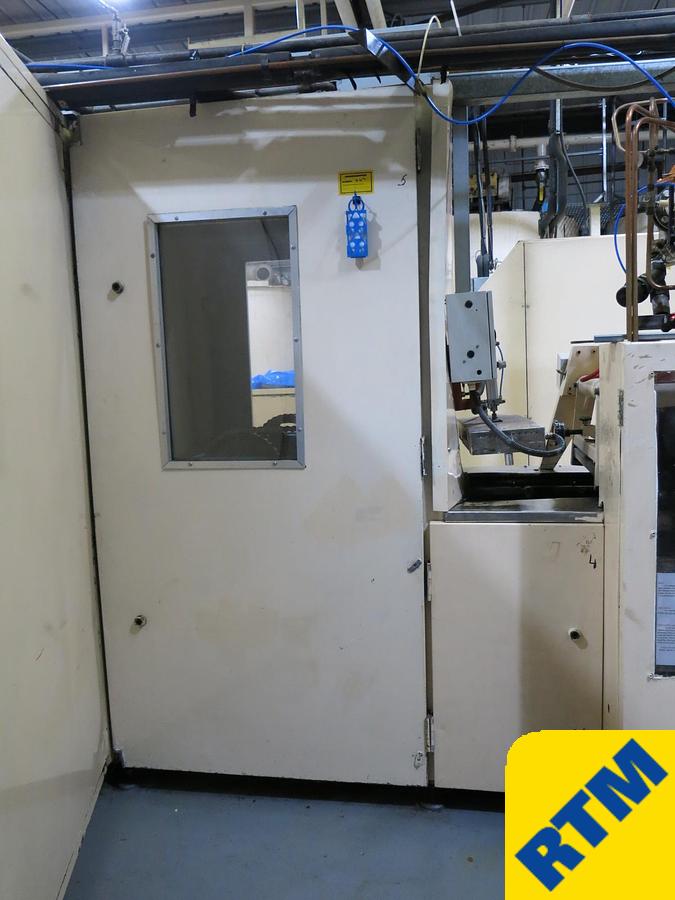

 • Chiller cabin height: 2.46 m

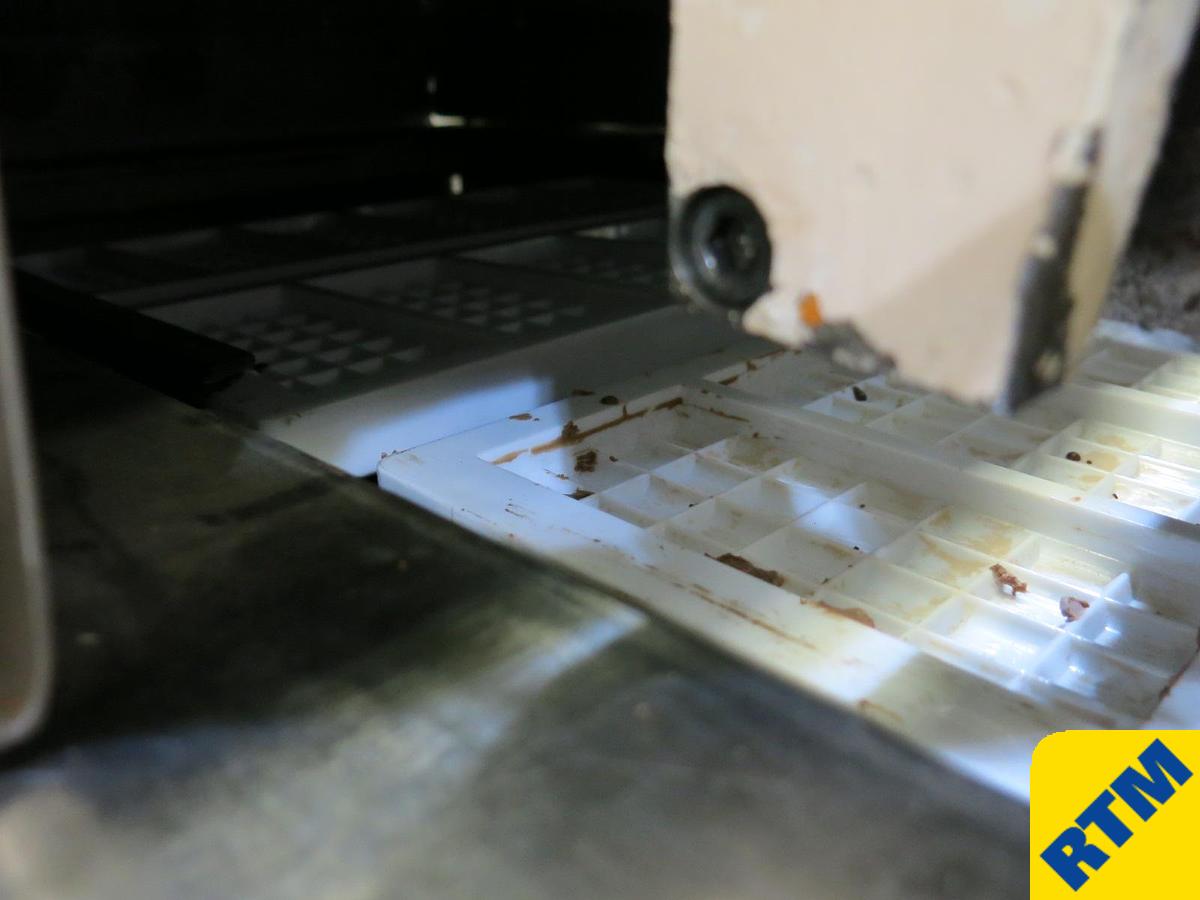

Including one set of bar moulds, bar size to be confirmed

(Must be sold outside of UK & Ireland.)
