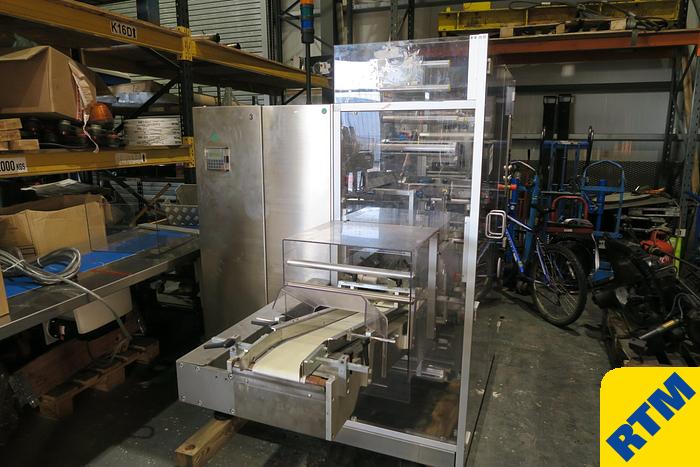

CARTON COLLATOR & STRETCH BANDER

No longer available

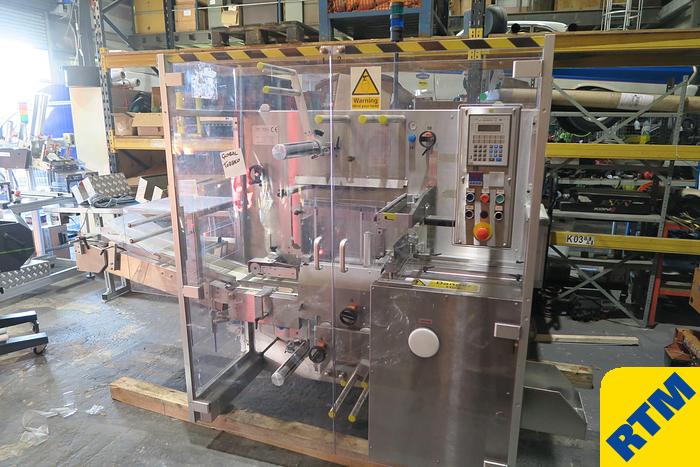

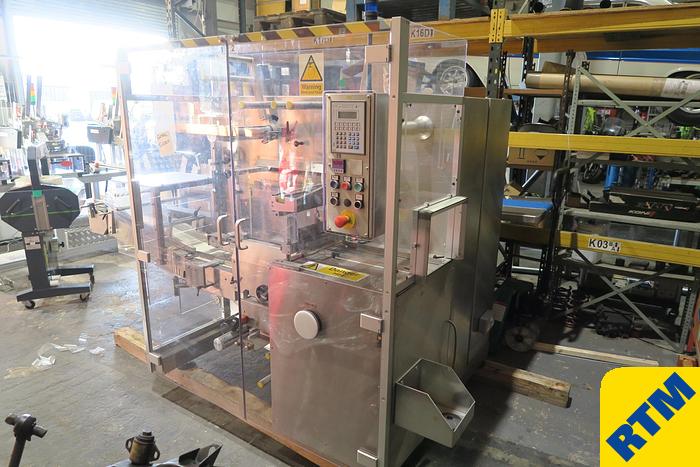

CARTON COLLATOR & STRETCH BANDER

Description

Item # 8418 – CARTON COLLATOR & STRETCH BANDER

Manufactured by IMA BFB

Model MS300A

Carton Size range: minimum 65 x 20 x 12 mm, max. 160 x 95 x 95 mm

Bundle size range: minimum 65 x 80 x 30 mm, max. 180 x 320 x 160-210 mm (push-in width x depth x height)

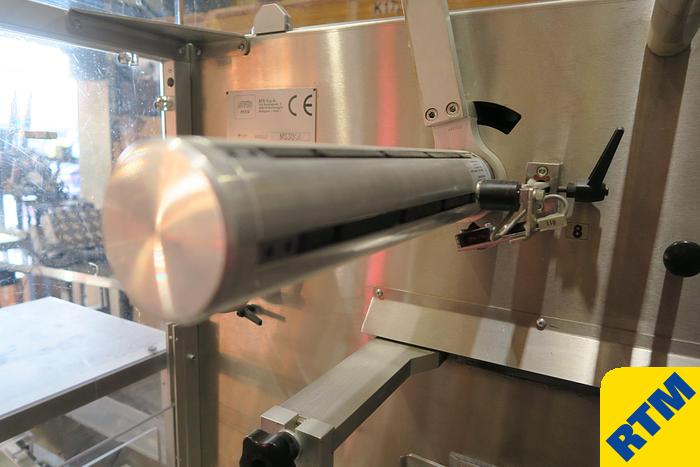

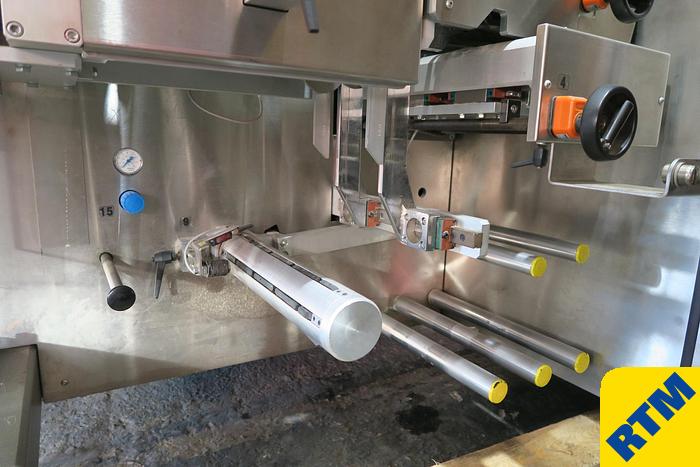

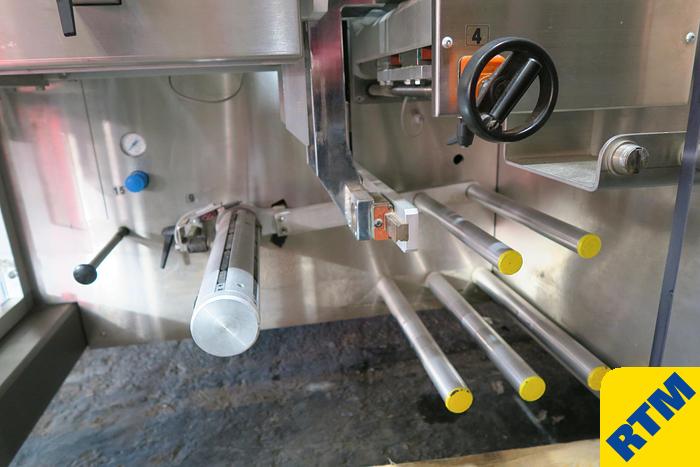

Maximum reel diameter 300mm, reel core diameter 70-76mm

Includes discharge rake to remove bundles from the machine (prevents heating the product)

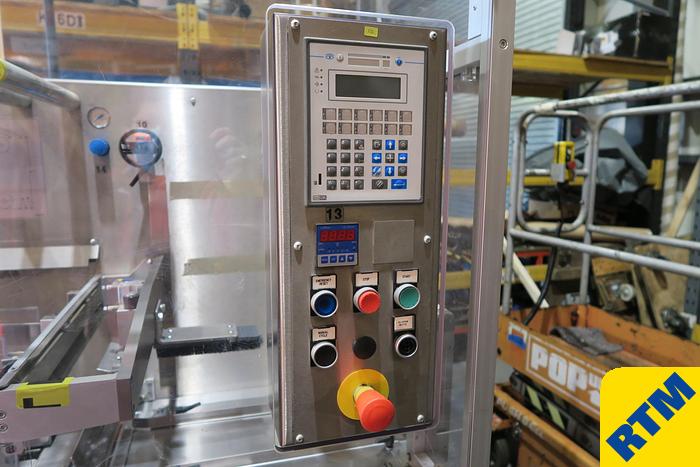

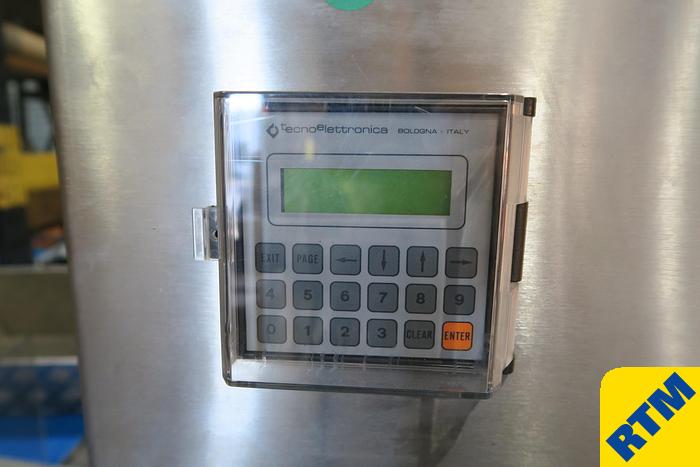

Siemens S7-300 PLC with UniOP HMI

Capacity up to 40 bundles per minute

6 bar compressed air

400v, 3ph, 50hz 16a, 10kva

Footprint 2865 x 1265mm approx. x 1945mm high

Weight approx 1500kg.


Specifications

ManufacturerIMA BFB
ModelMS300A
ConditionUsed
Stock Number8418
