LAYERED DESSERT POT FILLING LINES

Item # 9253 - LAYERED DESSERT POT FILLING LINES

Following a factory closure in the UK the owner has surplus (3) pot filling lines for layered chilled desserts.

high speed layered pot dessert lines. speeds of approximately 10,000/hour small individual pots and large desert bowls at 2,500/hour

(3) Production and Packaging Lines to Fill Pots of Various Sizes with single product or multi-layered products for desserts. A mixture of wet and dry ingredients.

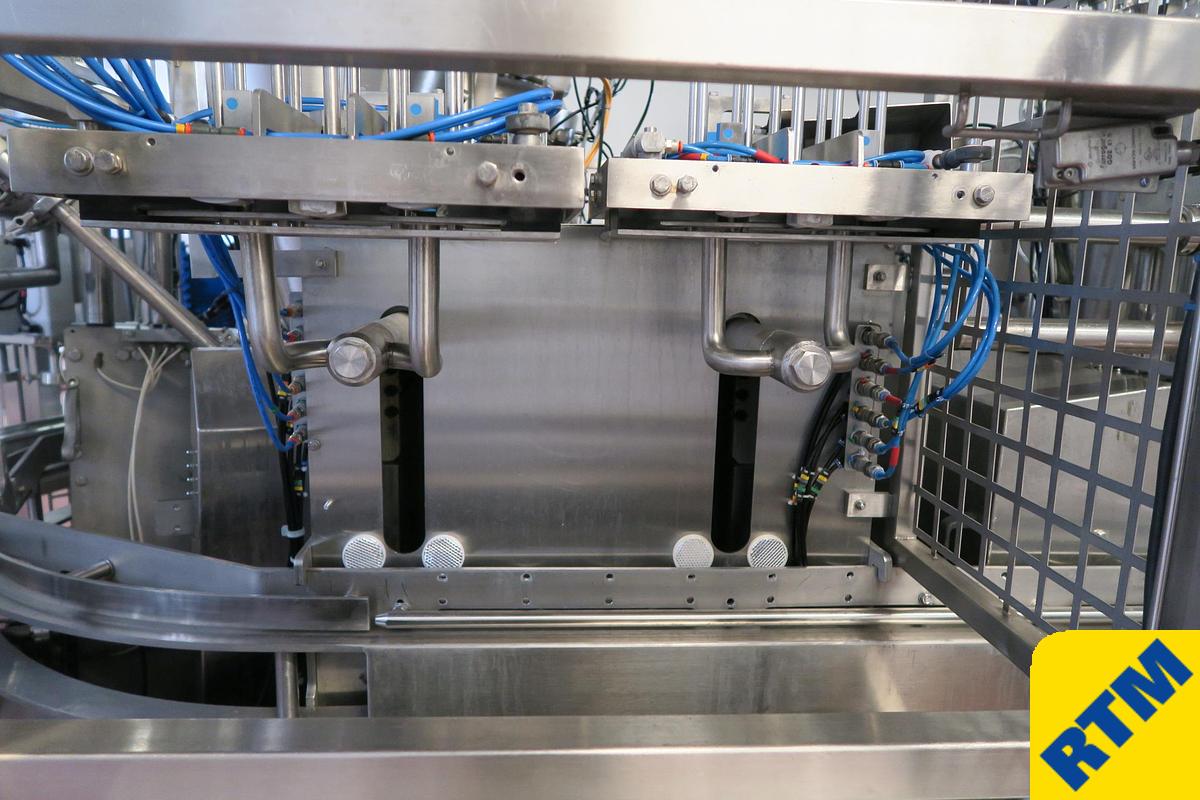

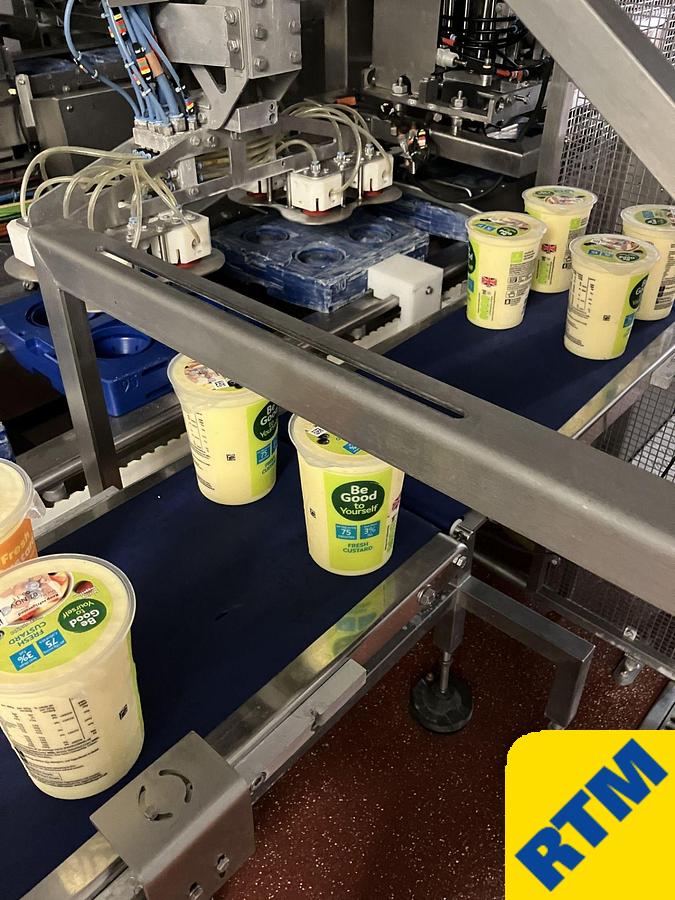

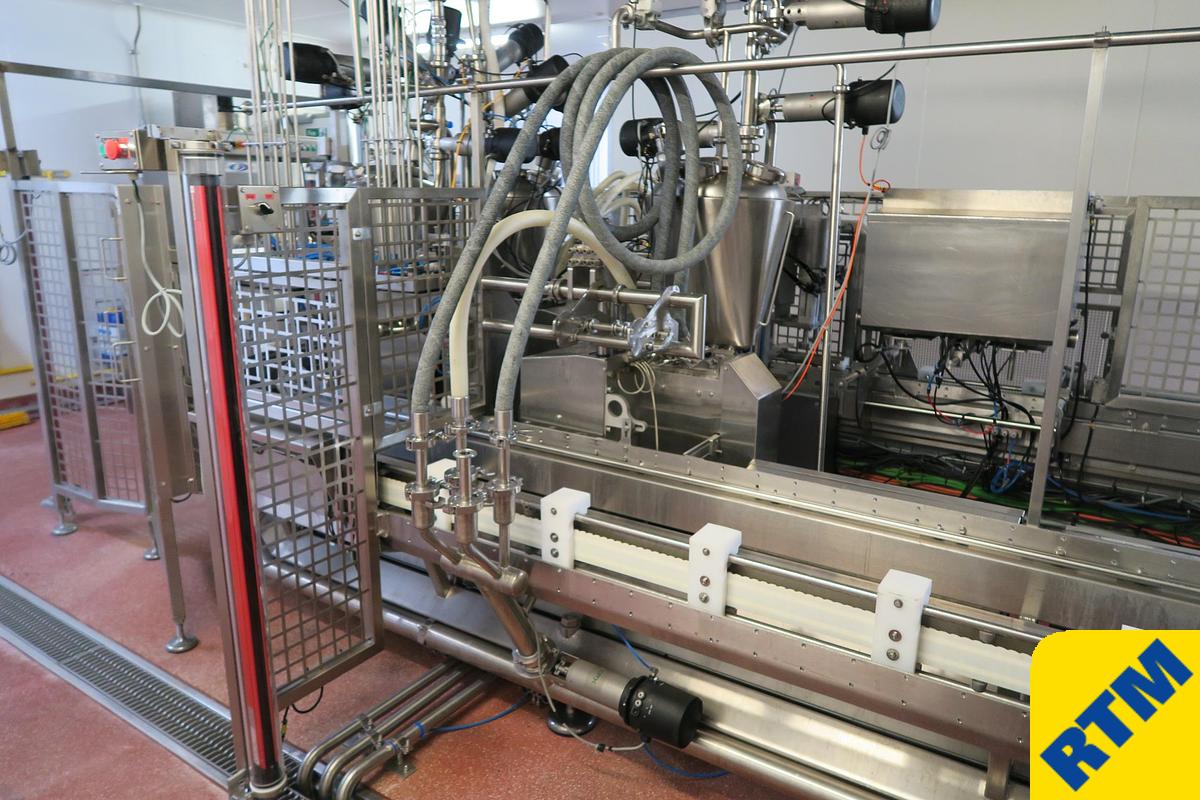

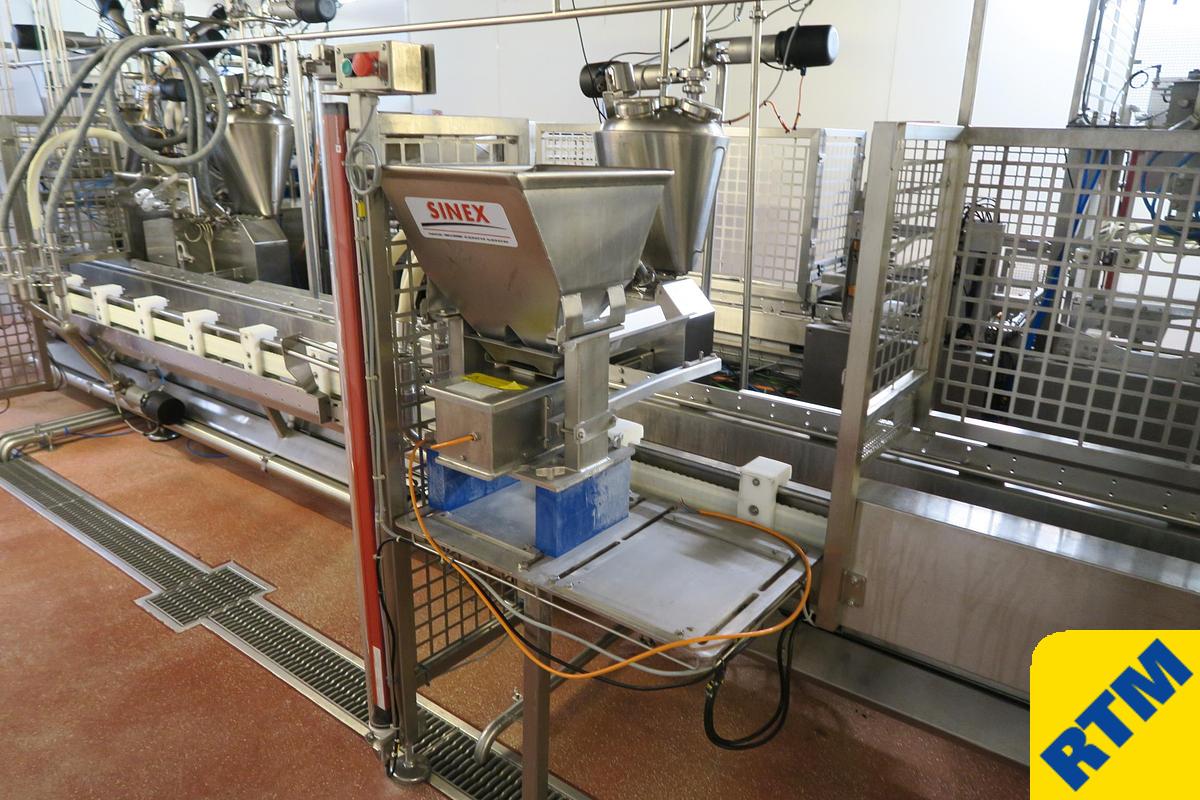

Depositing stations on each filling line build up the layers as the pots move round, liquids, mousses, jellies, custard, cream, chocolate, coffee, caramel, toffee, fruit sauces, layers nuts candy, biscuit pieces etc. Also, with depositing stations for crumbles, sprinkles and sauce toppings etc., biscuit, chocolate chip, sponge trifle, cheesecake, bases deposited, tampered and pressed.

Product could be custard or mouse, trifle, or tiramisu, cheesecake, yoghurts, with dry ingredient layers in combination etc.

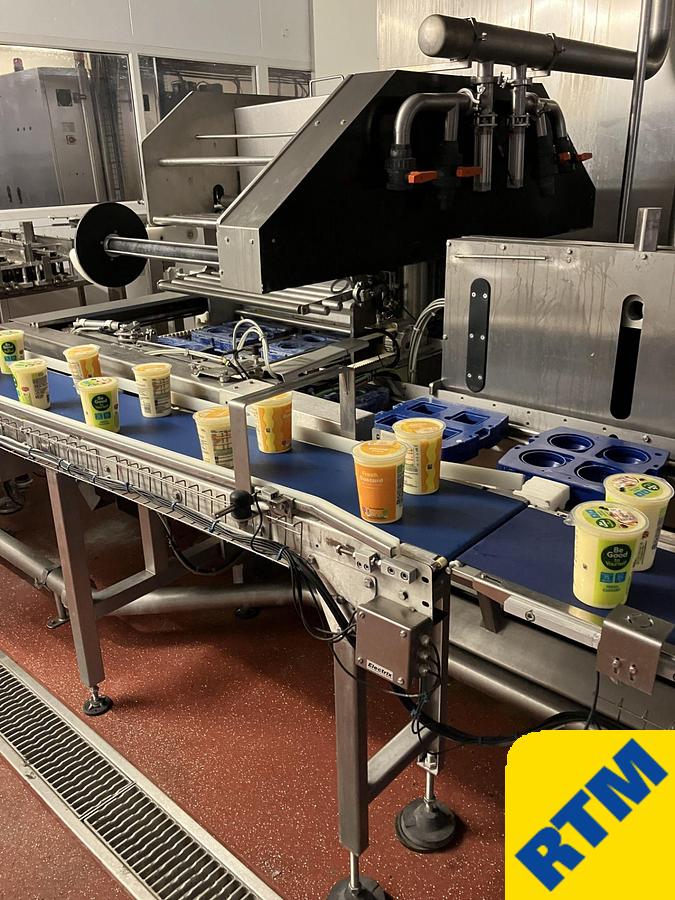

Pots with foil lid seal.

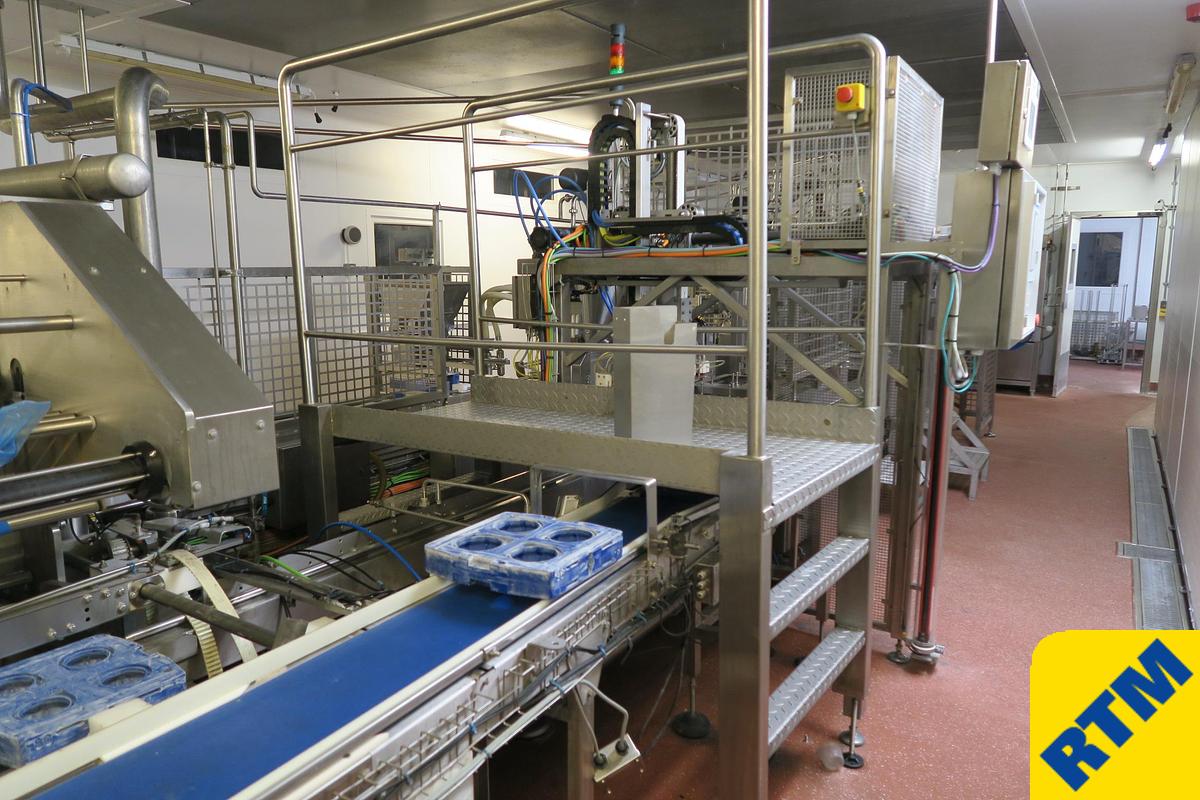

Each line has packaging for tamper and date coded labelling, carton sleeve, and case or tray packing.

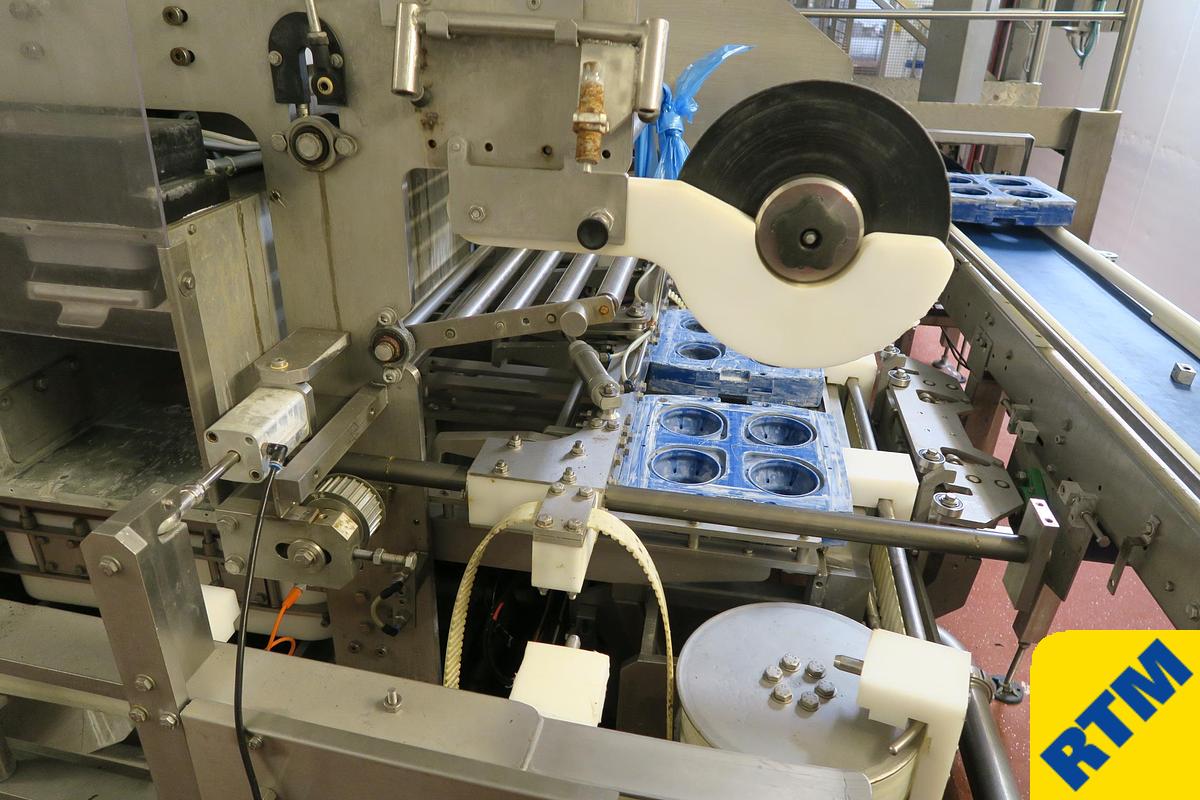

pot sizes and volumes are adjustable. The pots travel in carriers you make to your pot top dimensions, depth can be variable.

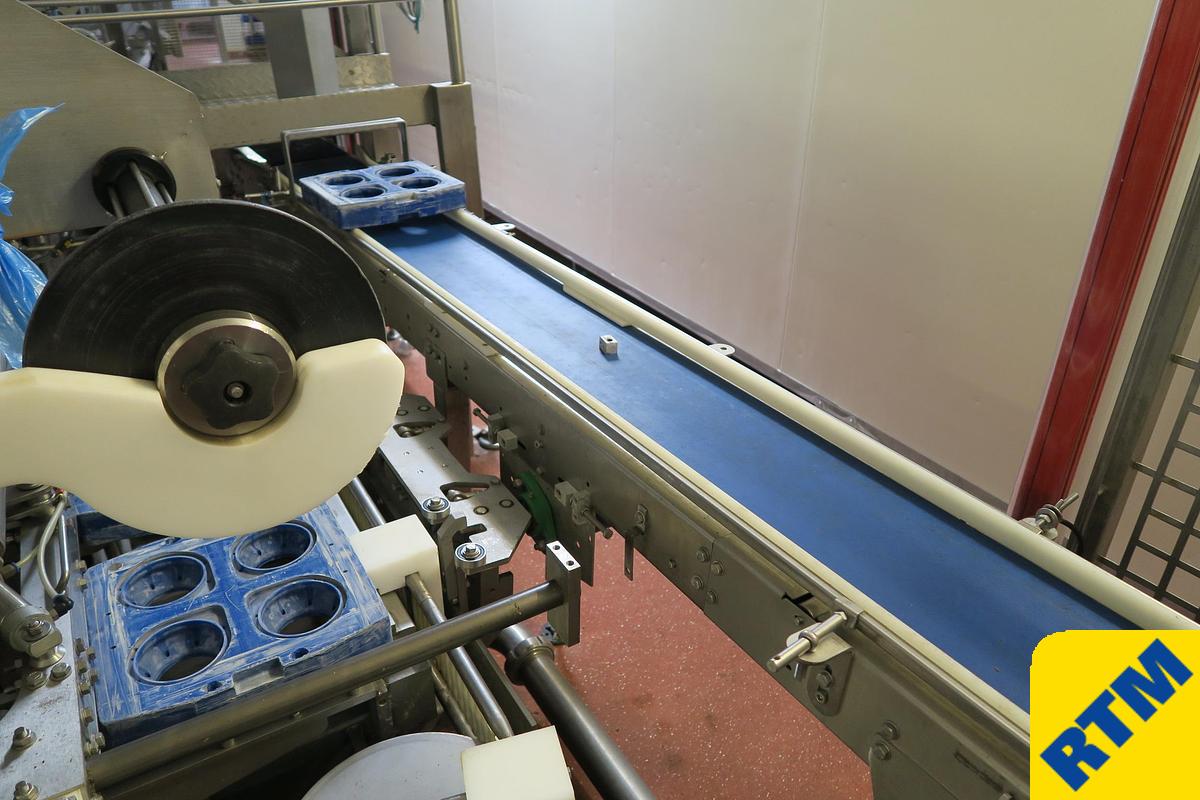

Three sets of carriers are available, one to be sold per line. The carriers each can work with two pot sizes as they are reversible.

Carrier set #1 : 180mm diameter round with taper pot / 170mm wide square with taper pot

(1 pot per carrier)

Carrier set #2 : 72mm wide spare with taper pot / 62mm diameter round pot

(4 pots per carrier)

Carrier set #3 : 95mm round pot / 80mm round pot

(4 pots per carrier)

ATIA LINE 1

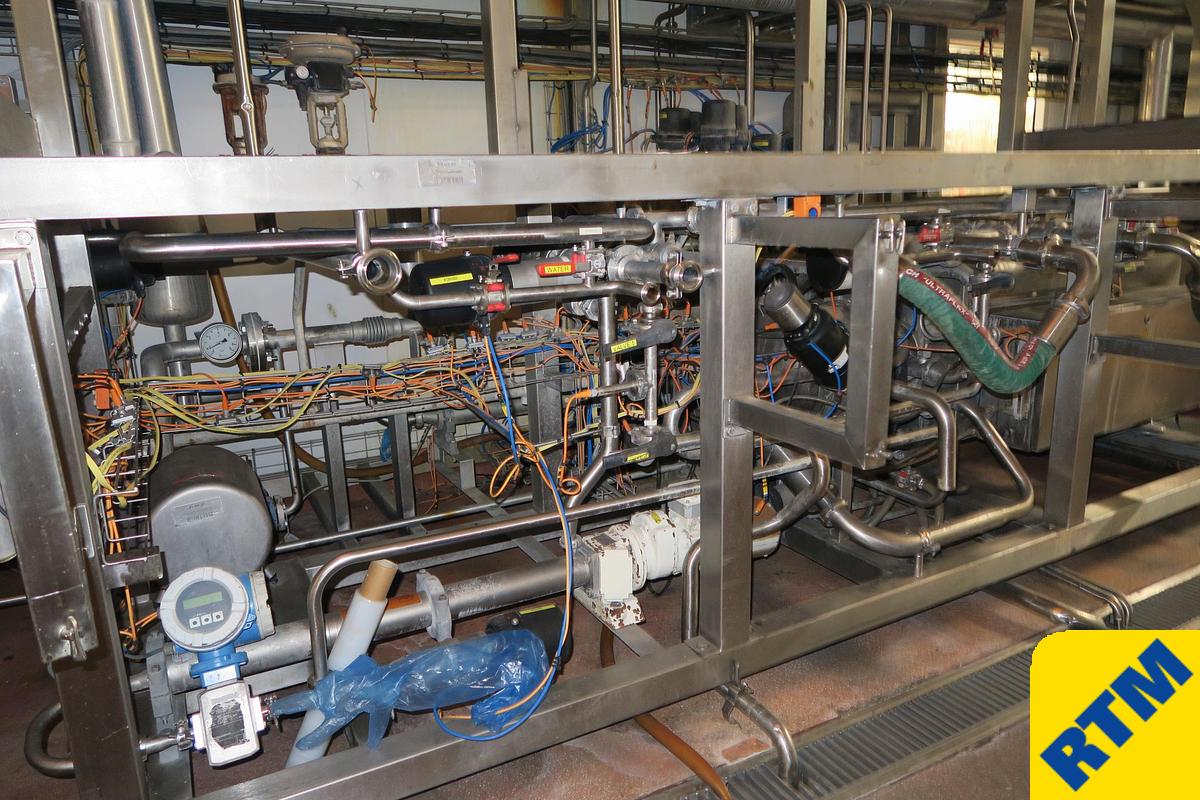

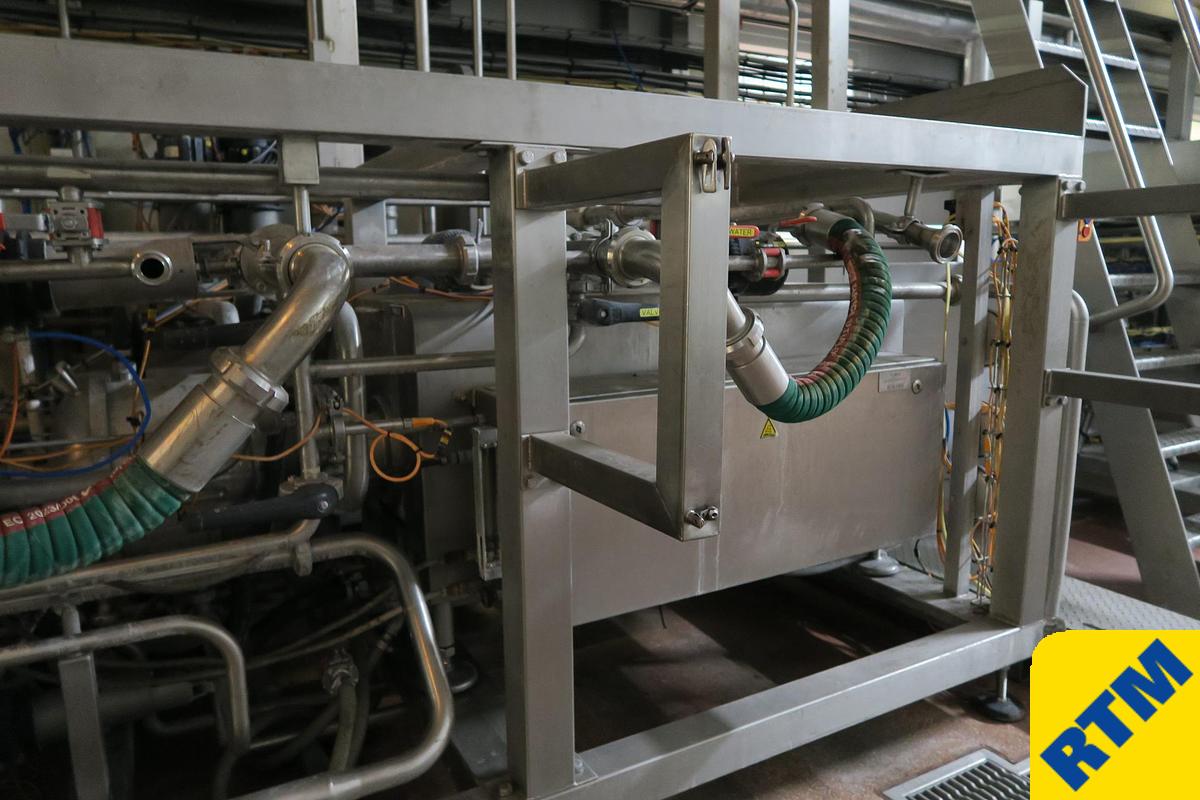

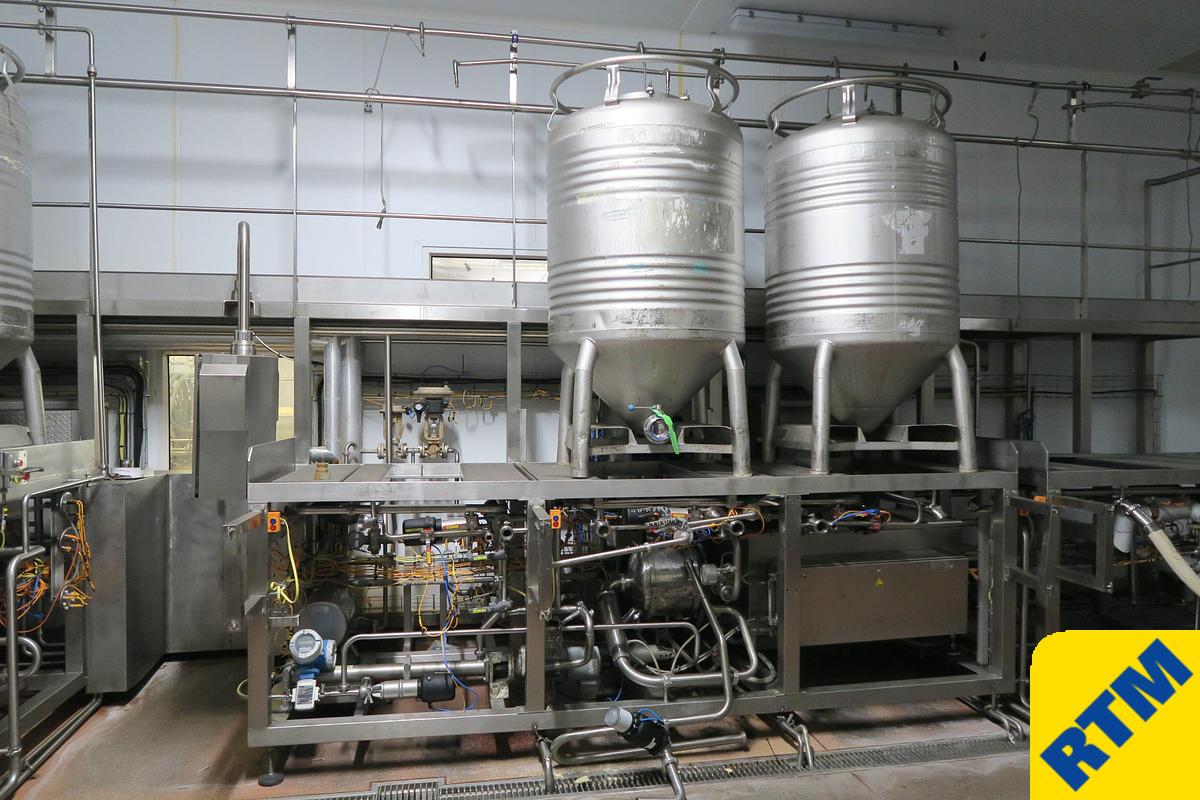

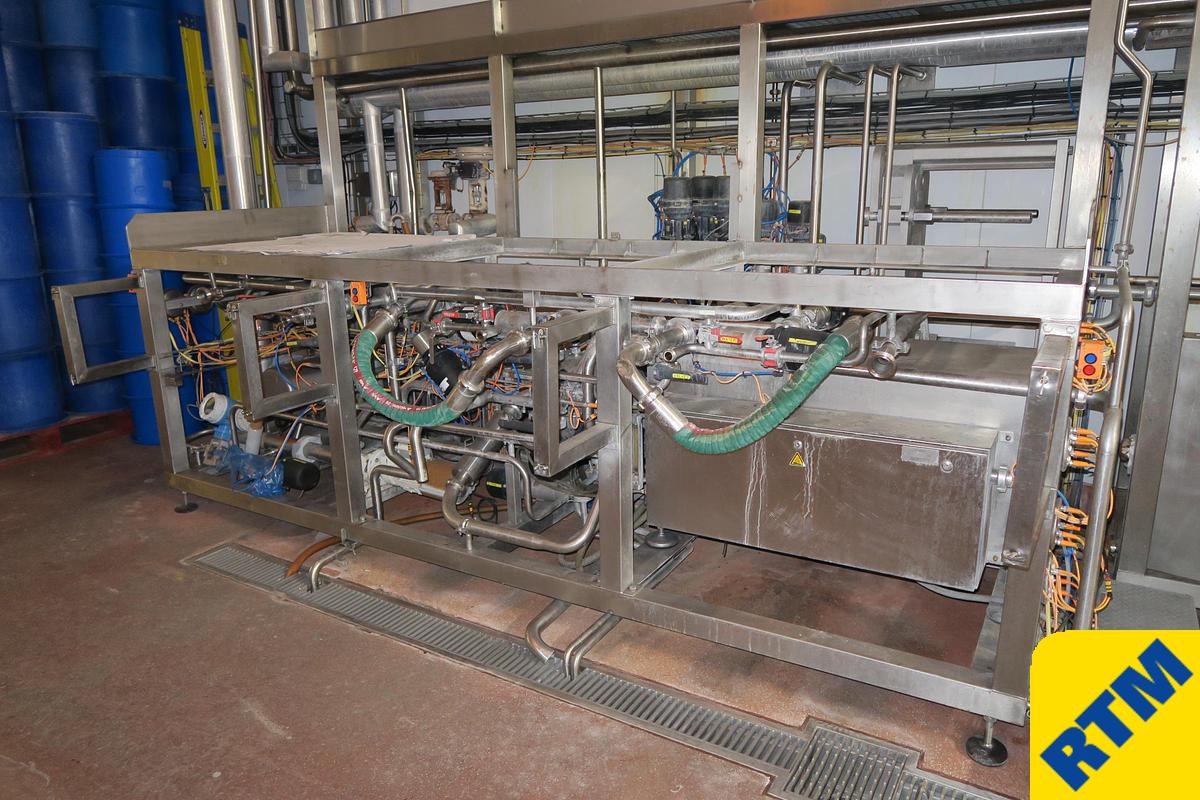

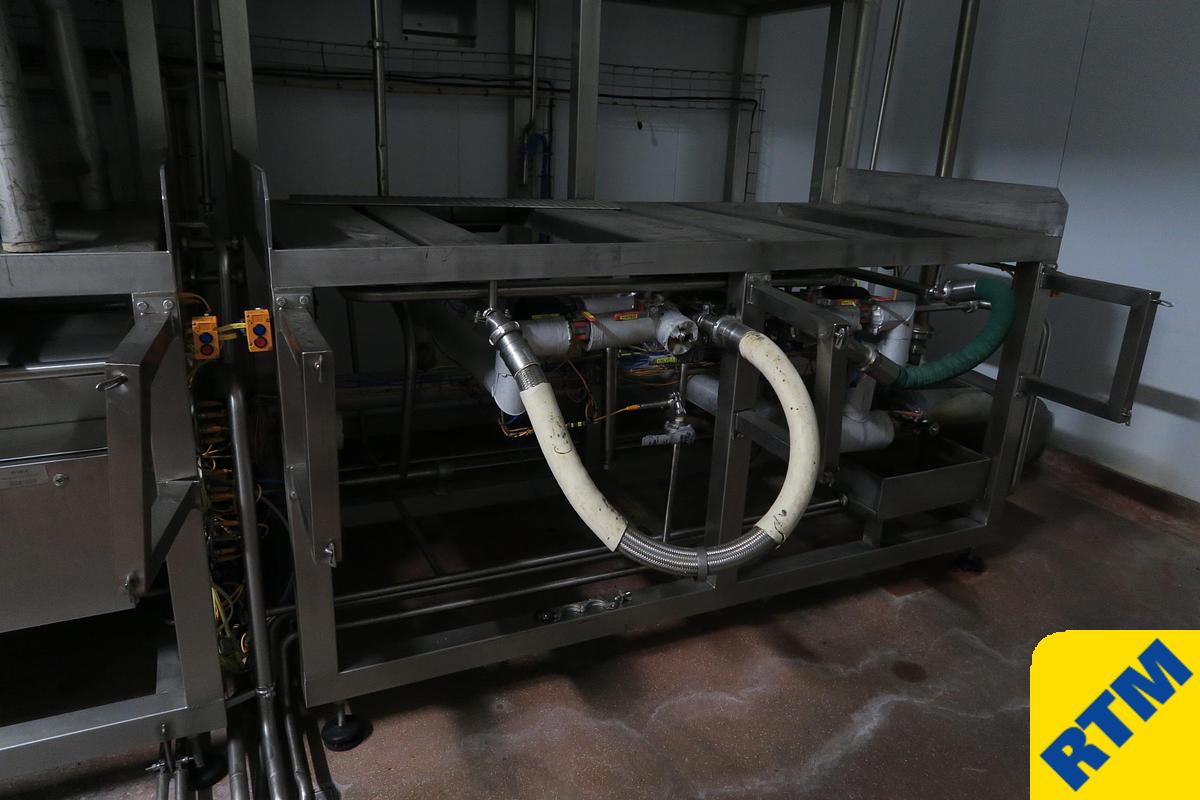

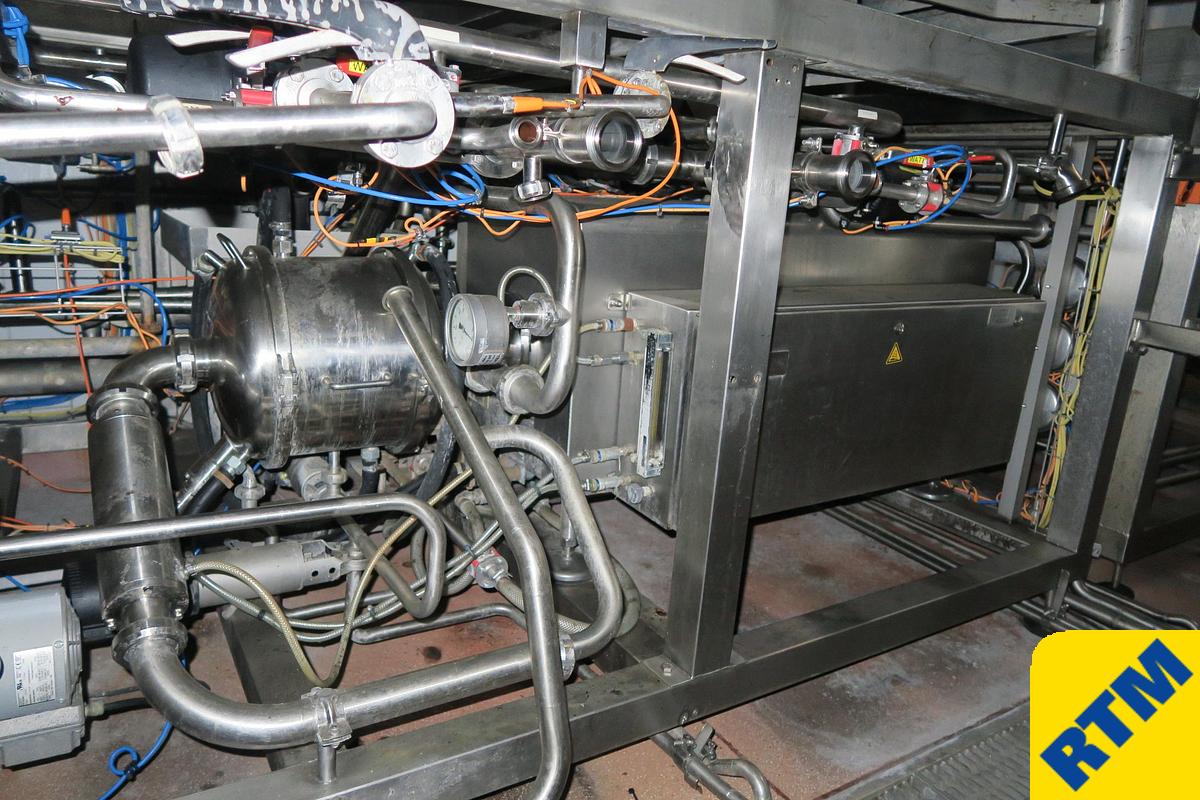

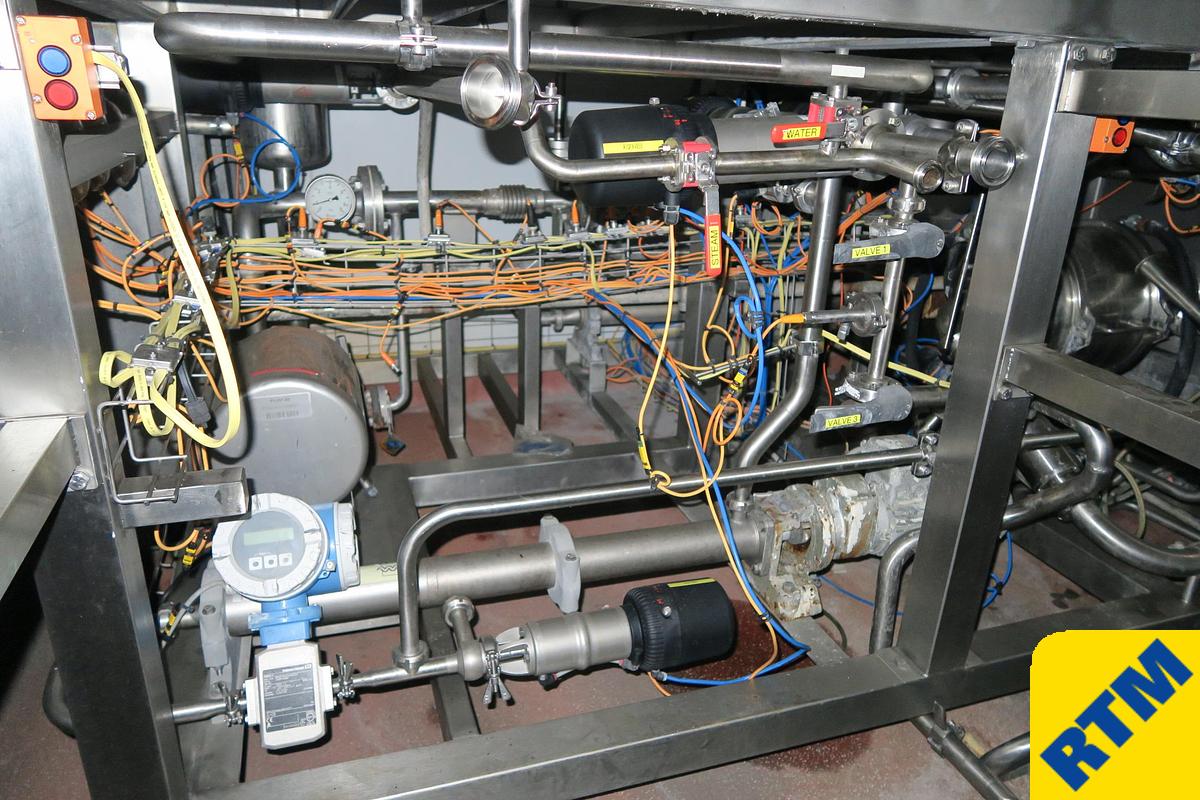

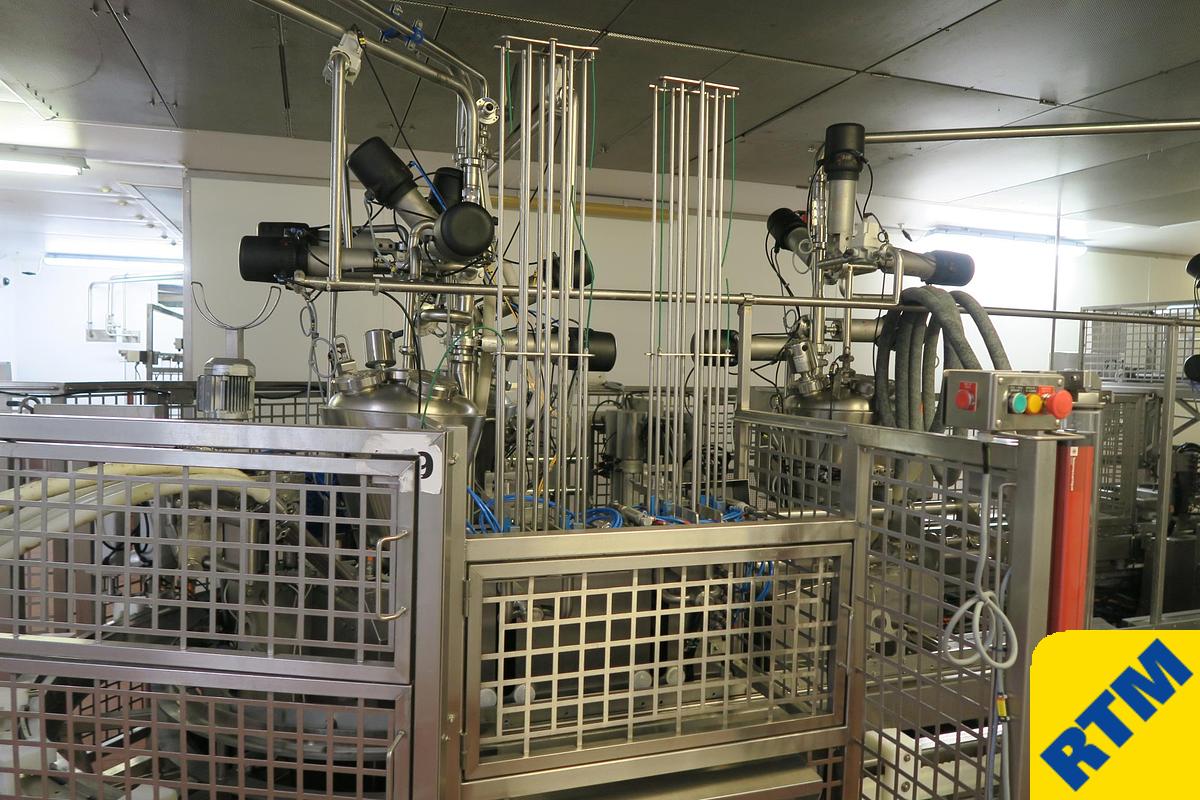

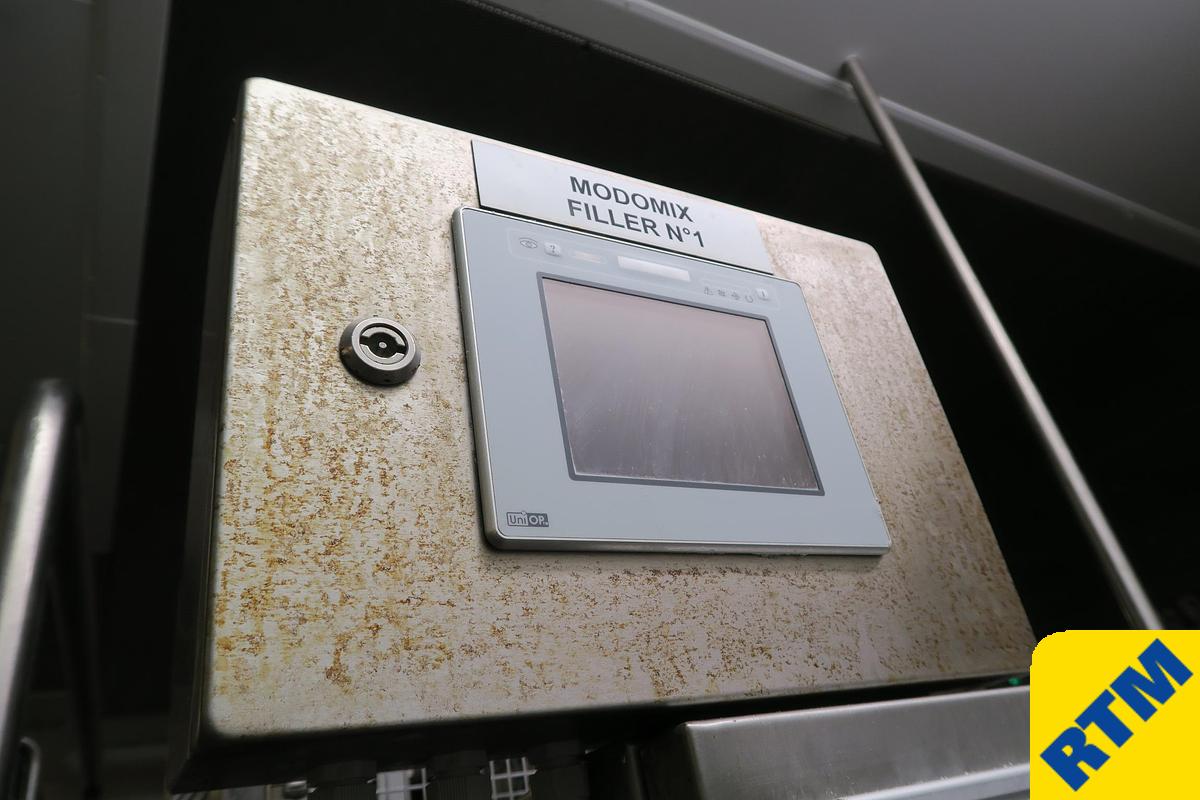

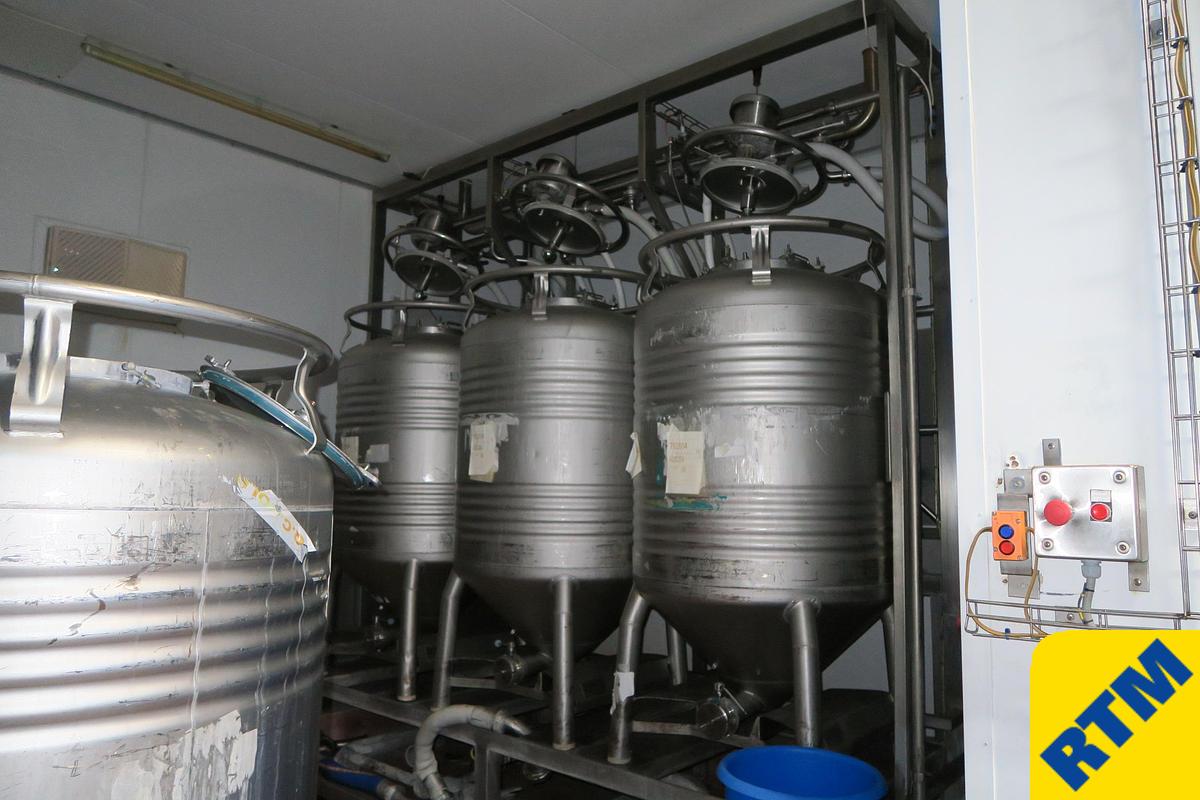

10-station Pumping Station for offloading ingredients from mobile hoppers. This system is stainless steel and incorporates support frame, pumps, pipe, valve, heat exchanger and two MONDOMIX D40 Ultralight Mixer/Aerators which connect to the filling stations on the ATIA filling machine

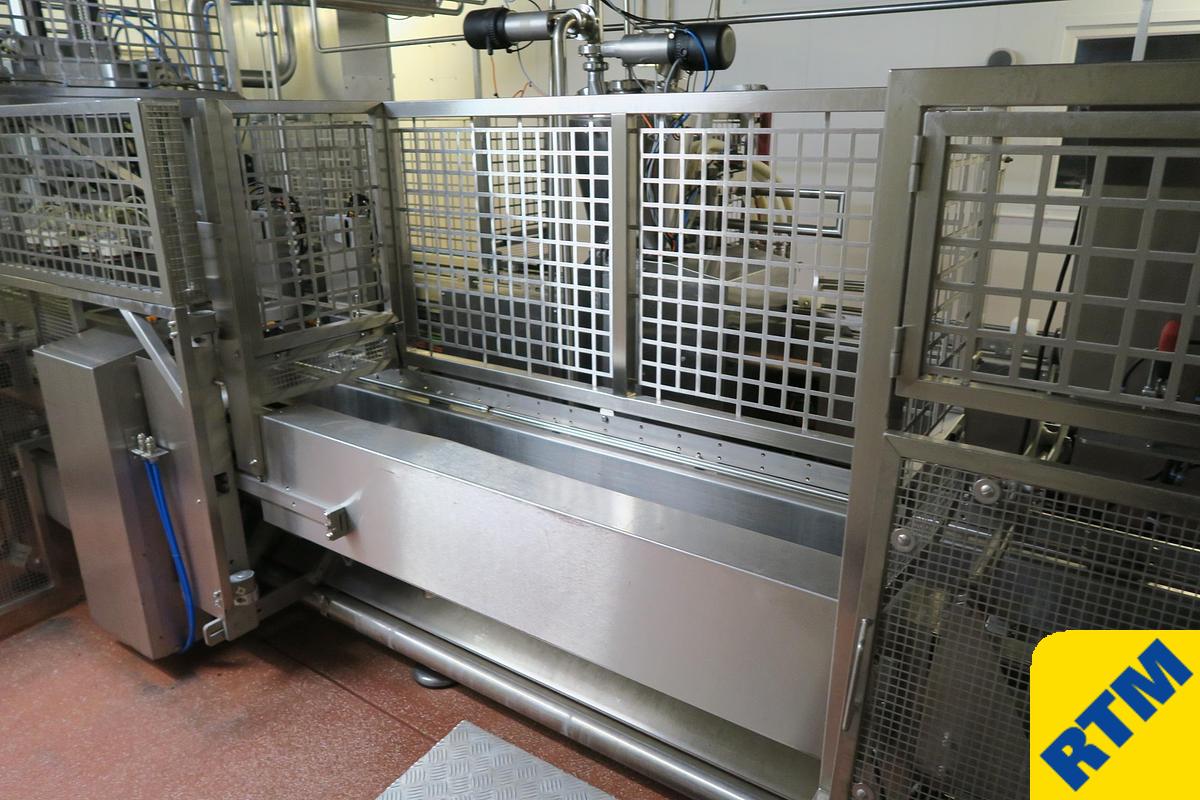

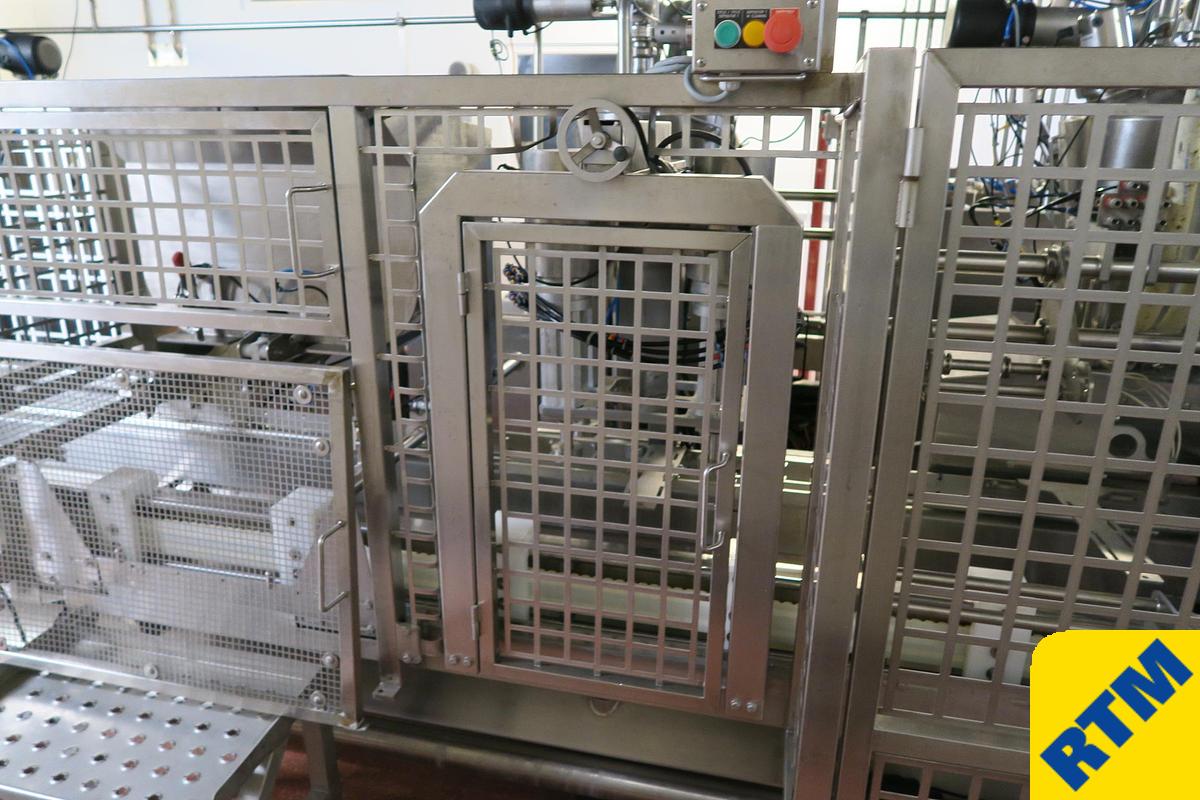

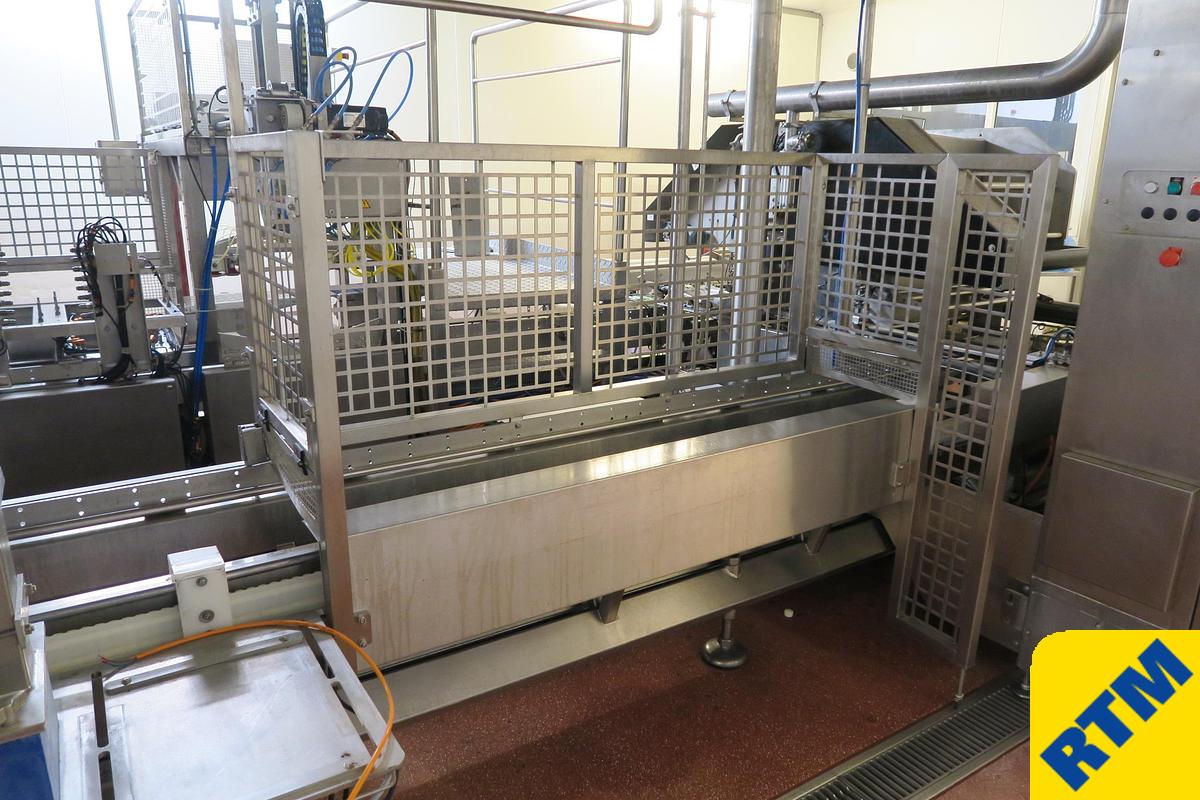

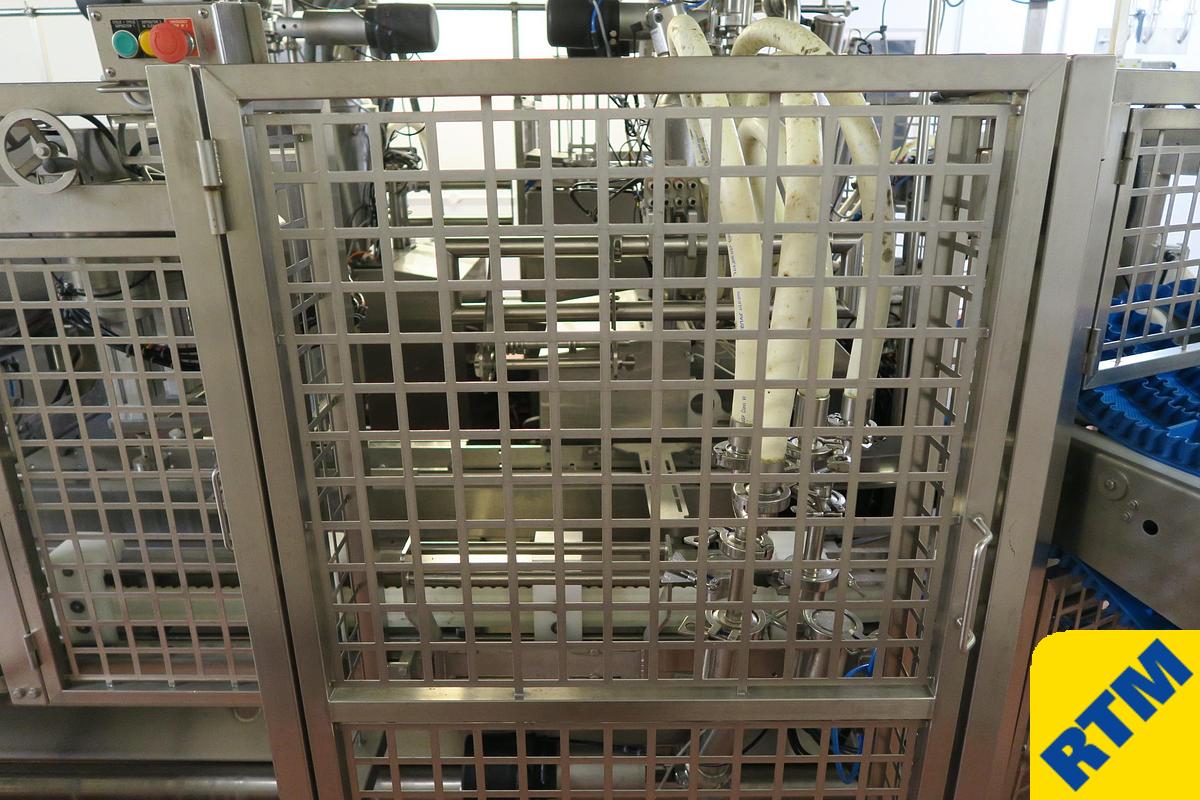

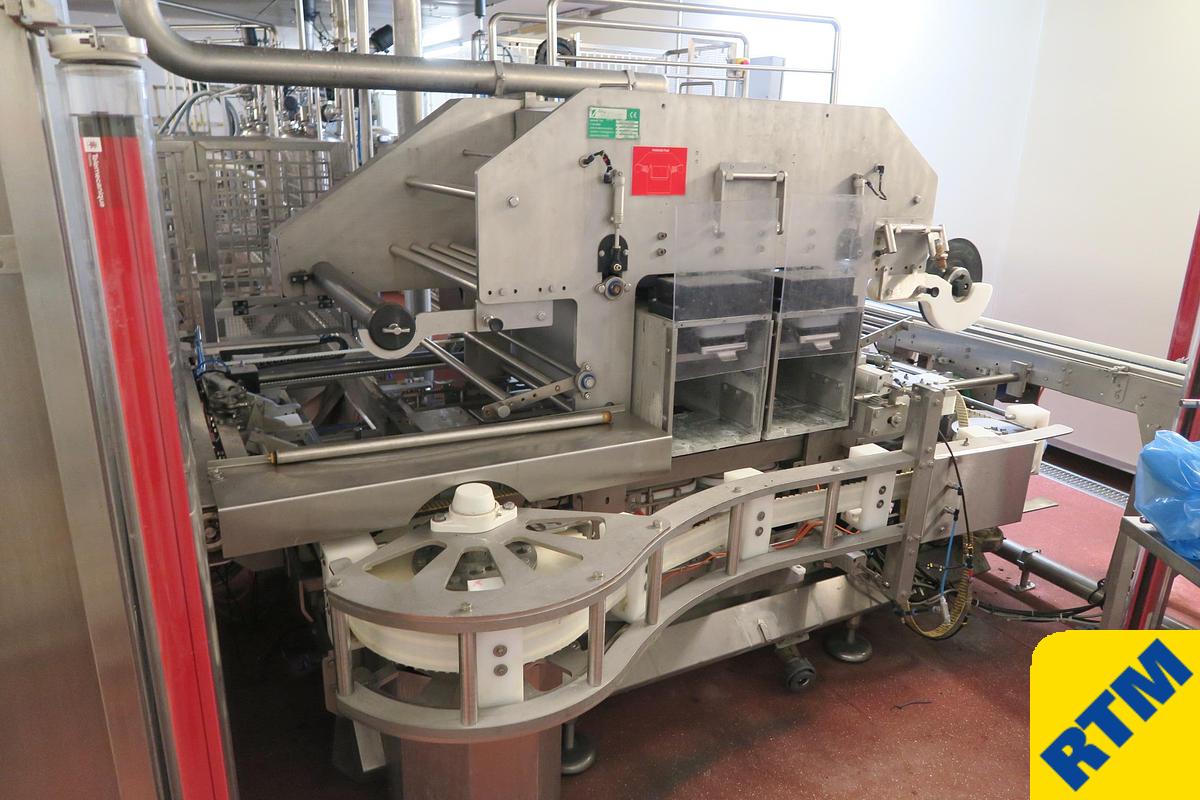

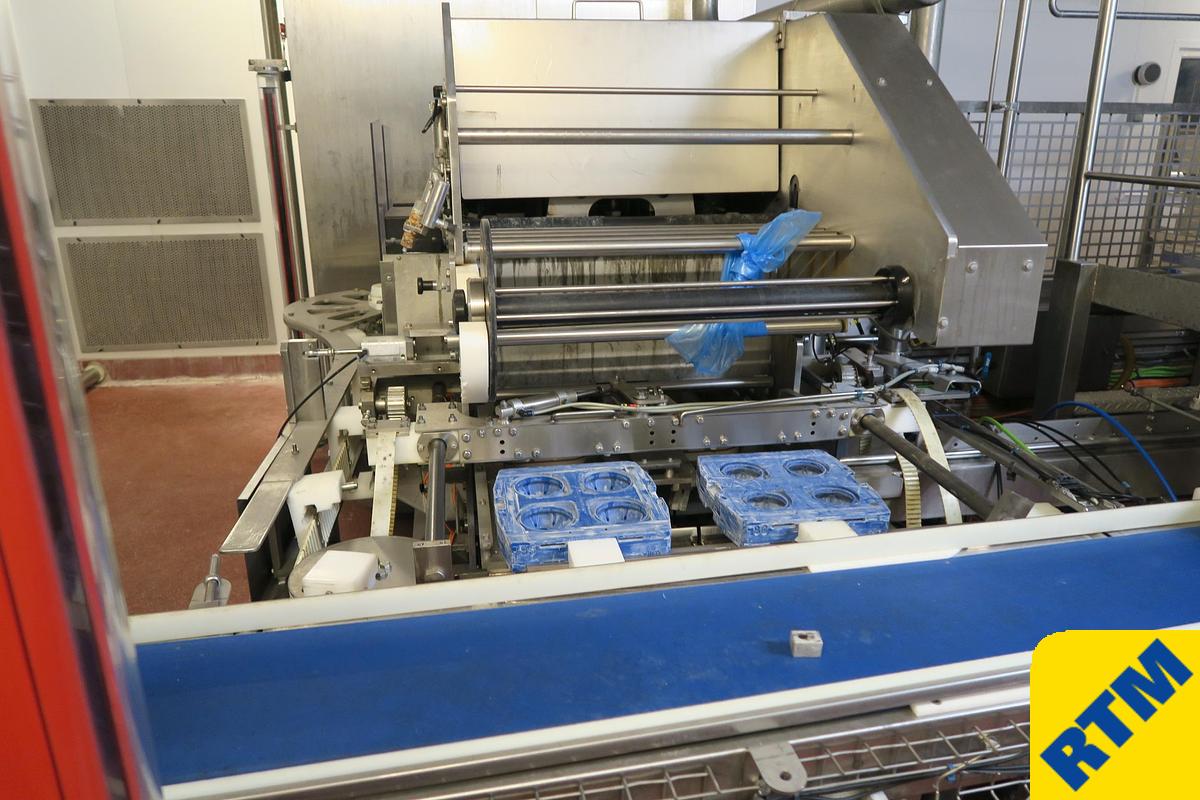

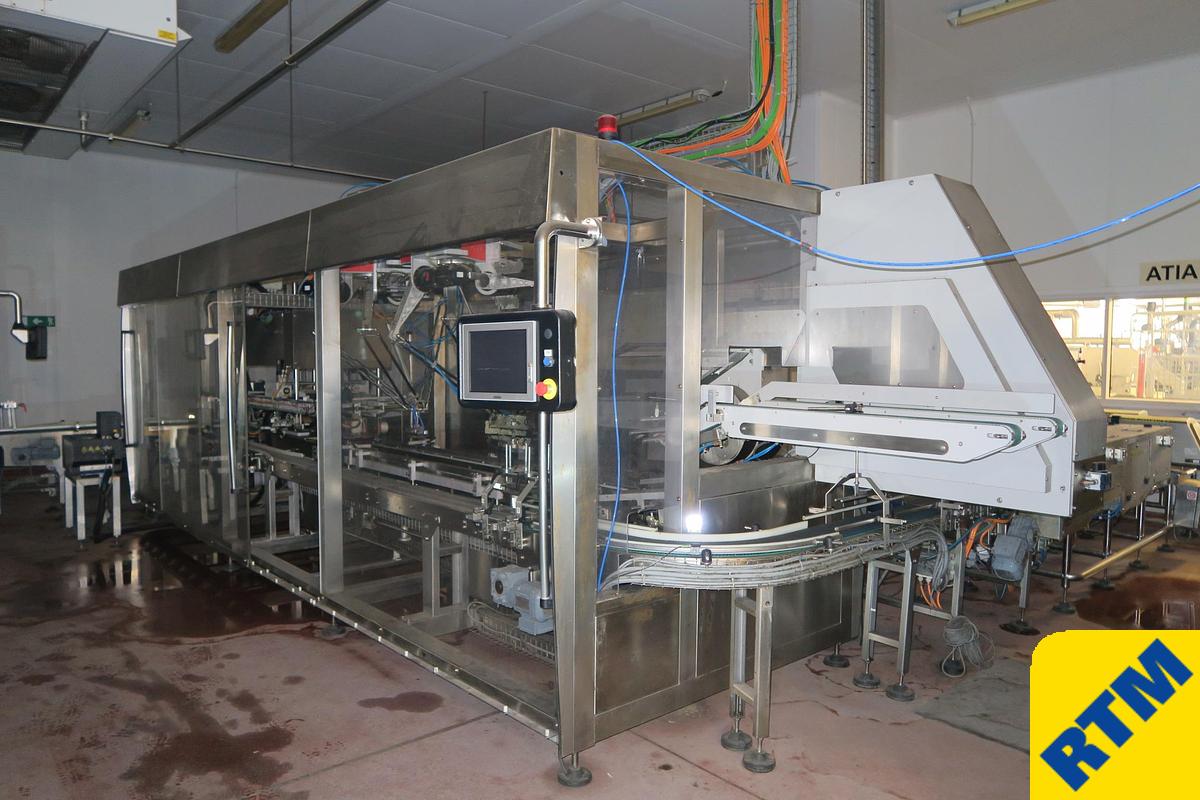

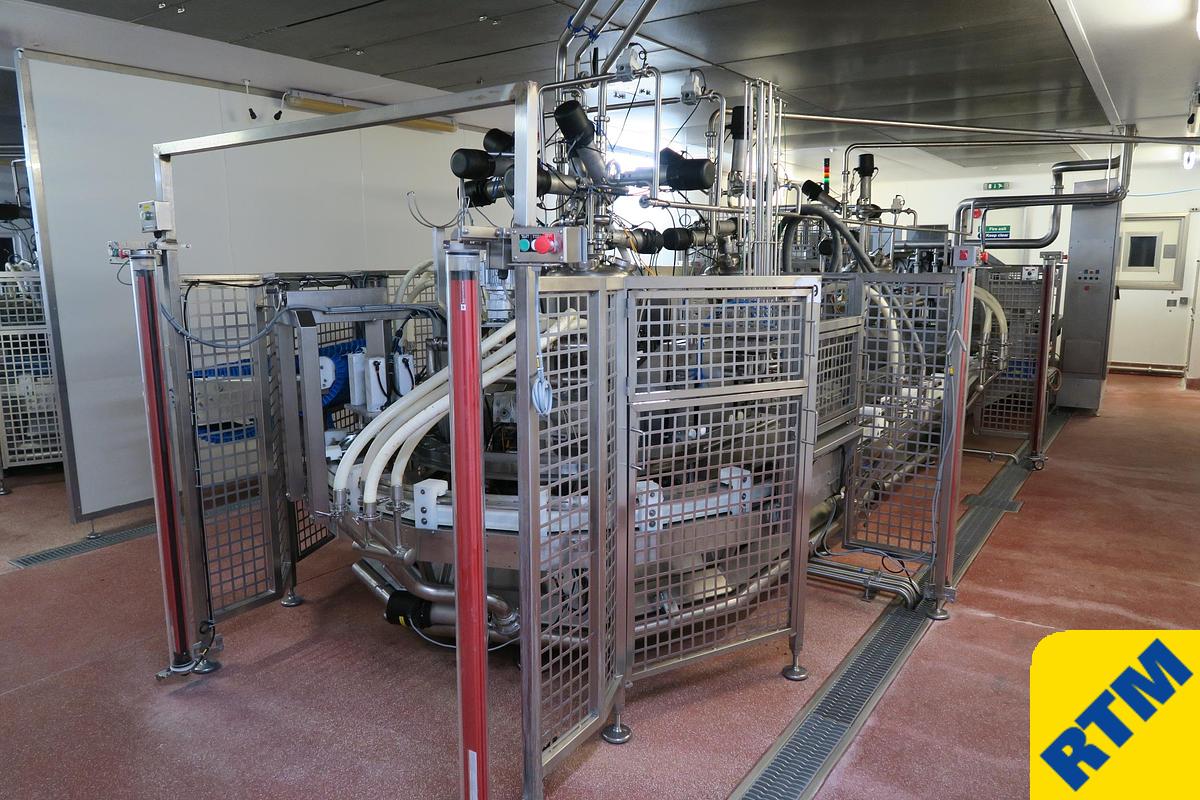

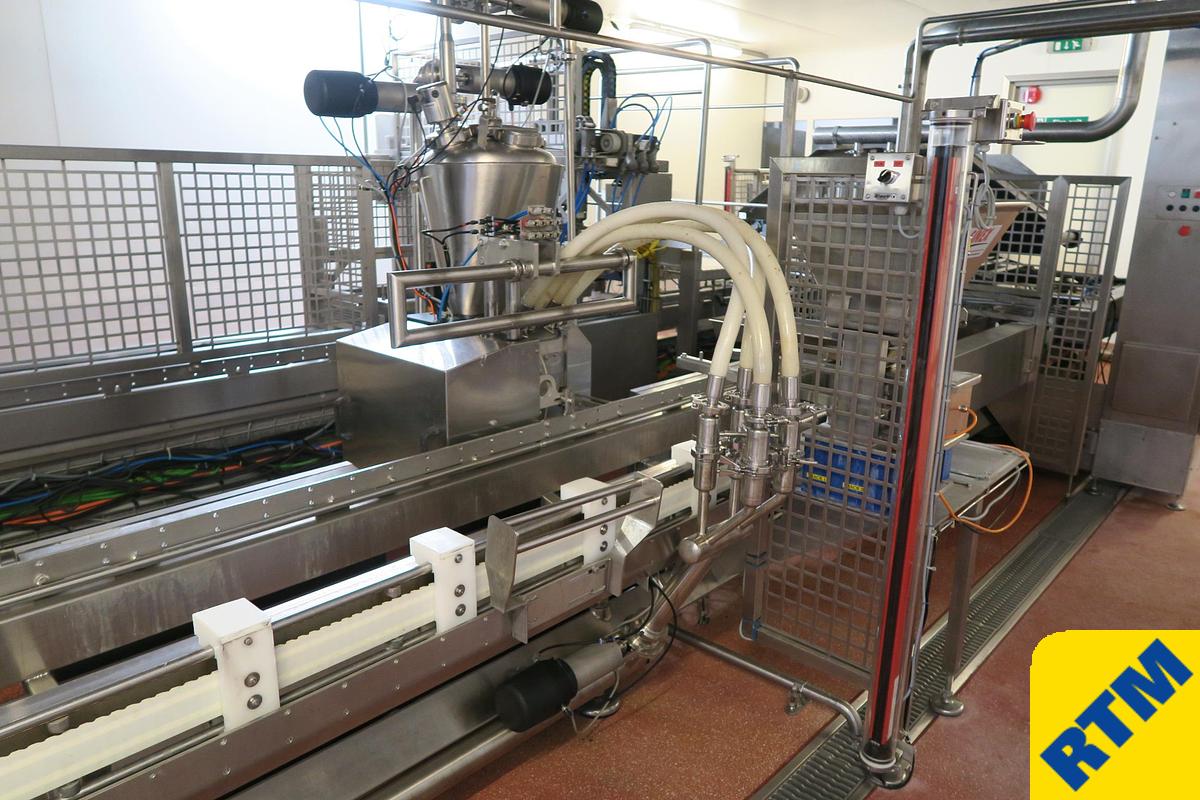

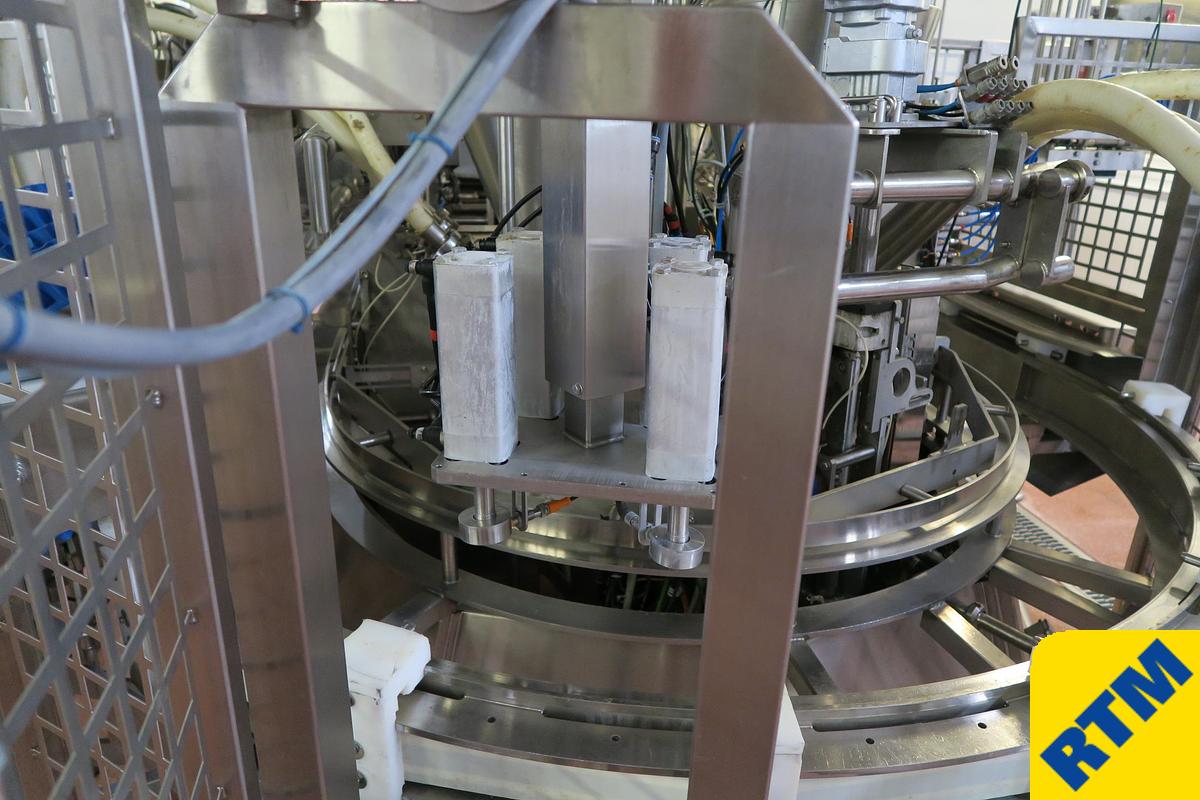

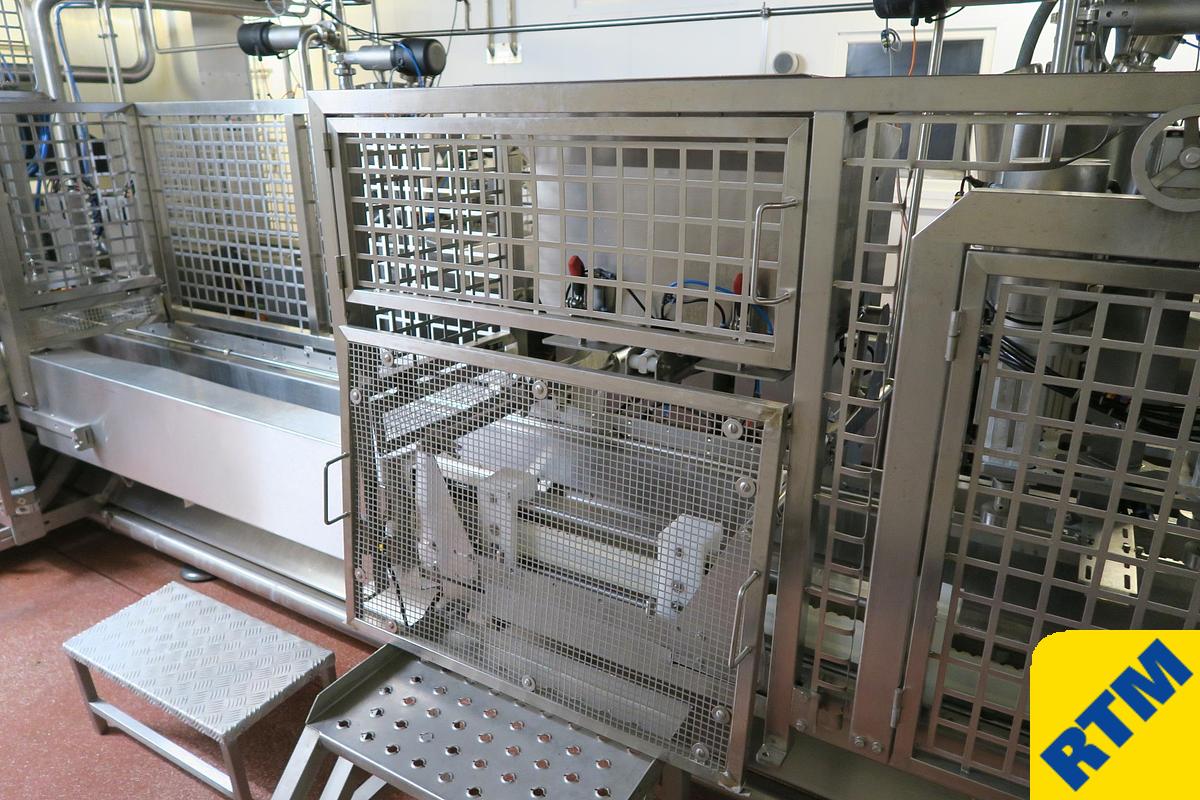

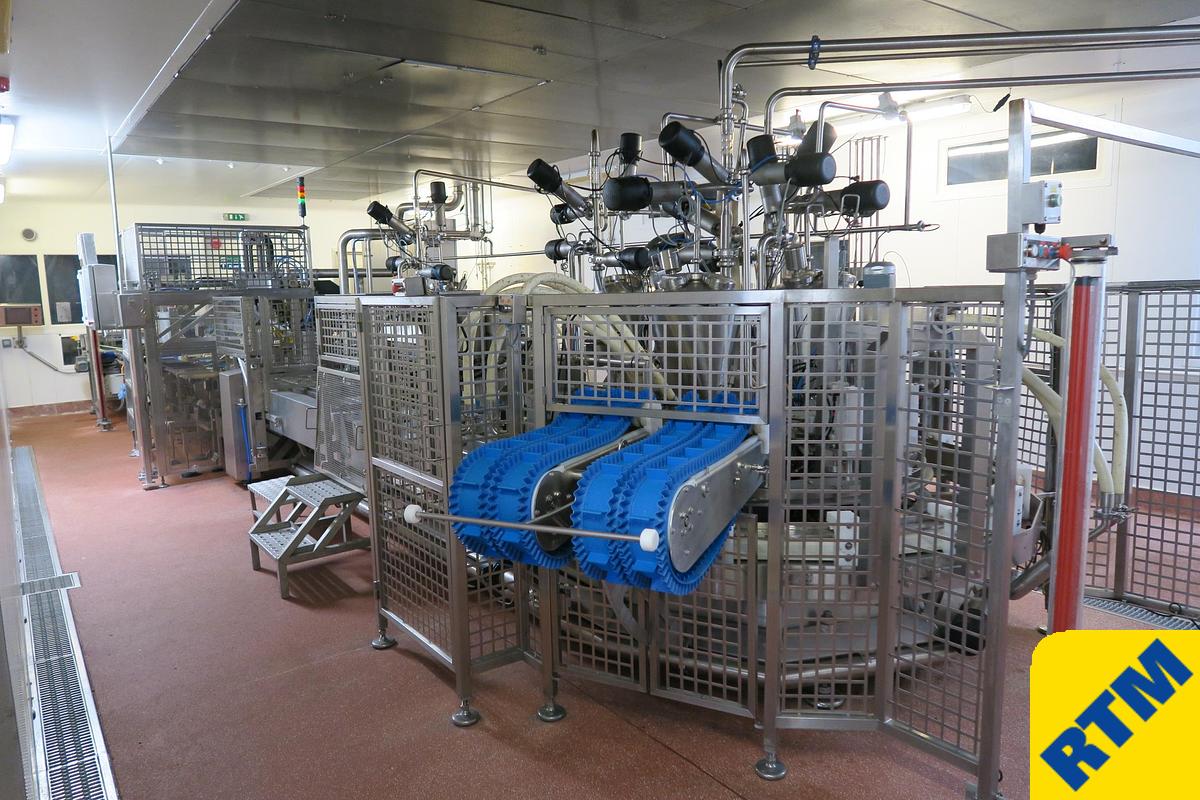

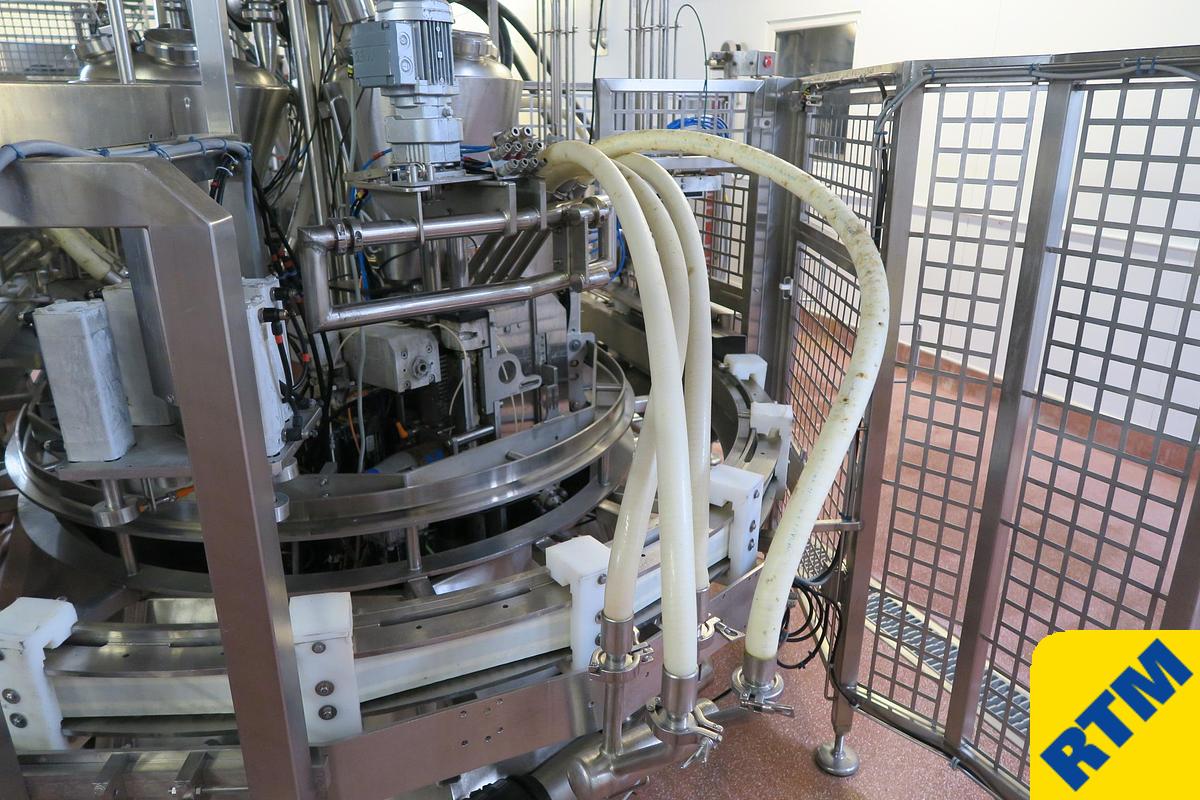

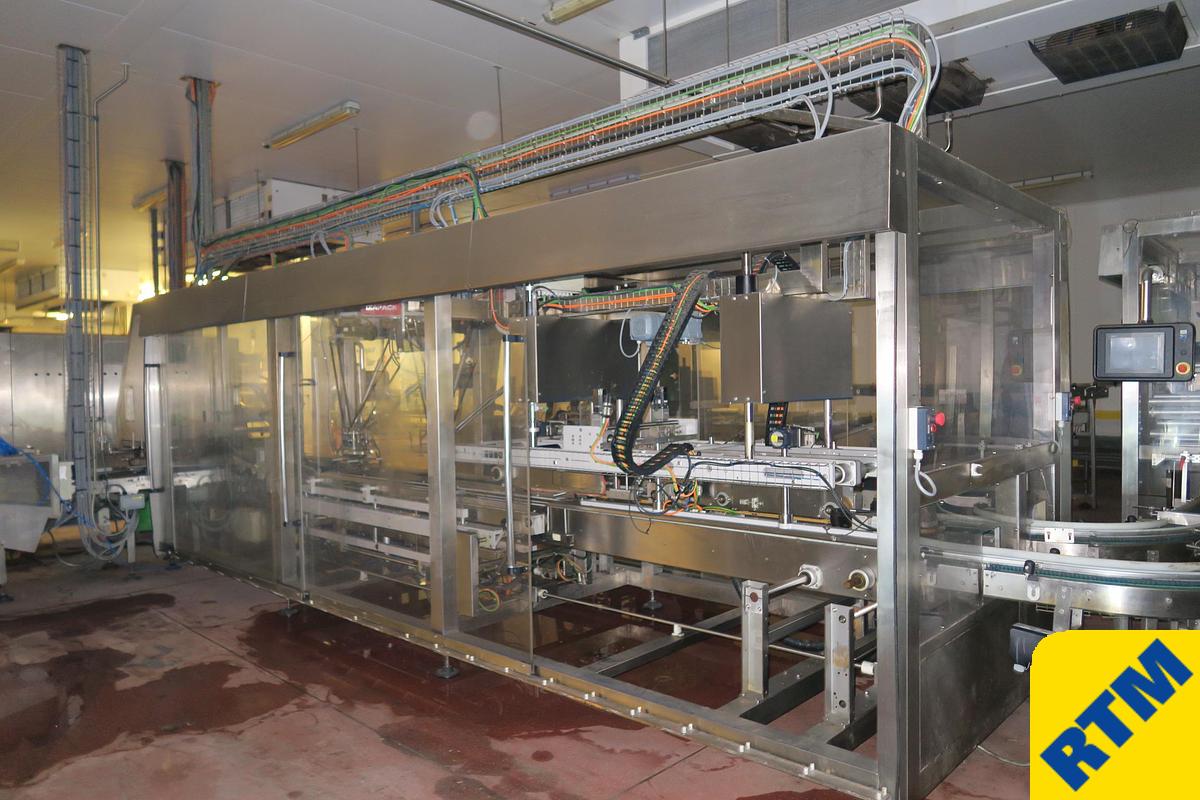

DESSERT POT LAYERED FILLING MACHINE

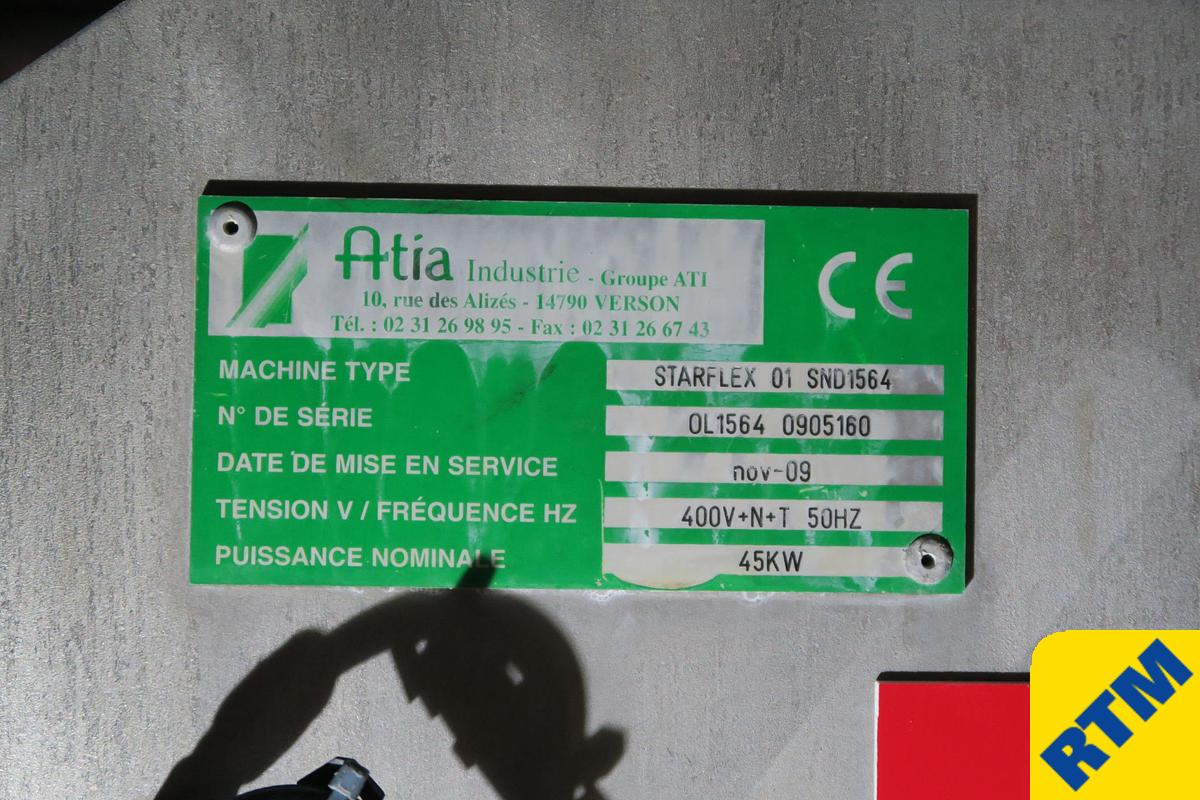

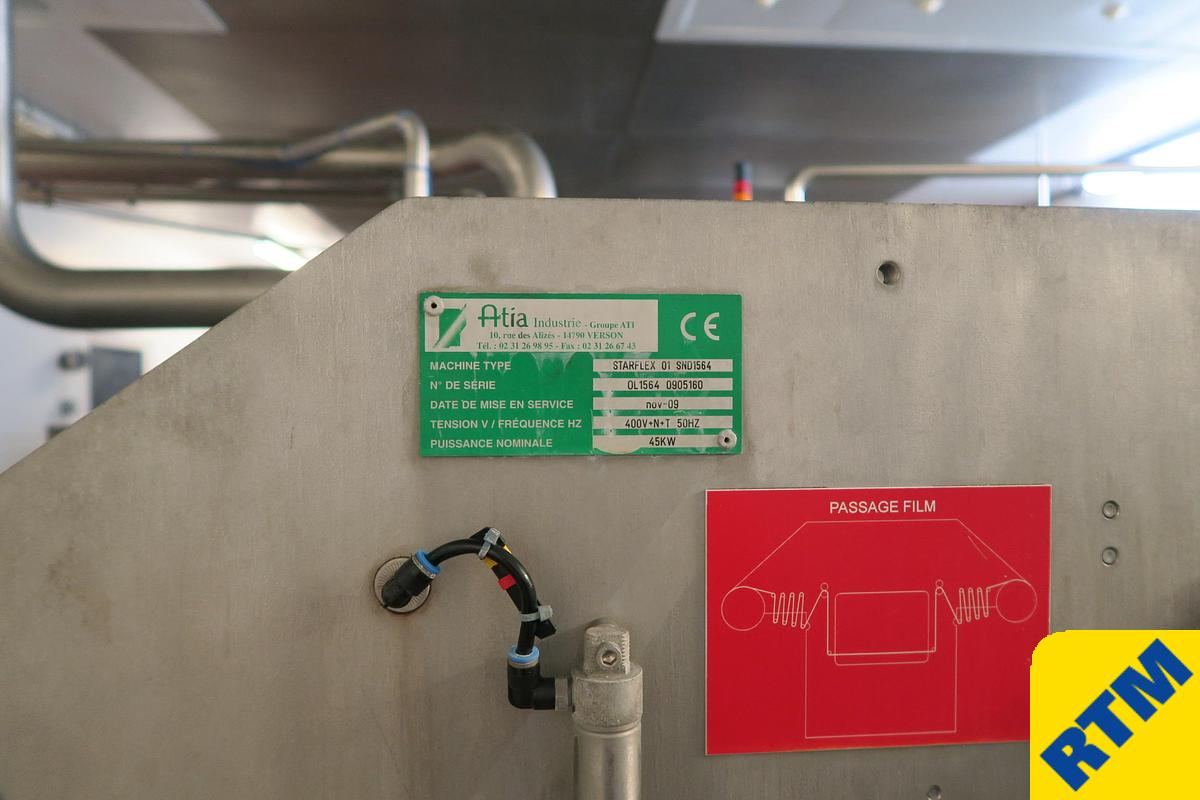

Manufactured by ATIA Machine Type STARFLEX 01 SND1564

Manufactured Year 2009

LINE 1 PACKAGING – Year 2010/2011

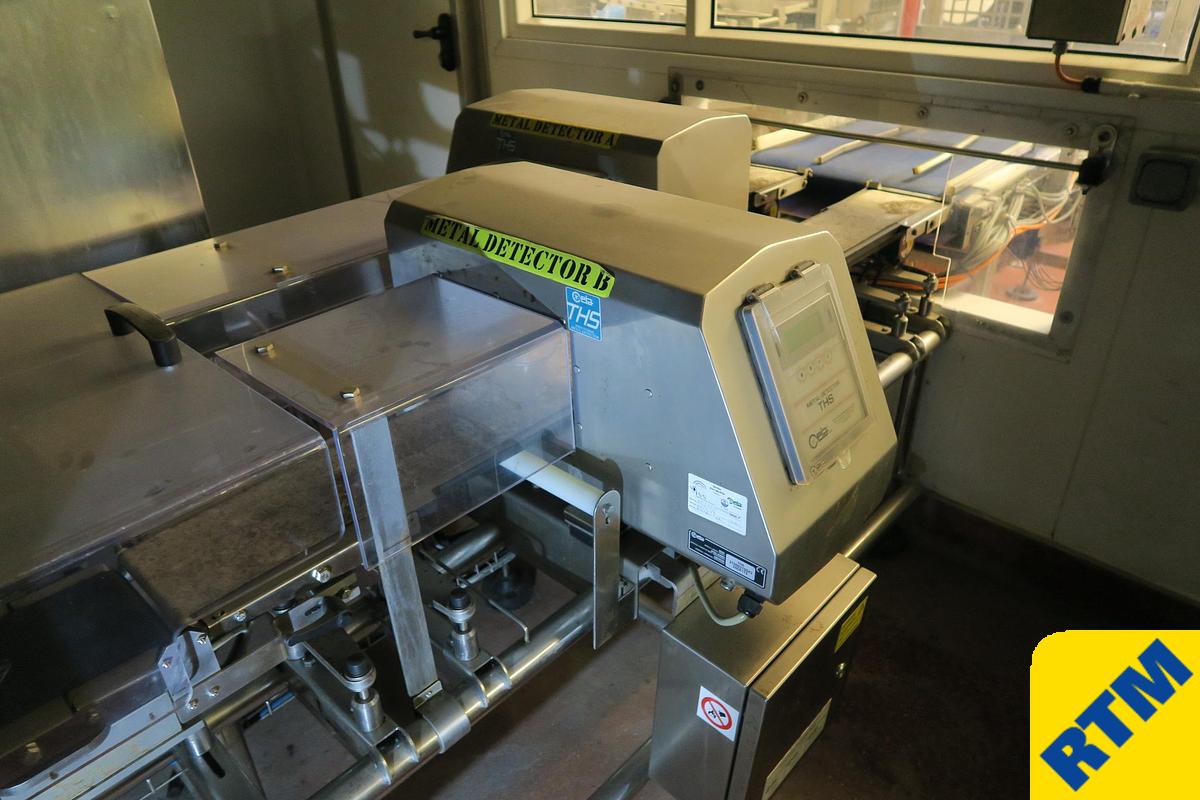

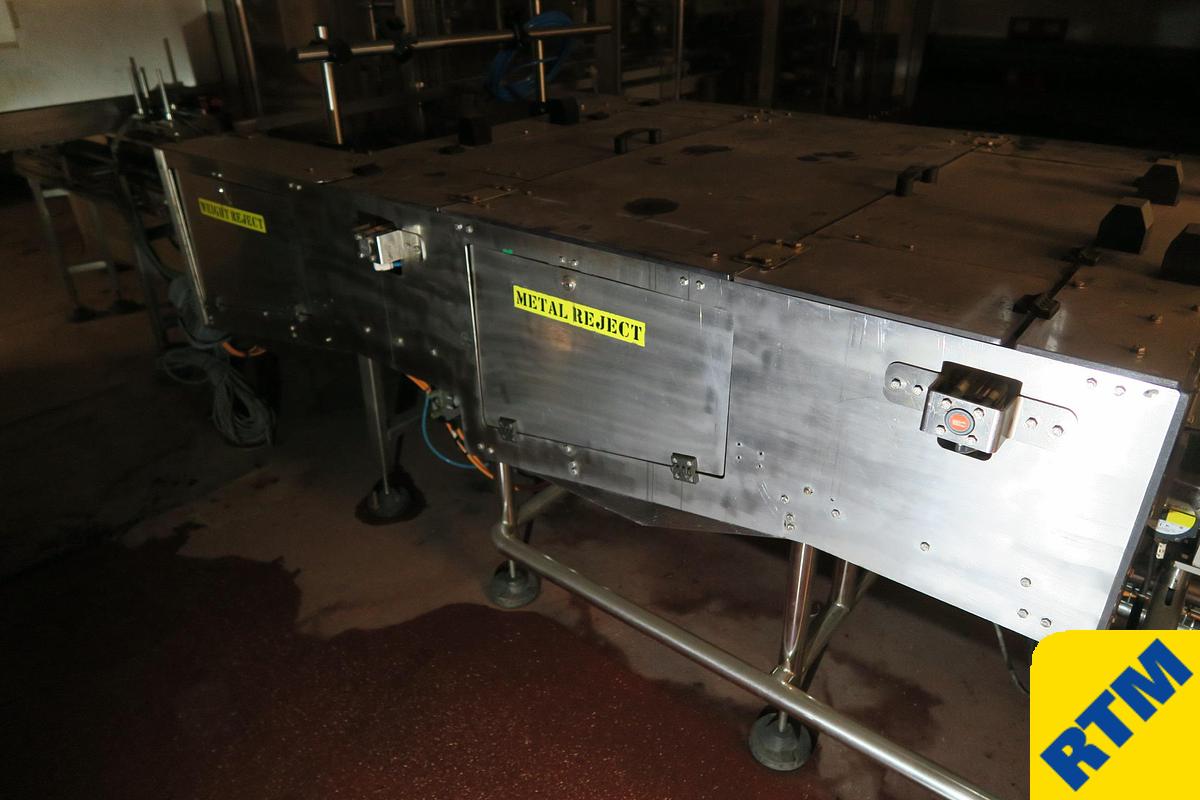

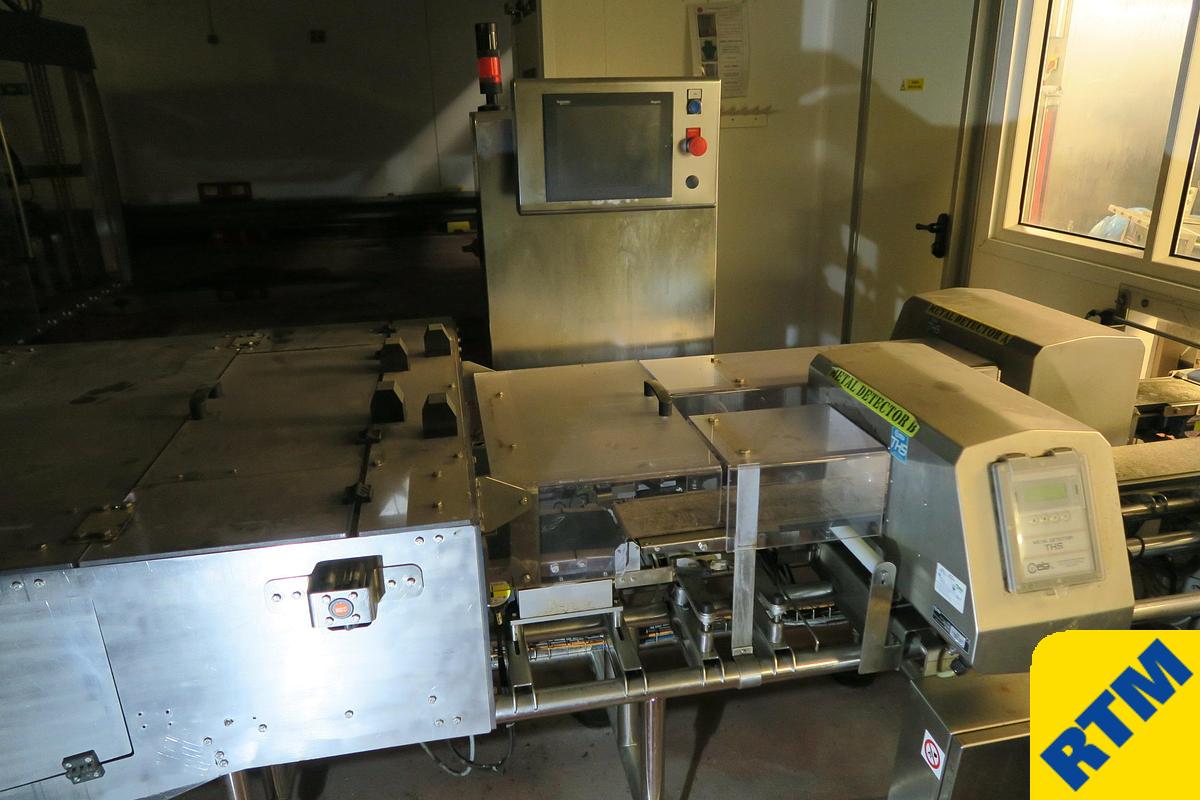

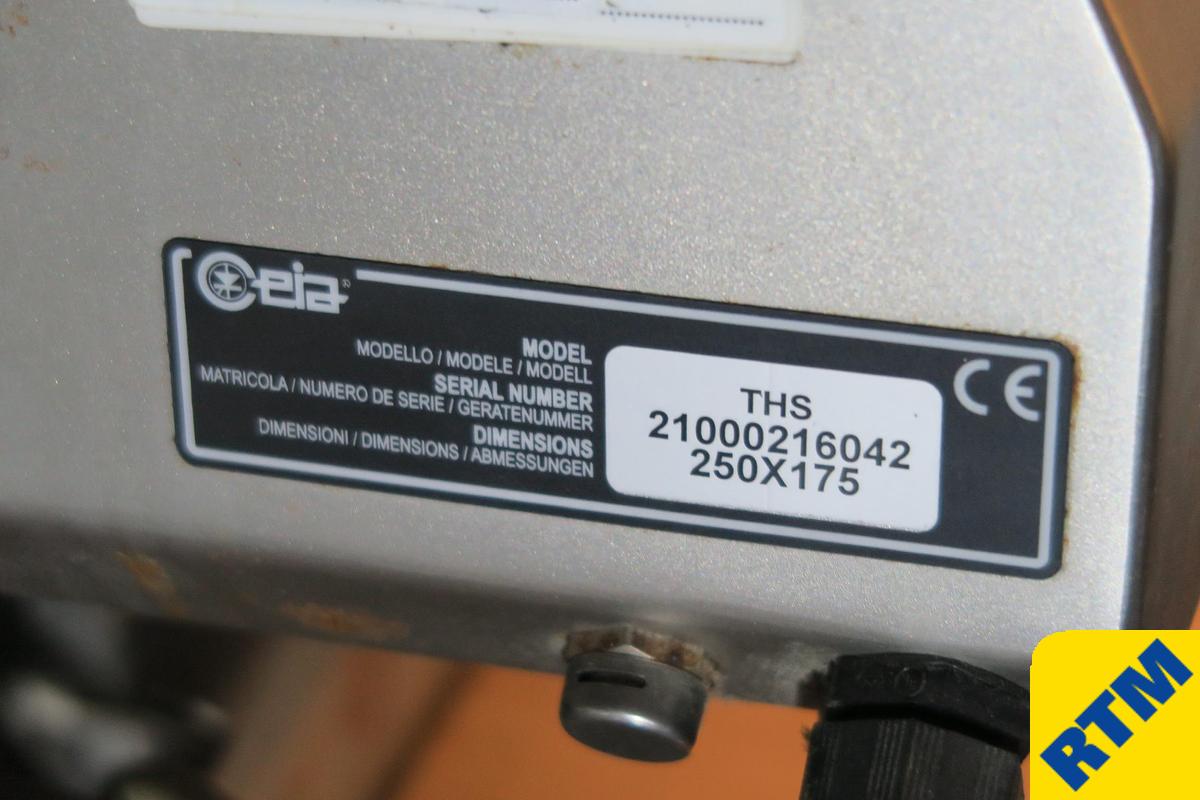

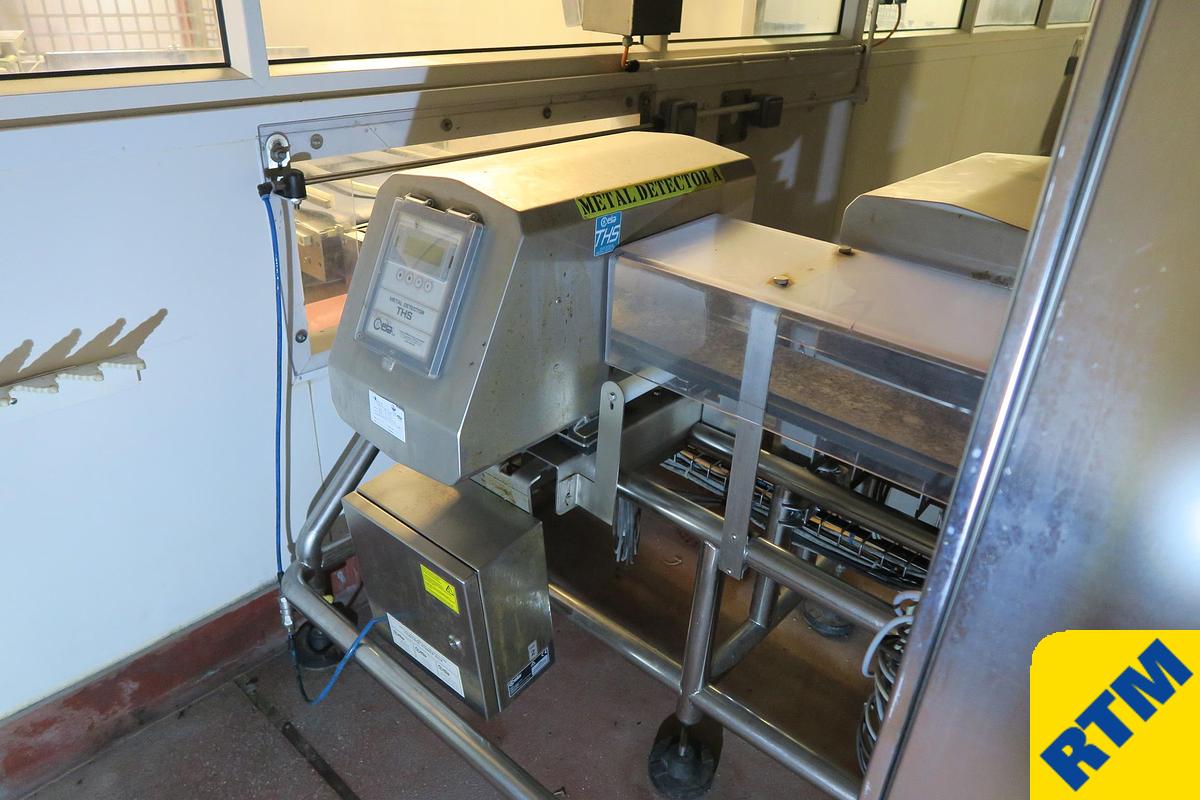

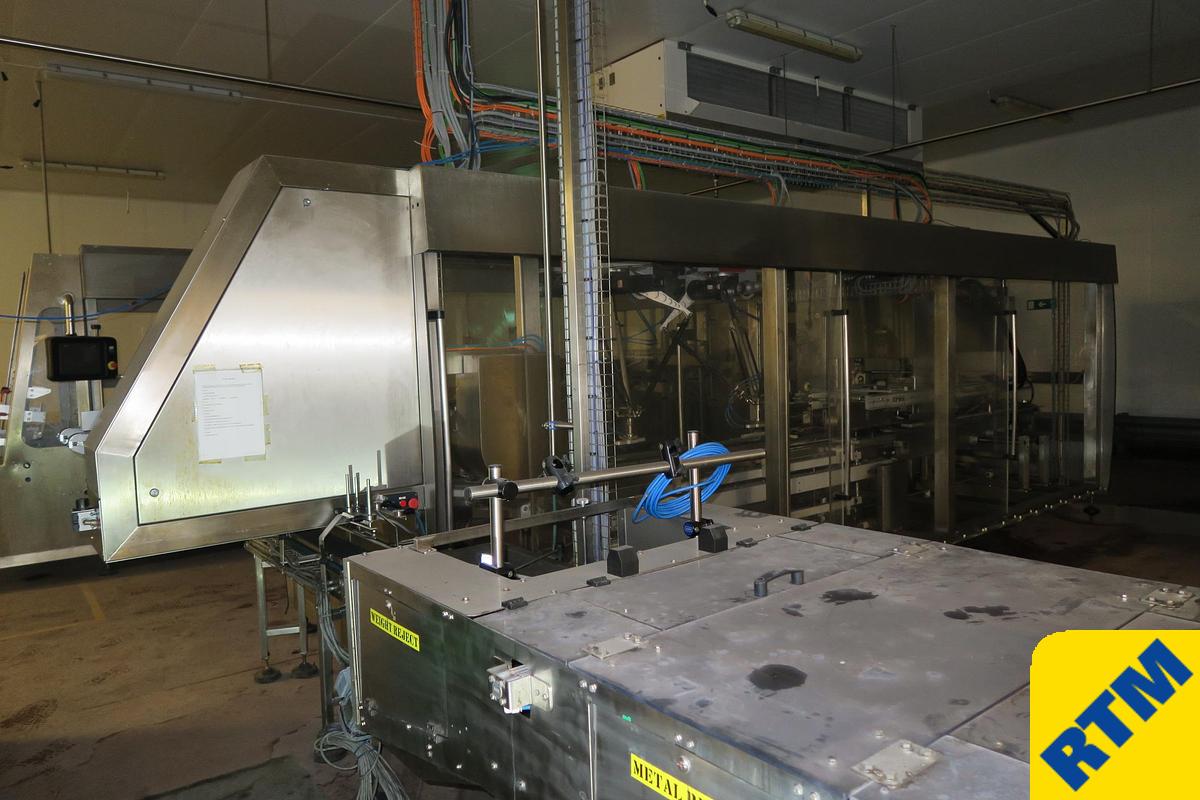

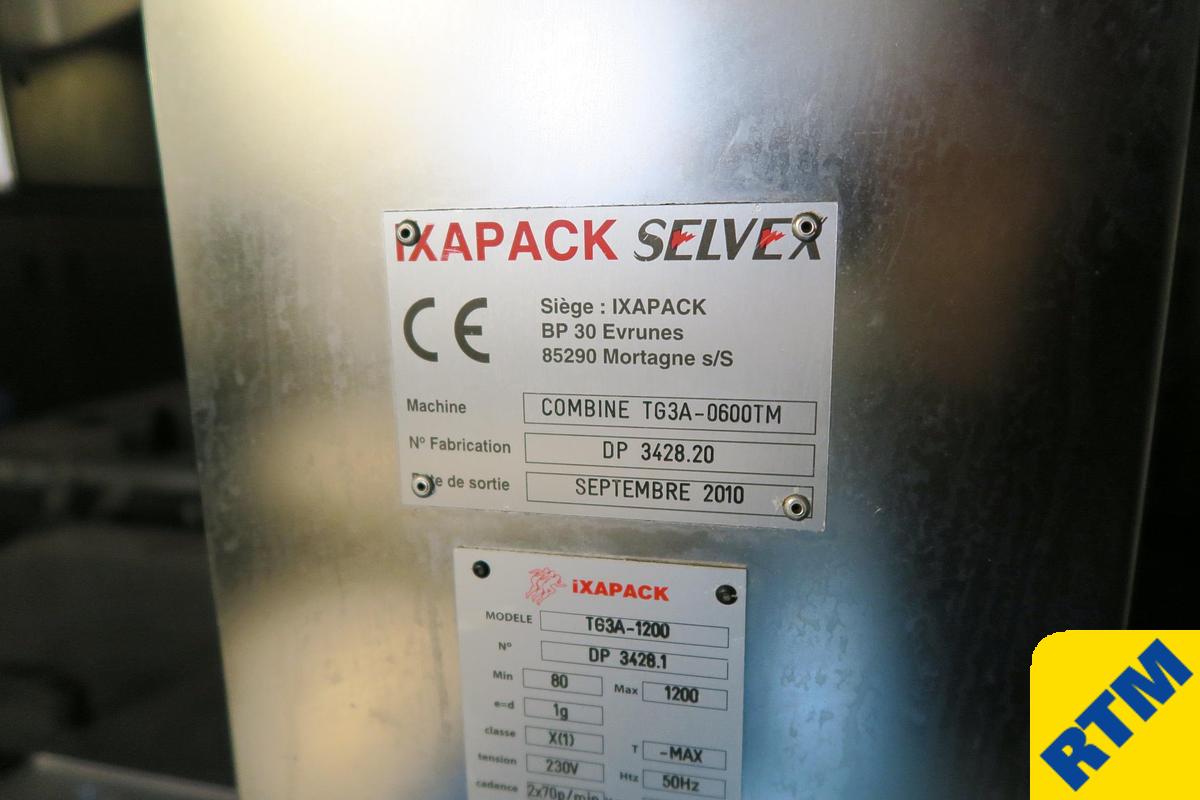

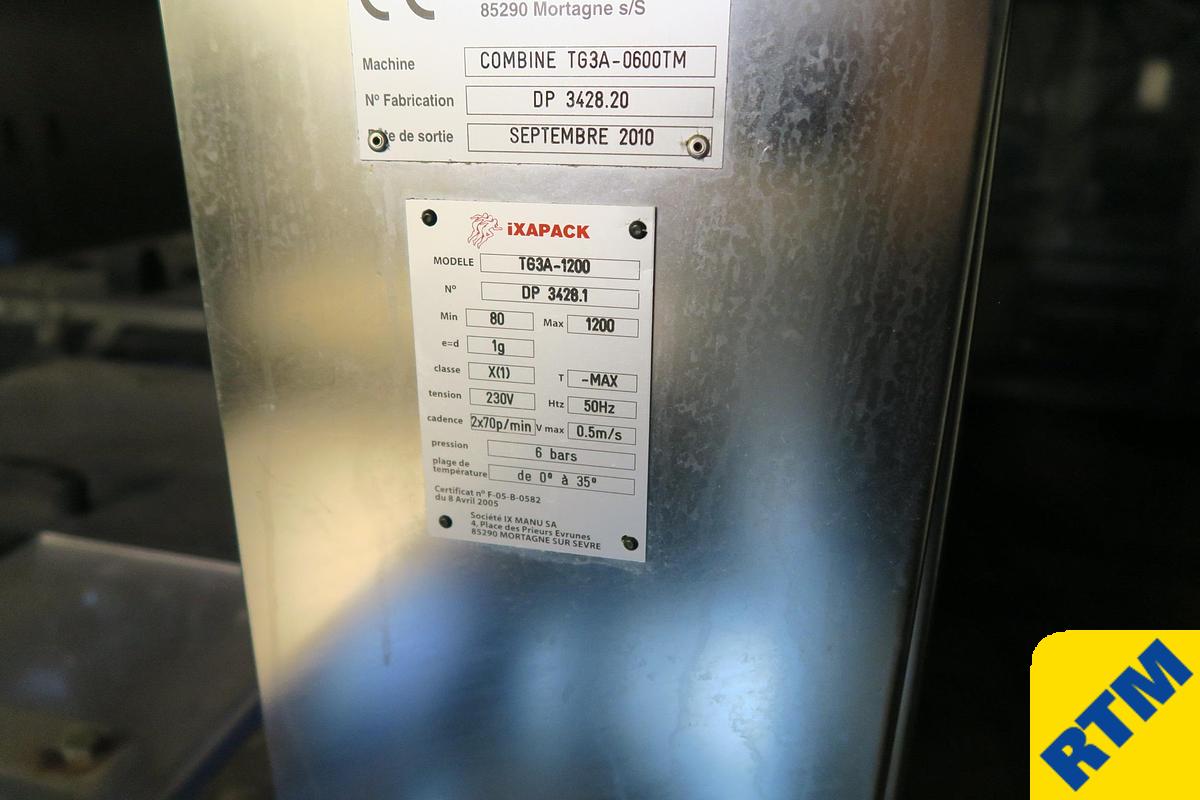

- IXAPACK COMBI Metal Detector and Checkweigher

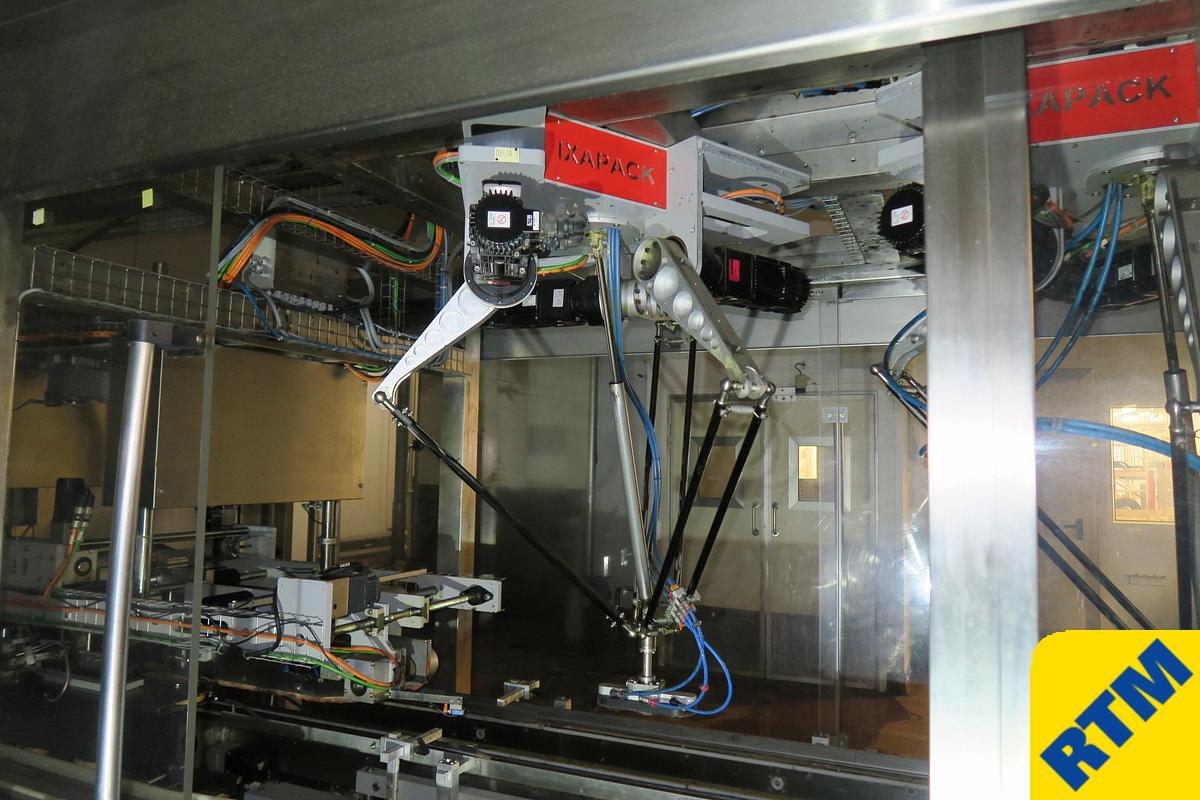

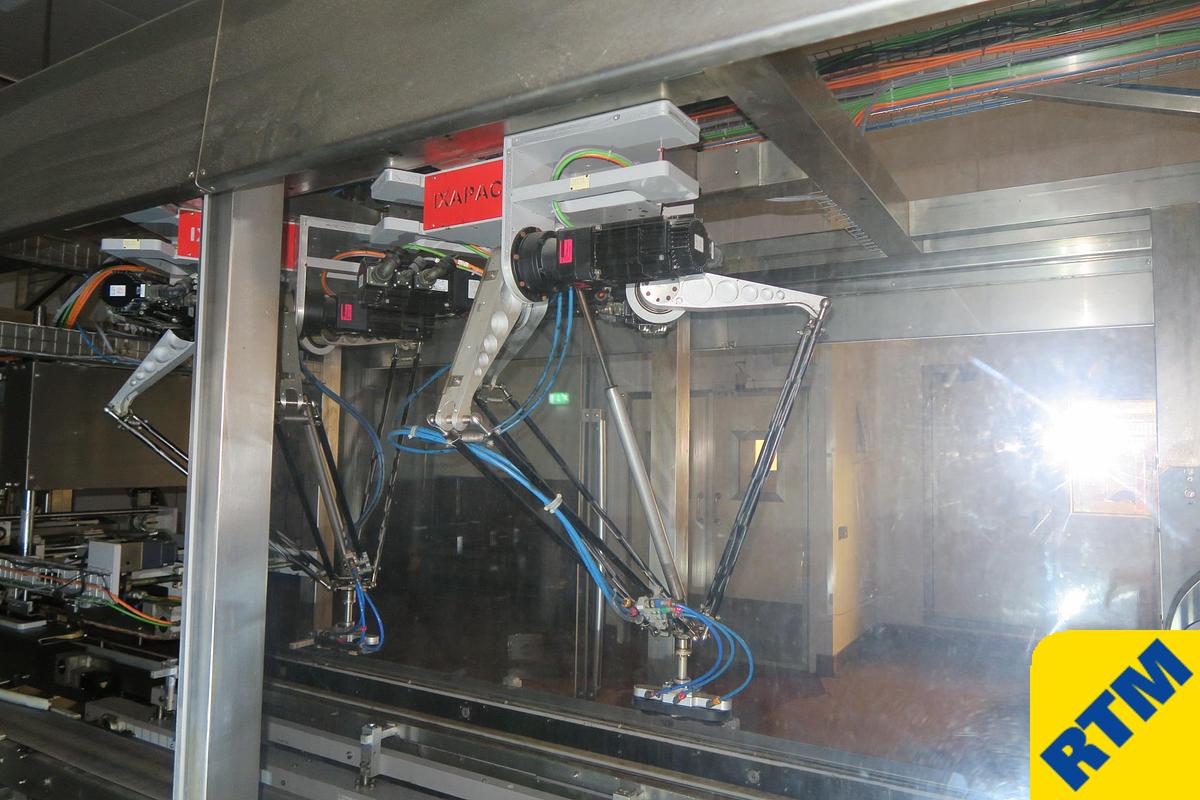

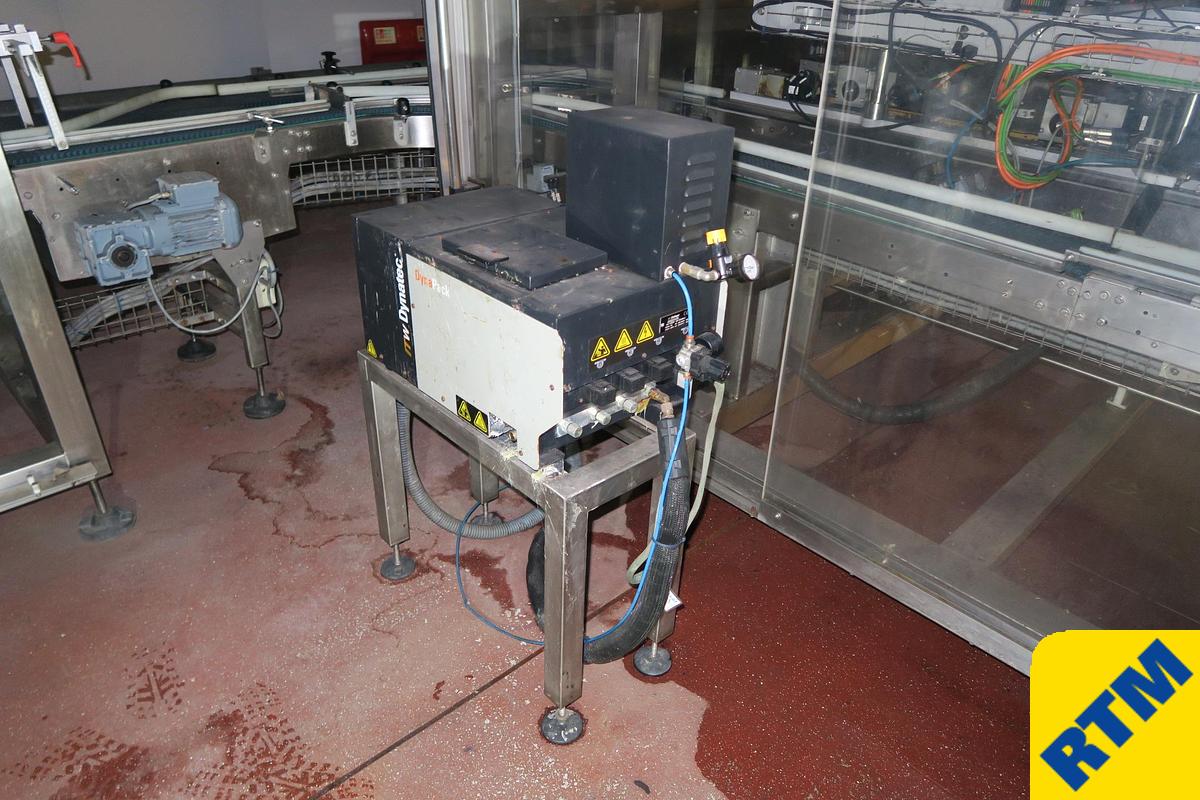

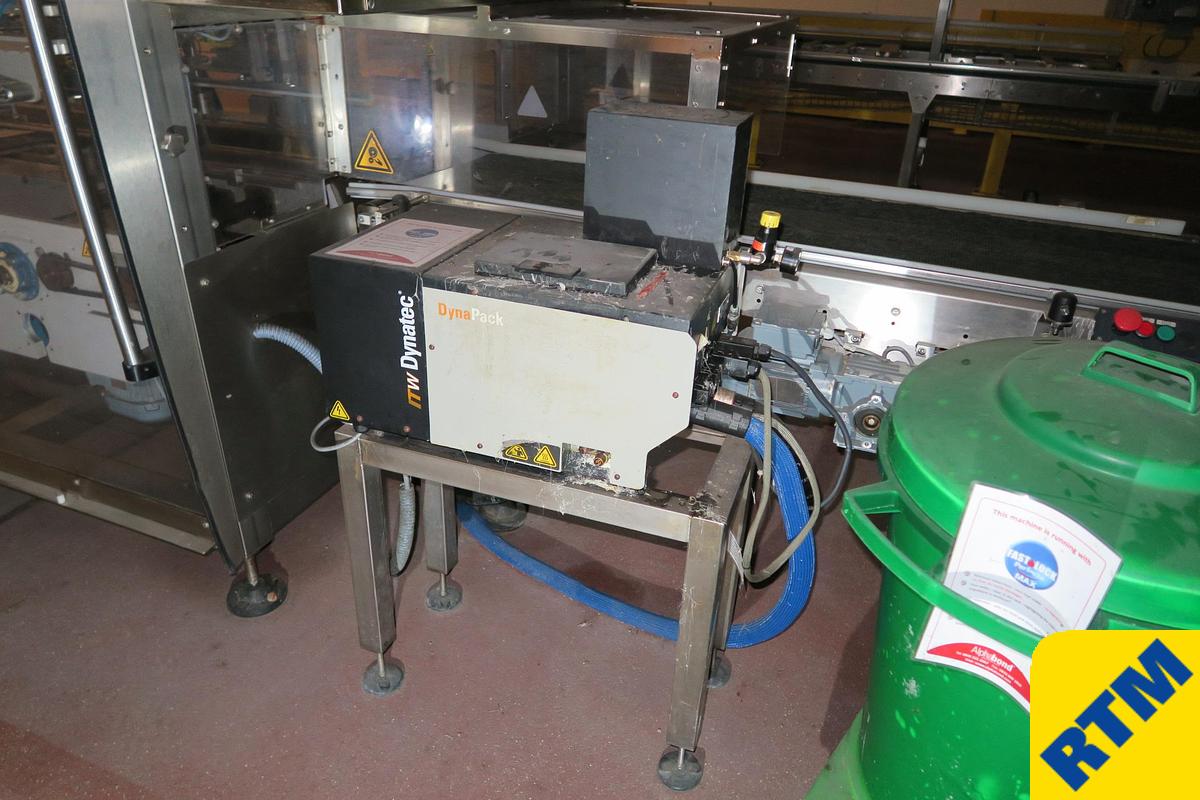

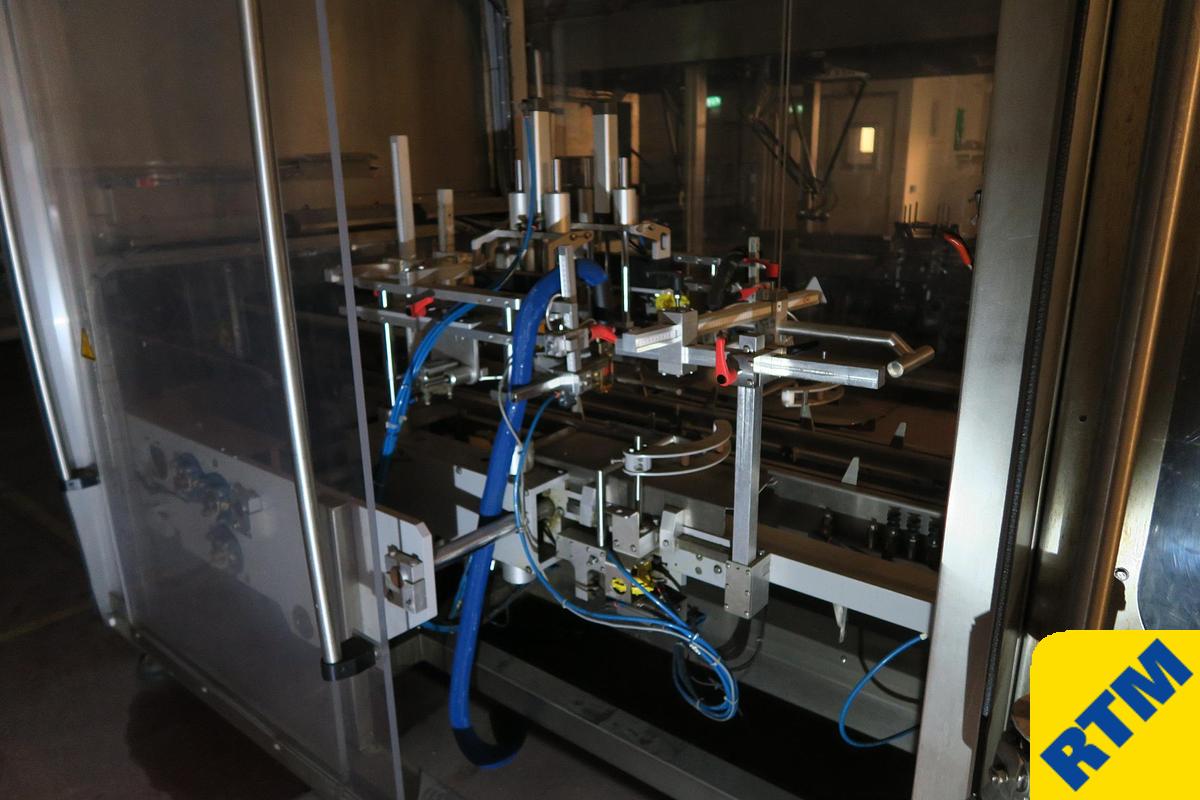

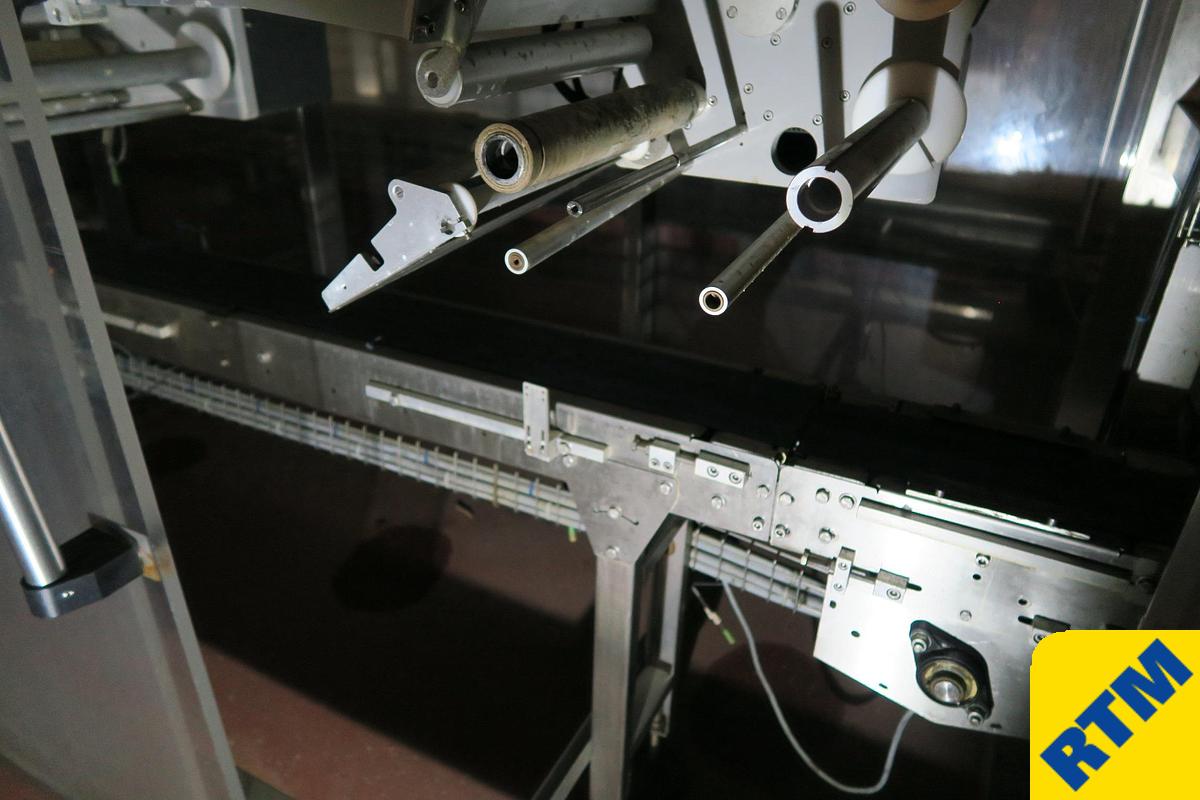

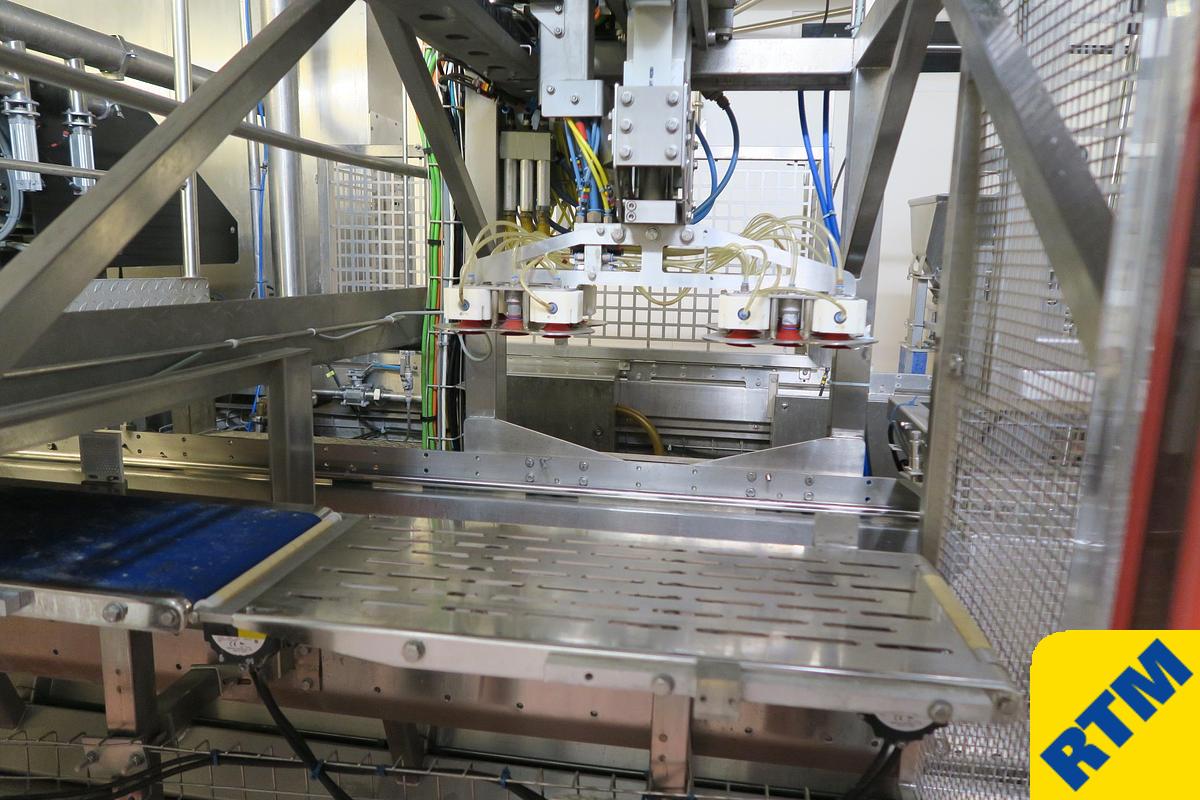

- IXAPACK SLEEVING MACHINE with 2 pick and place arms and hot glue unit

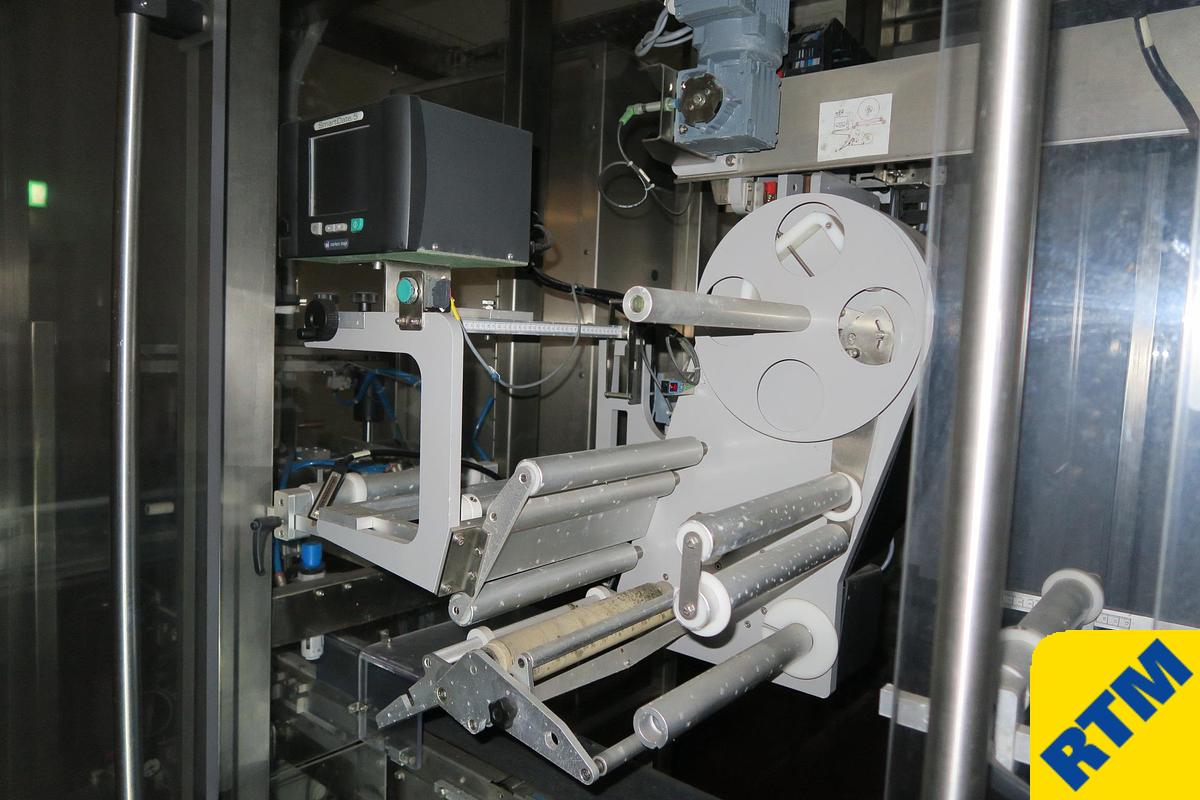

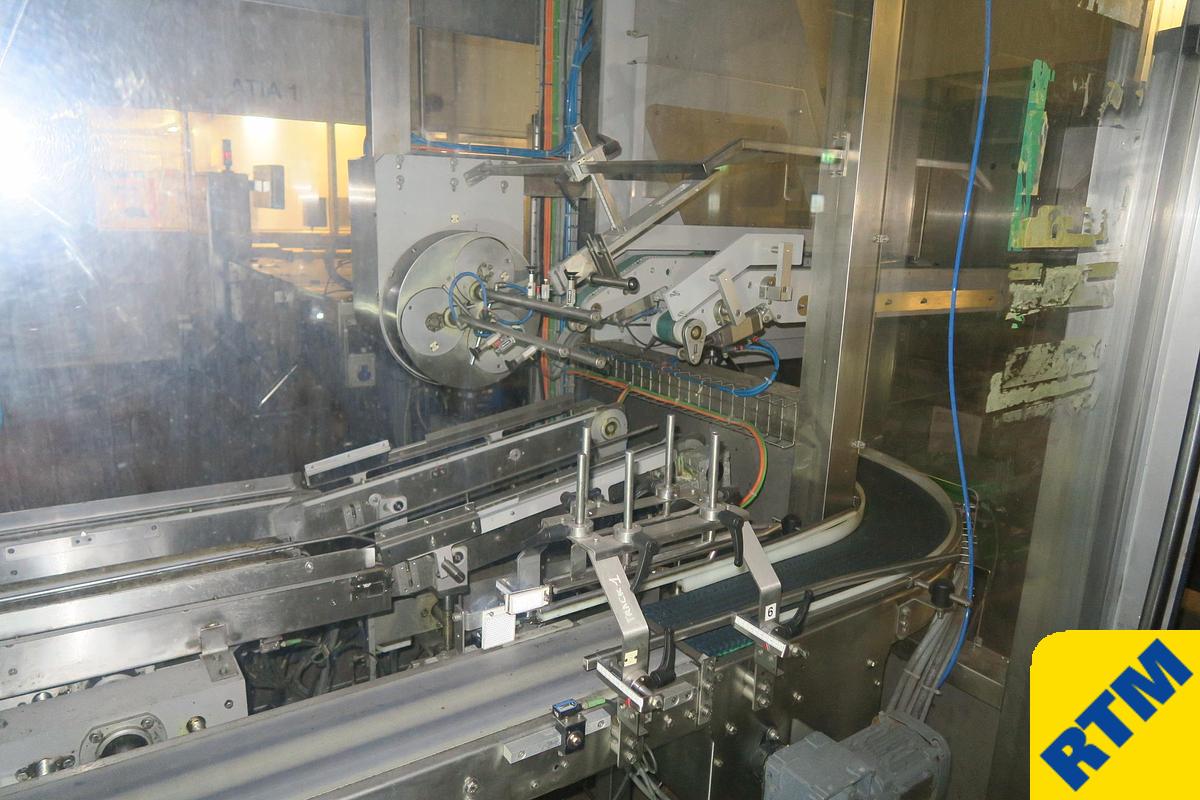

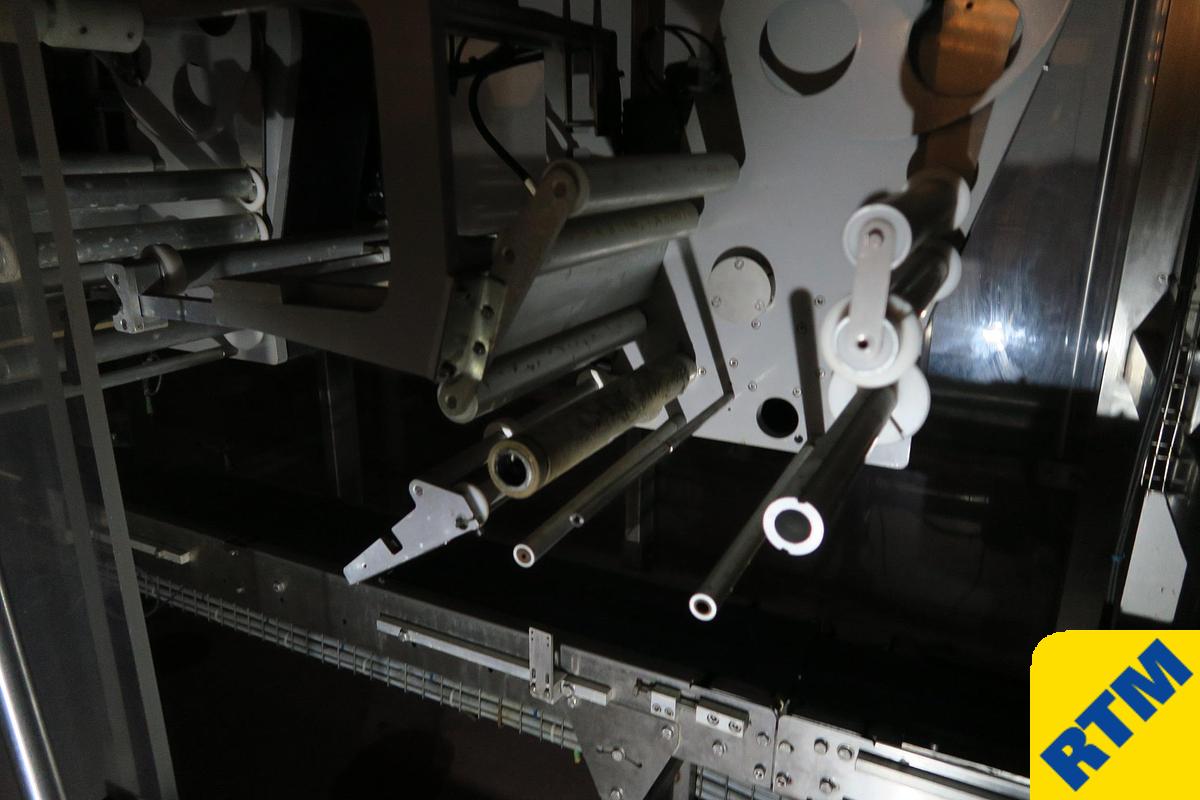

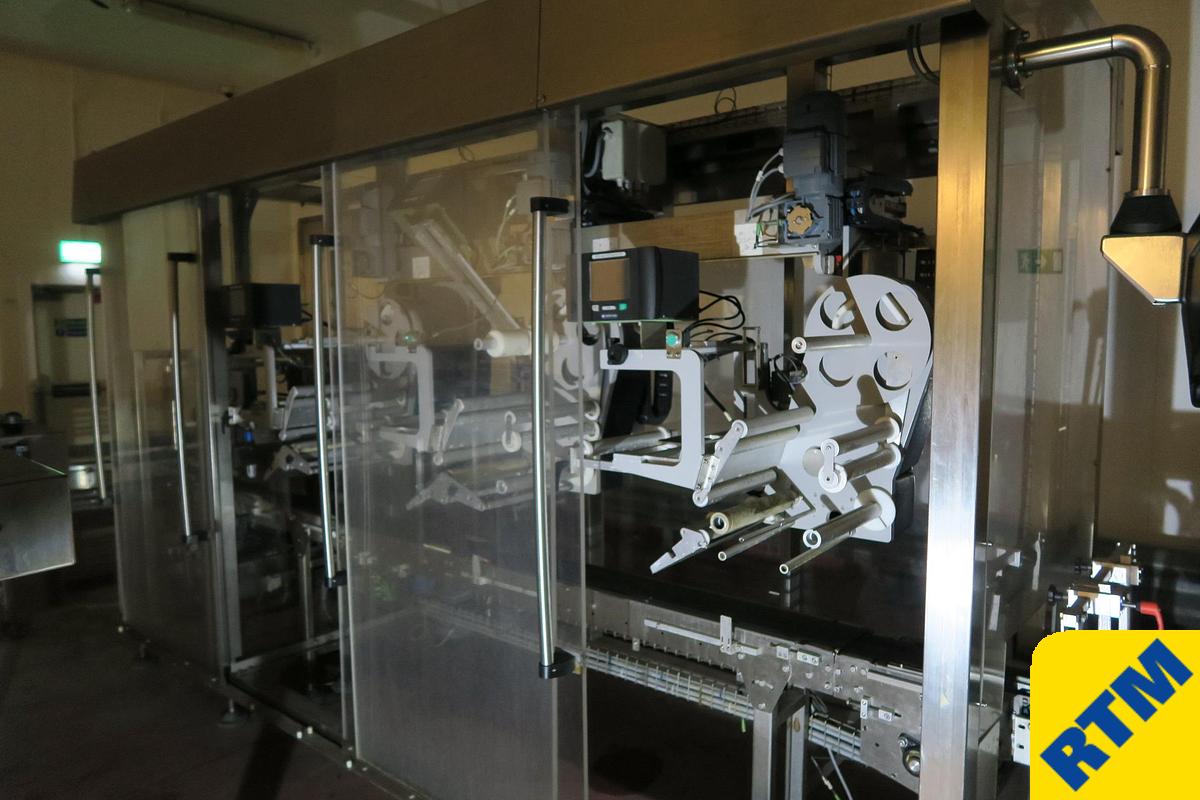

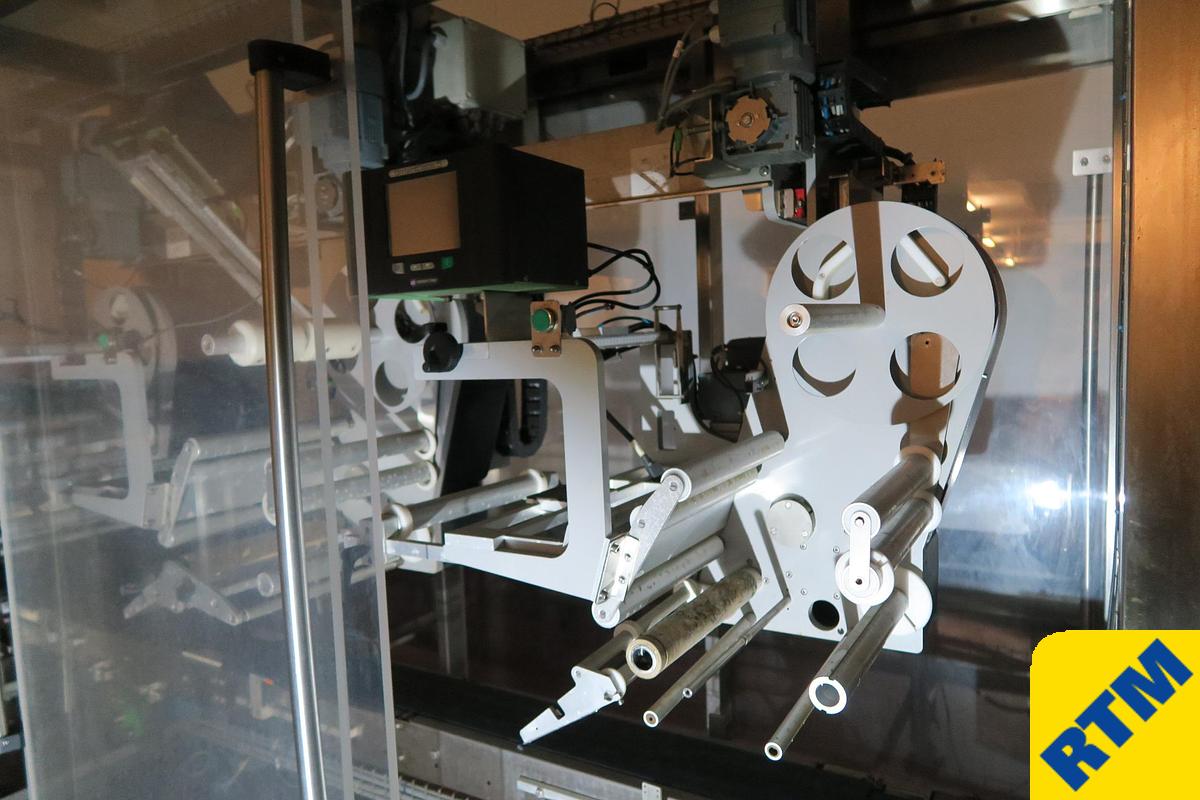

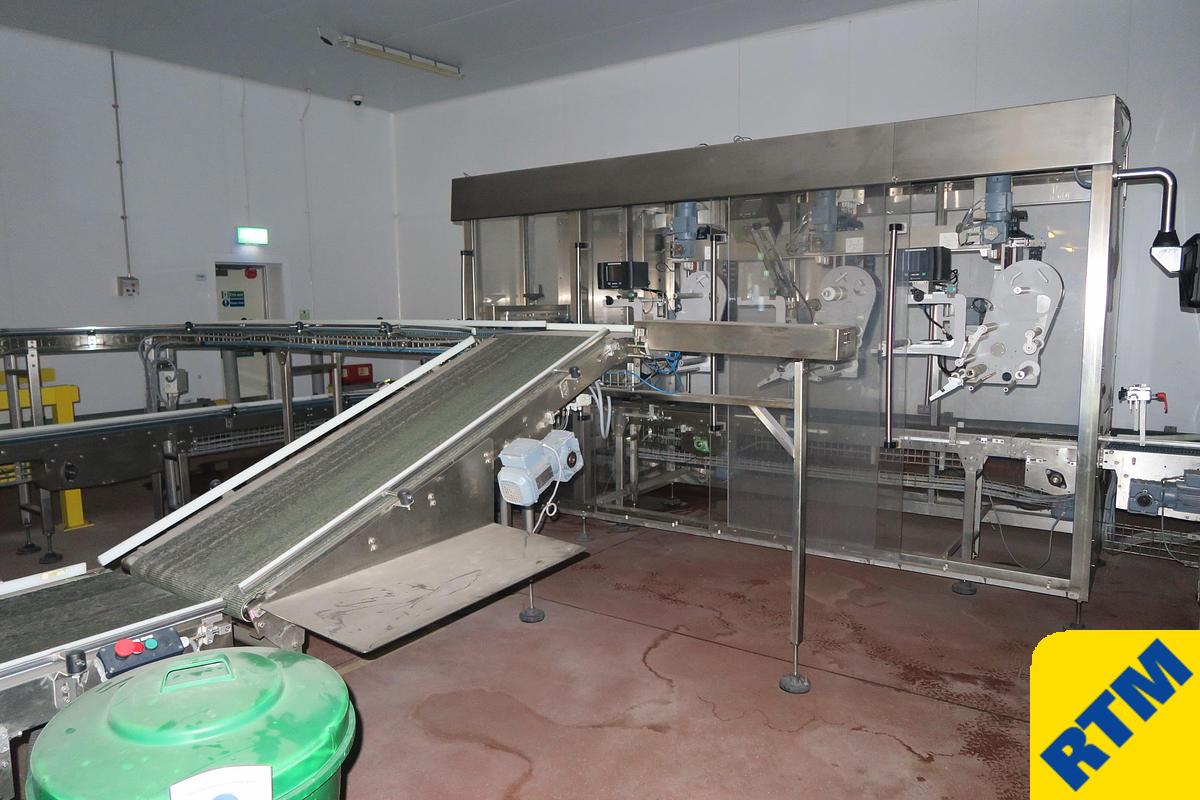

- LABELLER with 3 top mounted label heads Each head with MARKEM SMARTDATE 5 date printer

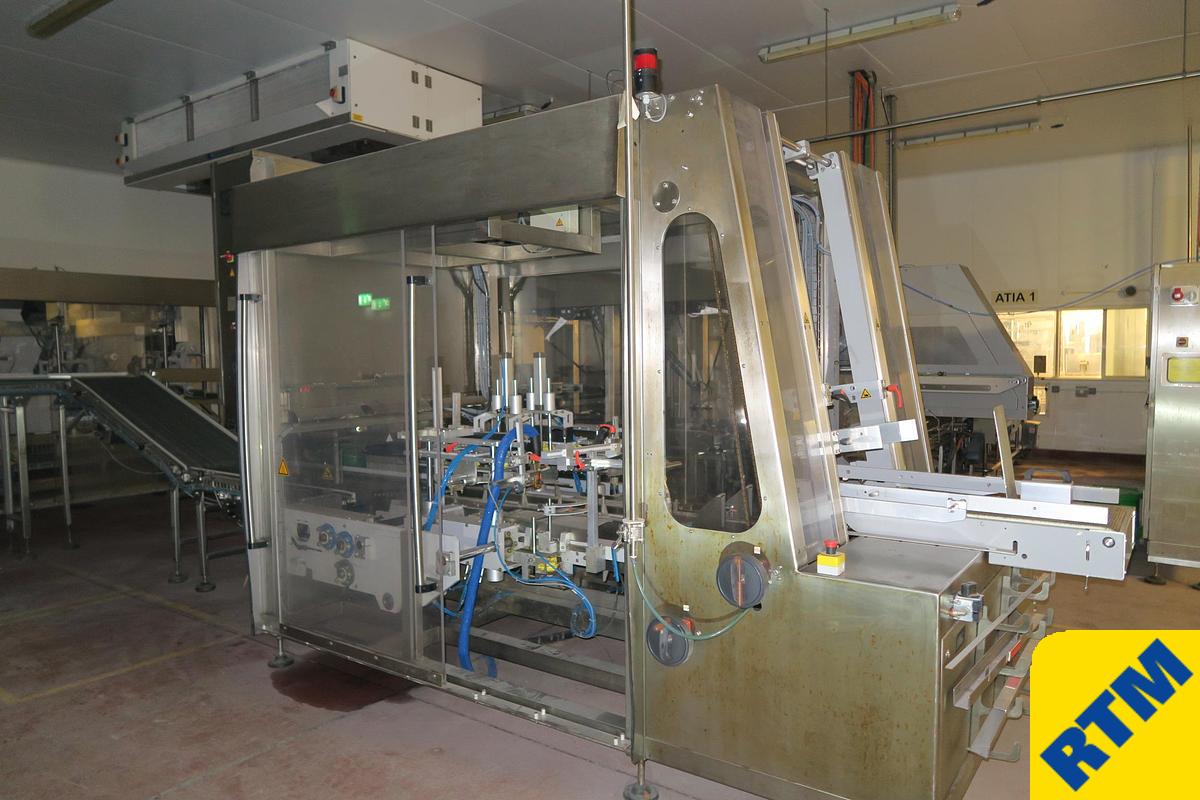

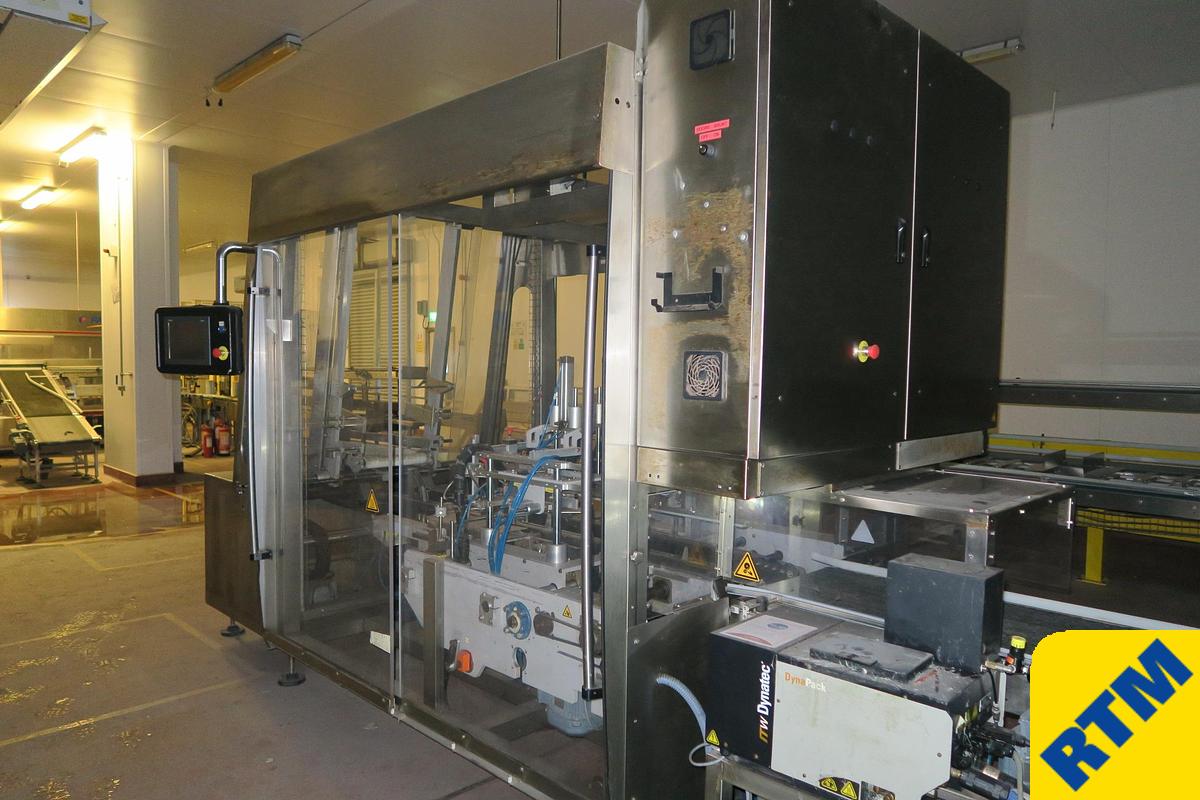

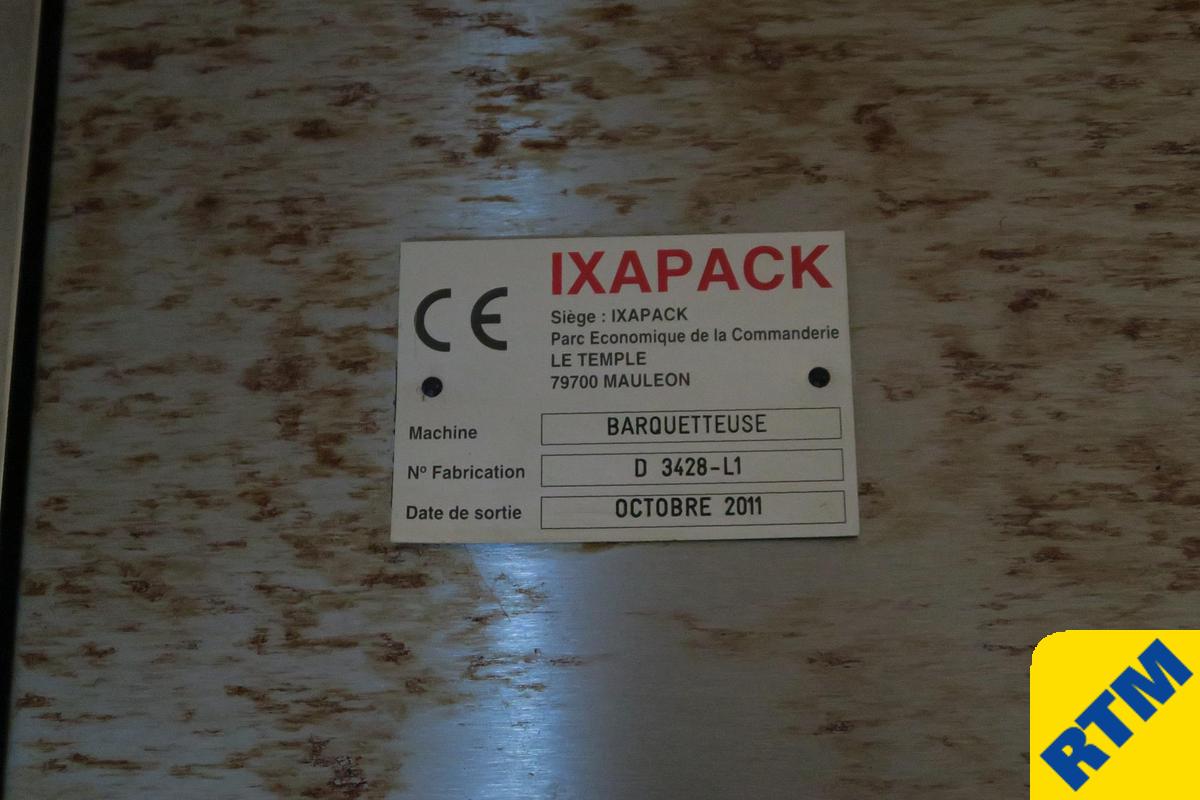

- IXAPACK CASE FORMING MACHINE serial number D3428-L1

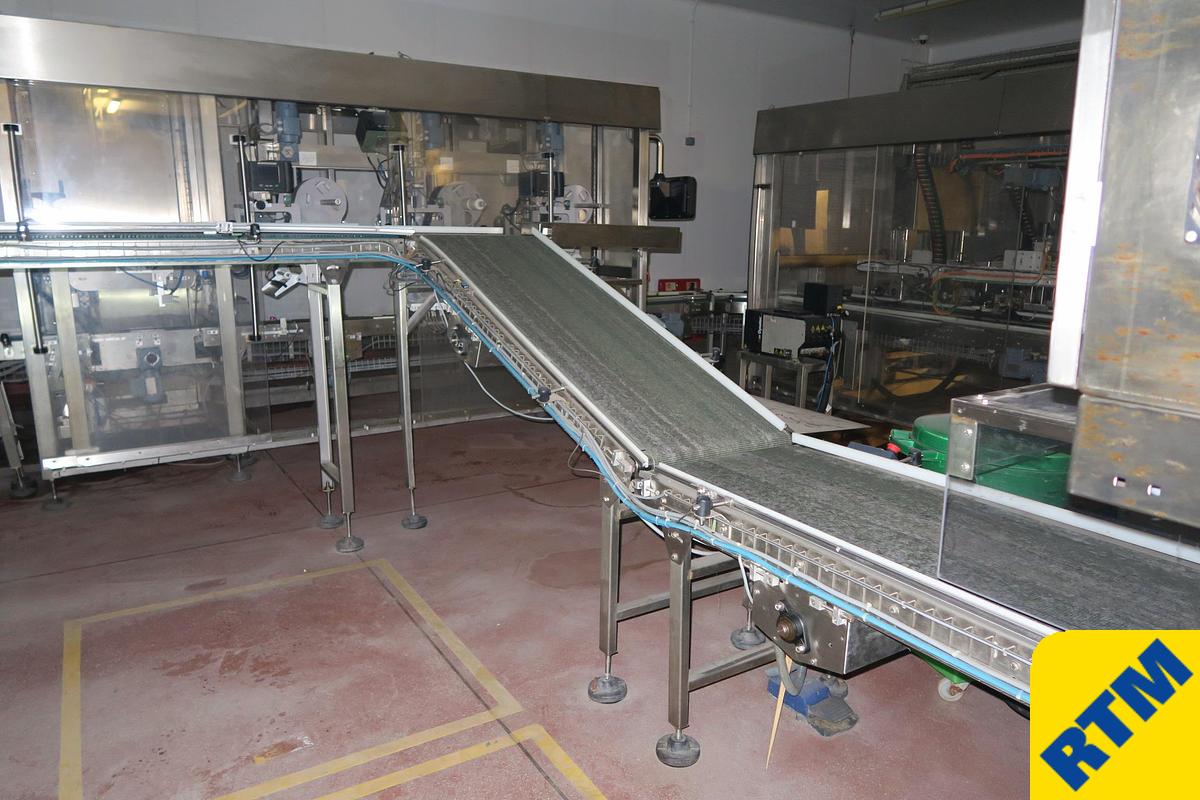

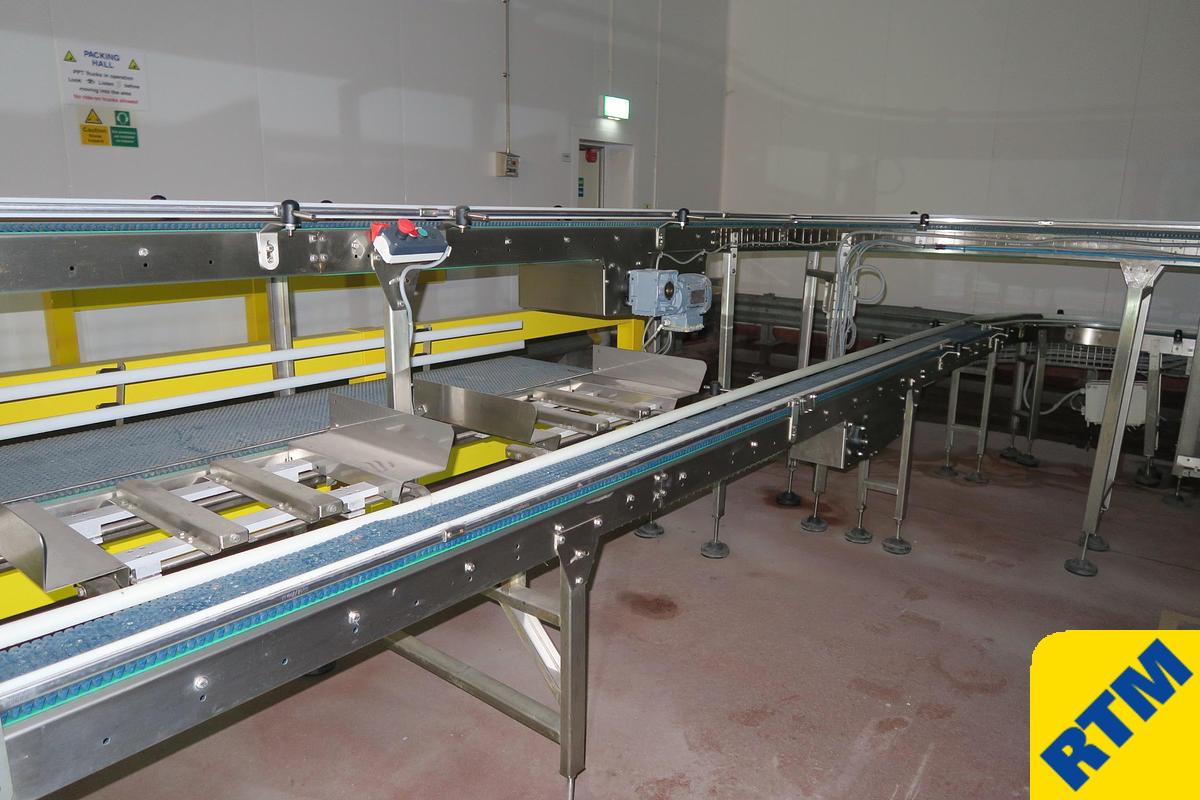

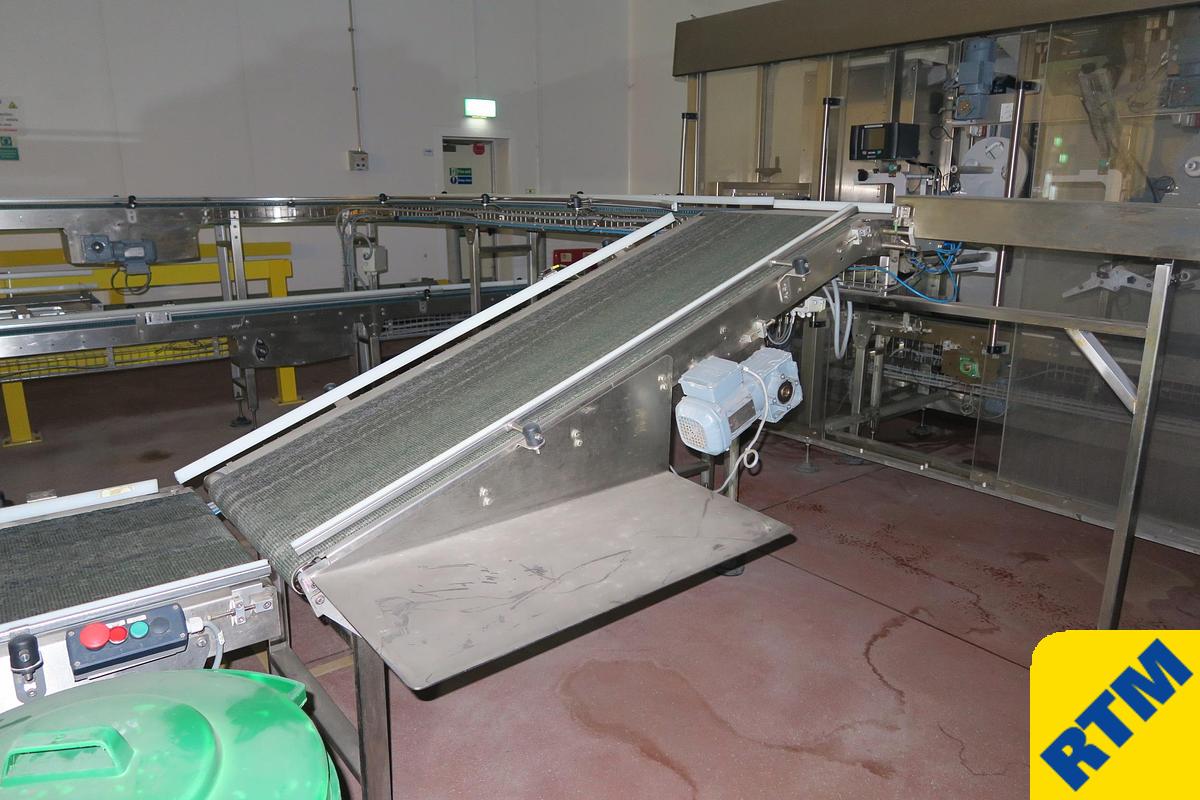

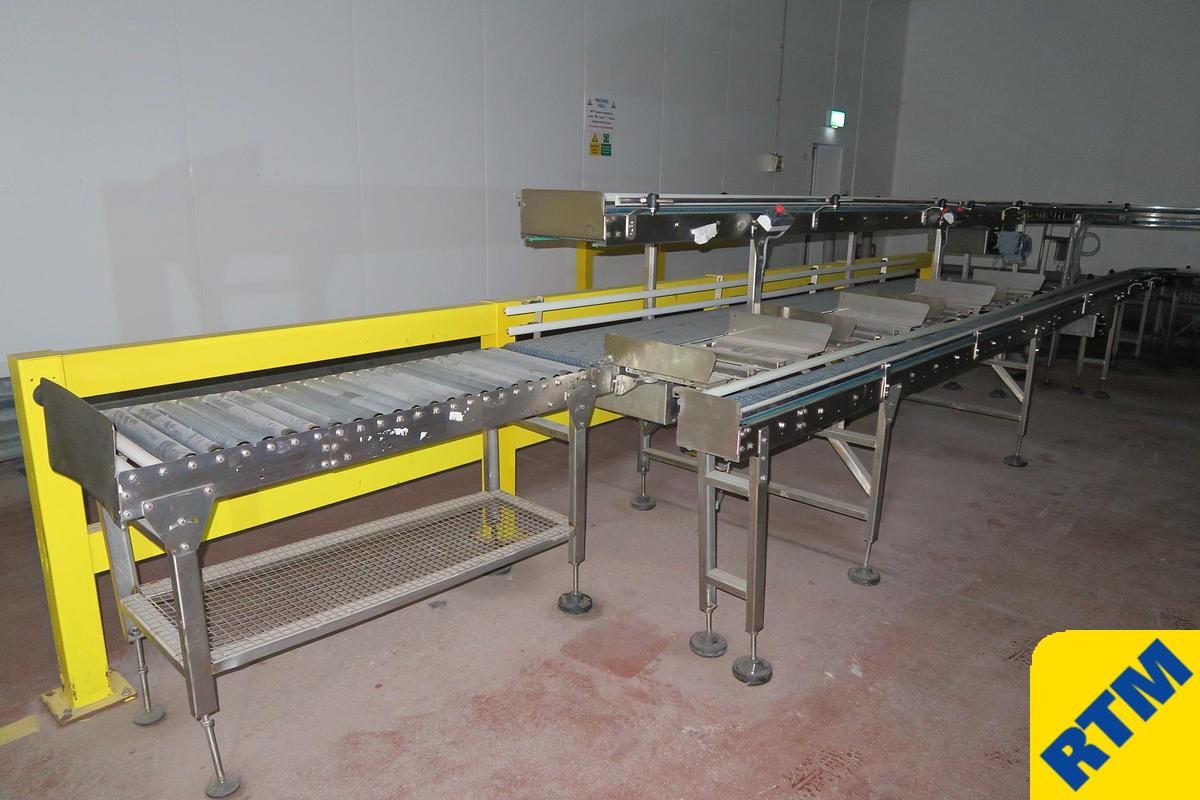

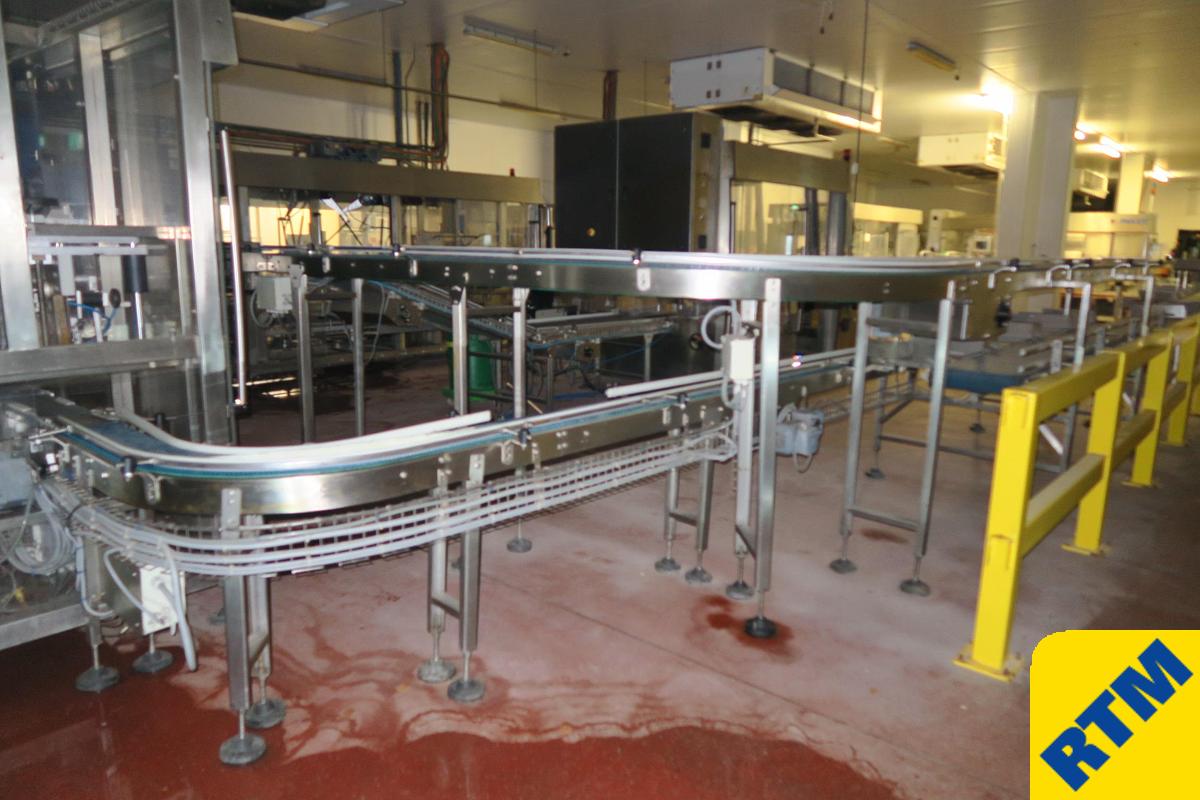

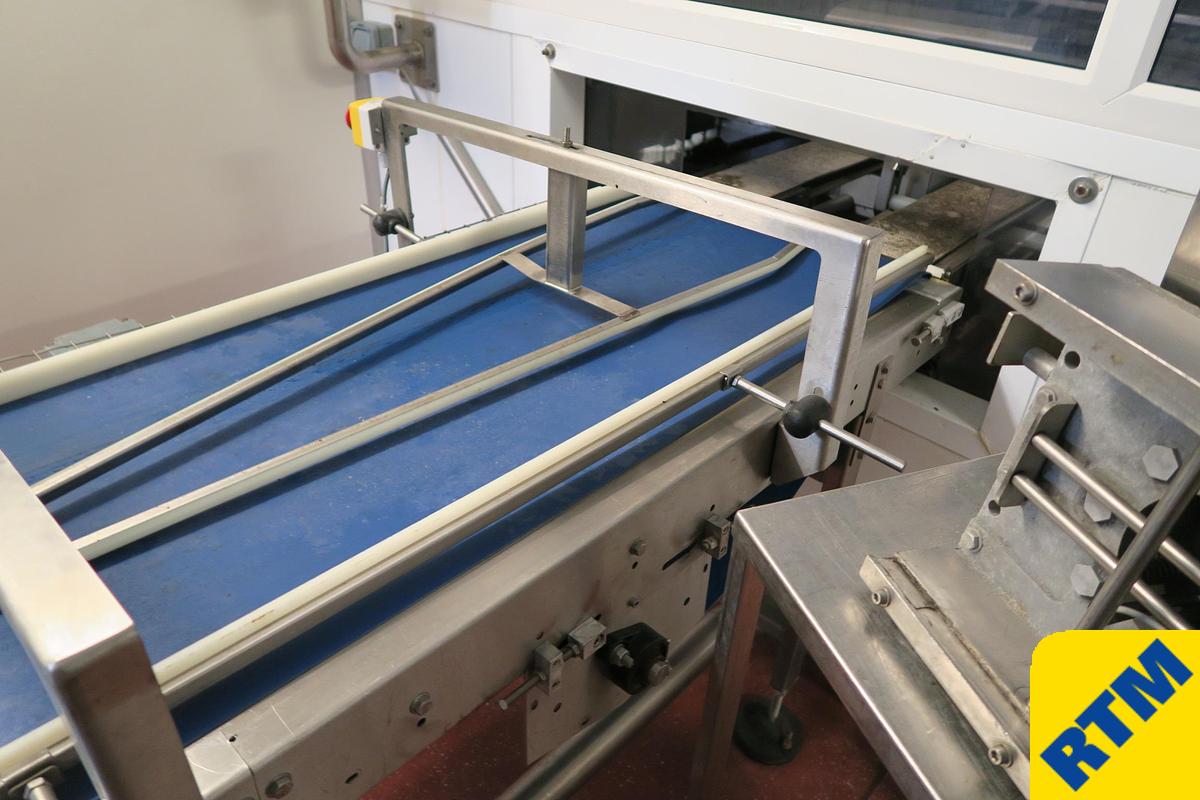

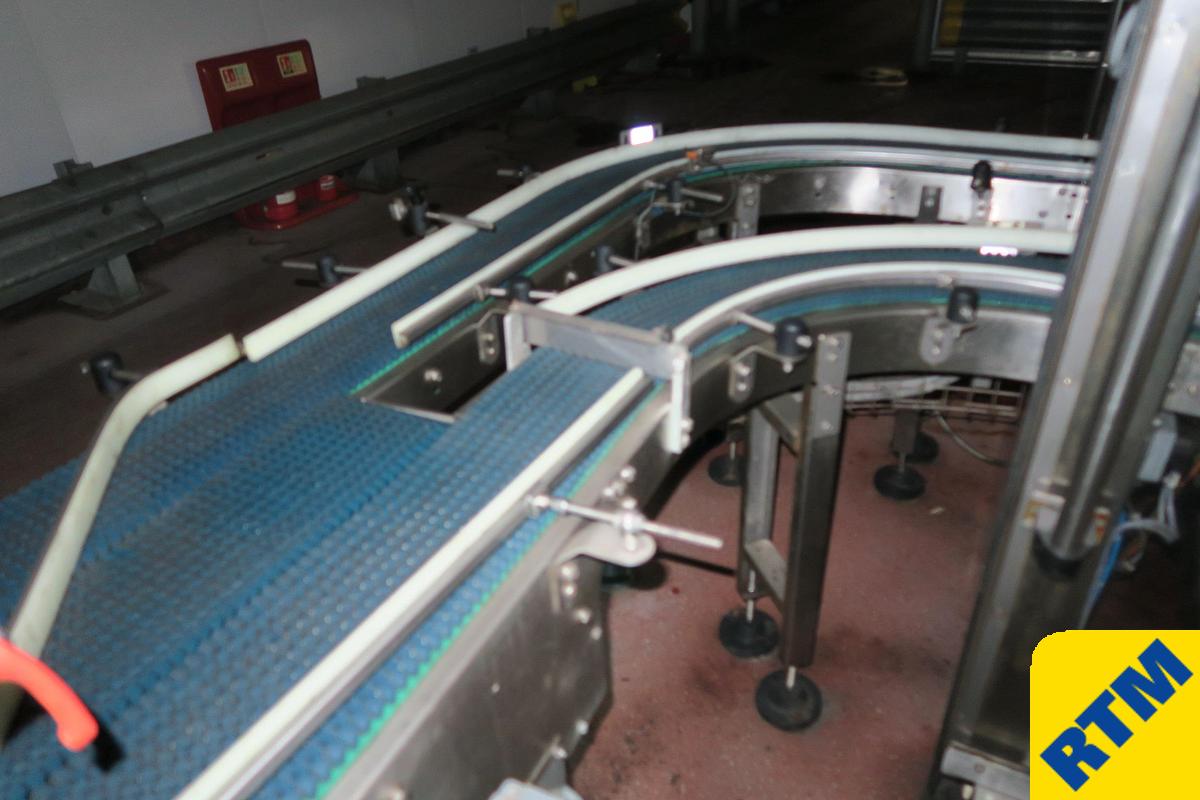

- Conveyors feeding manual case packing station, one conveyor from labellers and one with the case from the case former.

ATIA LINE 2

10-station Pumping Station for offloading ingredients from mobile hoppers. This system is stainless steel and incorporates support frame, pumps, pipe, valve, heat exchanger and two MONDOMIX D40 Ultralight Mixer/Aerators which connect to the filling stations on the ATIA filling machine

DESSERT POT LAYERED FILLING MACHINE

Manufactured by ATIA Machine Type STARFLEX 02 SND1565

Manufactured Year 2009

LINE 2 PACKAGING – Year 2010/2014

- IXAPACK COMBI Metal Detector and Checkweigher

- two conveyors with 90deg bend – one conveyor section is for a bypass route directly to case packing

- LABELLER with 3 top mounted label heads Each head with MARKEM SMARTDATE 5 date printer

- PAKER model MULTIPACK RC 11-080 Sleeve Packing Machine year 2014

- Conveyors feeding manual case packing station, one conveyor from labellers and one with the case from the case former.

ATIA LINE 3

15-station Pumping Station for offloading ingredients from mobile hoppers. This system is stainless steel and incorporates support frame, pumps, pipe, valve, heat exchanger and two MONDOMIX D40 Ultralight Mixer/Aerators and one MONDOMIX D15 Ultralight Mixer/Aerator which connect to the filling stations on the ATIA filling machine

DESSERT POT LAYERED FILLING MACHINE

Manufactured by ATIA Machine Type STARFLEX 03 SND1566

Manufactured Year 2009

LINE 3 PACKAGING – Year 2010/2011

- IXAPACK COMBI Metal Detector and Checkweigher

- LABELLER with 3 top mounted label heads Each head with MARKEM SMARTDATE 5 date printer

- IXAPACK Case Former serial D3428-L1 year 2011 with hot glue unit

- Conveyors feeding manual case packing station, one conveyor from labellers and one with the case from the case former.
