Item # 7360 - BUBBLE GUM LINE
complete bubblegum line including:

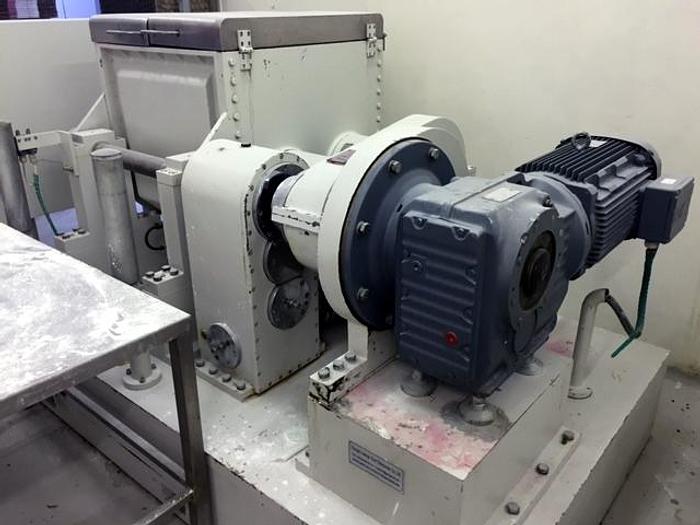

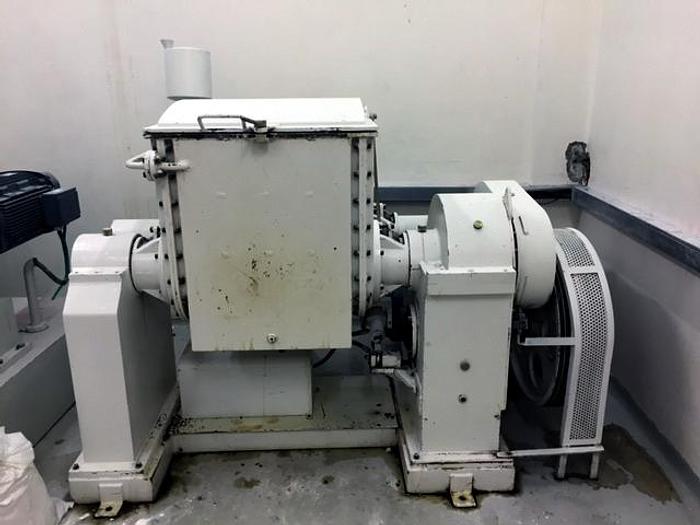

1 x PRAT 270 Jacketted Double Z Blade Mixer 150kg batch size

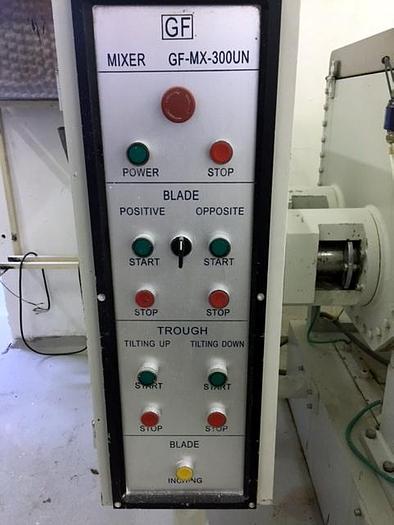

1 x GEORGE FOOD ENTERPRISES GF MX 300UN Jacketted Double Z Blade Mixer 150kg batch size

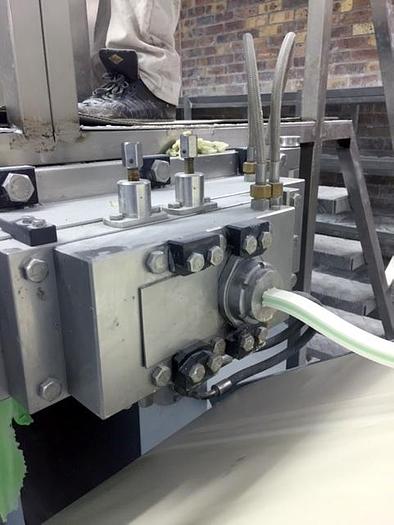

1 x BOSCH WEF 2010IN Bubblegum Coextruder
- option for 2-ropes – nominal capacity up to 1,200 kg/h.
They are running a single rope at 350kg/hr, you can comfortably run two ropes at a total output of 700kg/hr,
so depending on the size of your product you could get an output of around 1000kg/hr
Comes with two dies for two ropes as well as a second format (two dies for two ropes)

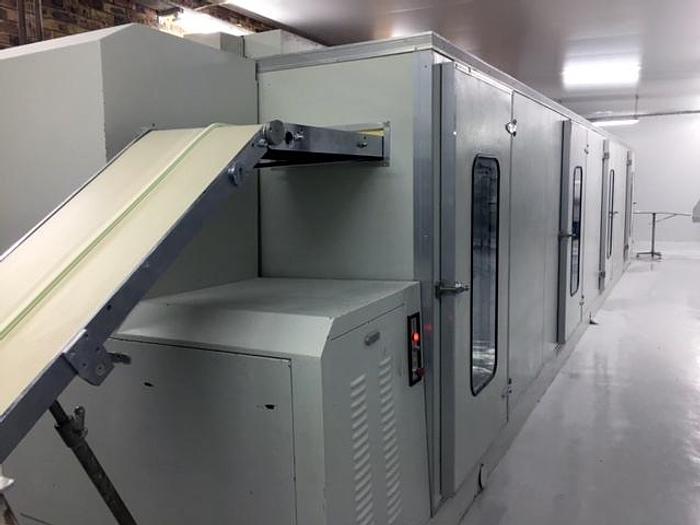

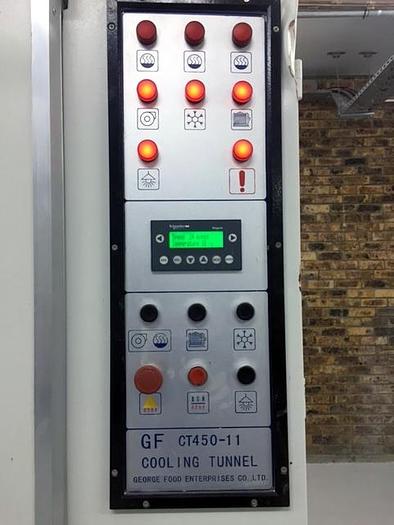

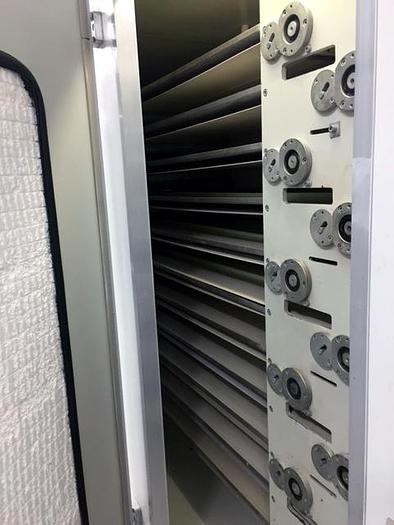

1 x GEORGE FOOD ENTERPRISES GF CT450-11 Bubblegum Cooling Tunnel Complete with Refrigeration
(9m long x 11 tiers = 99m of cooling belt)

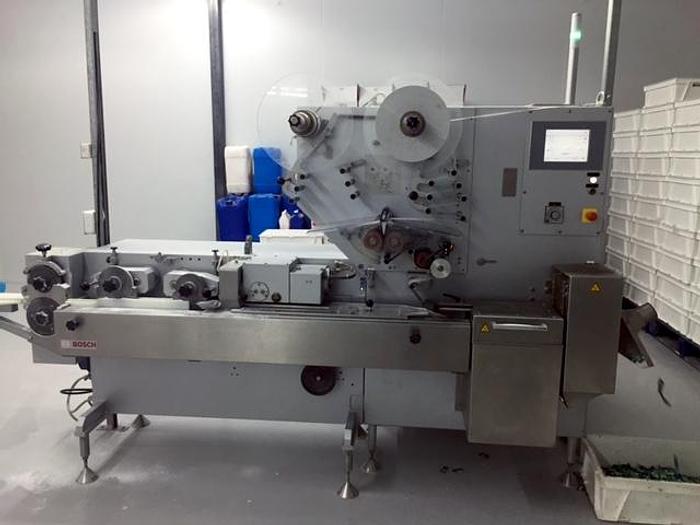

1 x BOSCH BVK 2000S Pillow Pack In Line Cut & Wrap Machine. Complete with calibrating rollers. currently working on 4gr per piece – 22mm x 16mm x 7.6mm - length variable (servo & plc controls)
Product dimensions:
Height: 2 - 15 mm. Width: 12 - 30 mm. Length: 18 - 120 mm
Pack dimensions: min. 40 x 15 mm. max. 200 x 50 mm
Output: up to 1,600 ppm
still installed and running, hardly used.
(4 operators to run the line - 2 x Mixers, 2 Machine Operators)


Stock Number7360
