Chocolate Temperer/ Enrober/ Depositor
Description

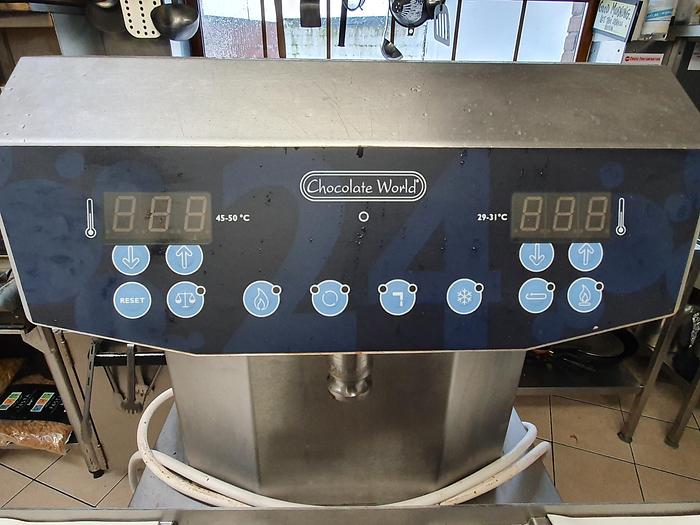

Item # 8286 - CHOCOLATE TEMPERER WITH ENROBING BELT AND DEPOSITING HEAD
Manufactured by CHOCOLATE WORLD

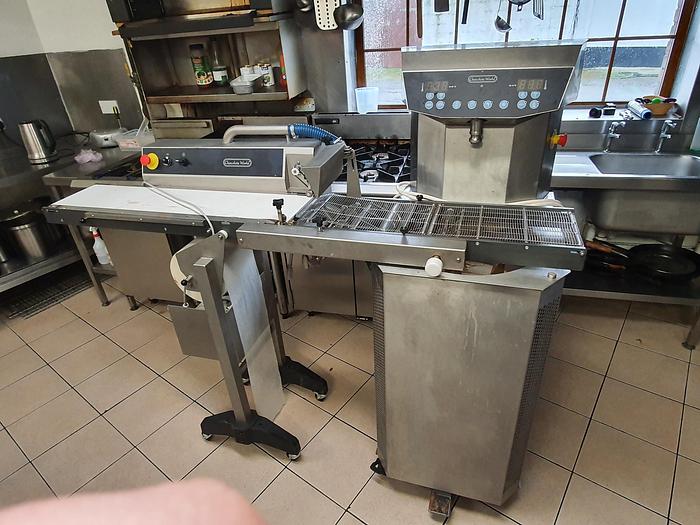

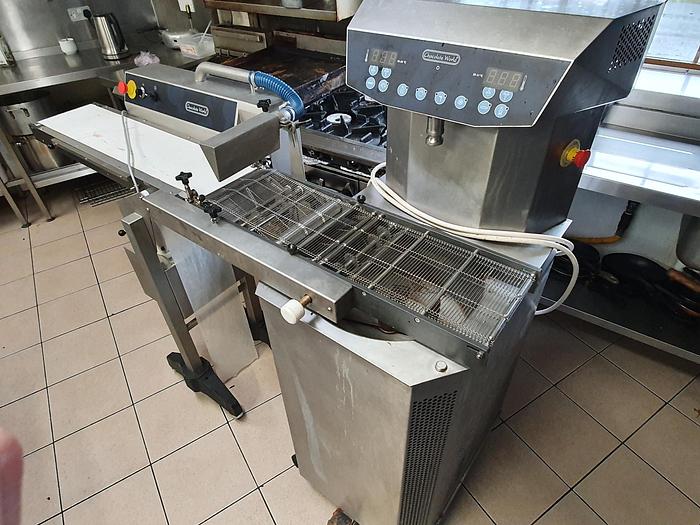

This machine can be used as a temperer, hand moulding machine, enrobing machine and depositor

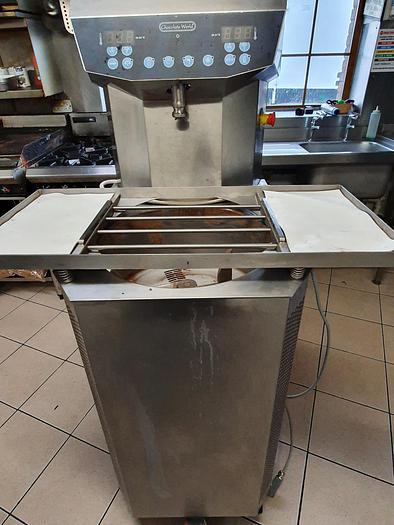

Model CW24
24kg capacity of chocolate able to produce up to 90kg/hr
Year 2018

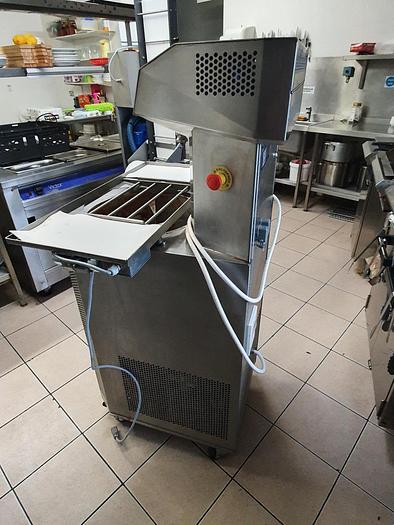

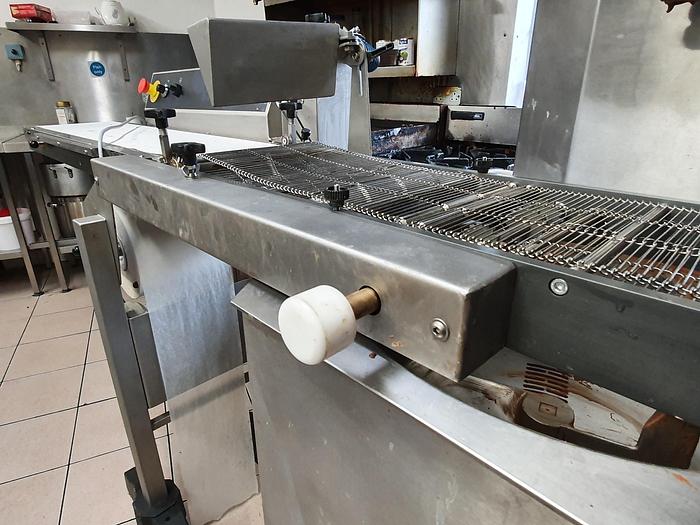

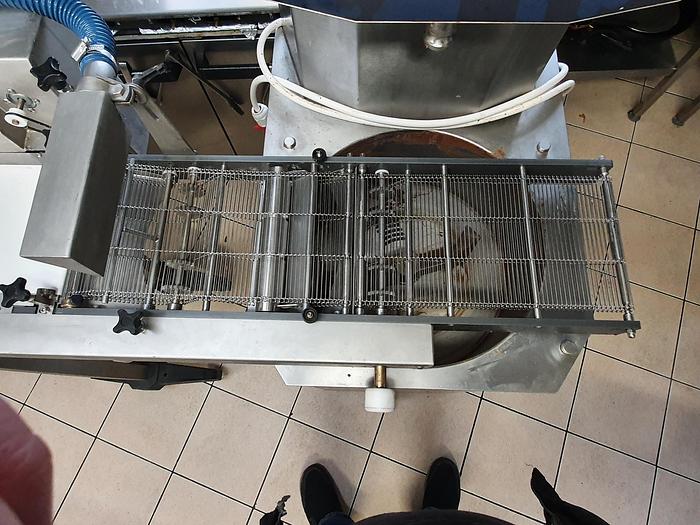

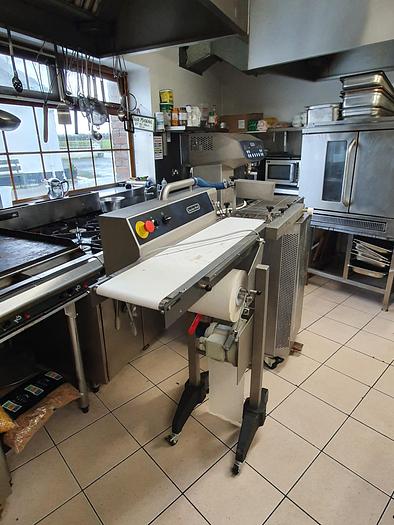

Model TE20 Enrober with double chocolate curtain, vibrating station, adjustable blowing unit, detailer, conveyor belt covered with paper (width 200 mm).

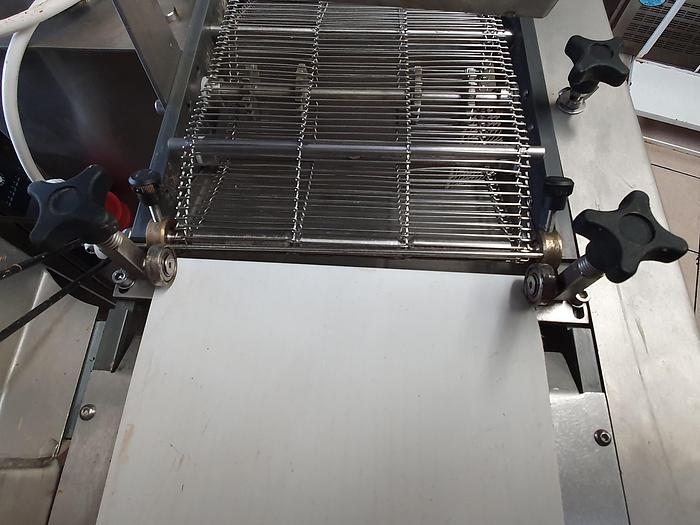

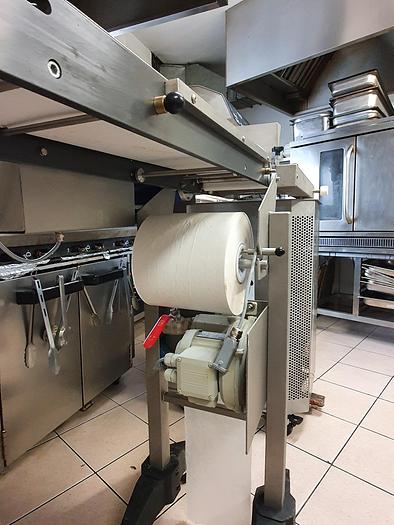

The thickness of the chocolate can be adjusted by the vibrating system (adjustable in intensity) and by the blowing unit(adjustable in height and intensity). At the end of the line, the product is placed on a conveyor belt covered with food-grade paper. The conveyor belt speed can be set by means of a regulator
Foot pedal control of deposit

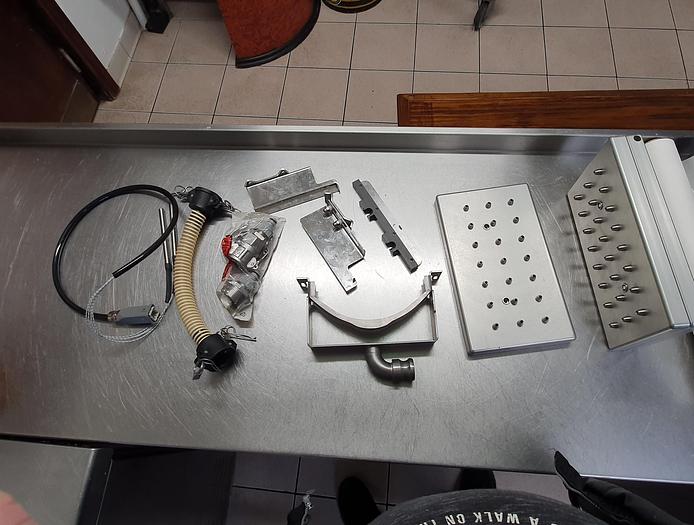

The dosing head distributes the liquid chocolate into the moulds. This saves time as the user does not has to scrape the chocolate manually. Furthermore it guarantees hygienic processing. The standard version is equipped with two dosing plates (3x7 and 3x8 layout), a mould guidance system installed on the vibrating table, a heated scraper and a dosing unit.
With heated vibration table

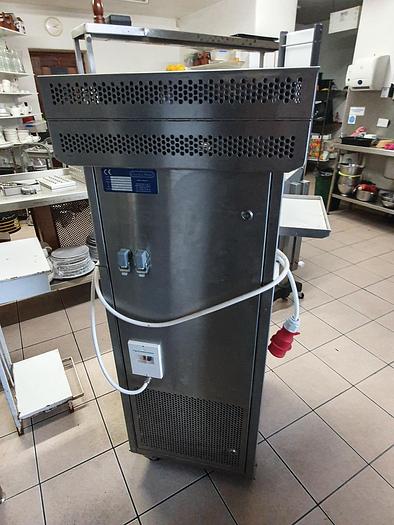

CW24 is 400v 50hz, 3ph TE20 is 230volt, 50/60hz, 1phase
Specifications
Manufacturer | Chocolate World |
Model | CW24 |
Year | 2018 |
Condition | Used |
Stock Number | 8286 |
