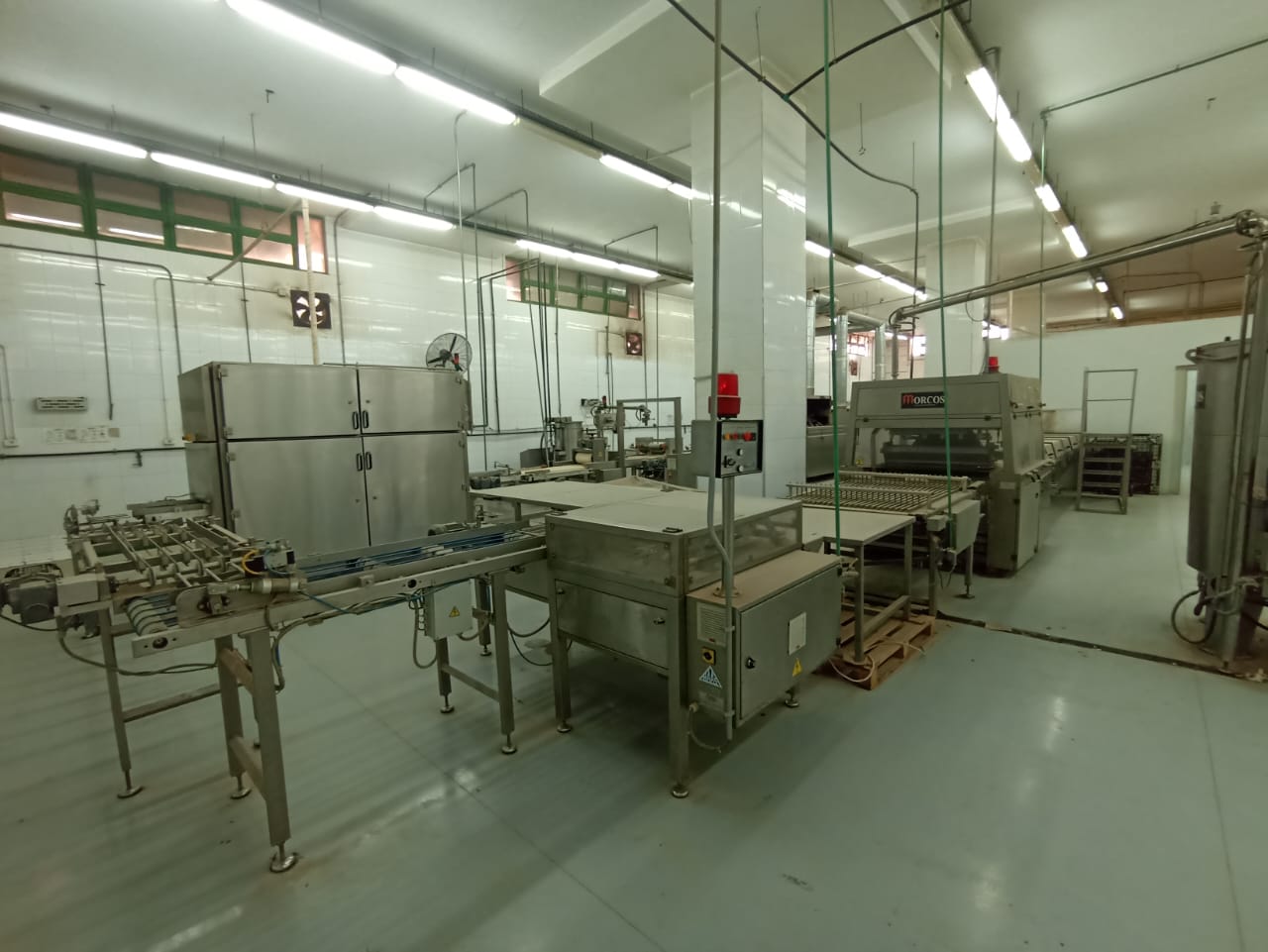

Wafer Production & Enrobing Line (sticks and sheet wafers)

Item #8817 – WAFER PRODUCTION LINE WITH CHOCOLATE ENROBING LINE

(wafer stick oven and sheet wafer oven)

Manufactured by HAAS/MORCOS

Year 2020, Wafer line including :

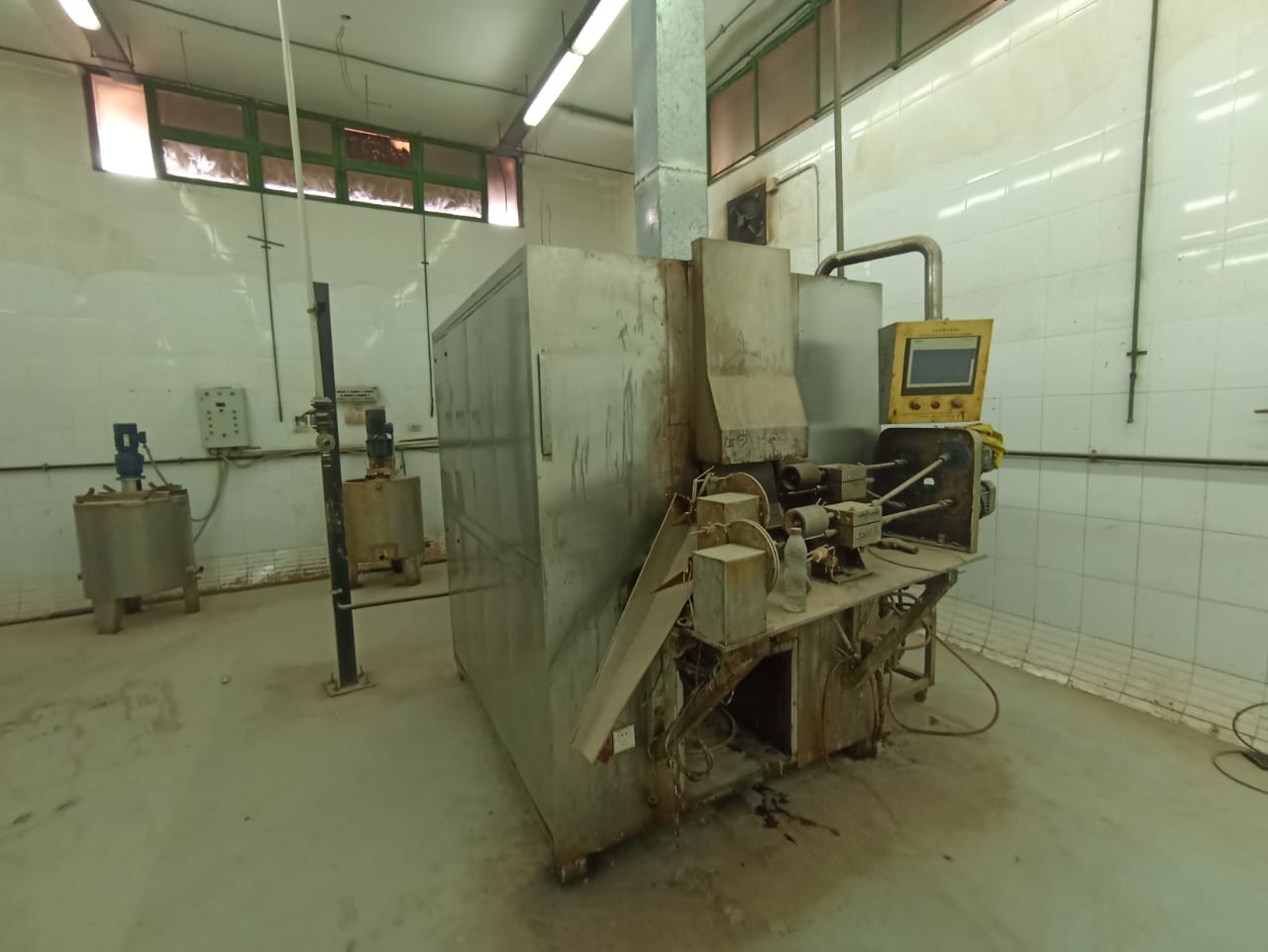

SHANGHAI KUIHONG FOOD MACHINERY FACTORY Wafer Roll/Tube Oven, suitable for both filled or hollow wafer rolls/tubes

Also including a Mixing Machine, Pumping & Filling Machine, the Wafer Roll/Tube Oven, Cooling Conveyor, and a Ball Mill.

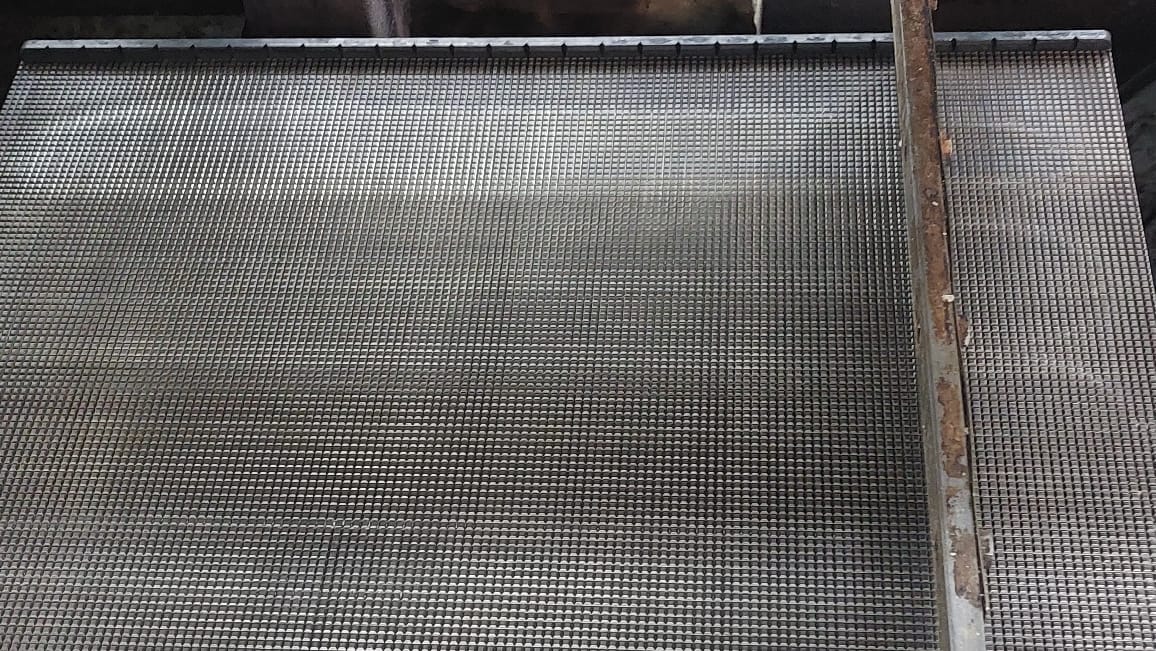

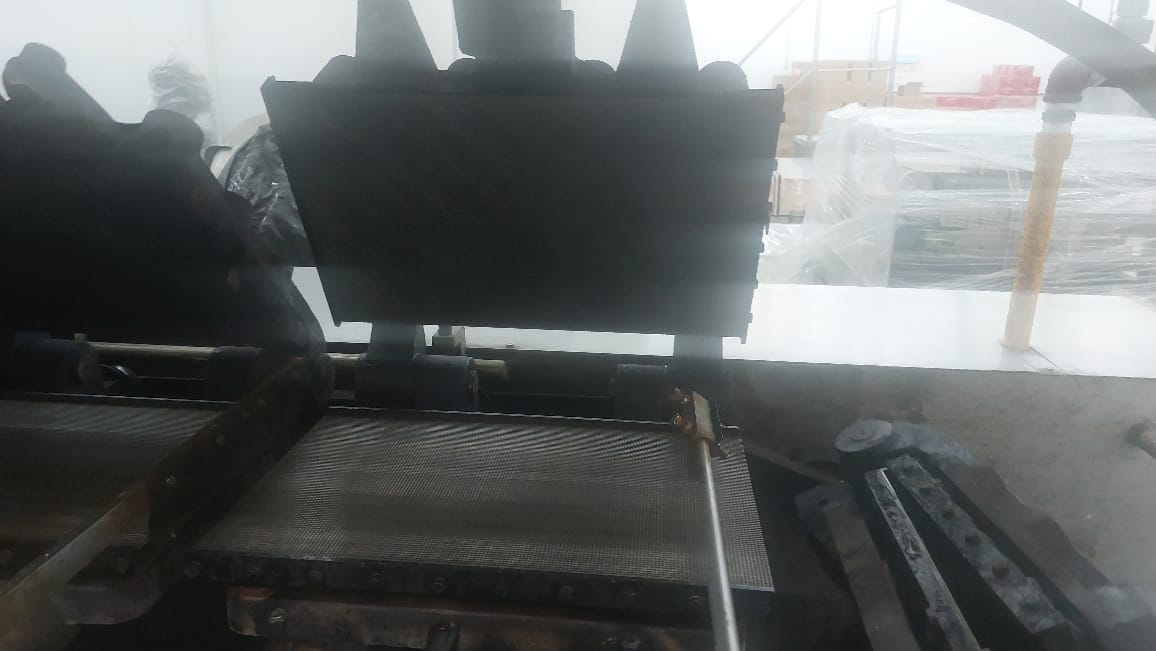

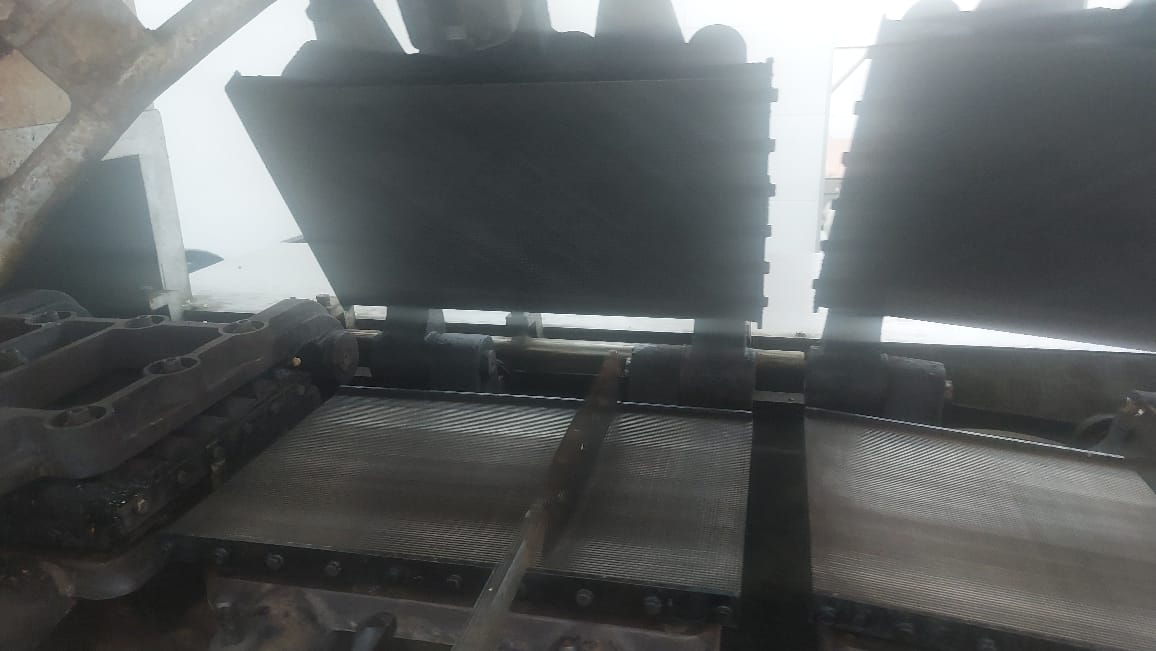

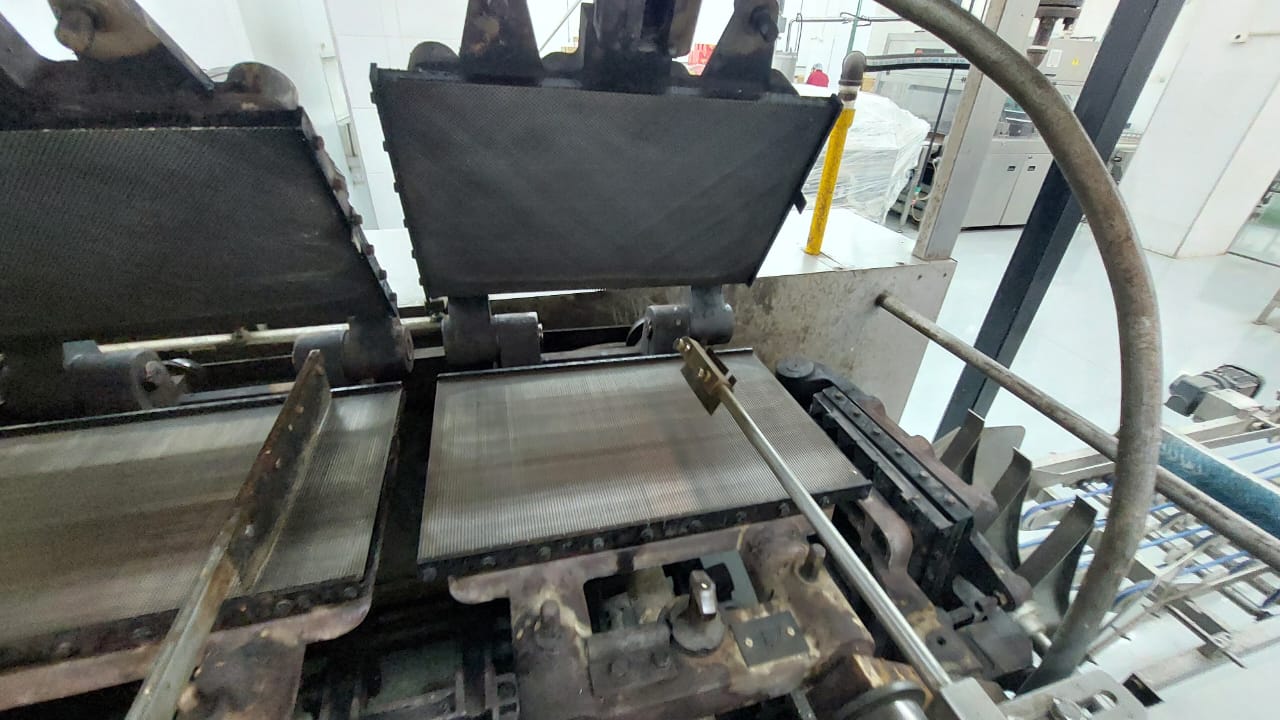

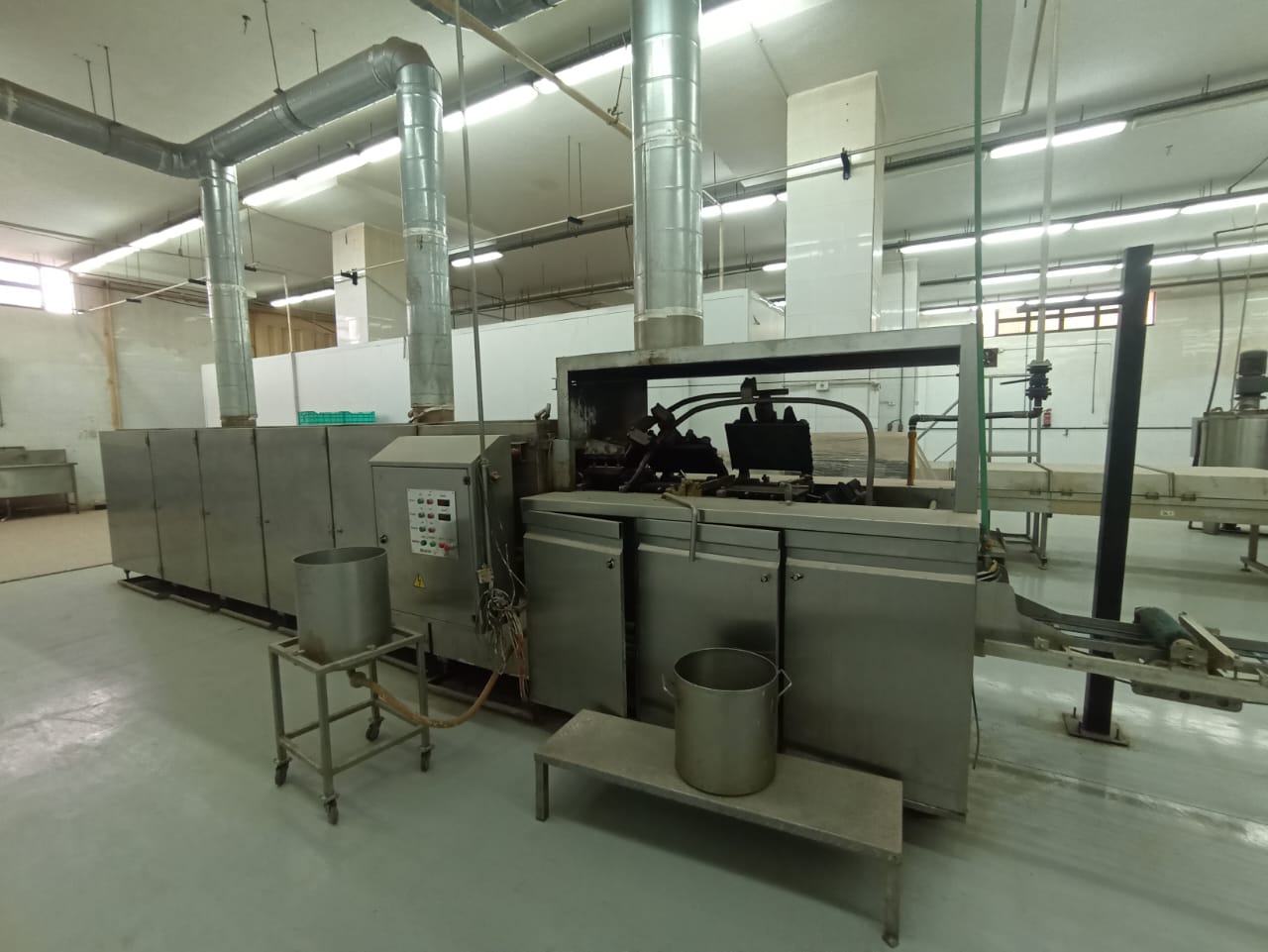

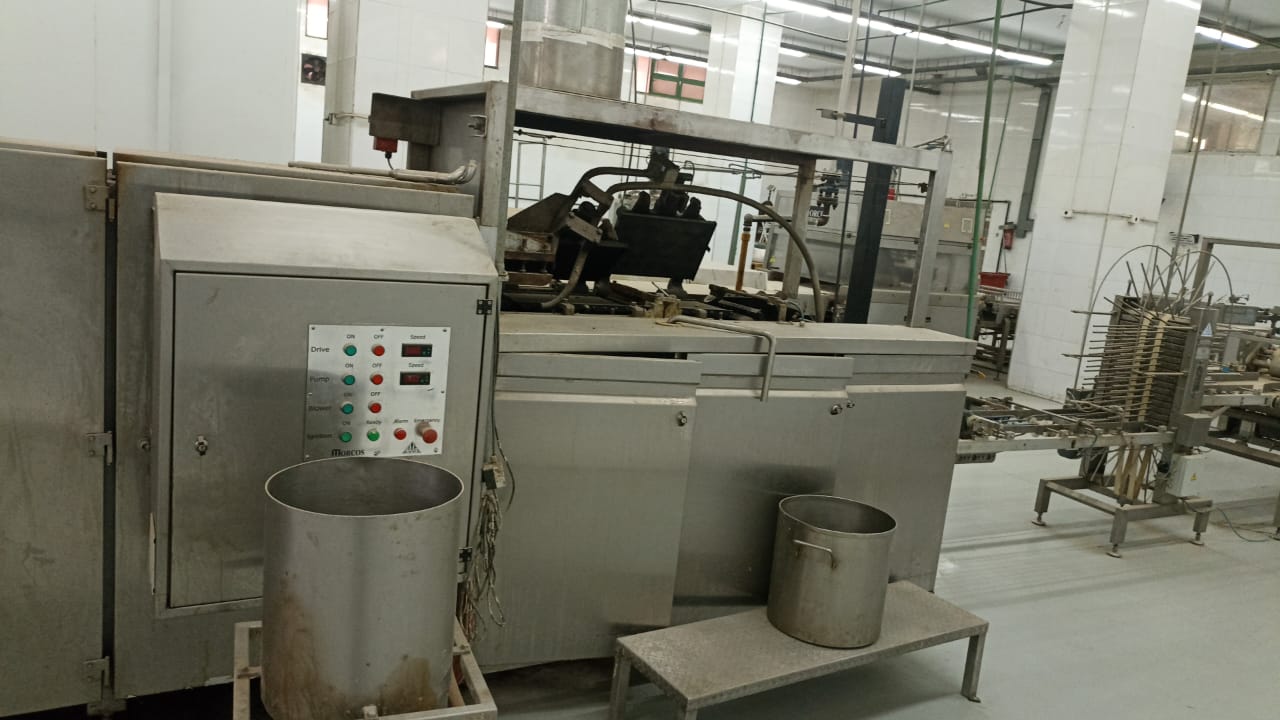

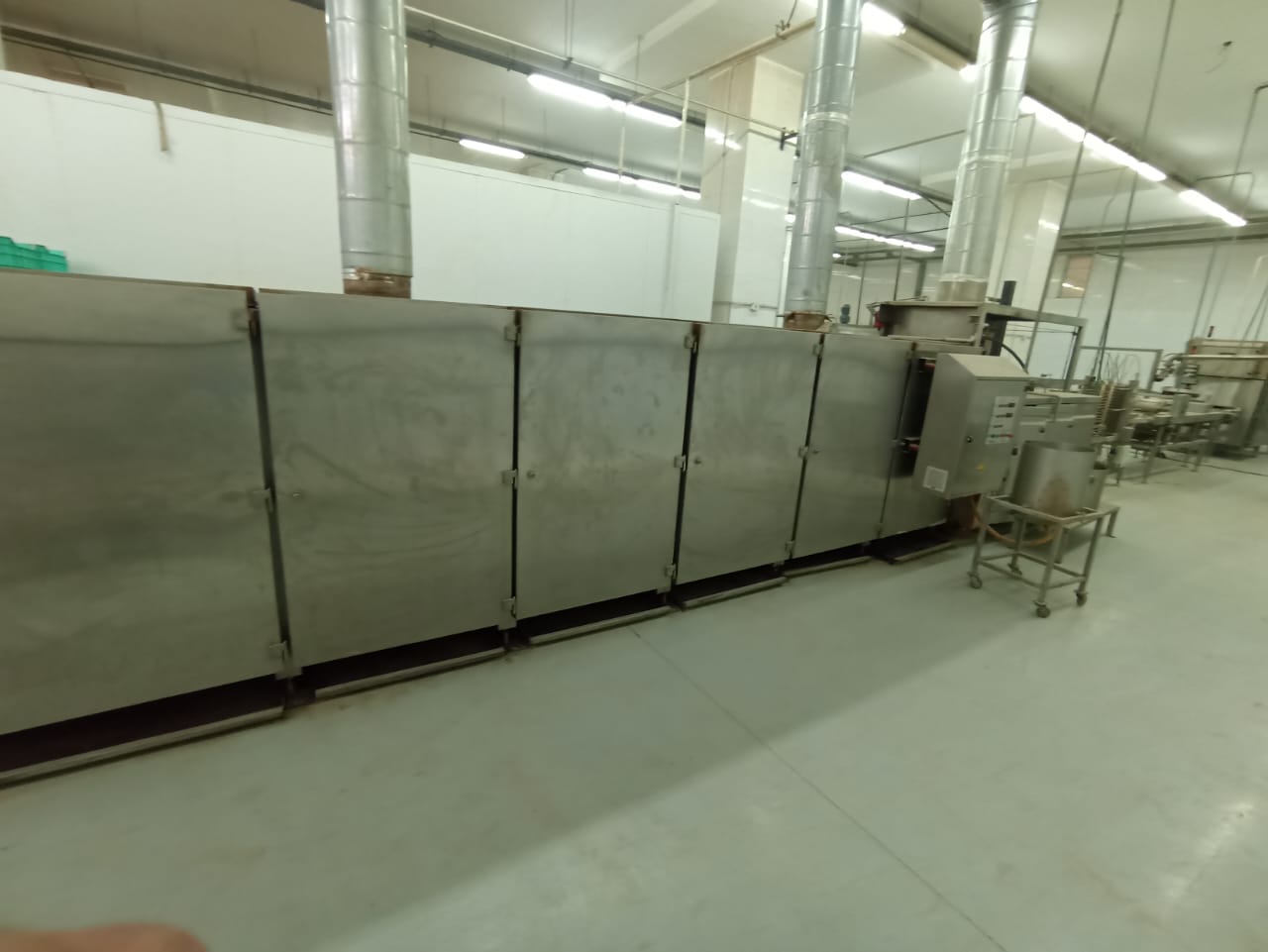

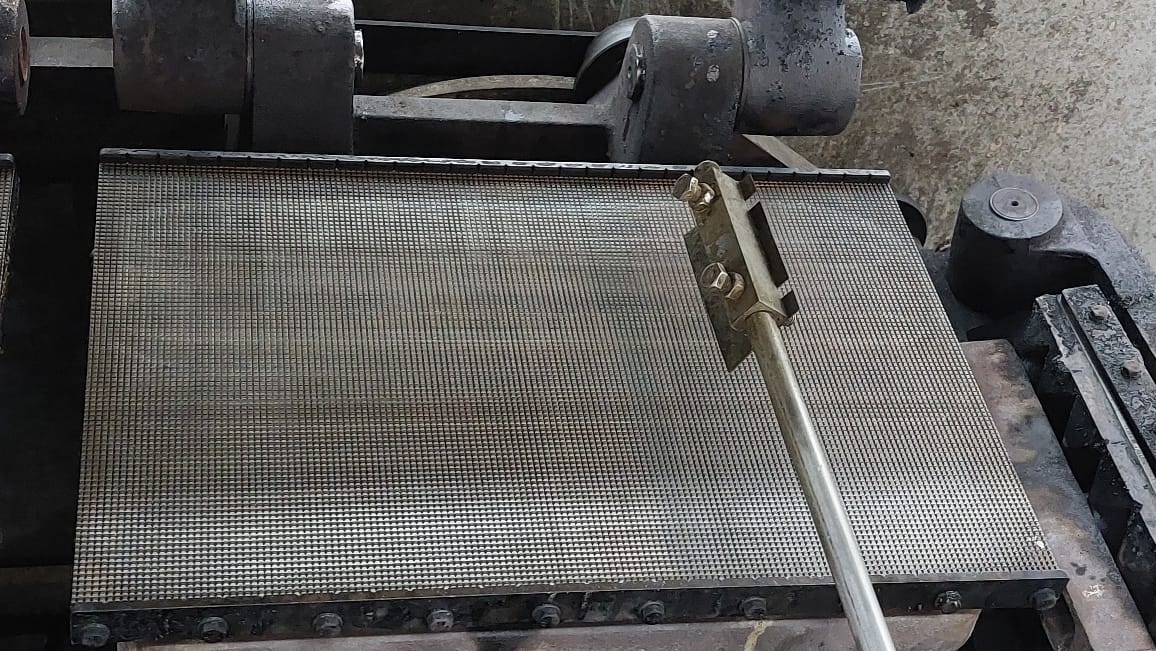

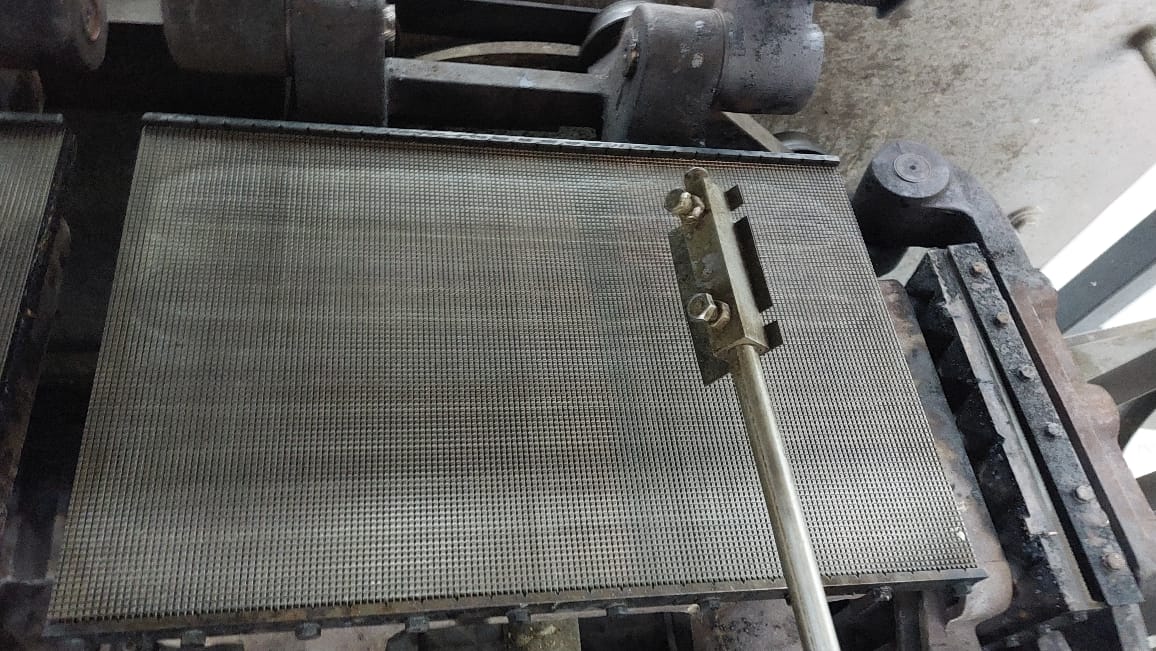

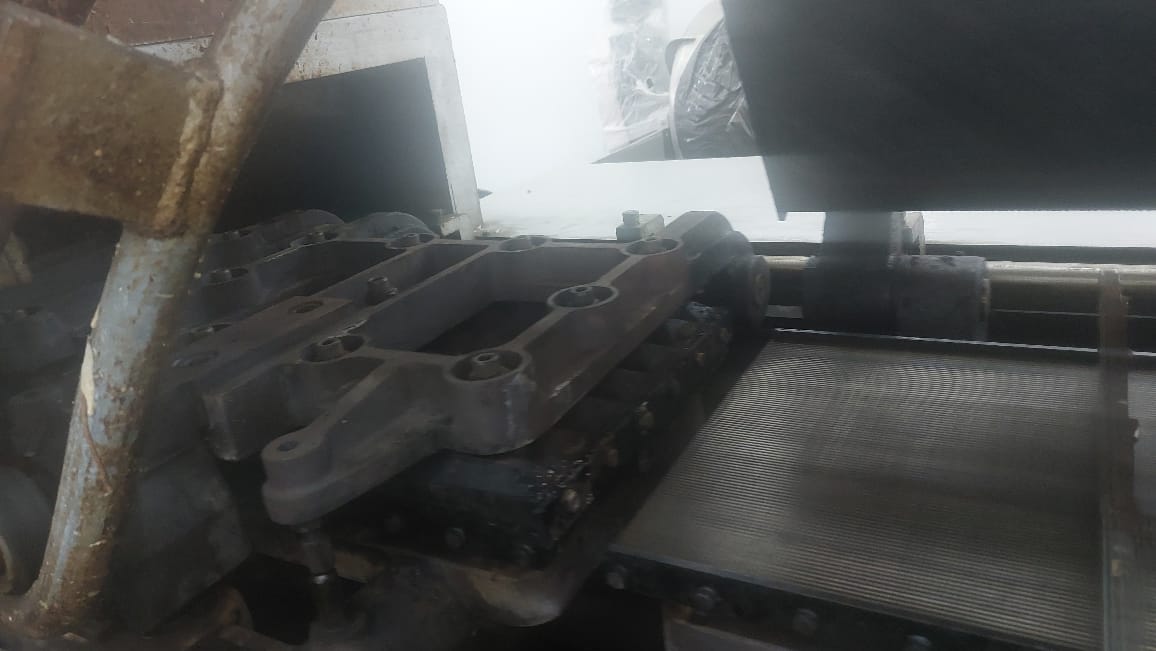

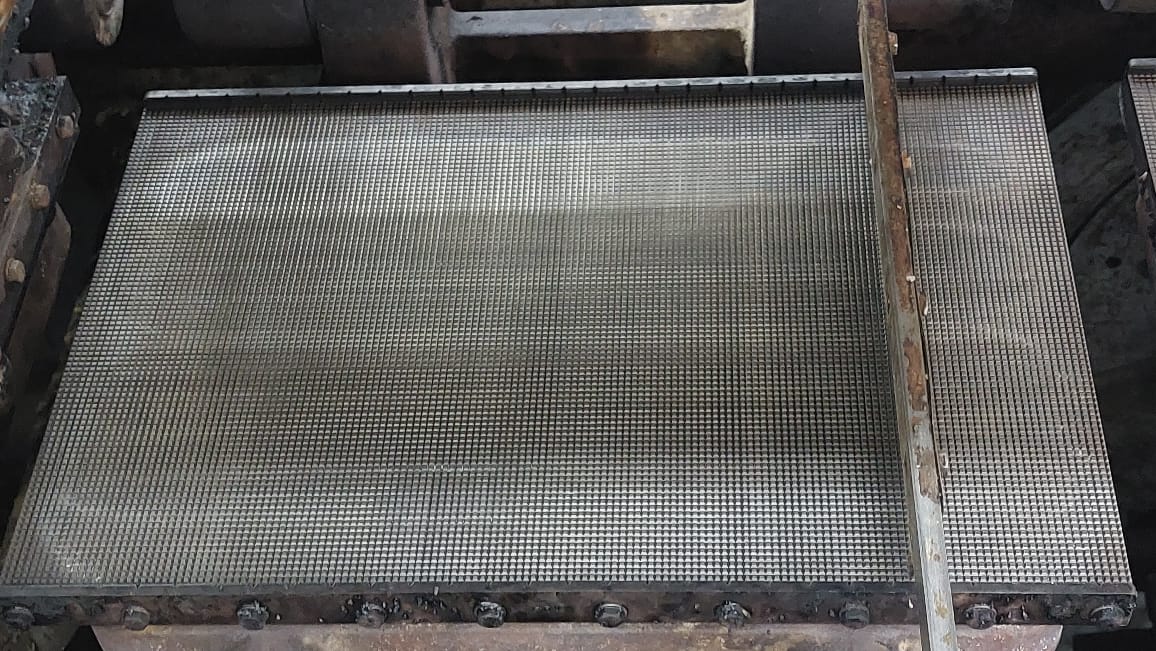

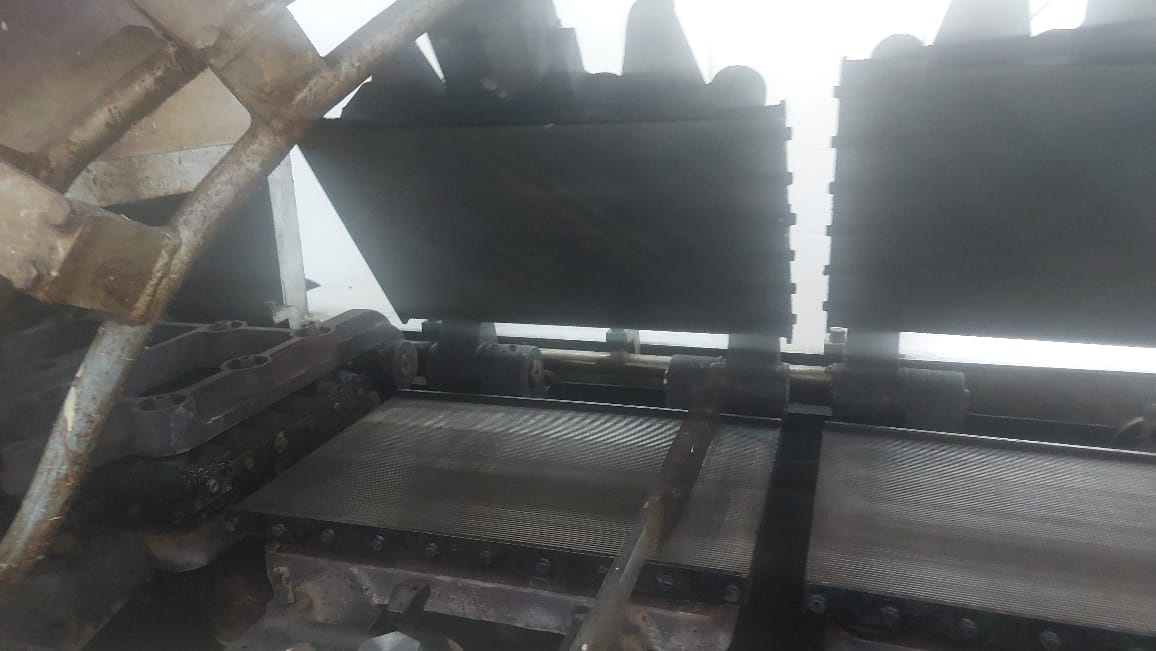

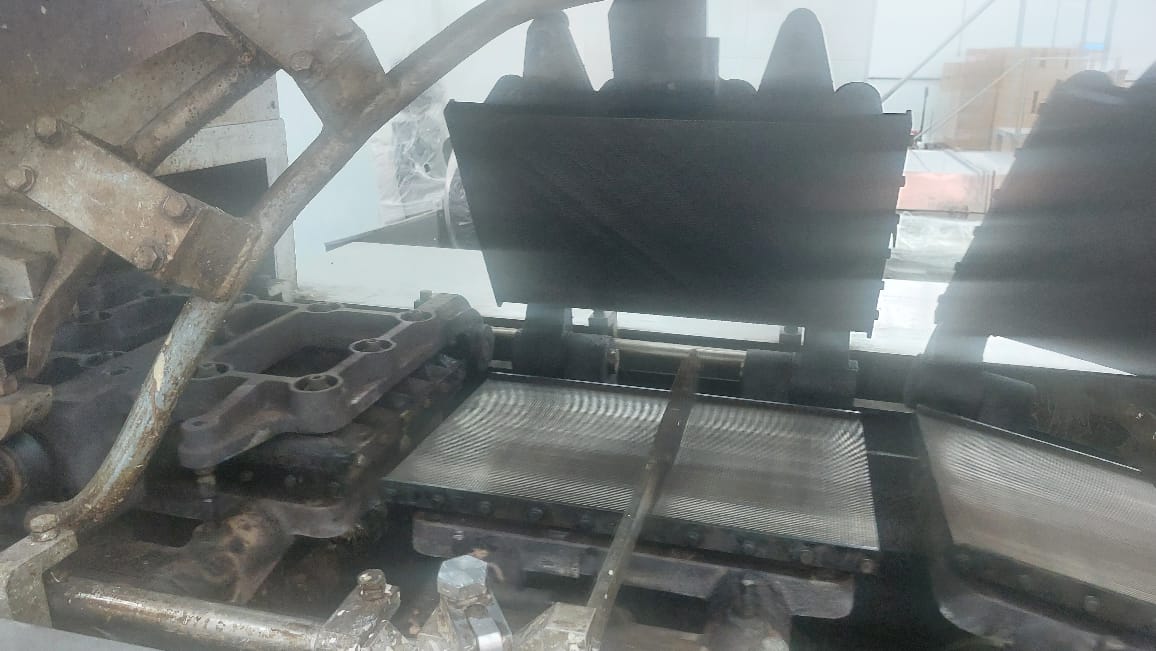

SWA-31G Wafer Sheet Oven, plate sizes 290 x 460mms, 31-plates

Wafer Sheet cooler type DEV-1.2 m

One Spiral Contact cream spreading machine type STM

Turning conveyor type WDB

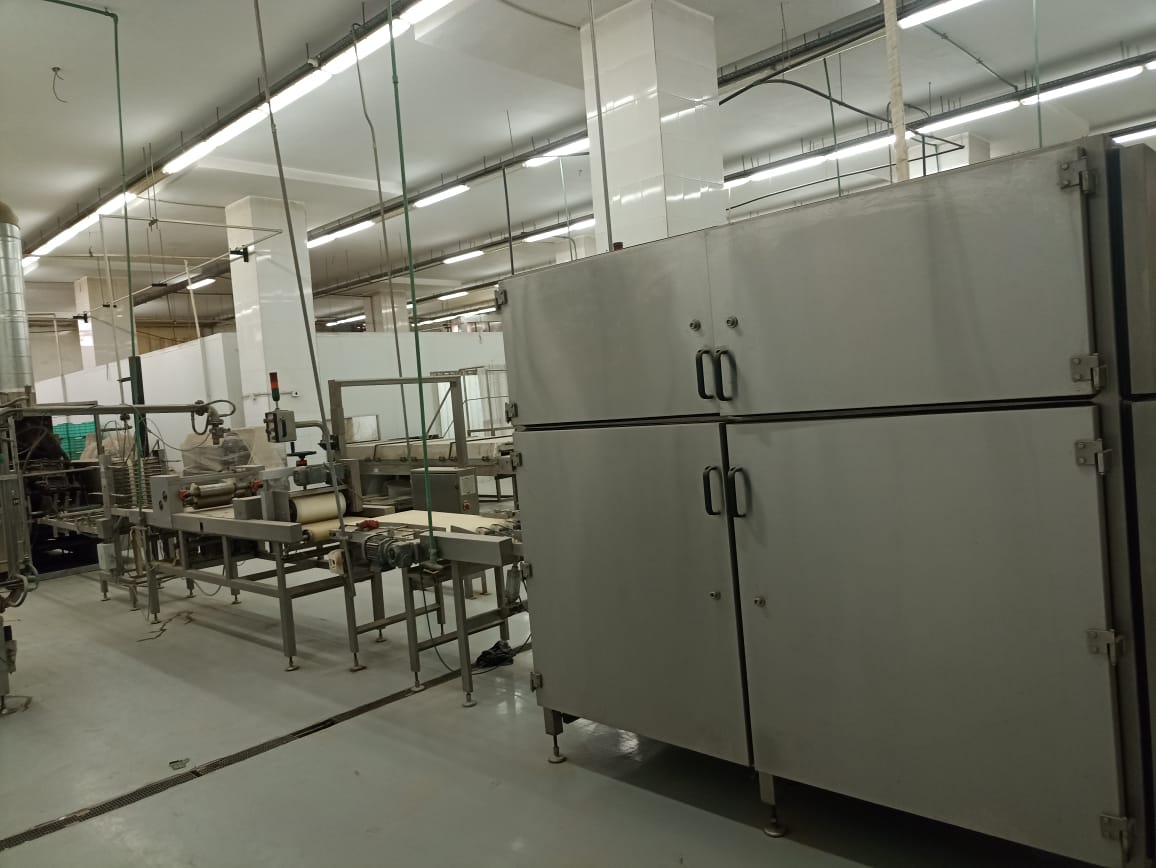

One Wafer book cooling tower type WKF 70

One Cream turbo mixer type TCM125

One Ejection Table for wafer blocks type ET

One Wafer book cutter type MWDL

Turbo dough mixer type TMN 120

Scraper machine type C40T

High performance turbo mill type CS

TU50-90 Stainless Steel 90degree Turntable, band width 500mms, food proofed material, round belt.

One separator and accumulation belt type AZV + BSB for one size

Enrobing Line including :

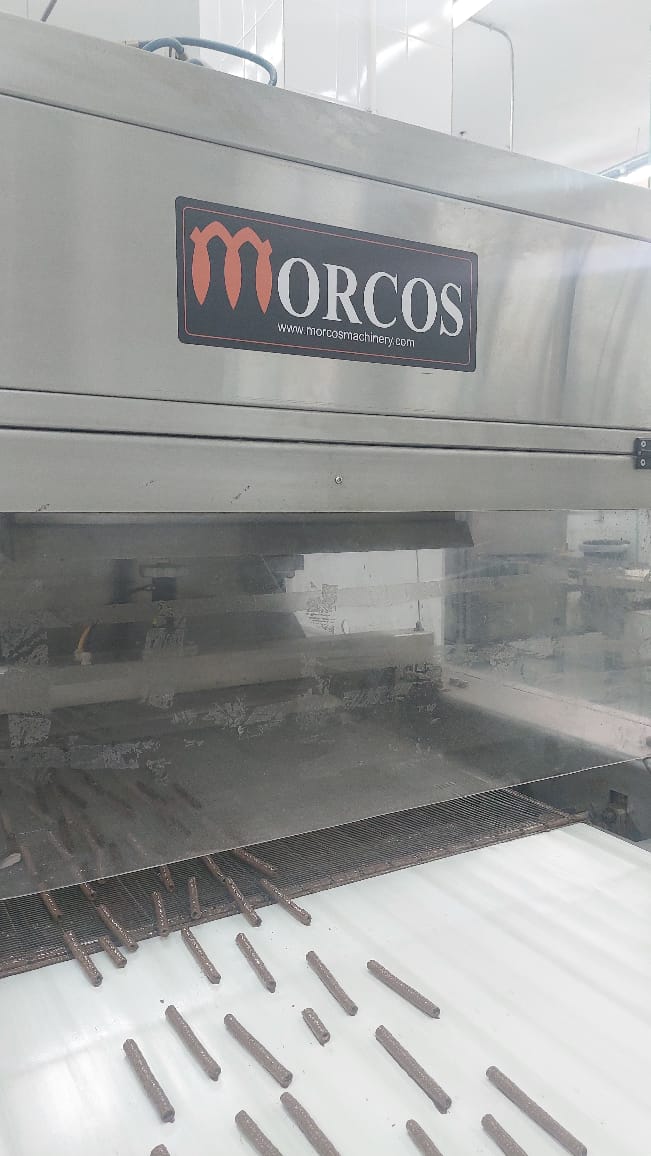

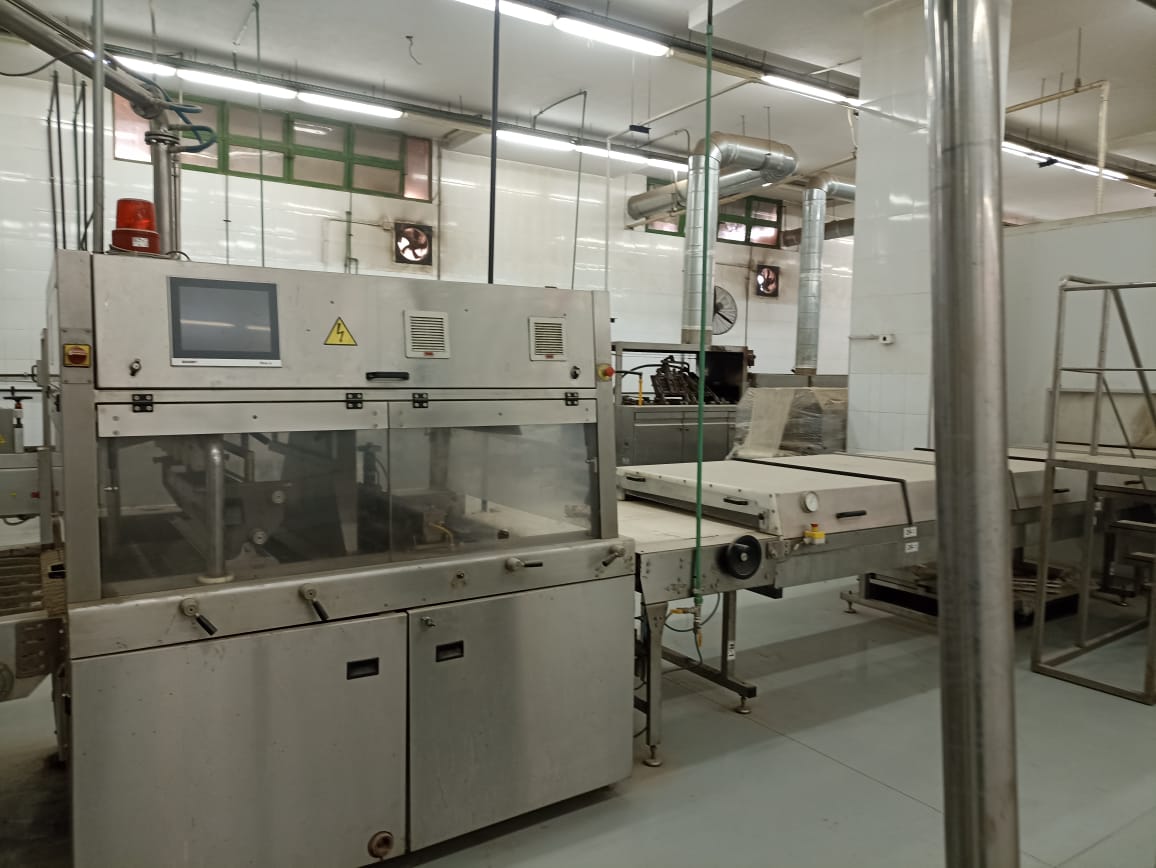

One enrobing machine Type COVER 1050 PC for compound Chocolate, consisting of:

00,50 m One wire mesh Infeed table

01,84 m One Enrobing machine type COVER 1050 PC with chocolate pump

Mobile tank for easy cleaning

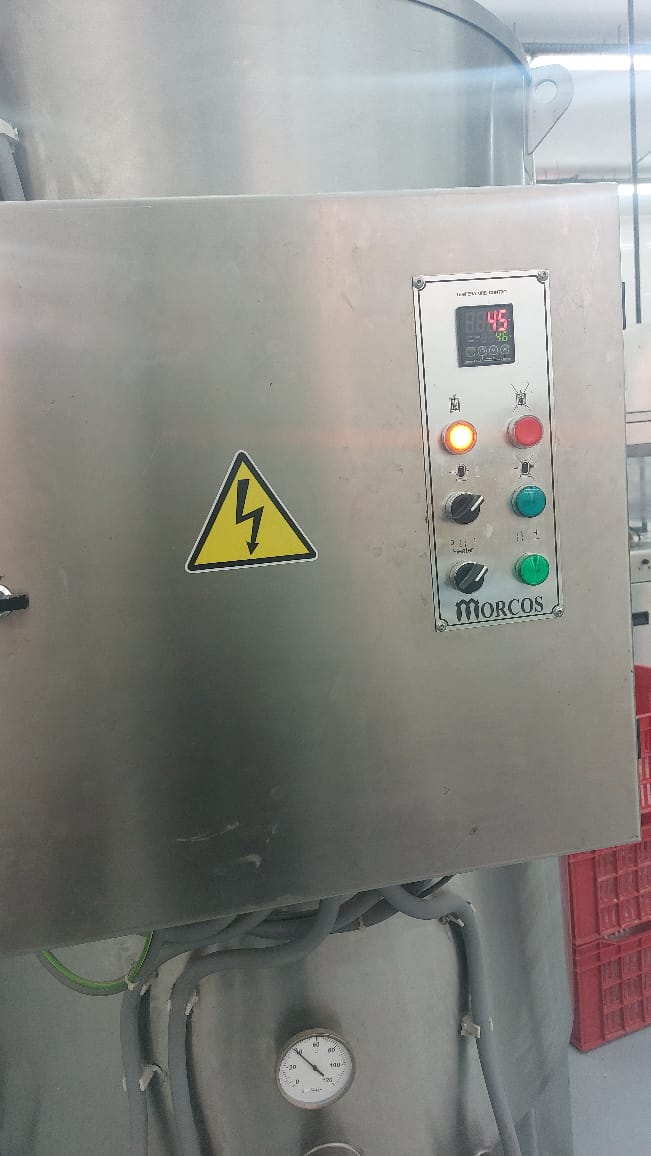

Touch screen and PLC to control the enrober and the cooling tunnel

One Stainless Steel Cooling Tunnel Type STKK 1050-13.3, with 1metres Decorating Table,

Pneumatic Belt Control at inlet, 13.3metres long Contact, convection cooling type STKK,

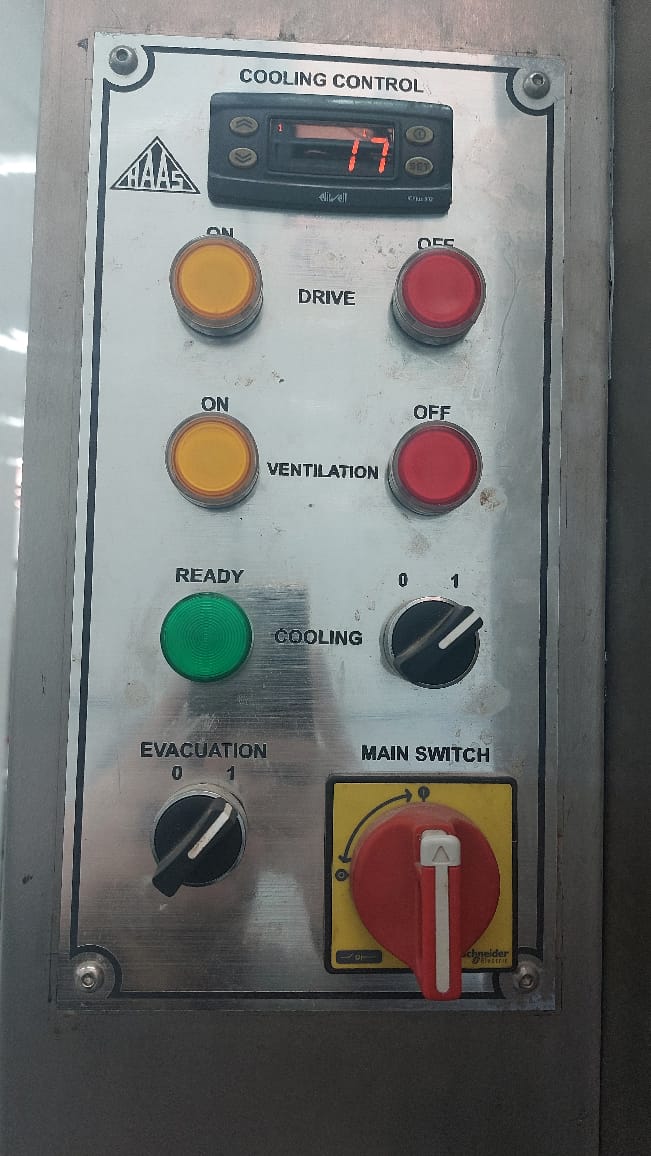

Complete cooling system 12Kw cooling capacity, drive stand with infinitely variable speed by frequency inverter,

Three cleaning rollers with spring supported scrapers, pneumatic tensioning station for the cooling tunnel belt,

Pneumatic belt control at outlet, 1.5metres Packing Table.

Equipment needed for chocolate feeding consisting of:

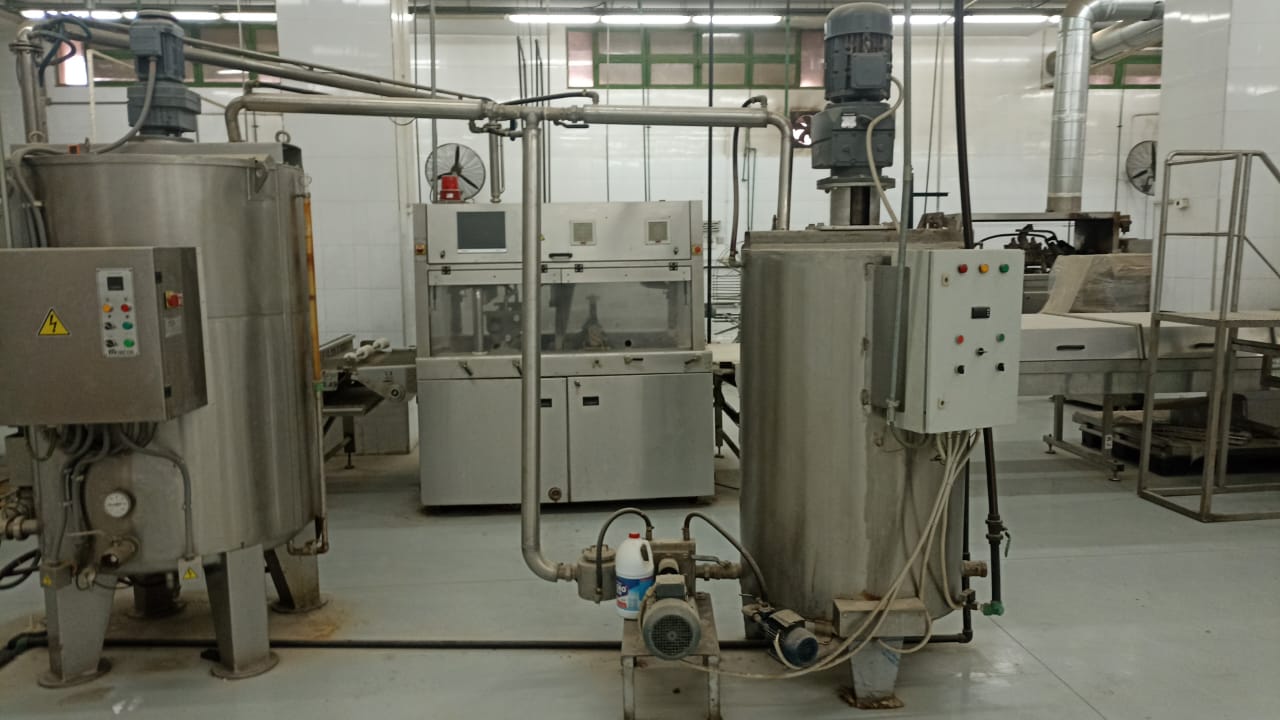

- One double jacketed steel chocolate tank type AWK1000 for 1000 kgs

- One double jacketed cast iron pump with own drive and base type TM6

5,00 m stainless steel double jacket pipes.

Still set up on the factory floor, Must all be sold together.
