DOYPACK SACHET FILLING MACHINE

Description

Item # 8123 – DOYPACK SACHET FILLING MACHINE
Manufactured by THE FOOD MACHINERY CO
Year 2017

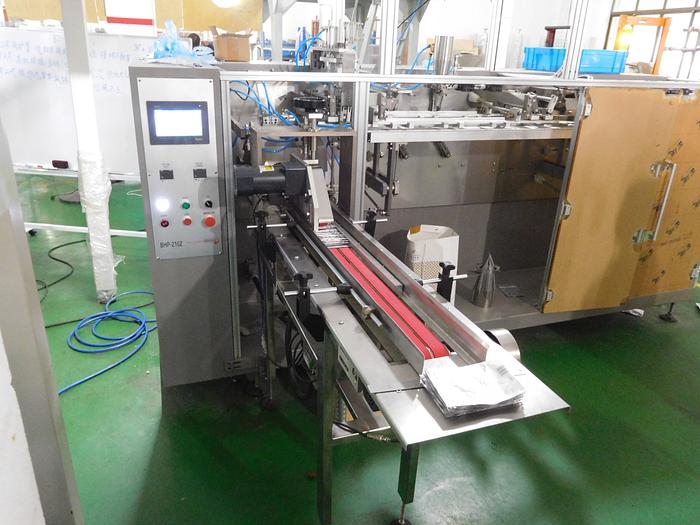

Horizontal machine, walking beam type with Syspal infeed conveyor and throat metal detector
BHP Series Pre-Made Pouch Machine
Simplex: BHP-210Z,
BHP series is designed for pre-made pouches, it features automatic filling, sealing of Doy pack, flat pouch and pouches with zipper, hanging hole or special shape.
ran for 1 year on 1 shift approx. 3 – 5 times a month so the machine has not had a great amount of use.
PRODUCT FEATURES
BHP-210Z packaging main machine standard configuration:
-Pouch Magazine (holds up to 200 pouches)
-No bag – No fill function
-Pouch Picking System
-Zip opening function
-SS304 stainless steel on contact parts
-One Set of Pouch Picking System
-Two Sets of Bottom Opening Devices
-Dual Pouch Opening System
-Single Filling Station – Second station used for gas flushing
-One Set of Pouch Stretching Device
-Three Sets of Top Sealer
-One Set of Walking Beam System
-LCD touch-control operation system
-PLC control system
-Finished product take away conveyor
-Operation manual in English
Optional Extras Function or Device:
-Gas flushing mechanism
Technical Parameters
- Pouch Width 90-210mm
- Pouch Length 110-300mm
- Max Volume 1200ml
- Speed 35-45 pouch/min.
- Accuracy 0.5-2g
- Electricity Consumption 4.5KW
- Air Consumption 0.5m3/min
- Weight 1100KG
- Machine Dimensions (L×W×H) 3200mm×980mm×1400mm
Main Machine Electrical and Pneumatic Components
Main Components Manufacturer
PLC Schneider France
Touch Screen Schneider France
Inverter Schneider France
Main Motor ABB Switzerland
Pneumatic Parts Airtag Taiwan
Vacuum Generator SMC Japan

Specifications

ManufacturerThe Food Machinery Co
ModelBHP-210Z
Year2017
ConditionUsed
Stock Number8123
