Hacos Chocolate Shell Moulding Line

Description

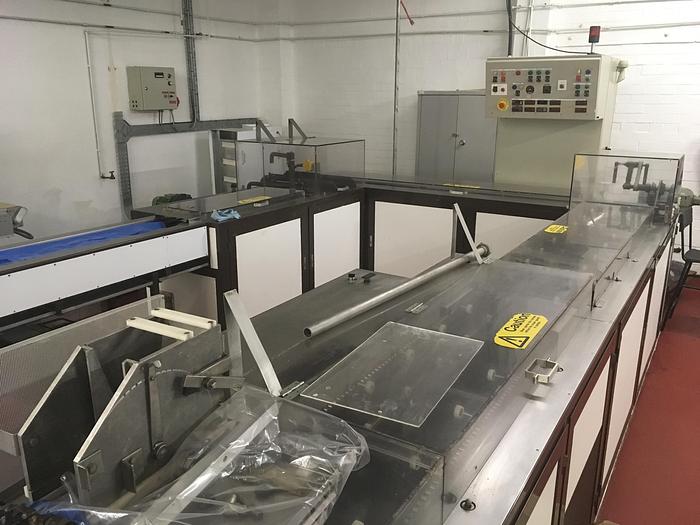

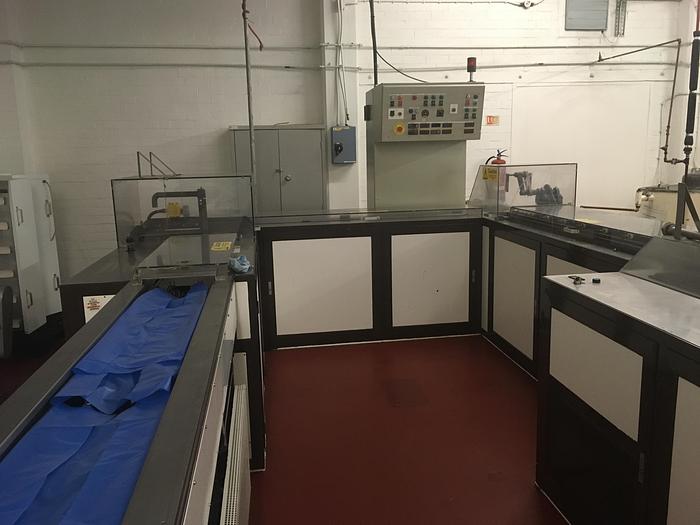

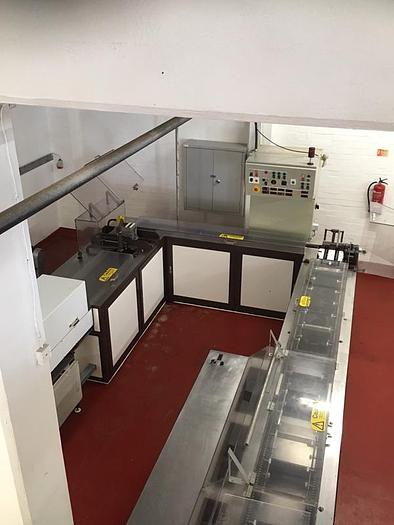

Item # 8101 – CHOCOLATE MOULDING LINE
Semi-automatic moulding plant with built in tempering. For chocolate shell or solid products such as bars and small chocolate articles
For shells, this line makes an outer shell on the first pass through the line. Centre filling would be on another depositor (not included) then the moulds can pass through the line a second time for backing off.
Manufactured by HACOS
Model JD720
Capacity 720 moulds per hour. depending on product up to 200kg/hr
Mould size 275mm x 135mm various heights can be used without any change over
The flow of the machine:
Mould feeding (Manual)
Mould Heating, Transfer
Mould filling, Built in tempering
Mould transfer with vibration to remove air bubbles
1st Mould inverting
Shell forming section
Pre cooling
2nd Mould inverting

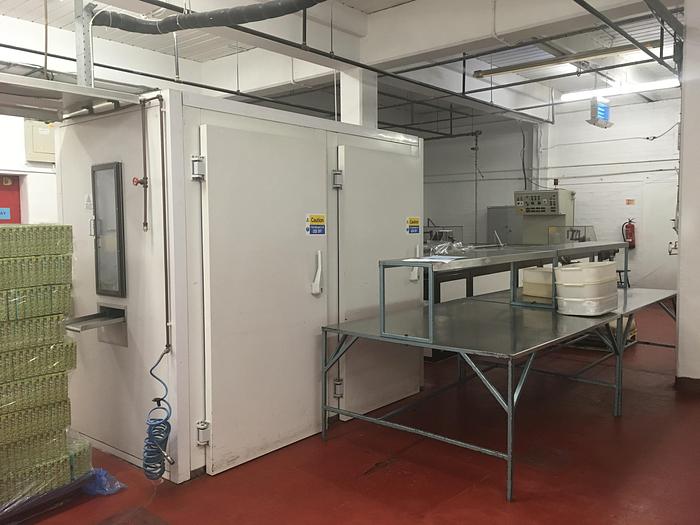

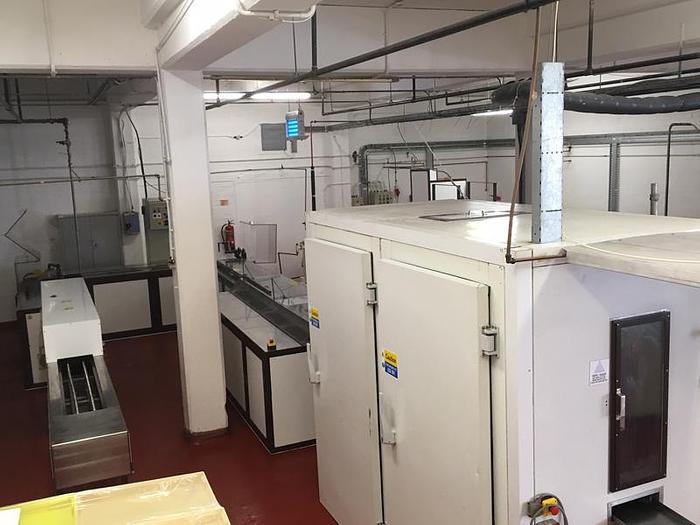

Vertical cooler 2 sections each with evaporators
And own Compressor/Condenser mounted external (different temperatures can be achieved in each section moulds time in cooler 20minutes).
Auto Demoulding.
415v, 50hz, 3ph

Specifications

ManufacturerHacos
ModelJD720
ConditionUsed
Stock Number8101
