Bartom 1m wide ROTARY BISCUIT MOULDER
No longer available
Bartom 1m wide ROTARY BISCUIT MOULDER
Description

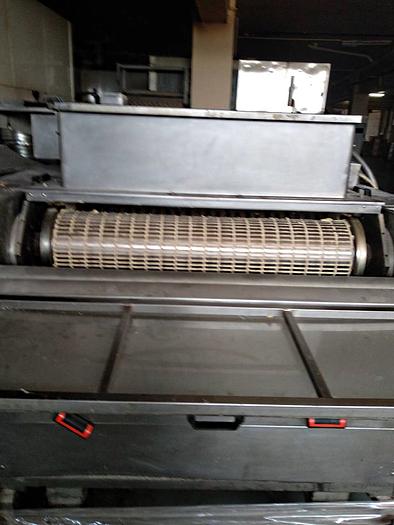

Item # 8017 – ROTARY BISCUIT MOULDER
Manufactured by BARTOM (part of Polin Group)
Model Type REV2
1m wide working width
- 4 different mould sets available
- Working width: 1000mm
- Main frame made of steel sheets, thickness 30mm, with lock to feet
- Stainless steel loading hopper, overturnable or removable in way to allow a
quick replacement of the moulding roller
- Feeding roller made of stainless steel and treated with the niploy process,
diameter 254mm and mounted on eccentric supports, to permit the
adjustment of the light to the moulder from 3 to 10mm
- Vulcanized rubber roller, diameter 260mm, adjustable through hand-wheel
and an eccentric, to permit a quick change of the belt
- Moulding roller diameter 260mm mounted on watering bearings
- Cutting device made of carbon steel with niploy process, double adjust in
height and inclination, through two hand-wheels and a display
- Belt conveyor with pneumatic tensioning device
- Double pneumatic centring of the conveyor belt, right and left
- Two independent motorization with gear-motors driven by two frequency
inverter
- Bent slope of the conveyor made of stainless steel AISI 304, with adjustable
inclination to allow a perfect regulation to detach the biscuits
- Orthogonal belt conveyor for scrap recovering
- Digital displays for speed indication
- Operating panel and electronic controls on the machine
- External cover and cladding panels made of stainless steel AISI 304
Specifications
Manufacturer | Bartom |
Model | REV2 |
Condition | Used |
Stock Number | 8017 |
