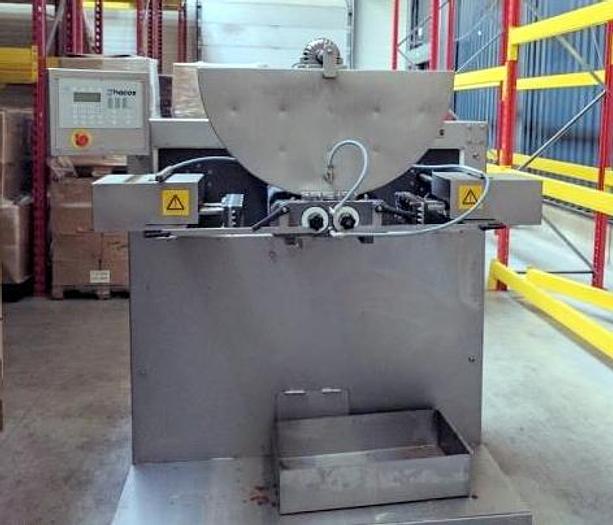

Hacos Chocolate Depositor

Description

Item # 8177 – CHOCOLATE DEPOSITOR
Manufactured by HACOS
Model MDS Twin 1D 60
3x380V 50hz, 20a
Capacity up to 20 moulds per minute
Maximum depositing 2 x 30 nozzles
Maximum deposit per stroke 30 pistons :452.40 cm3 - But as there are 2 sides 60 pistons:904.8 cm3 Per stroke
Hopper to fill two moulds of 275x205 at once with one type of mass.Also including two Hoppers to fill two moulds of 275x205 at once with different type of mass.
- it is possible to deposit with some ingredients up to 3 mm - diameter inner nozzles 1,6 cm (7.5 cm length)
Water Heating and cooling
Spare parts
- Separated hopper - Tumble axis - Stops - Pistons - Depositing plates

Specifications

ManufacturerHacos
ModelMDS TWIN 1d 60
ConditionUsed
Stock Number8177
