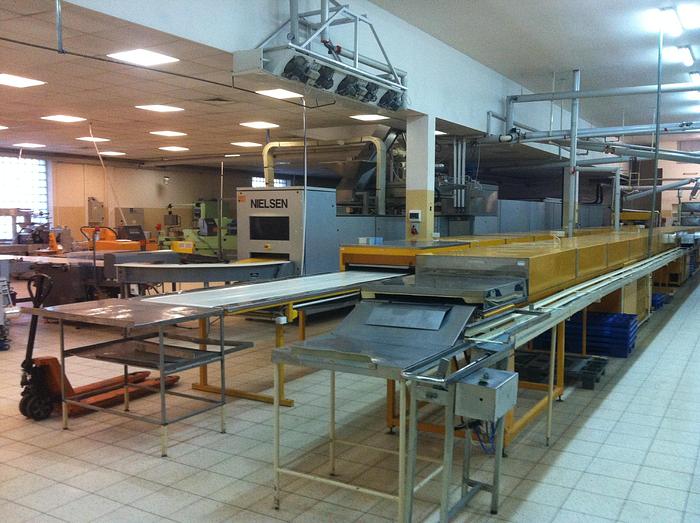

NIELSEN M680 CHOCOLATE MOULDING LINE

Description

Item # 8130 - CHOCOLATE MOULDING LINE
Line is designed to produce plain chocolate and chocolate with ingredients up to 28-30%.
Manufactured by NIELSEN
Model M680,
3 x 400volts, 55kW, 50Hz.
Capacity of up to 15 moulds/min. (around 1000kg/h)
Number of moulds: 325 pcs. (Moulds in one set, including moulds for change – 450 pcs.)
Mould dimension: 724x358x34mm
Cooling time for speed 15 moulds/min: 17,2 min.
The Nielsen M680 is equipped with accessories for following products:
1) Chocolate bar 100g (24 brackets) – bar dimensions 153x74x9mm – plain chocolate or ingredients chocolate
2) Chocolate bar 100g (6 stripes) – bar dimensions 153x74x9mm - plain chocolate or ingredients chocolate
3) Chocolate bar 100g (12 brackets) – bar dimensions 153x74x9mm - plain chocolate or ingredients chocolate
4) Chocolate bar 150g-200g (14 brackets) – bar dimensions 194x92x10mm – plain chocolate or ingredients chocolate
5) On mould from point 4 it is possible to produce chocolate bar SLIM 100g (14 brackets) – bar dimensions 192x90x4,5mm – there are two sets of mould with different logo.
6) Chocolate bar 220g-300g (20 brackets) – bar dimensions 282x90x8-13mm – plain chocolate or ingredients chocolate - there are two sets of mould with different logo.

Specifications

ManufacturerNIELSEN
ModelM680
ConditionUsed
Stock Number8130
