Blister Packer

Item #8572 – BLISTER PACKING MACHINE

Manufactured by UHLMANN

Model B1240,

Forming films: PVC/ PVDC, PA/AL/PVDC, other types of film on request

Lid foil : Alu, other types of film on request

Format currently used in the machine : Forming film- PVC 160mm, Lid foil- Alu 158mm

Blisters 120 x 70mm, with 15 pills in each blister, capsules and tablets in sizes 1,0 and 00.

Machine produces 2 blisters per cycle, optimal speed is 50 cycles.

3Phase, 50hz, 400volts, Fuse rating: 25A, Power:8kV

Machine dimensions: Length 514cm, Width 108cm, Height 204cm, Fill section level 95cm

Weight app 2000kg.  Pneumatic 6-8 bar with consumption of 15 standard m3/h

Cooling water consumption 0.2 m3/h , supply temp 16-18C°, Return 20-25C°

Including all manuals/drawings/diagrams available.  Equipment have been serviced by owners fully skilled engineer. Machine is well looked after and in very good working order.

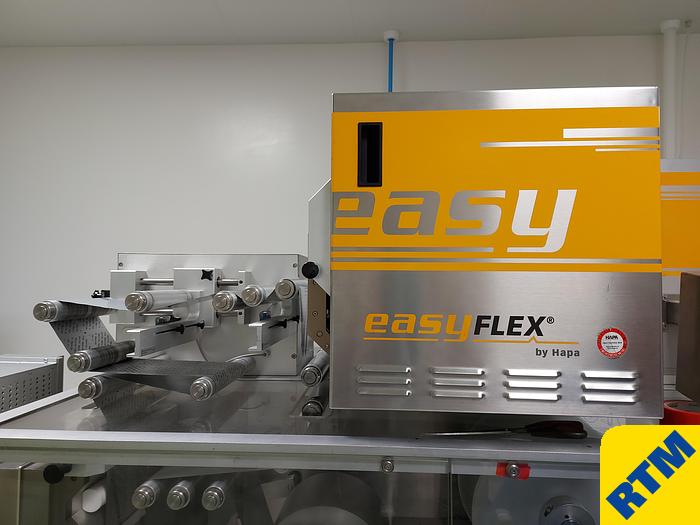

also include the HAPA EasyFlex Printer Unit.
